Jacobsen Aerator GA-30 Parts Maintenance Manual 4139908 2005

Size: 5.46 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Aerator

Type of Manual: Parts List, Maintenance Manual

Model: Jacobsen Aerator

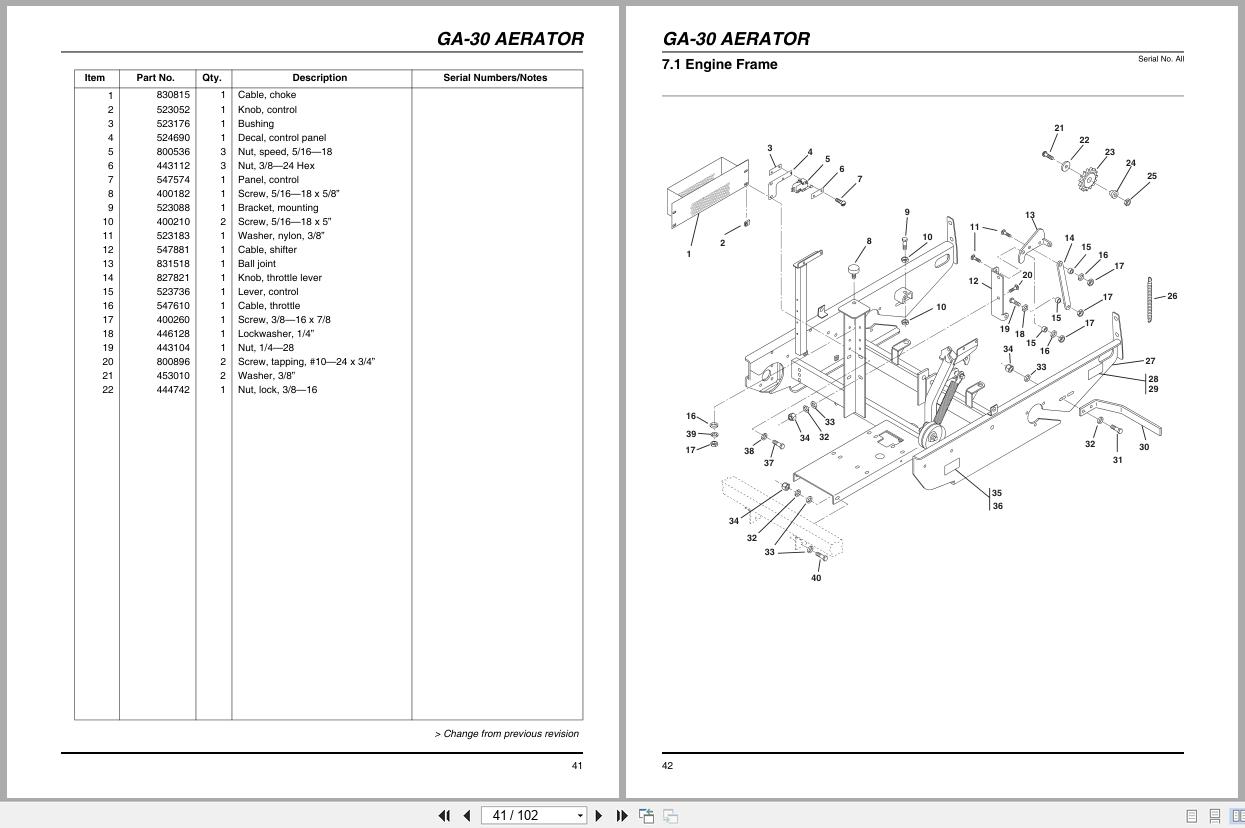

88118 – GA-30 Aerator with Steering Wheel

88119 – GA-30 Aerator with Steering Handle

Engine: Kohler CH18S

Part Number: 4139908

Publication Date: 2005

Number of Pages: 102 Pages

10 USD

Tags: GA-30, Jacobsen Aerator Manual, Jacobsen Parts Maintenance Manual

Description

Description

Contents:
Safety
1.1 Operating Safety
1.2 Important Safety Notes
2.1 Product Identification
2.2 Kohler CH 18 S Engine
2.3 aerator

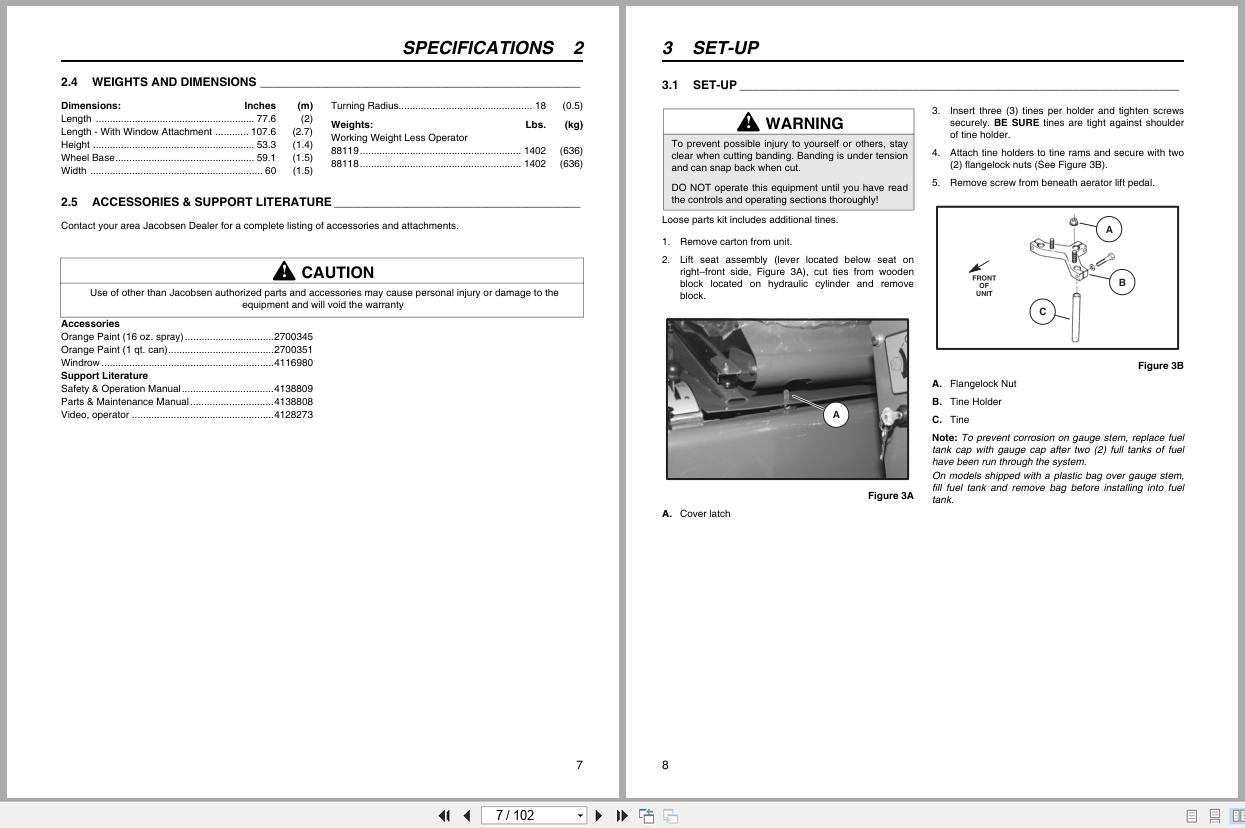

2.4 Weights and Dimensions
2.5 Accessories & Support Literature
3.1 Set-Up
4.1 General
4.2 Drive Belt Adjustment
4.3 Brake Adjustment
4.4 Hydrostat Pedal and Linkage Adjustment
4.5 Steering Wheel Installation and Adjustment
4.6 Spacing Control Adjustment
4.7 Reversing Gearbox Proper Gear Backlash
4.8 Reversing Gear Box Adjustment
4.9 Torque Specification
5.1 General
5.2 Engine
5.3 Engine Oil
5.4 Fuel
5.5 Fuel System
5.6 Battery
5.7 Jump Starting
5.8 Charging Battery
5.9 Hydraulic Hoses
5.10 Hydraulic Oil and Filter
5.11 Electrical System
5.12 Muffler and Exhaust
5.13 Aerator Head
5.14 Sealed chain maintenance
5.15 Windrow Attachment (Accessory)
5.16 Motor Drive Sprocket
5.17 Tires
5.18 Wheel Mounting Procedure
5.19 Care and Cleaning
5.20 Storage
6.1 General Troubleshooting
6.2 Drive Belt (Breaking)
6.3 Leaving Cores in the Turf
6.4 Return Link Hitting Reversing Gear Box
6.5 Unit Will Not Move
6.6 System Noisy
6.7 Sluggish Acceleration or Deceleration
6.8 Hydraulic Oil Hot
6.9 Correction of Tufting Problem
6.10 Hole Spacing Inconsistent
6.11 Engine Will Not Start
6.12 Aerator Ram Timing for Reduced Tufting
6.13 Timing For Smoother Ride (Fairway Aeration)
6.14 Timing For Reduced Tufting (Green Aeration)
7.1 General
7.2 Lubrication Chart
7.3 Maintenance Charts
9.1 Table Of Contents
