Name: Jacobsen Diesel Engine V2403-M-DI-E3B-TNX-1 D1803-M-DI-E3B-TNX-1 Engine Parts Manual 4358529-A 2016
SKU: 646250
Availability: InStock

Jacobsen Diesel Engine V2403 M DI E3B TNX 1 D1803 M DI E3B TNX 1 Engine Parts Manual 4358529 A 2016 (1)

Jacobsen Diesel Engine V2403 M DI E3B TNX 1 D1803 M DI E3B TNX 1 Engine Parts Manual 4358529 A 2016 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Diesel Engine V2403-M-DI-E3B-TNX-1 D1803-M-DI-E3B-TNX-1 Engine Parts Manual 4358529-A 2016

Size: 4.59 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Diesel Engine

Type of Manual: Engine Parts Manual

Model: Jacobsen Diesel Engine

V2403-M-DI-E3B-TXN-1 : 68019 – Jacobsen Lightweight Fairway Mower, V2403-T4I Engine Option

D1803-M-DI-E3B-TXN-1 : 68019 – Jacobsen Lightweight Fairway Mower, D1803-T4I Engine Option

Part Number: 4358529-A

Publication Date: 2016

Number of Pages: 46 Pages

10 USD

Tags: D1803-M-DI-E3B-TNX-1, Jacobsen Diesel Engine Manual, Jacobsen Engine Parts Manual, V2403-M-DI-E3B-TNX-1

Description

Description

Contents:

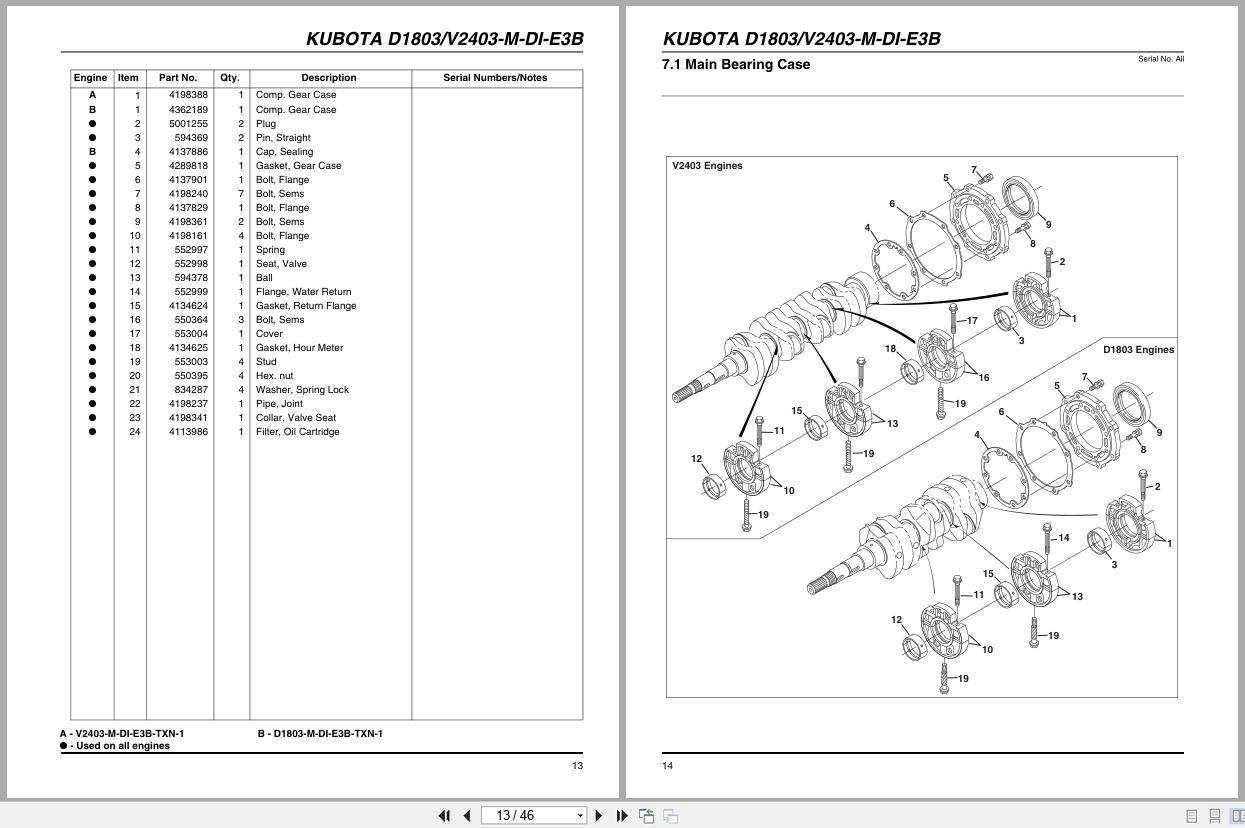

1.1 Crankcase
2.1 Oil Pan
3.1 Cylinder Head
4.1 Rocker Arm Shaft
5.1 Head Cover
6.1 Gear Case
7.1 Main Bearing Case
8.1 Piston and Crankshaft
9.1 Camshaft and Idle Gear
10.1 Flywheel Housing
11.1 Starter Breakdown
12.1 Fuel Camshaft
13.1 Injection Pump
14.1 Idle Apparatus
15.1 Engine Stop Lever
16.1 Speed Control Plate
17.1 Governor
18.1 Nozzle Holder
19.1 Fuel Filter
20.1 Engine Belt
21.1 Alternator Breakdown
22.1 Water Flange
23.1 Water Pump
24.1 Inlet Manifold
25.1 Exhaust Manifold
26.1 Miscellaneous
