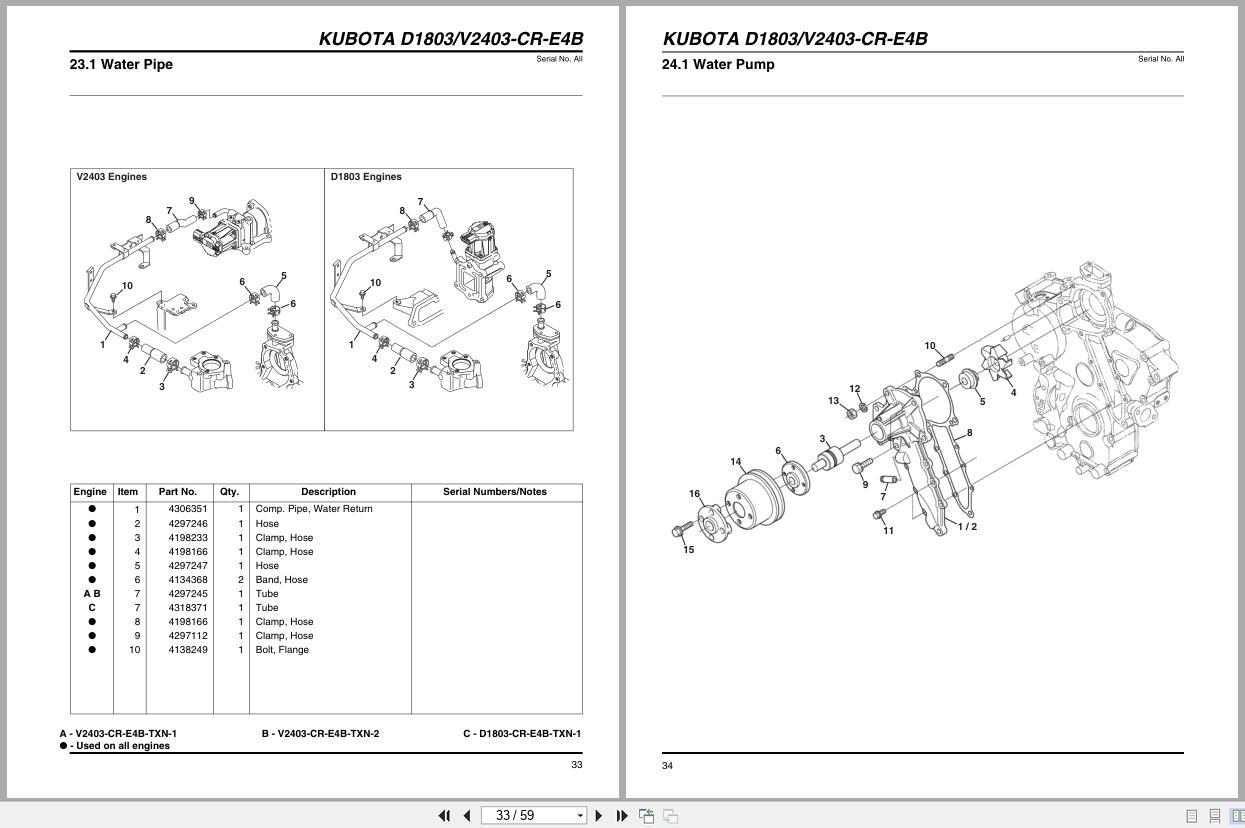

Jacobsen Engine V2403 CR E4B TXN 1 to D1803 CR E4B TXN 1 Parts Manual 4299117 A 2016 (1)

Jacobsen Engine V2403 CR E4B TXN 1 to D1803 CR E4B TXN 1 Parts Manual 4299117 A 2016 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Engine V2403-CR-E4B-TXN-1 to D1803-CR-E4B-TXN-1 Parts Manual 4299117-A 2016

Size: 7.08 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Diesel Engine

Type of Manual: Parts Manual

Model: Jacobsen Diesel Engine

V2403-CR-E4B-TXN-1:

68132 – Jacobsen AR522

V2403-CR-E4B-TXN-2:

68011 Jacobsen LF550-H 2WD

68012 Jacobsen LF550-H 4WD

68013 Jacobsen LF570-H 2WD

68014 Jacobsen LF570-H 4WD

68019 Jacobsen Lightweight Fairway Mower, V2403-T4F Engine Option

D1803-CR-E4B-TXN-1:

68015 Jacobsen LF550 2WD

68016 Jacobsen LF550 4WD

68017 Jacobsen LF570 2WD

68018 Jacobsen LF570 4WD

68019 Jacobsen Lightweight Fairway Mower, D1803-T4F Engine Option

Part Number: 4299117-A

Publication Date: 2016

Number of Pages: 59 Pages

10 USD

Tags: D1803-CR-E4B-TXN-1, Jacobsen Engine Manual, Jacobsen Parts Manual, V2403-CR-E4B-TXN-1

Description

Description

Contents:
1.1 Crankcase
2.1 Oil Pan
