Jacobsen Fairway Mower SLF-1880 Parts Maintenance Manual 4160164-C 2014

Size: 6.18 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Fairway Mower

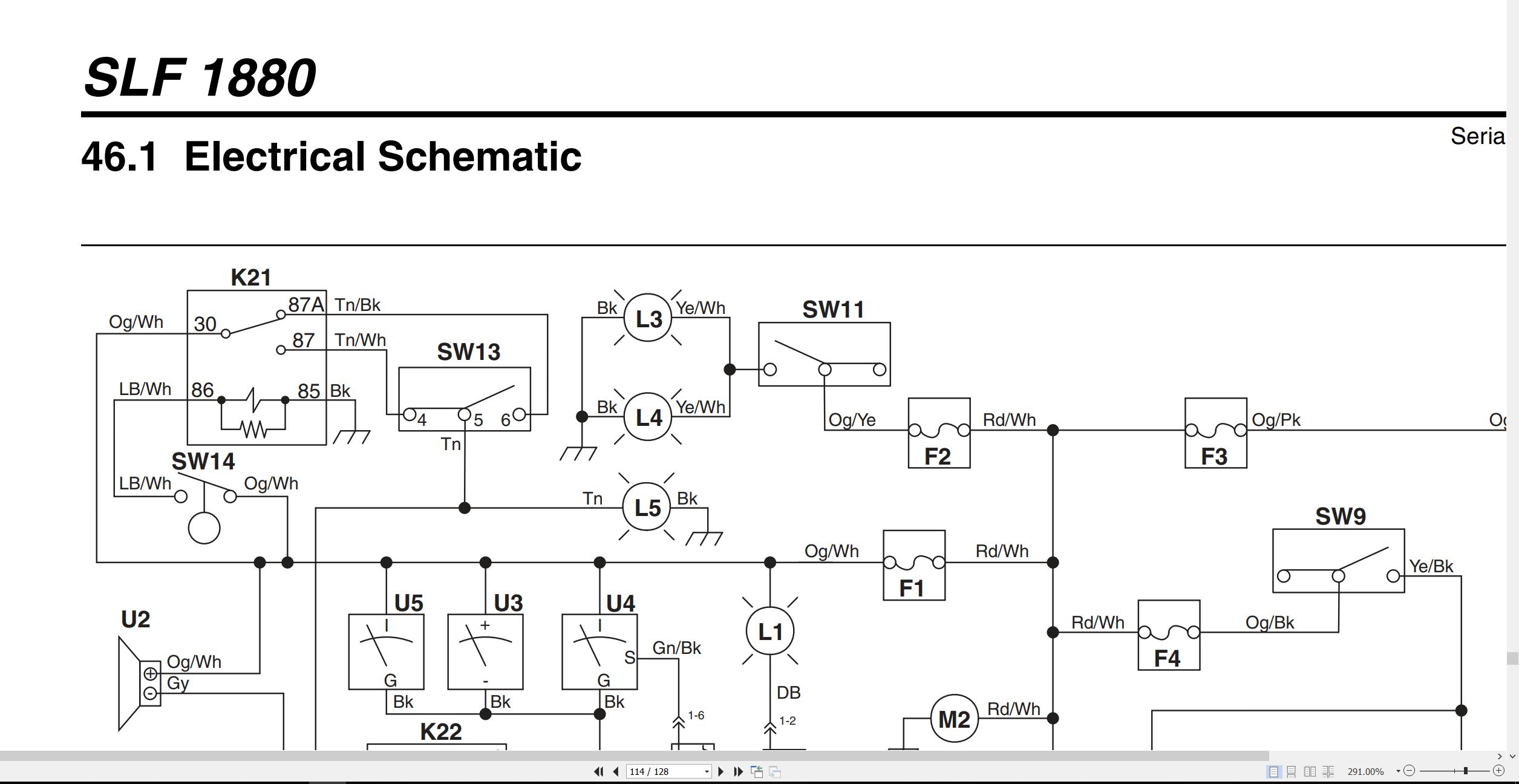

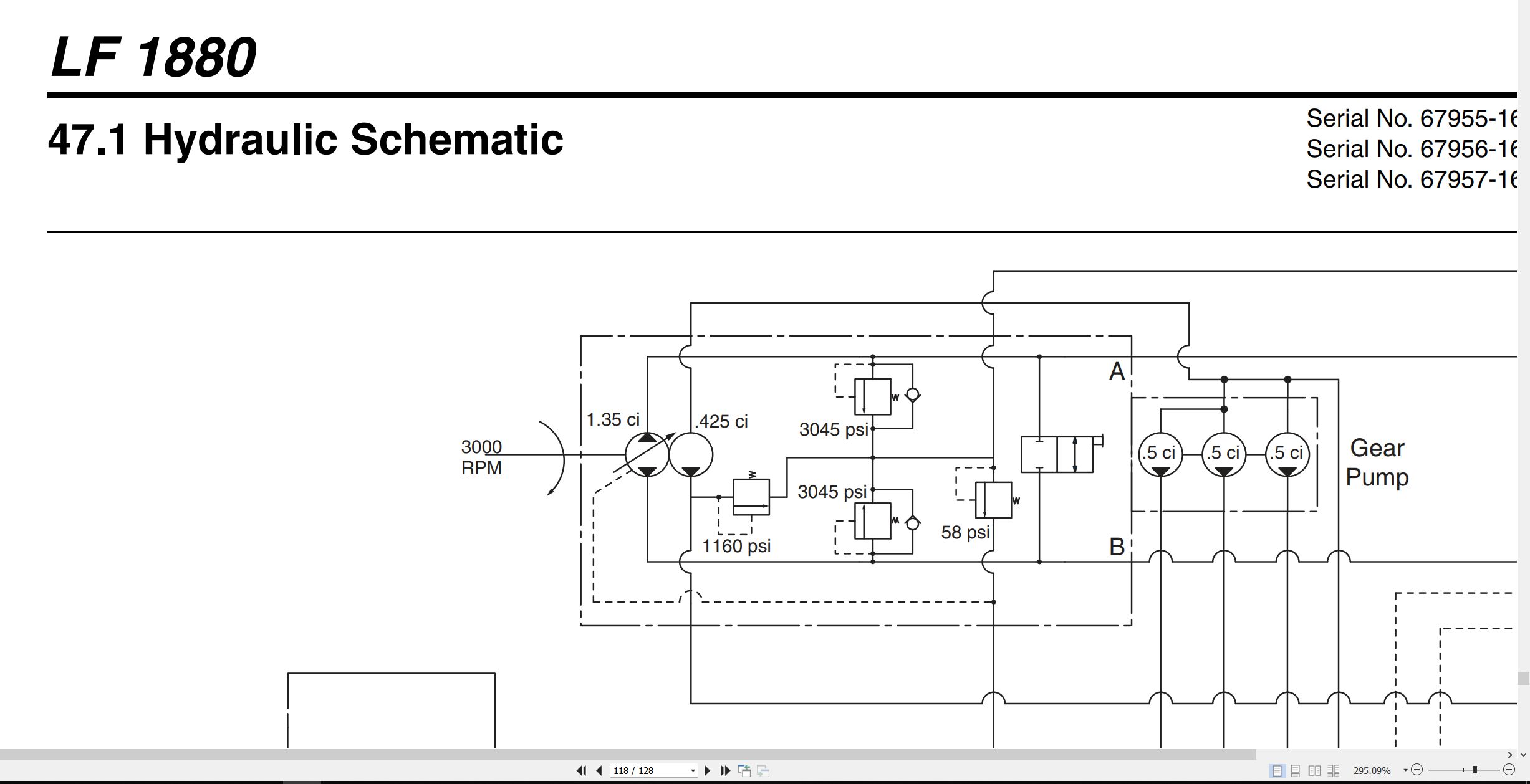

Type of Manual: Parts List, Maintenance Manual, Wiring Diagram, Hydraulic Diagram

Model: Jacobsen Super LF 1880 Fairway Mower with ROPS

67955 – Engine Kubota D1105-E3B 2WD

67956 – Engine Kubota D1105-E3B 4WD

67957 – Engine Kubota D1105-T-E3B 4WD

Part Number: 4160164-C

Publication Date: 2014

Number of Pages: 128 Pages

10 USD

Tags: Jacobsen Fairway Mower Manual, Jacobsen Parts Maintenance Manual, SLF-1880

Description

Description

Contents:
Safety
1.1 Operating Safety
1.2 Important Safety Notes
Specifications
2.1 Product Identification
2.2 Kubota D1105-E Engine
2.3 Kubota D1105-TE Engine
2.4 Cutting Units
2.5 Mower
2.6 Weights and Dimensions
2.7 Accessories & Support Literature
2.8 Declaration of Conformity

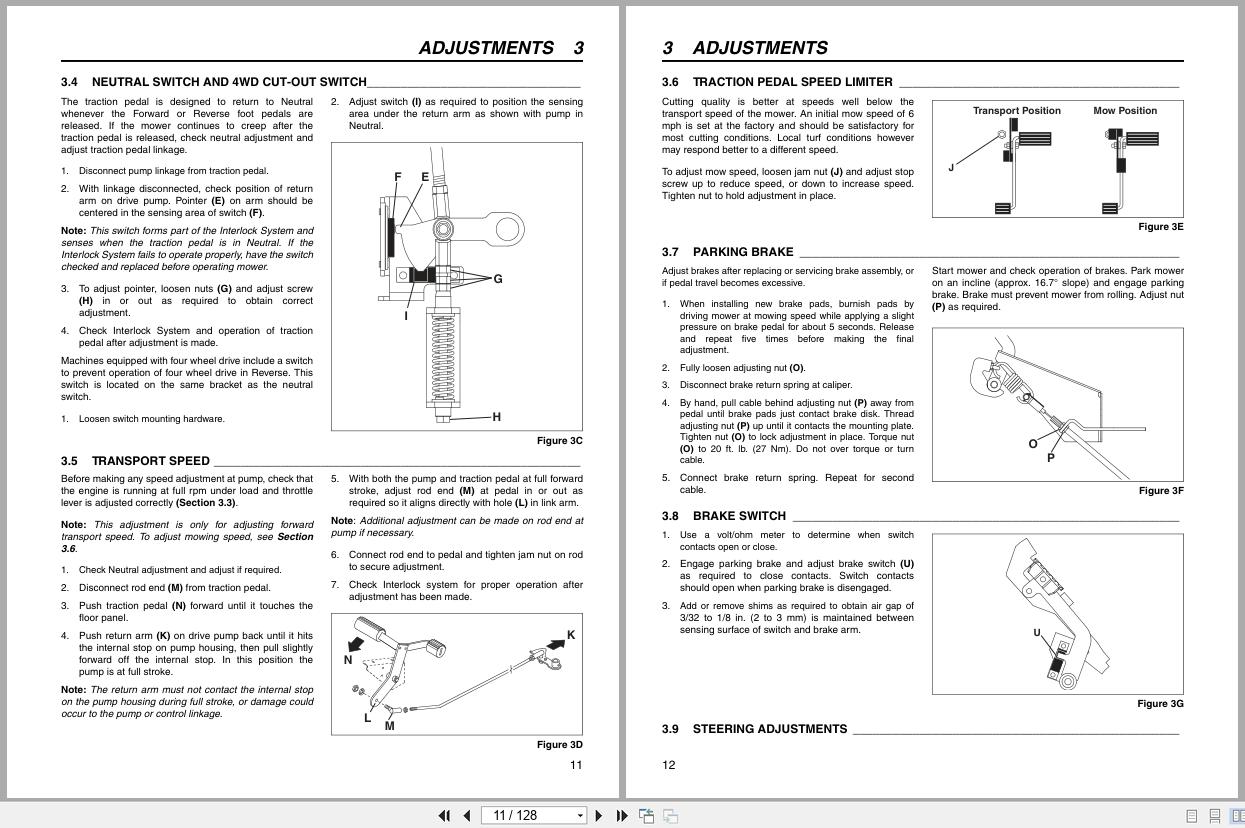

Adjustments
3.1 General
3.2 Engine Belt
3.3 Throttle
3.4 Neutral Switch and 4WD Cut-Out Switch
3.5 Transport Speed
3.6 Traction Pedal Speed Limiter
3.7 Parking Brake
3.8 Brake Switch
3.9 Steering Adjustments
3.10 Lift Limit Switch
3.11 Bedknife-To-Reel
3.12 Bedknife Adjustment
3.13 Cutting Height
3.14 Reel Bearing
3.15 Flash Attach
3.16 Down Pressure
3.17 Torque Specification
3.18 Specific Torque
Maintenance
4.1 General
4.2 Engine
4.3 Engine Oil
4.4 Air Filter
4.5 Fuel
4.6 Fuel System
4.7 Battery
4.8 Jump Starting
4.9 Charging Battery
4.10 Hydraulic Hoses
4.11 Hydraulic Oil and Filters
4.12 Electrical System
4.13 Muffler and Exhaust
4.14 Tires
4.15 Wheel Mounting Procedure
4.16 Roll Over Protective Structure (ROPS)
4.17 Care and Cleaning
4.18 Radiator
4.19 Backlapping
4.20 Storage
Troubleshooting
5.1 General Troubleshooting
Maintenance & Lubrication Charts
6.1 General
6.2 Lubrication Chart
6.3 Maintenance Charts

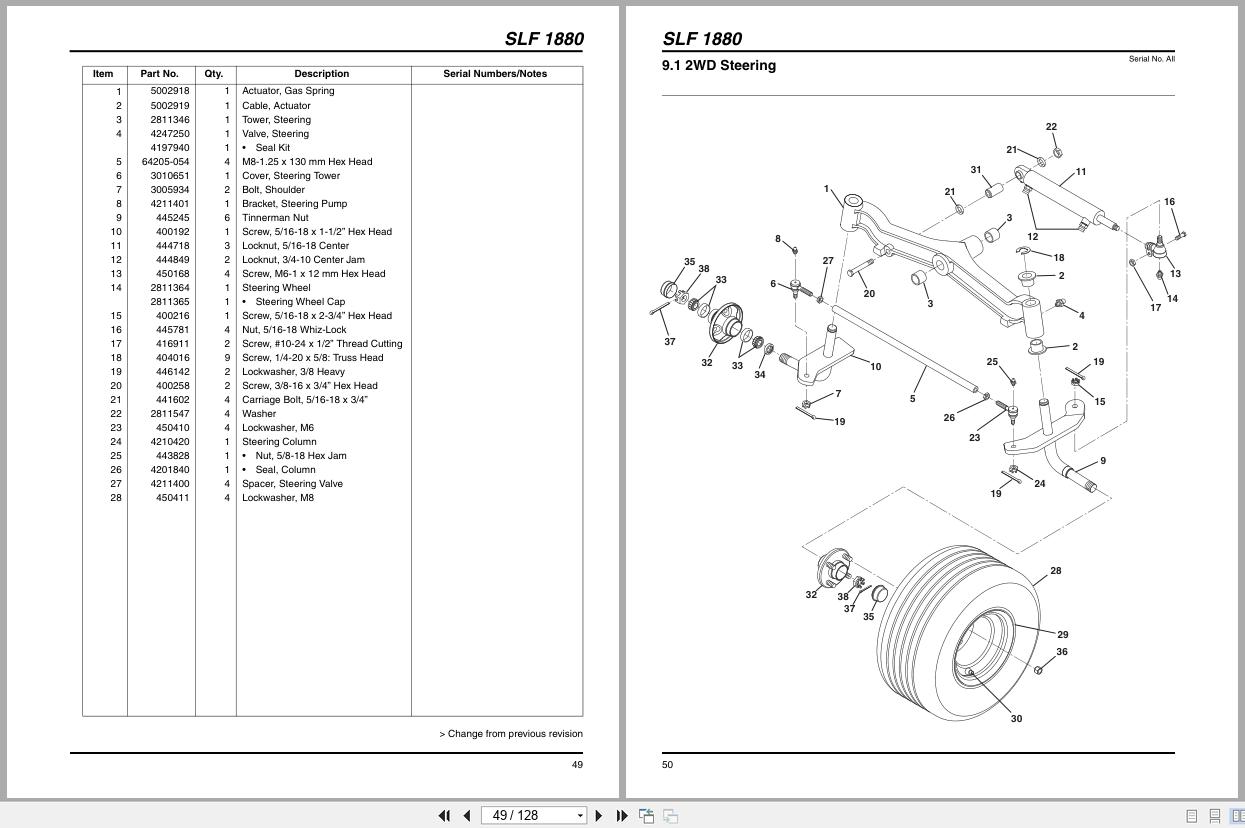

Parts Catalog
7.1 How To Use The Parts Catalog
7.2 To Order Parts
7.3 Parts Catalog Table of Contents
