Name: Jacobsen Greens Mower ECLIPSE 322 Engine Parts Manual 4304455-A 2014
SKU: 646336
Availability: InStock

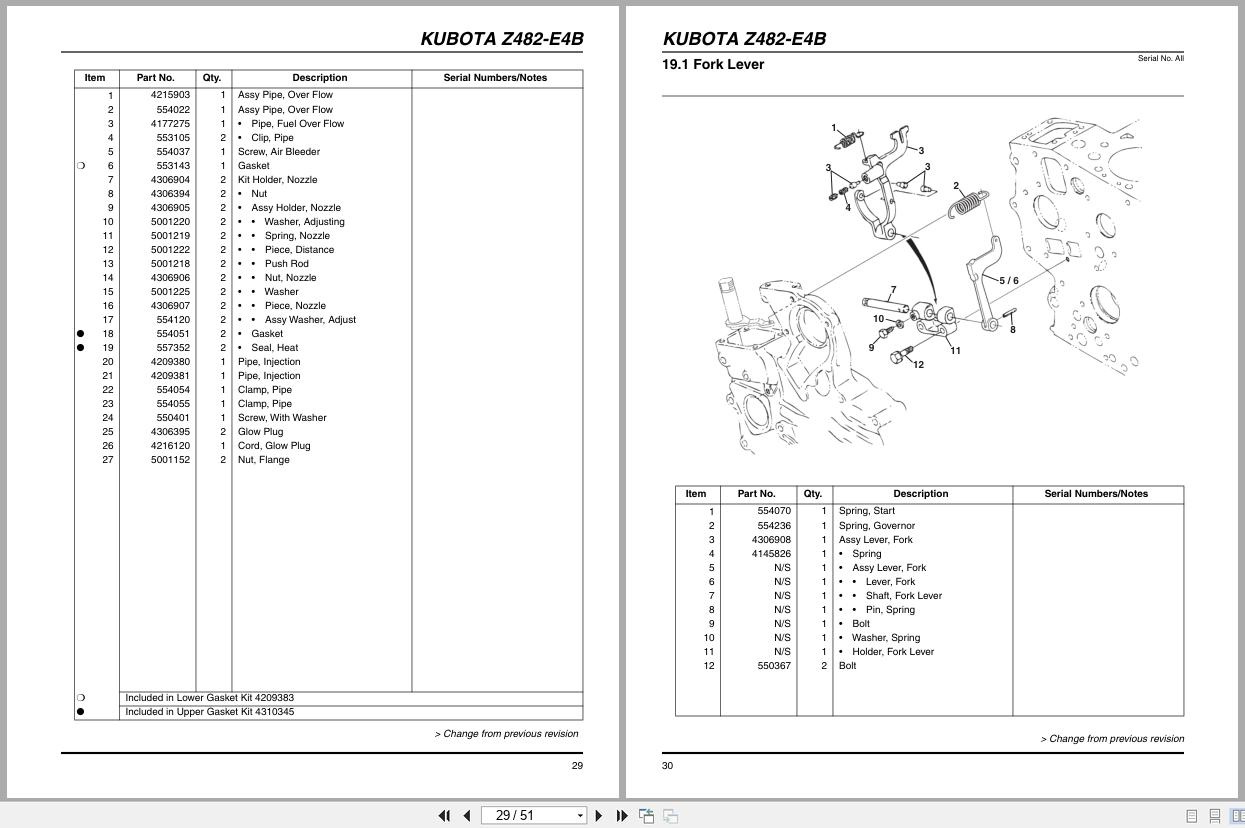

Jacobsen Greens Mower ECLIPSE 322 Engine Parts Manual 4304455 A 2014 (1)

Jacobsen Greens Mower ECLIPSE 322 Engine Parts Manual 4304455 A 2014 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Greens Mower ECLIPSE 322 Engine Parts Manual 4304455-A 2014

Size: 3.19 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Greens Mower

Type of Manual: Engine Parts Manual

Model: Jacobsen Z482-E4B-TXRN-1 For Jacobsen Eclipse 322 Greens Mower

Part Number: 4304455-A

Publication Date: 2014

Number of Pages: 51 Pages

10 USD

Tags: ECLIPSE 322, Jacobsen Engine Parts Manual, Jacobsen Greens Mower Manual

Description

Description

Contents:
1.1 Gasket Kits
2.1 Crankcase
3.1 Oil Pan
4.1 Cylinder Head
5.1 Valve and Rocker Arm
6.1 Cylinder Head Cover
7.1 Oil Gauge
8.1 Gear Case
9.1 Main Bearing Case
10.1 Camshaft and Idle Gear Shaft
11.1 Piston and Crankshaft
12.1 Flywheel and Starter
13.1 Fuel Camshaft and Governor Shaft
14.1 Starter Breakdown
15.1 Idle Apparatus
16.1 Injection Pump
17.1 Speed Control Plate
18.1 Nozzle Holder and Glow Plug
19.1 Fork Lever
20.1 Fuel Filter and Pump
21.1 Fan and Pulley
22.1 Alternator and Pulley
23.1 Alternator Breakdown
24.1 Water Flange and Thermostat
25.1 Water Pump
26.1 Water Pipe
27.1 Reserve Tank
28.1 Radiator
29.1 Inlet Manifold
30.1 Air Cleaner
31.1 Exhaust Manifold
32.1 Muffler
33.1 Electrical Connector
