Name: Jacobsen Greens Mower ECLIPSE2 Dealer Manual 4260474-GB 2014
SKU: 646339
Availability: InStock

Jacobsen Greens Mower ECLIPSE2 Dealer Manual 4260474 GB 2014 (1)

Jacobsen Greens Mower ECLIPSE2 Dealer Manual 4260474 GB 2014 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Greens Mower ECLIPSE2 Dealer Manual 4260474-GB 2014

Size: 3.96 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Greens Mower

Type of Manual: Dealer Manual

Model: Jacobsen ECLIPSE2 InCommand Greens Mower

63334 – Eclipse 2 118, 18” 11 Blade Reel

63343 – Eclipse 2 118, 18” 11 Blade Reel

63335 – Eclipse 2 118, 18” 15 Blade Reel

63344 – Eclipse 2 118, 18” 15 Blade Reel

63336 – Eclipse 2 118F, Floating 18” 11 Blade Reel

63345 – Eclipse 2 118F, Floating 18” 11 Blade Reel

63337 – Eclipse 2 118F, Floating 18” 15 Blade Reel

63346 – Eclipse 2 118F, Floating 18” 15 Blade Reel

63338 – Eclipse 2 122, 22” 11 Blade Reel

63347 – Eclipse 2 122, 22” 11 Blade Reel

63339 – Eclipse 2 122, 22” 15 Blade Reel

63348 – Eclipse 2 122, 22” 15 Blade Reel

63340 – Eclipse 2 122F, Floating 22” 11 Blade Reel

63349 – Eclipse 2 122F, Floating 22” 11 Blade Reel

63341 – Eclipse 2 122F, Floating 22” 15 Blade Reel

63350 – Eclipse 2 122F, Floating 22” 15 Blade Reel

63342 – Eclipse 2 126, 26” 7 Blade Reel

63351 – Eclipse 2 126, 26” 7 Blade Reel

Part Number: 4260474-GB

Publication Date: 2014

Number of Pages: 44 Pages

10 USD

Tags: ECLIPSE2, Jacobsen Dealer Manual, Jacobsen Greens Mower Manual

Description

Description

Contents:
Safety
1.1 How to Operate Safely
1.2 Important Safety Notes
Controls
2.1 Icons
2.2 Handle Controls
2.3 LCD Display
2.4 Frequency of Cut
2.5 Gas Power Module Controls
2.6 Battery Power Module Controls
Set Up
3.1 General
3.2 Initial inspection
3.3 Operating Checks
3.4 Interlock System (O.P.C.)
3.5 Transport Wheels (Optional)
Battery Power Module Set Up
4.1 Safety
4.2 General
4.3 Batteries
4.4 Battery Installation
4.5 Battery Charger
4.6 Replacing Battery Pack
Gas Engine Power Module Set Up
5.1 Engine
5.2 Engine Oil
5.3 Engine Oil Change
5.4 Engine Speed
5.5 Fuel

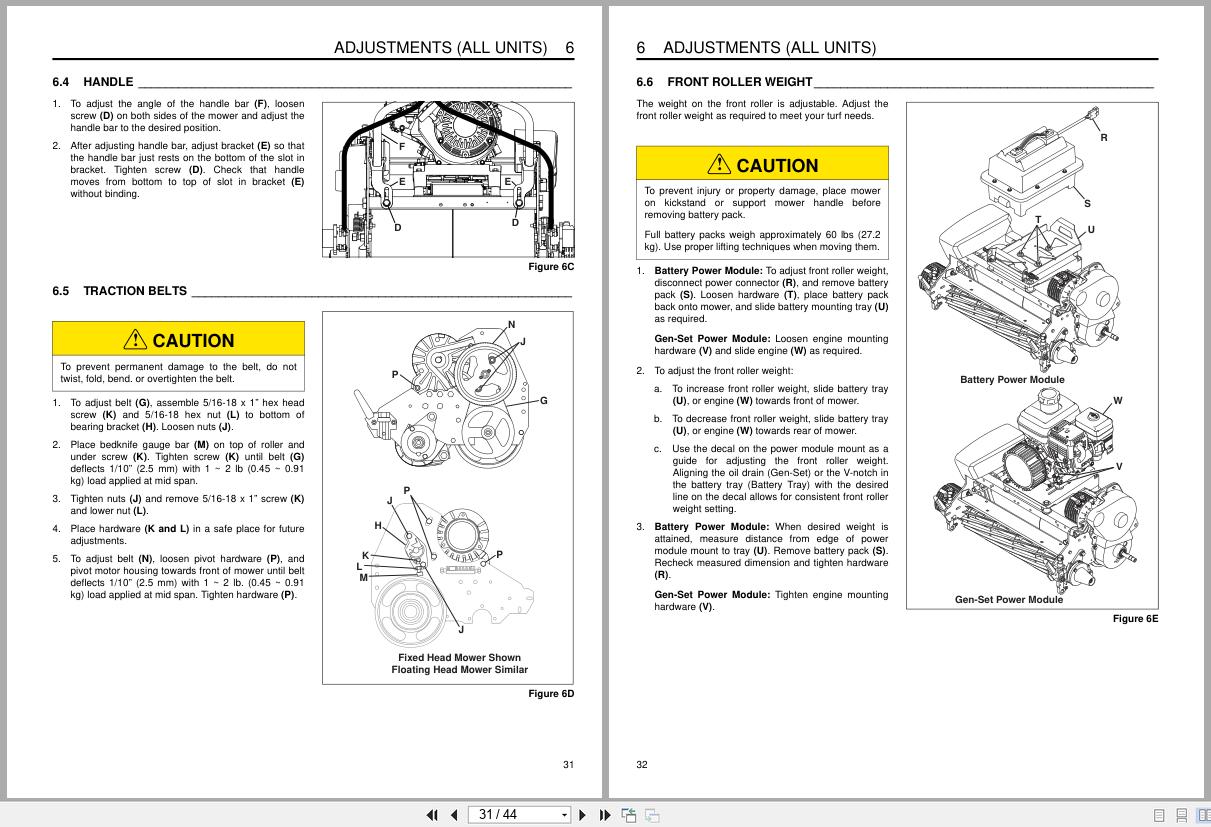

Adjustments (All Units)
6.1 General
6.2 Brake
6.3 Speed Paddle Stops
6.4 Handle
6.5 Traction Belts
6.6 Front Roller Weight
6.7 Torque Specification
Fixed Head Reel Adjustments
7.1 General
7.2 Reel To Bedknife
7.3 Bedknife Adjustment
7.4 Cutting Height
Floating Head Reel Adjustments
8.1 General
8.2 Bedknife-To-Reel
8.3 Bedknife Adjustment
8.4 Reel Bearing
8.5 Cutting Height
8.6 Reel Assembly Removal
Troubleshooting
9.1 General
Maintenance & Lubrication Charts
10.1 General
10.2 Maintenance Chart
10.3 Lubrication Chart
Notes
Pre Delivery Checklist
12.1 Pre-Delivery Checklist
