Jacobsen Greens Mower ECLIPSE2 Parts Manual 10083760-A

Jacobsen Greens Mower ECLIPSE2 Parts Manual 10083760 A (1)
Jacobsen Greens Mower ECLIPSE2 Parts Manual 10083760 A (2)
Jacobsen Greens Mower ECLIPSE2 Parts Manual 10083760 A (1)
Jacobsen Greens Mower ECLIPSE2 Parts Manual 10083760 A (2)
✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Greens Mower ECLIPSE2 Parts Manual 10083760-A

Size: 3.69 MB
Format: PDF
Language: English
Brand: Jacobsen
Type of Machine: Greens Mower
Type of Manual: Parts Manual
Model: Jacobsen ECLIPSE2 InCommand Greens Mower
Honda GX120 – Gen-Set
Series: CAR, AAV, CAQ, AAW, CAP, AAY
063336 – 118F, Floating 18” 11 Blade Reel Option, Gen-Set
063337 – 118F, Floating 18” 15 Blade Reel Option, Gen-Set
063338 – 122, 22” 11 Blade Reel Option, Gen-Set
063339 – 122, 22” 15 Blade Reel Option, Gen-Set
063340 – 122F, Floating 22” 11 Blade Reel Option, Gen-Set
063341 – 122F, Floating 22” 15 Blade Reel Option, Gen-Set
063349 – 122F, Floating 22” 11 Blade Reel Option, Battery Pack
063350 – 122F, Floating 22” 15 Blade Reel Option, Battery Pack
063342 – 126, 26” 7 Blade Reel, Gen-Set
Part Number: 10083760-A
Number of Pages: 46 Pages

10 USD

Tags: , ,
  • Description

Description

Contents:
1.1 How To Use The Parts Catalog
1.2 To Order Parts
Eclipse 2
Eclipse 2
1.1 Handle Covers
Eclipse 2
Eclipse 2
2.1 Handle Assembly
3.1 Handle to Frame Mount
Eclipse 2
Eclipse 2
Eclipse 2
Eclipse 2
4.1 Brake Assembly
Eclipse 2
Eclipse 2
5.1 Power Module Mounting Plate
Eclipse 2
Eclipse 2
6.1 Lower Unit
Eclipse 2
Eclipse 2
7.1 Frame
Eclipse 2
Eclipse 2

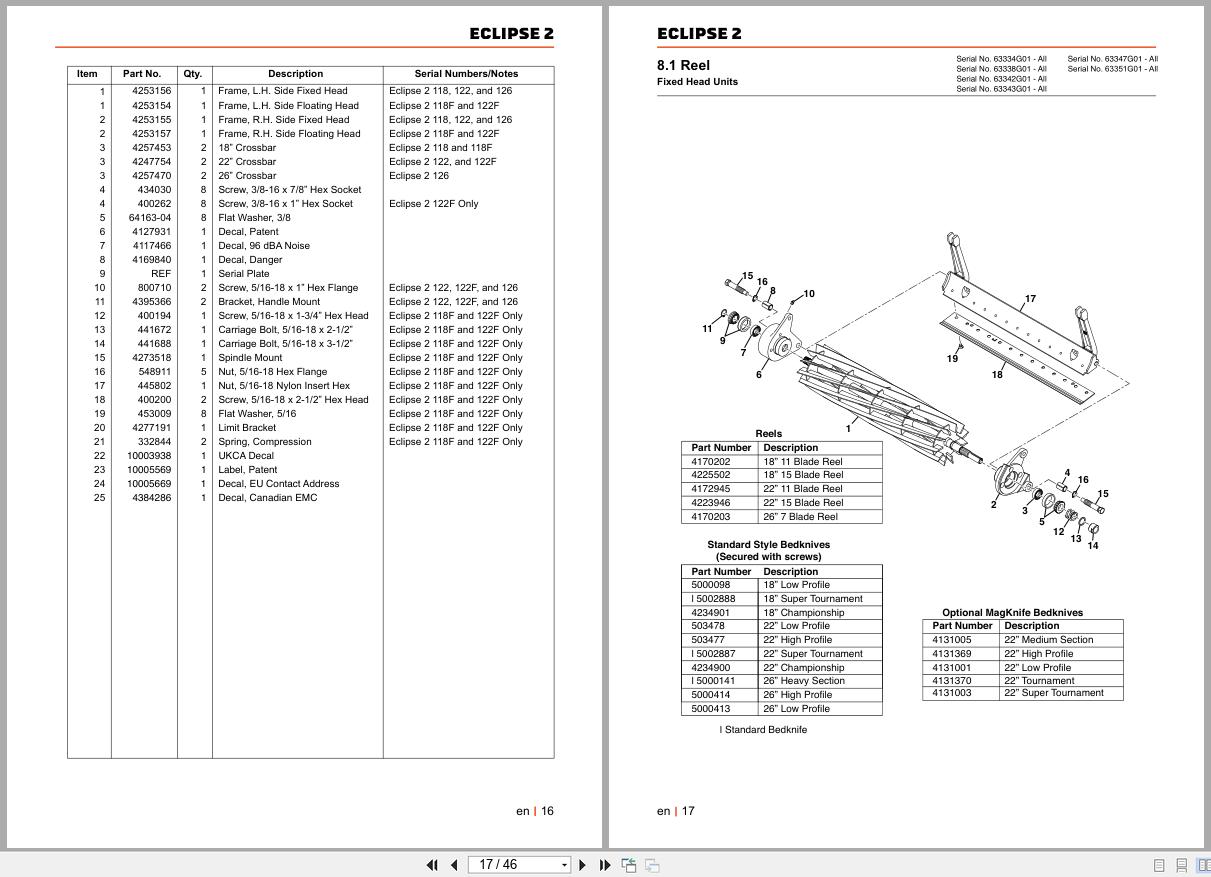

8.1 Reel
Eclipse 2
Eclipse 2
9.1 Grass Shield and Roller Brackets
Eclipse 2
Eclipse 2
10.1 Floating Head Reel Connection
Eclipse 2
Eclipse 2
11.1 Inner Reel Assembly
Eclipse 2
Eclipse 2
12.1 Outer Reel Assembly
Eclipse 2
Eclipse 2
13.1 Belts and Drive Motors
Eclipse 2
Eclipse 2
14.1 Differential
Eclipse 2
Eclipse 2
15.1 Harness Routing
Eclipse 2
Eclipse 2
16.1 Genset Power Source
Eclipse 2
Eclipse 2
17.1 Battery Power Source
Eclipse 2
Eclipse 2
18.1 Battery Case
Eclipse 2
Eclipse 2
Eclipse 2
19.1 Electrical Schematic
