Name: Jacobsen Greens Mower GP400 Trueset Reels Instruction Sheet 4258371-A 2012
SKU: 646368
Availability: InStock

Jacobsen Greens Mower GP400 Trueset Reels Instruction Sheet 4258371 A 2012 (1)

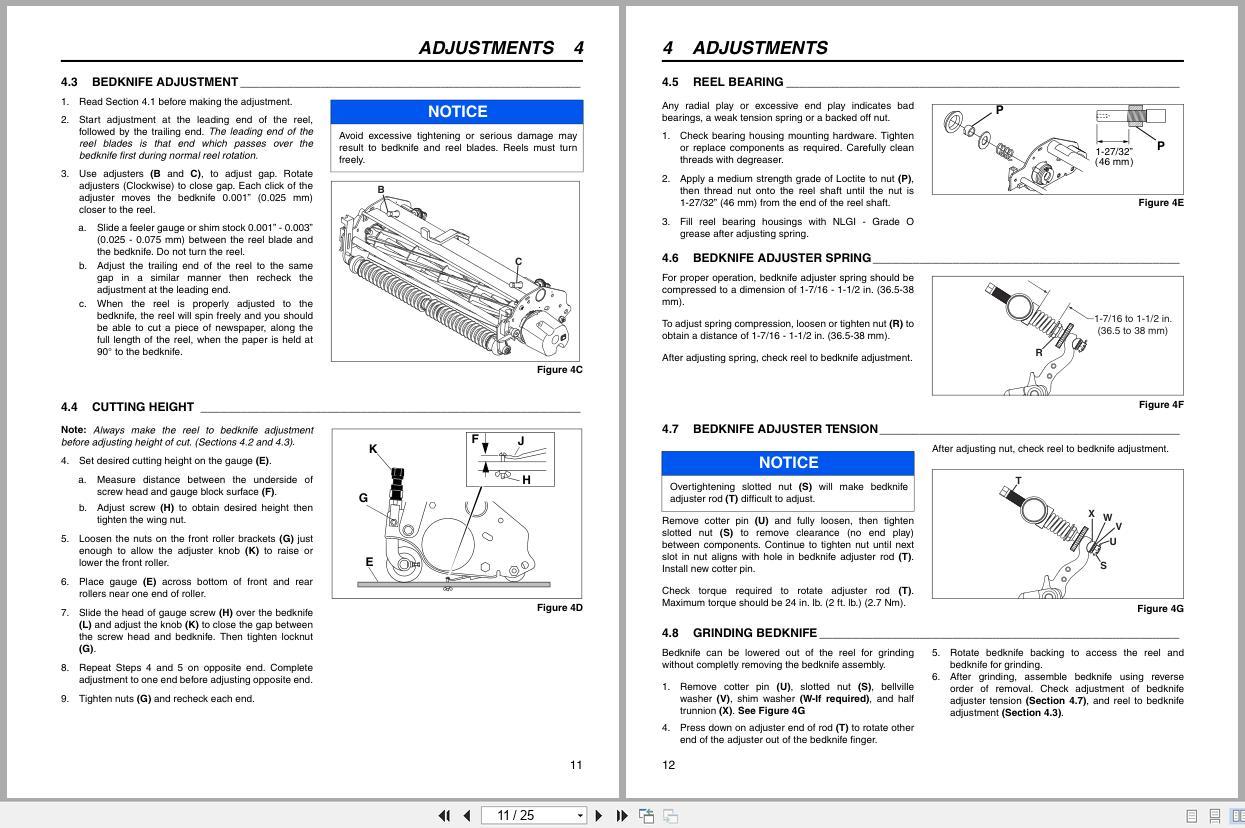

Jacobsen Greens Mower GP400 Trueset Reels Instruction Sheet 4258371 A 2012 (2)

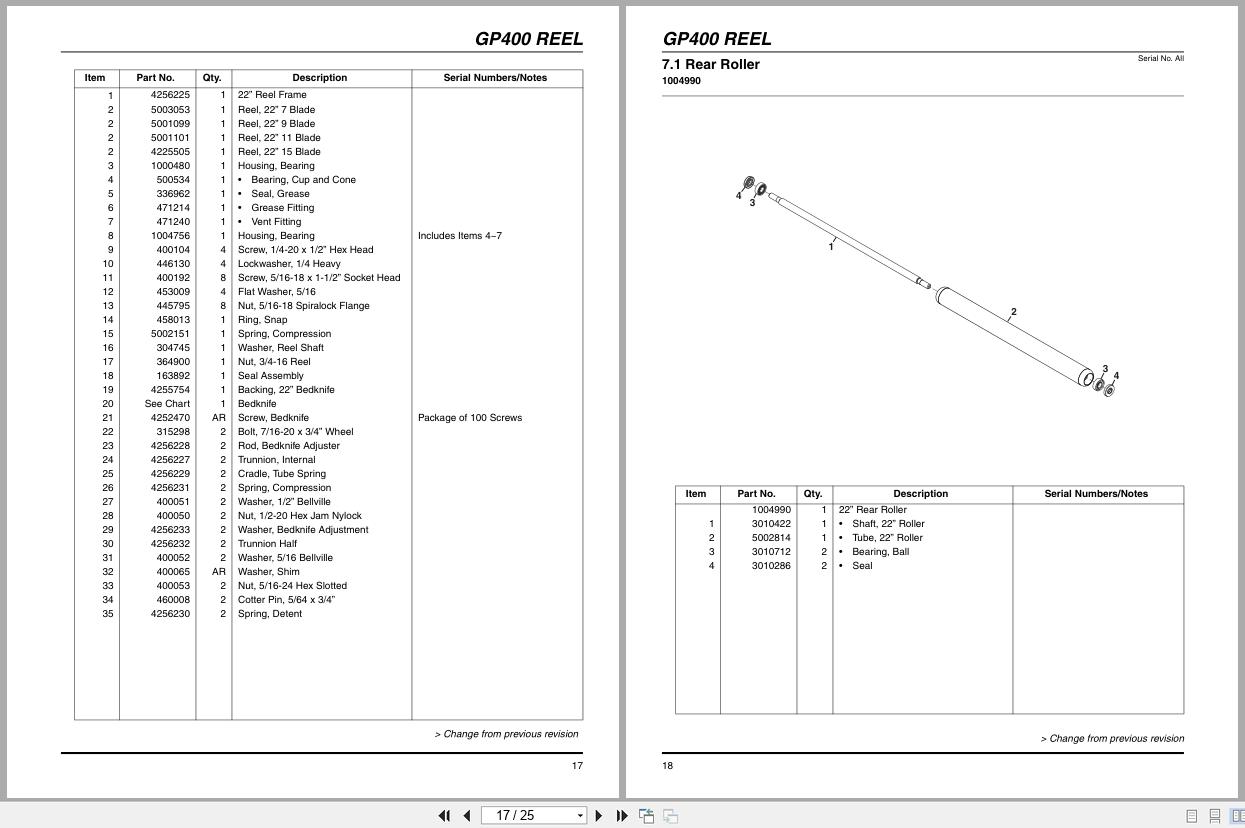

Jacobsen Greens Mower GP400 Trueset Reels Instruction Sheet 4258371 A 2012 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Greens Mower GP400 Trueset Reels Instruction Sheet 4258371-A 2012

Size: 1.44 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Greens Mower

Type of Manual: Instruction Sheet, Parts List

Model: Jacobsen GP400 Trueset Reels Greens Mower

62834 6283401651 – 6283402999 GP400 22 in. (559 mm) 7 Blade TrueSet Reel

62835 6283501651 – 6283502999 GP400 22 in. (559 mm) 9 Blade TrueSet Reel

62836 6283601651 – 6283602999 GP400 22 in. (559 mm) 11 Blade TrueSet Reel

62849 6284901651 – 6284902999 GP400 22 in. (559 mm) 15 Blade TrueSet Reel

Part Number: 4258371-A

Publication Date: 2012

Number of Pages: 25 Pages

10 USD

Tags: GP400 Trueset Reels, Jacobsen Greens Mower Manual, Jacobsen Instruction Sheet

Description

Description

Contents:
1 Safety
1.1 Operating Safety
1.2 Important Safety Notes
2 Specifications
2.1 Product Identification
2.2 Cutting Units
2.3 Accessories & Support Literature
2.4 Declaration of Incorporation
3 Setup
3.1 Front Roller and Accessories
3.2 Mounting the Cutting units
4 Adjustments
4.1 General
4.2 Bedknife-To-Reel
4.3 Bedknife Adjustment
4.4 Cutting Height
4.5 Reel Bearing
4.6 Bedknife Adjuster Spring
4.7 Bedknife Adjuster Tension
4.8 Grinding Bedknife
4.9 Torque Specification
