Jacobsen Lightweight Fairway Mower LF510 Parts Maintenance Manual 4272913-A 2013

Size: 7.94 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Lightweight Fairway Mower

Type of Manual: Parts Manual, Maintenance Manual

Model: Jacobsen LF510 Lightweight Fairway Mower

67991 – LF510, Engine Kubota V1505-E3B, 5 Gang 2WD

67992 – LF510, Engine Kubota V1505-E3B, 5 Gang 4WD with ROPS

Part Number: 4272913-A

Publication Date: 2013

Number of Pages: 124 Pages

10 USD

Tags: Jacobsen Lightweight Fairway Mower Manual, Jacobsen Parts Maintenance Manual, LF510

Description

Description

Contents:
Safety
1.1 Operating Safety
1.2 Important Safety Notes
Specifications
2.1 Product Identification
2.2 Kubota D1105-E Engine
2.3 Mower
2.4 Weights and Dimensions
2.5 Cutting Units
2.6 Accessories
2.7 Support Literature
2.8 Declaration of Conformity

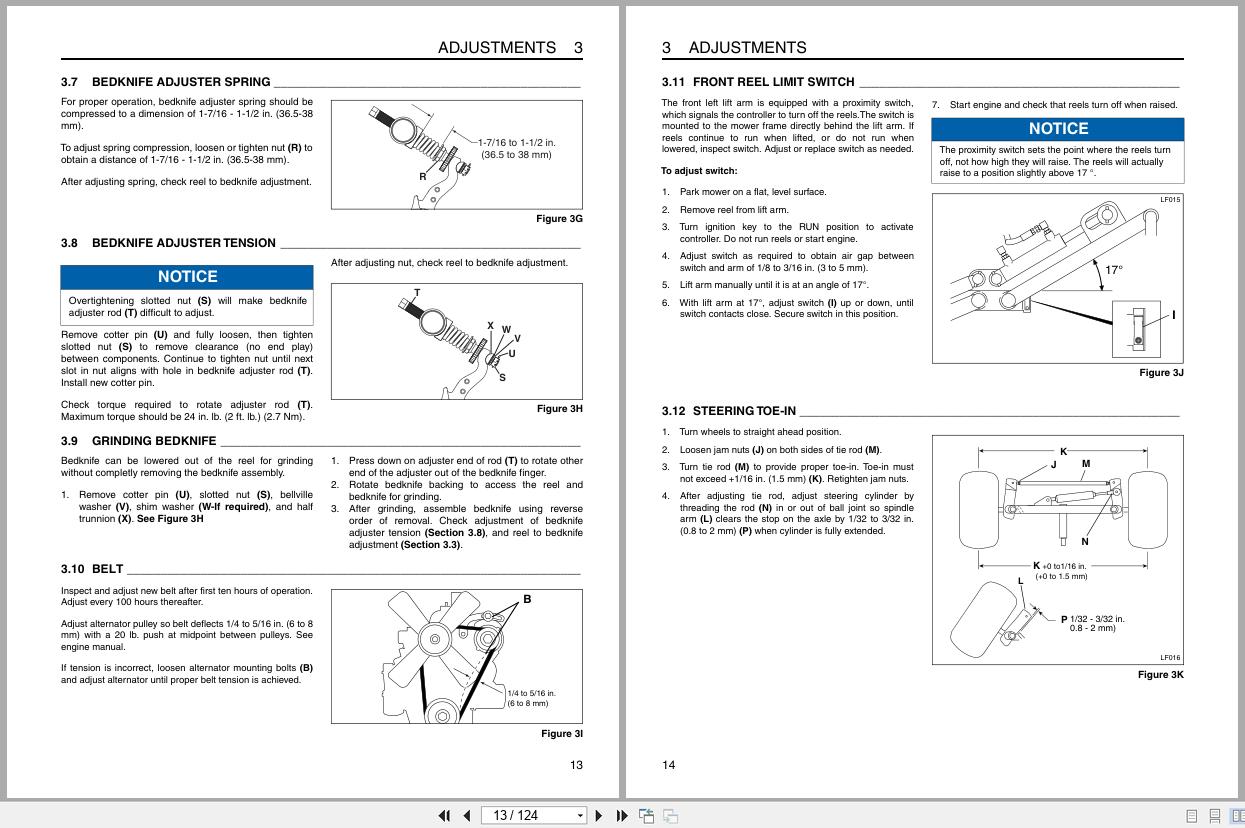

Adjustments
3.1 General
3.2 Bedknife-To-Reel
3.3 Bedknife Adjustment
3.4 Cutting Height
3.5 Flash Attach
3.6 Down Pressure
3.7 Bedknife Adjuster Spring
3.8 Bedknife Adjuster Tension
3.9 Grinding Bedknife
3.10 Belt
3.11 Front Reel Limit Switch
3.12 Steering Toe-In
3.13 Armrest Height Adjustment
3.14 Mow Speed
3.15 Torque Specification
Maintenance
4.1 General
4.2 Engine
4.3 Engine Oil
4.4 Air filter
4.5 Fuel
4.6 Fuel System
4.7 Battery
4.8 Jump Starting
4.9 Charging Battery
4.10 Muffler and Exhaust
4.11 Hydraulic Hoses
4.12 Hydraulic Oil
4.13 Hydraulic Filters
4.14 Electrical System
4.15 Radiator
4.16 Roll Over Protective Structure (ROPS)
4.17 Tires
4.18 Wheel Mounting Procedure
4.19 Care and Cleaning
4.20 Reel Backlapping
4.21 Storage
Troubleshooting
5.1 General
Maintenance & Lubrication charts
6.1 General
6.2 Maintenance Chart
6.3 Lubrication Chart
Notes
Parts Catalog
8.1 How To Use The Parts Catalog
8.2 How To Order Parts
8.3 Table of Contents
