Jacobsen Lightweight Fairway Mower LF550-557 LF570-577 Parts Manual 4305437-C

Size: 14.24 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Lightweight Fairway Mower

Type of Manual: Parts Manual, Hydraulic Diagram, Wiring Diagram

Model: Jacobsen LF550, LF570, LF557, LF577 Lightweight Fairway Mower

Engine:

LF550 – 2WD & 4WD:

KUBOTA D1803 T4I

KUBOTA V2403 T4I

KUBOTA V2403 T4F

KUBOTA V2403 Stage 5

LF570 – 2WD & 4WD:

KUBOTA D1803 T4I

KUBOTA V2403 T4I

KUBOTA V2403 T4F

KUBOTA V2403 Stage 5

LF557 – 4WD:

KUBOTA V2403 T4F

KUBOTA V2403 Stage 5

LF577 – 4WD:

KUBOTA V2403 T4F

KUBOTA V2403 Stage 5

Part Number: 4305437-C

Number of Pages: 152 Pages

10 USD

Tags: Jacobsen Lightweight Fairway Mower Manual, Jacobsen Parts Manual, LF550-557, LF570-577

Description

Description

Contents:
Lightweight Fairway Mower

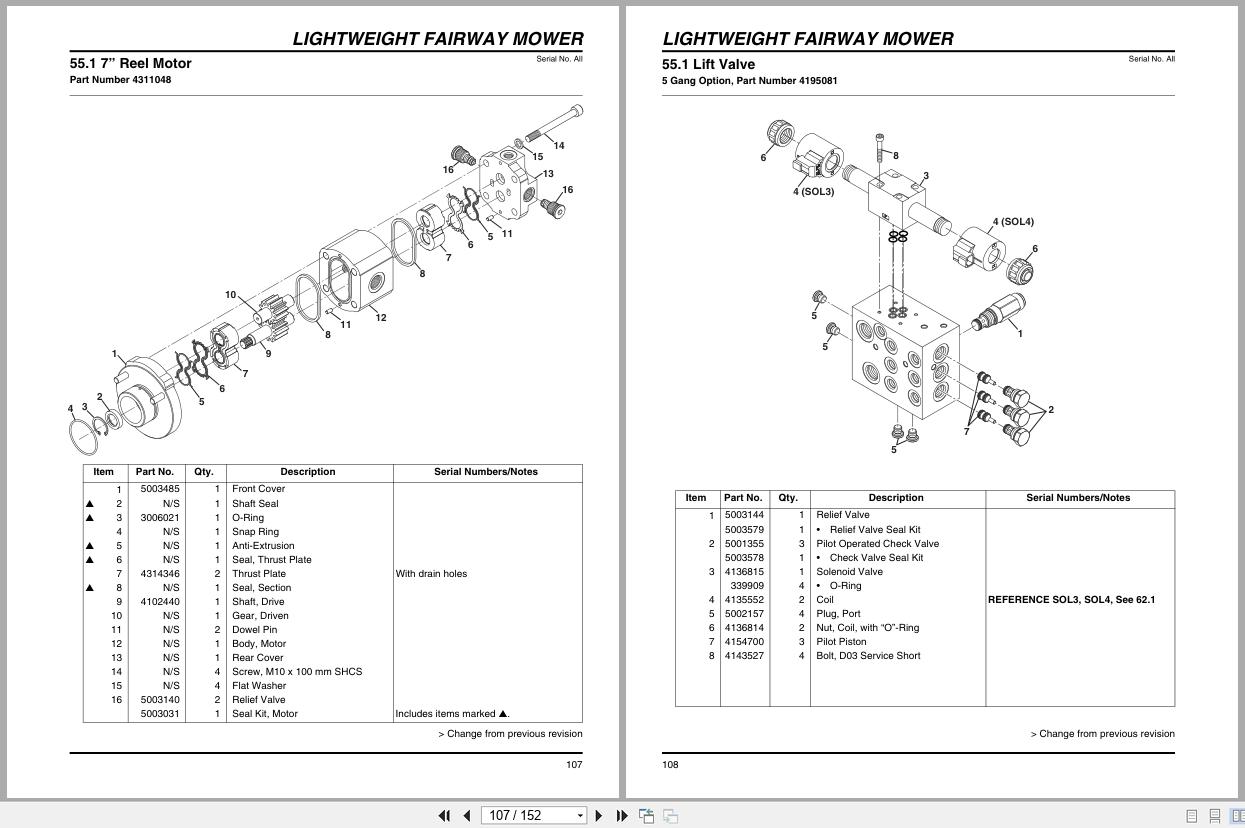

1.1 Decals
2.1 Hood
3.1 Seat Pan
4.1 Standard Seat Option
5.1 Premium Seat Option
6.1 Armrest
7.1 Traction Pedal
8.1 Frame and Front Axle
9.1 ROPS and Seat Belt
10.1 2WD Steering
11.1 4WD Steering
12.1 Tilt Steering
13.1 Throttle Lever
14.1 Air Cleaner
15.1 Air Cleaner
16.1 Radiator
17.1 Four Cylinder Engine
18.1 Four Cylinder Engine
19.1 Three Cylinder Engine
20.1 Three Cylinder Engine
21.1 Pump Mounting
22.1 T4I Fuel System
23.1 T4F Fuel System
24.1 Hydraulic Components
25.1 Pump Hydraulics
26.1 5 Gang Pressure and Return Hydraulics
27.1 7 Gang Pressure and Return Hydraulics
28.1 2WD Traction Hydraulics
29.1 Front 4WD Traction Hydraulics
30.1 Rear 4WD Traction Hydraulics
31.1 Charge and Brake Hydraulics
32.1 Return Hydraulics
33.1 Front Reel Hydraulics
34.1 5 Gang Rear Reel Hydraulics
35.1 7 Gang Rear Reel Hydraulics
36.1 7 Gang Wing Reel Hydraulics
37.1 Front Lift Hydraulics
38.1 5 Gang Rear Lift Hydraulics
39.1 7 Gang Rear Lift Hydraulics
40.1 7 Gang Wing Lift Hydraulics
41.1 Steering Hydraulics
42.1 Lift Arms
43.1 Wing Lift Arms
44.1 Electrical Harness and Components
45.1 Electrical Harness and Components
46.1 Five Inch Outer Reel
47.1 Five Inch Inner Reel
48.1 Seven Inch Reel Assembly
49.1 Seven Inch Reel Assembly
50.1 Down Pressure Spring
51.1 Rear Roller
52.1 Brake Valve
53.1 Reel Valve
54.1 5” Reel Motor
55.1 7” Reel Motor
55.1 Lift Valve
56.1 4WD Valve
56.1 Lift Valve
57.1 Rear Reel Valve
58.1 Rear Wheel Motor
59.1 Traction Pump (Rear Half)
60.1 Traction Pump (Front Half)
60.1 Traction Pump (Front Half Continued)
61.1 Hydraulic Schematic
61.1 Hydraulic Schematic

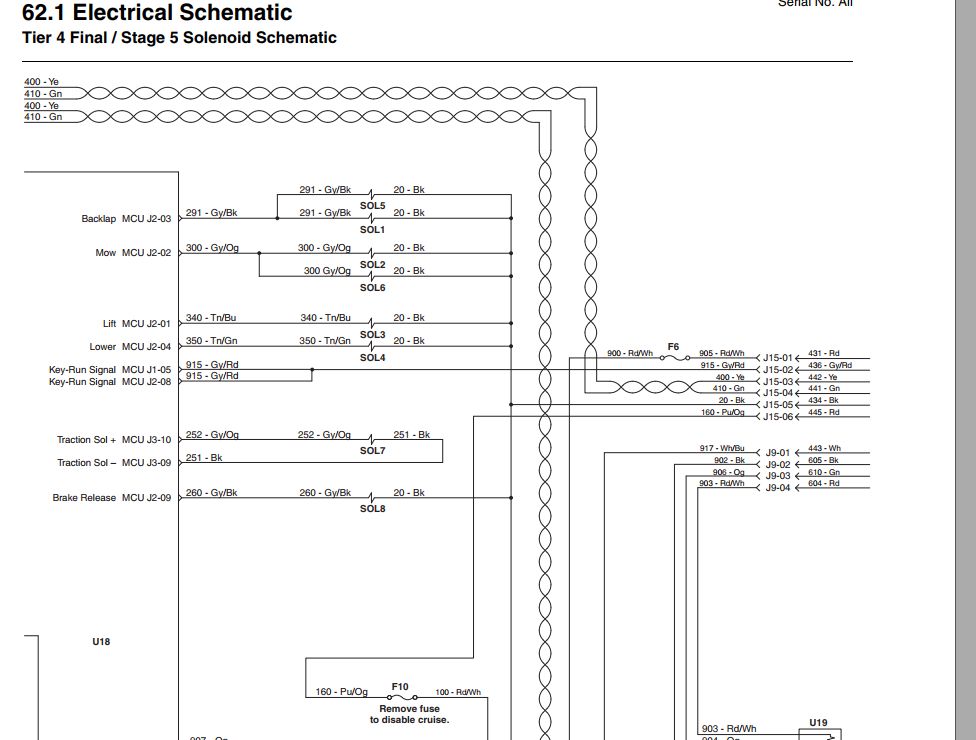

62.1 Electrical Schematic
62.1 Connector Terminal Identification
