Name: Jacobsen Lightweight Fairway Mower LF550 LF570 Parts Manual 4305437-B 2015
SKU: 646391
Availability: InStock

Jacobsen Lightweight Fairway Mower LF550 LF570 Parts Manual 4305437 B 2015 (1)

Jacobsen Lightweight Fairway Mower LF550 LF570 Parts Manual 4305437 B 2015 (2)

Jacobsen Lightweight Fairway Mower LF550 LF570 Parts Manual 4305437 B 2015 (3)

Jacobsen Lightweight Fairway Mower LF550 LF570 Parts Manual 4305437 B 2015 (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Lightweight Fairway Mower LF550 LF570 Parts Manual 4305437-B 2015

Size: 10.03 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Lightweight Fairway Mower

Type of Manual: Parts Manual

Model: Jacobsen Lightweight Fairway Mower with Folding ROPS

68011 – LF550-H-T4F, Engine Kubota V2403-CR-E4B, 5 Gang 2WD

68012 – LF550-H-T4F, Engine Kubota V2403-CR-E4B, 5 Gang 4WD

68013 – LF570-H-T4F, Engine Kubota V2403-CR-E4B, 5 Gang 2WD

68014 – LF570-H-T4F, Engine Kubota V2403-CR-E4B, 5 Gang 4WD

68015 – LF550-T4F, Engine Kubota D1803-CR-E4B, 5 Gang 2WD

68016 – LF550-T4F, Engine Kubota D1803-CR-E4B, 5 Gang 4WD

68017 – LF570-T4F, Enigne Kubota D1803-CR-E4B, 5 Gang 2WD

68018 – LF570-T4F, Enigne Kubota D1803-CR-E4B, 5 Gang 4WD

Part Number: 4305437-B

Publication Date: 2015

Number of Pages: 114 Pages

10 USD

Tags: Jacobsen Lightweight Fairway Mower Manual, Jacobsen Parts Manual, LF550, LF570

Description

Description

Contents:

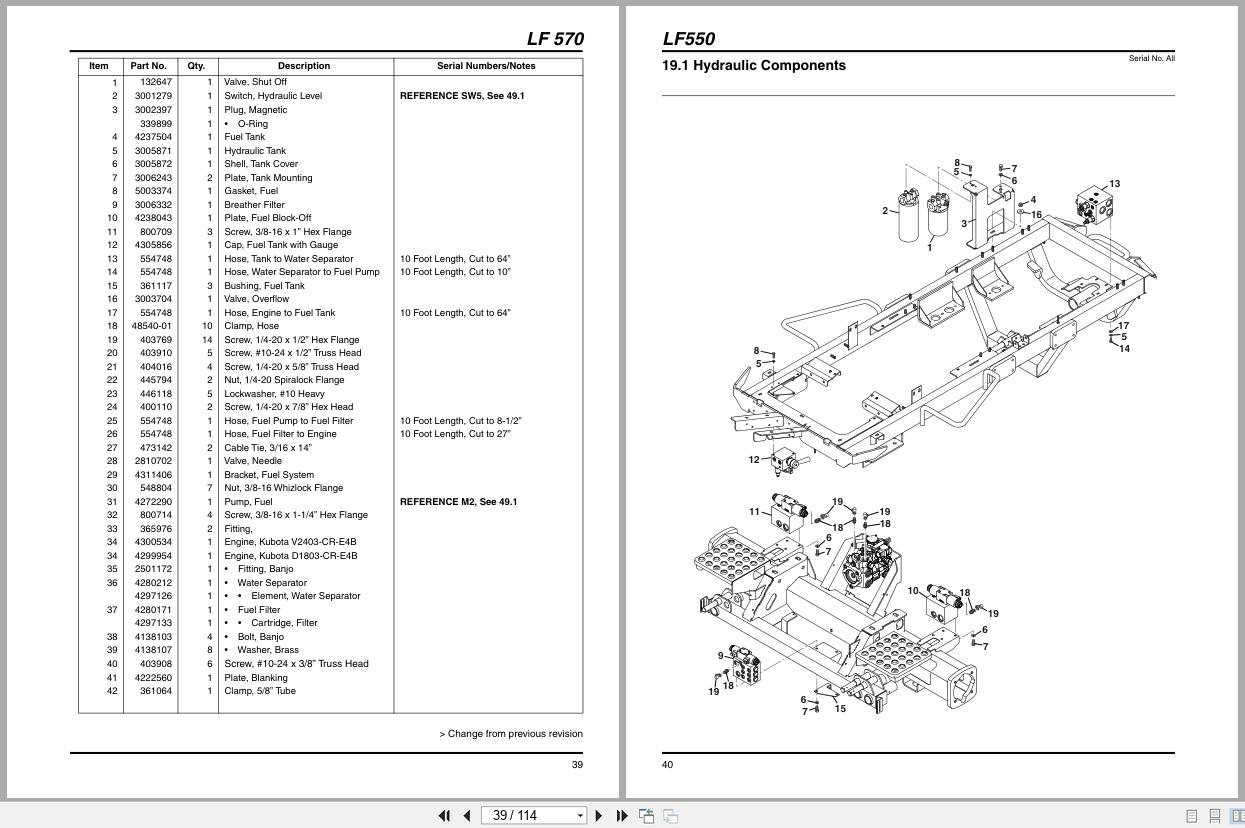

1.1 Decals
2.1 Hood
3.1 Seat Pan
4.1 Armrest Support
5.1 Armrest
6.1 Traction Pedal
7.1 Frame and Front Axle
8.1 ROPS and Seat Belt
9.1 2WD Steering
10.1 4WD Steering
11.1 Tilt Steering
12.1 Throttle Lever
13.1 Air Cleaner
14.1 Radiator
15.1 Four Cylinder Engine
16.1 Three Cylinder Engine
17.1 Pump Mounting
18.1 Fuel and Hydraulic Tanks
19.1 Hydraulic Components
20.1 Pump Hydraulics
21.1 2WD Traction Hydraulics
22.1 Front 4WD Traction Hydraulics
23.1 Rear 4WD Traction Hydraulics
24.1 Charge and Brake Hydraulics
25.1 Return Hydraulics
26.1 Front Reel Hydraulics
27.1 Rear Reel Hydraulics
28.1 Front Lift Hydraulics
29.1 Rear Lift Hydraulics
30.1 Steering Hydraulics
31.1 Hydraulic Tube Clamps
32.1 Lift Arms
33.1 Electrical Harness and Components
34.1 Outer Reel
35.1 Inner Reel
36.1 Seven Inch Reel Assembly
37.1 Seven Inch Reel Assembly
38.1 Down Pressure Spring
39.1 Rear Roller
40.1 Brake Valve
41.1 Reel Valve
42.1 5” Reel Motor
43.1 7” Reel Motor
43.1 Lift Valve
44.1 4WD Valve
44.1 Rear Wheel Motor
45.1 Traction Pump (Rear Half)
46.1 Traction Pump (Front Half)
46.1 Traction Pump (Front Half Continued)

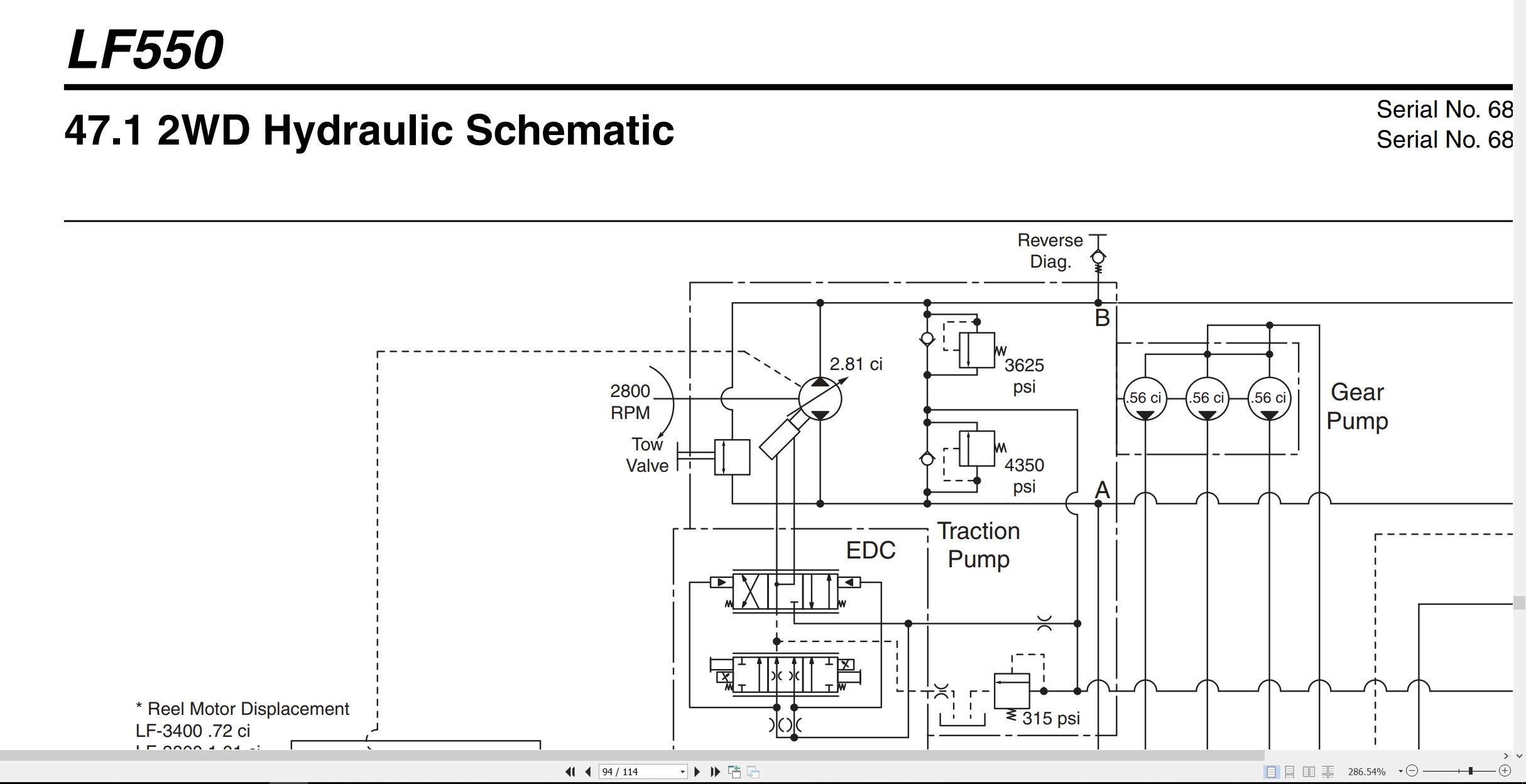

47.1 2WD Hydraulic Schematic
48.1 4WD Hydraulic Schematic

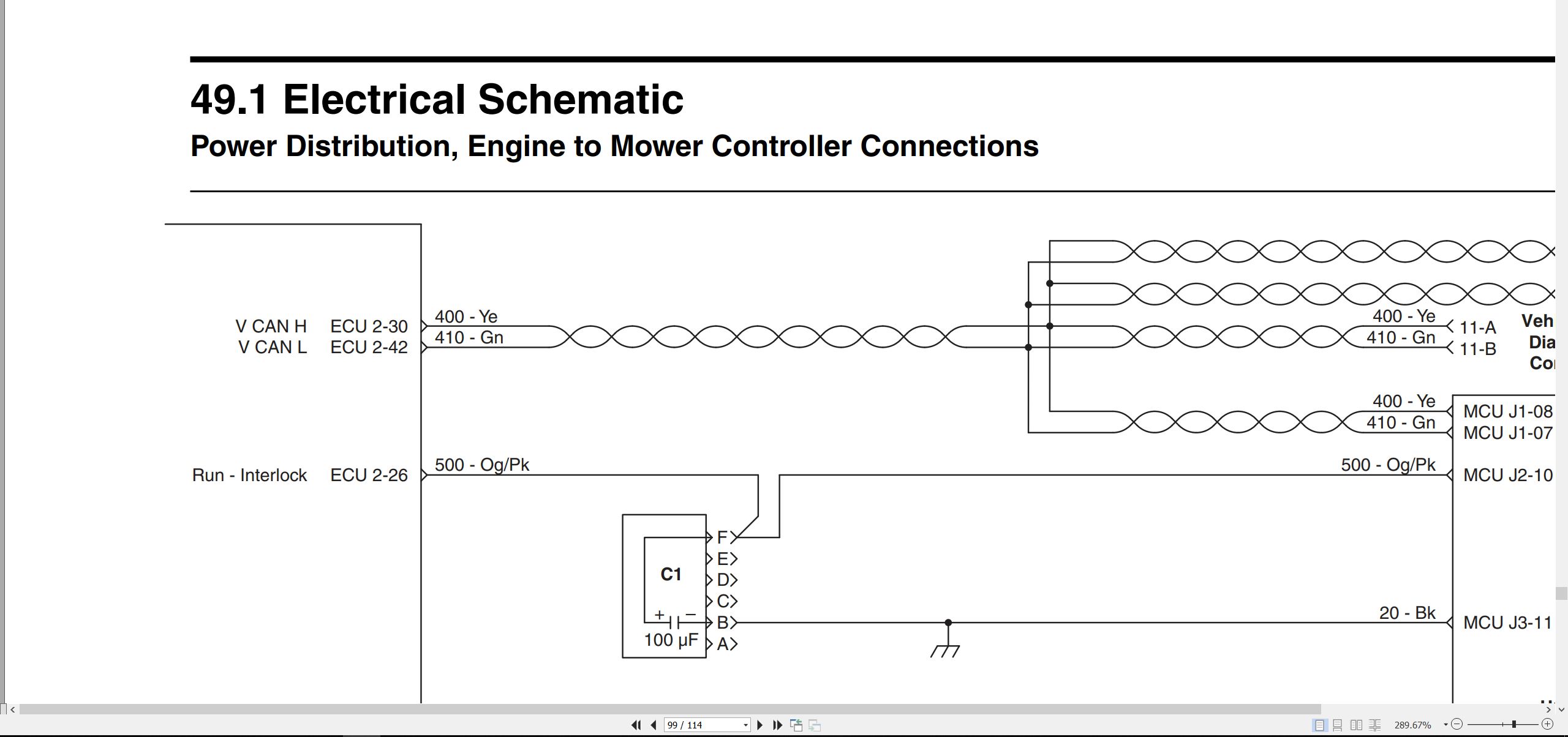

49.1 Electrical Schematic
50.1 Connector Terminal Identification
