Jacobsen Mower ECLIPSE 322 Parts Manual 4187721-E 2015

Size: 14.71 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Riding Greens Mower

Type of Manual: Parts Manual, Wiring Diagram

Model: Jacobsen Eclipse 322 Riding Greens Mower with ROPS

62800 – Battery Power, 3WD

62801 – Battery Power, 2WD

62802 – Gas Hybrid Power, 3WD

62803 – Gas Hybrid Power, 2WD

62804 – Diesel Hybrid Power, 3WD

62805 – Diesel Hybrid Power, 2WD

62825 – Diesel Hybrid Power with Premium Seat, 2WD

62826 – Diesel Hybrid Power with Premium Seat, 3WD

Part Number: 4187721-E

Publication Date: 2015

Number of Pages: 134 Pages

10 USD

Tags: ECLIPSE 322, Jacobsen Mower Manual, Jacobsen Parts Manual

Description

Description

Contents:
1.1 Decals
2.1 Front Body
3.1 Rear Body
4.1 Right Side Cowling
5.1 Left Side Cowling
6.1 Seat
7.1 Premium Seat
8.1 Floorboard
9.1 Armrest
10.1 Brake Pedal
11.1 Frame and Axles
12.1 Frame and Axles
13.1 Steering Column
13.2 Steering Column
14.1 Rear Steering
14.2 Rear Steering
15.1 Front Lift Arms
16.1 Center Lift Arms
17.1 Front Reel Stabilizing Rods
18.1 Center Reel Stabilizing Rod
19.1 Battery Power Module
19.2 Battery Power Module
20.1 Battery Tray
20.2 Battery Tray
21.1 Hybrid Power Module Installation
22.1 Diesel Engine Carrier
23.1 Diesel Genset
24.1 Diesel Engine Air FIlter
24.2 Diesel Engine Air FIlter
25.1 Gas Engine and Carrier
25.2 Gas Engine and Carrier
26.1 Gas Genset
27.1 Fuel Tank
27.2 Fuel Tank
28.1 Gas Engine Fuel Routing
29.1 Diesel Engine Fuel Routing
30.1 Gas Engine Starter Battery
31.1 Diesel Engine Starter Battery
32.1 Main Harness Routing
32.2 Main Harness Routing
32.3 Main Harness Routing
33.1 Controller Installation
33.2 Controller Installation
33.3 Controller Installation
34.1 Resistor Bank
35.1 Center Reel Motor Controller
36.1 Front Reel Controllers

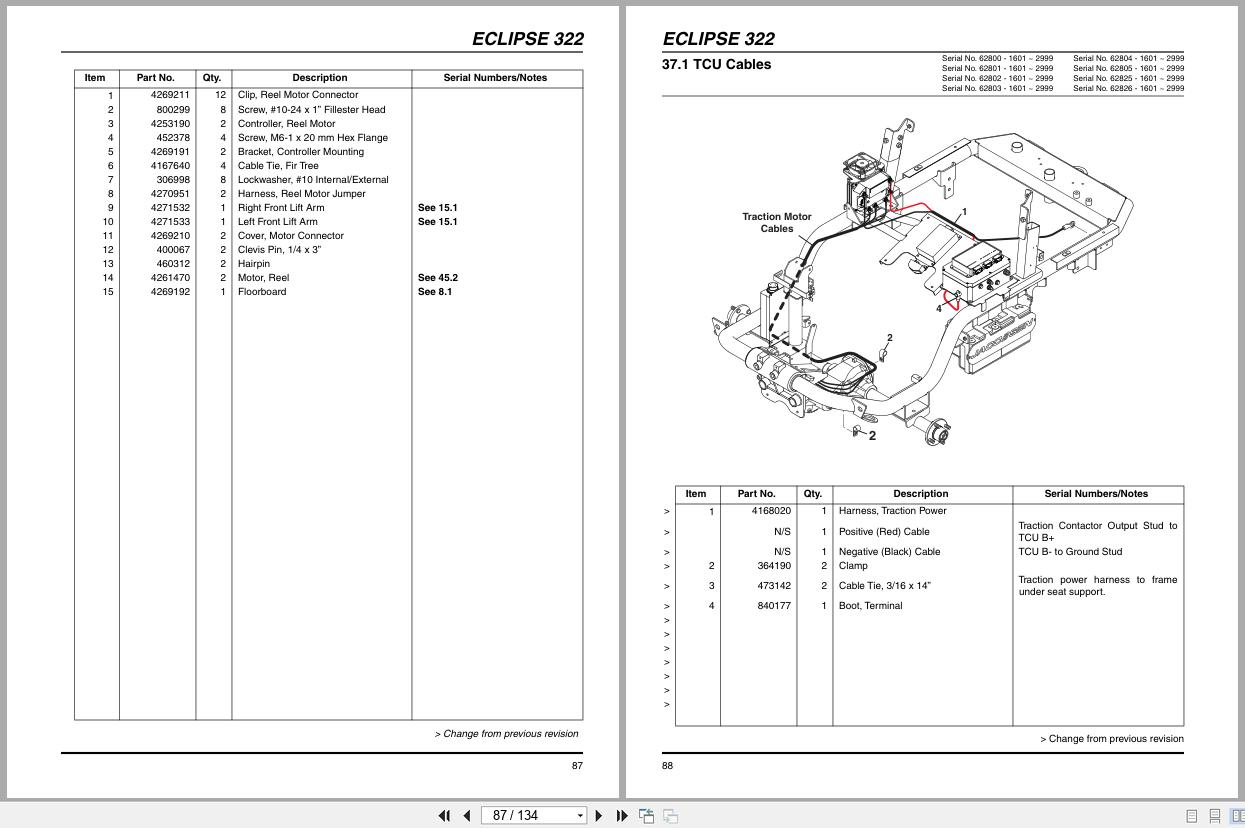

37.1 TCU Cables
37.2 TCU Cables
38.1 Battery Power Module Battery Cable
39.1 Buffer Battery Cables
40.1 Genset Power Cables
41.1 12 Volt Battery Cables
42.1 Gas Hybrid Power Module Harness
43.1 Diesel Hybrid Power Module Harness
44.1 3WD Harness Routing
45.1 Reel Motor
45.2 Reel Motor
46.1 Inner Reel
47.1 Outer Reel
48.1 PDU
48.2 PDU
49.1 Rectifier Repair Kit
50.1 Front Axle
51.1 RCU Schematic
51.2 RCU Schematic
52.1 PDU Schematic
53.1 MCU Schematic
54.1 TCU Schematic
54.2 TCU Schematic

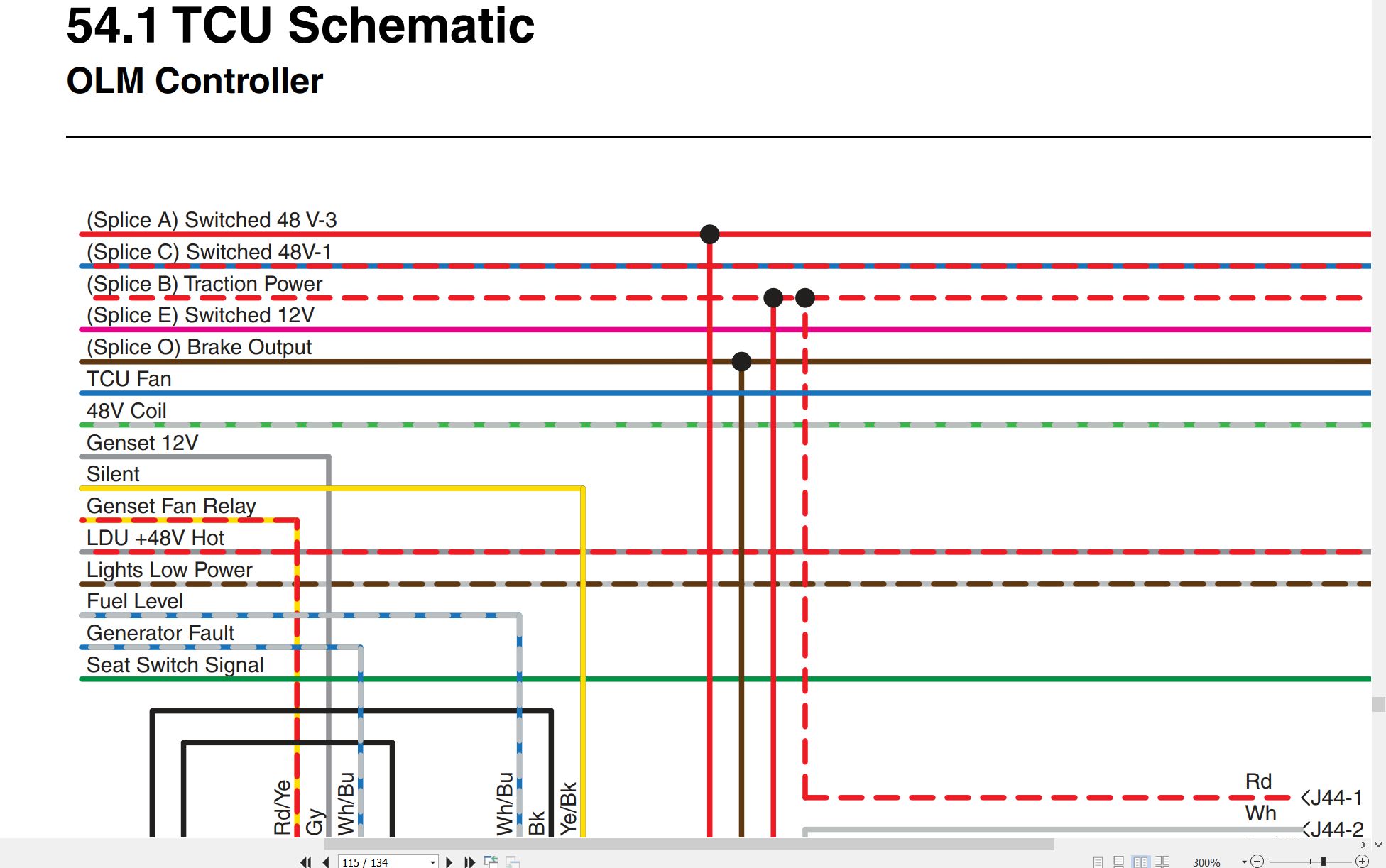

55.1 Brake / OLM Schematic
55.2 Brake / BRC Schematic
56.1 LDU Schematic
57.1 SCU Schematic
57.2 SCU Schematic
58.1 Genset Schematic
59.1 Engine Schematic
60.1 Battery Power Module Schematic
61.1 3WD Schematic
62.1 PDU Internal Schematic
62.2 PDU Internal Schematic
