Name: Jacobsen Mower Fairway 250 Field Kit Fitting Instructions 24777G-GB-R5 2013
SKU: 646464
Availability: InStock

Jacobsen Mower Fairway 250 Field Kit Fitting Instructions 24777G GB R5 2013 (1)

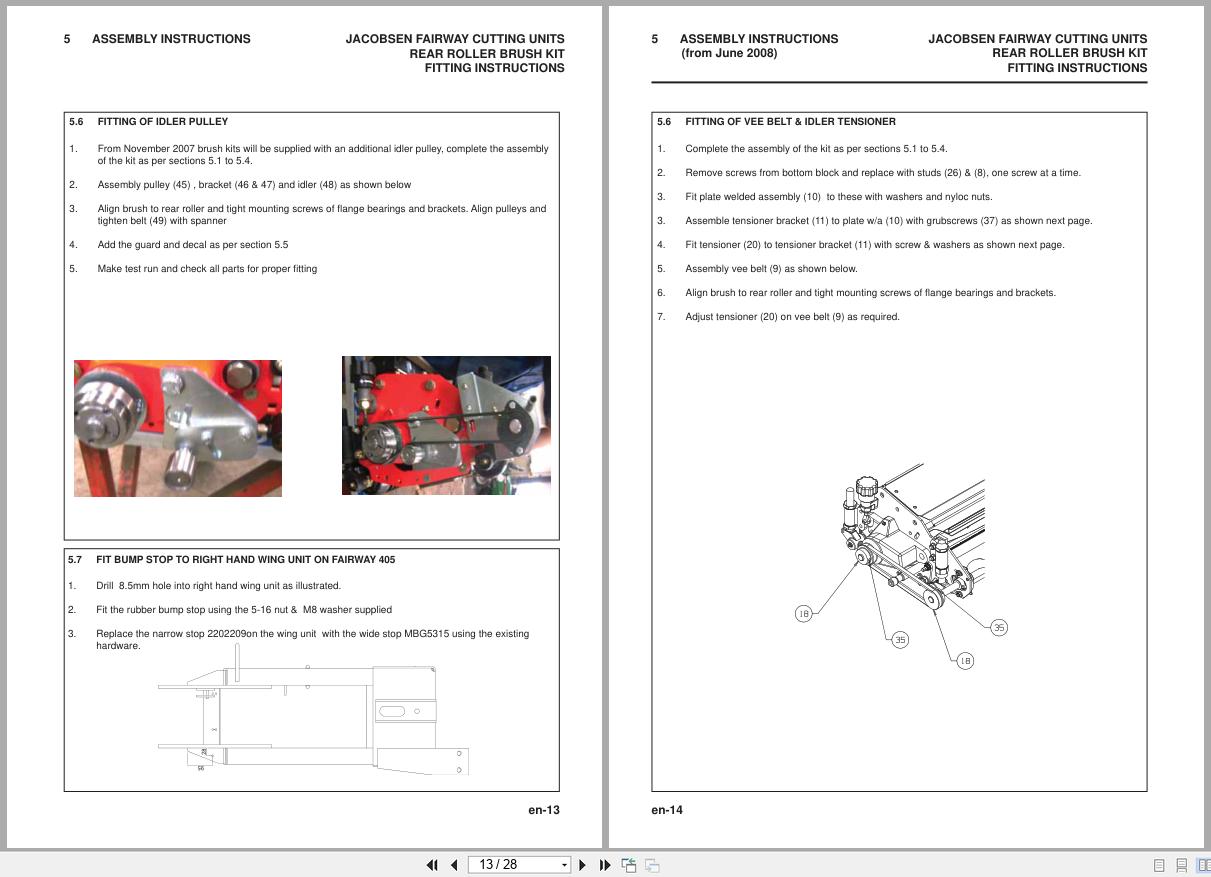

Jacobsen Mower Fairway 250 Field Kit Fitting Instructions 24777G GB R5 2013 (2)

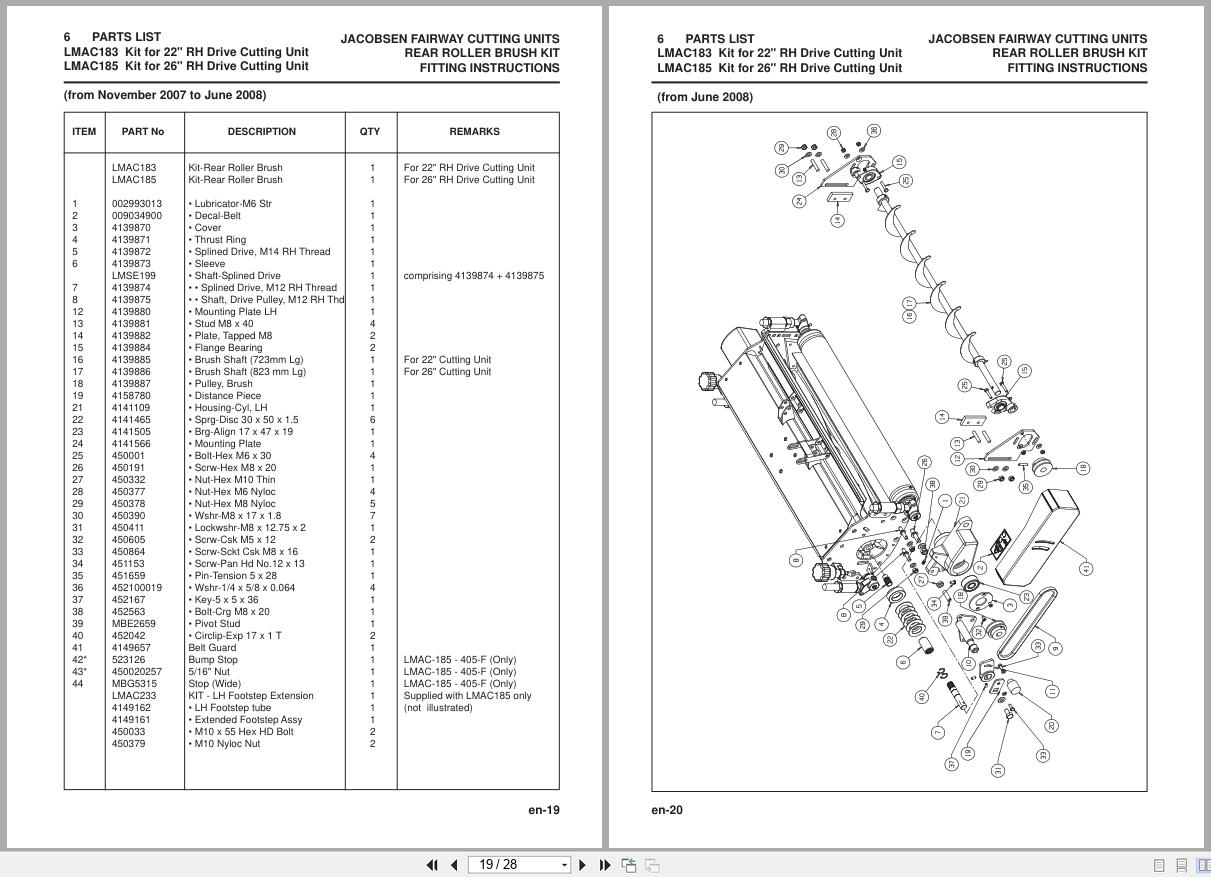

Jacobsen Mower Fairway 250 Field Kit Fitting Instructions 24777G GB R5 2013 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Mower Fairway 250 Field Kit Fitting Instructions 24777G-GB-R5 2013

Size: 3.89 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Ride On Reel Mower

Type of Manual: Field Kit Fitting Instructions, Parts Manual

Model: Jacobsen Rear Roller Brush Kit LMAC183-250-F, LMAC185-305-F, LMAC185-405-F For Fairway 250 Ride On Reel Mower

Cutting Units Series: AAG, AAH, AAJ, AAK

Part Number: 24777G-GB-R5

Publication Date: 2013

Number of Pages: 28 Pages

10 USD

Tags: Fairway 250 Field Kit, Jacobsen Fitting Instructions, Jacobsen Mower Manual

Description

Description

Contents:
2 Safety Instructions
2.1 Operating Instructions
2.2 Safety Signs
2.3 Starting The Engine
2.4 Driving The Machine
2.5 Transporting
2.6 Leaving The Driving Position
2.7 Slopes
2.8 Blocked Cutting Cylinders
2.9 Adjustments, Lubrication And Maintenance
3 Preparation
3.1 Preparation
3.2 Important Note
4 Cutting Cylinder
4.1 Modifying Existing Cutting Cylinder
4.2 New Cutting Cylinder Part Numbers
4.3 Part List For Footstep Modification
4.4 Lmac233 Extended Footstep (Fairway 305 / 405 Only)
5 Assembly Instructions
5.1 Assemble Rear Roller Brush And Mounting Plates
5.2 Assemble Non-Drive Side Bearing Housing
5.3 Assemble Pulley To Cutting Cylinder Shaft
5.4 Assemble Pulley To Brush Shaft And Adjust Drive Belt
5.5 Assemble Belt Guard And Test
5.6 Assemblebelt & Tensioner
5.7 Fit Bump Stop On F/W 405.
5.8 Assemble Belt Guard And Test
6 Parts Lists
LMAC183 KIT FOR 22″ RH Drive Cutting Unit
LMAC185 KIT FOR 26″ RH Drive Cutting Unit
LMAC184 KIT FOR 22″ LH Drive Cutting Unit
LMAC186 KIT FOR 26″ RH Drive Cutting Unit
