Name: Jacobsen Mower Greens King IV Plus Parts Maintenance Manual 2811457-F 2009
SKU: 646502
Availability: InStock

Jacobsen Mower Greens King IV Plus Parts Maintenance Manual 2811457 F 2009 (1)

Jacobsen Mower Greens King IV Plus Parts Maintenance Manual 2811457 F 2009 (2)

Jacobsen Mower Greens King IV Plus Parts Maintenance Manual 2811457 F 2009 (3)

Jacobsen Mower Greens King IV Plus Parts Maintenance Manual 2811457 F 2009 (4)

Jacobsen Mower Greens King IV Plus Parts Maintenance Manual 2811457 F 2009 (5)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Mower Greens King IV Plus Parts Maintenance Manual 2811457-F 2009

Size: 5.43 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Mower

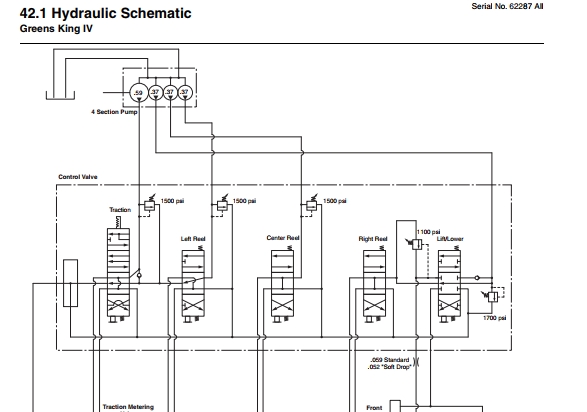

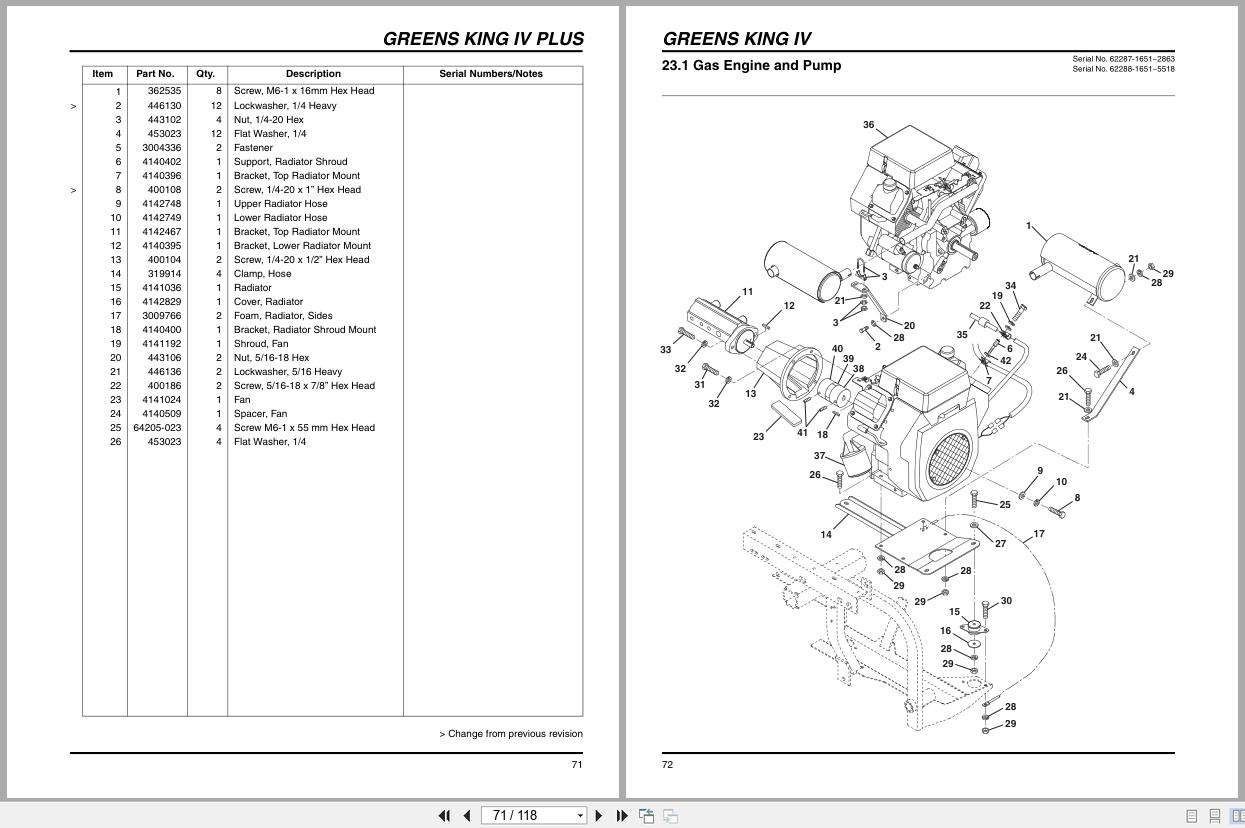

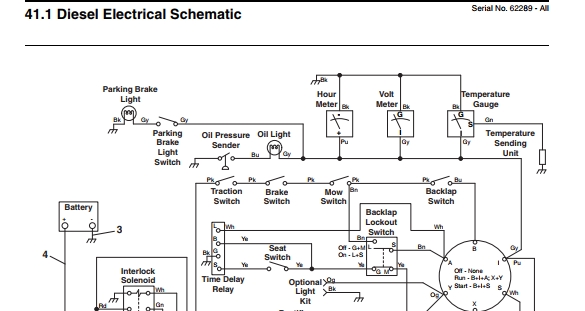

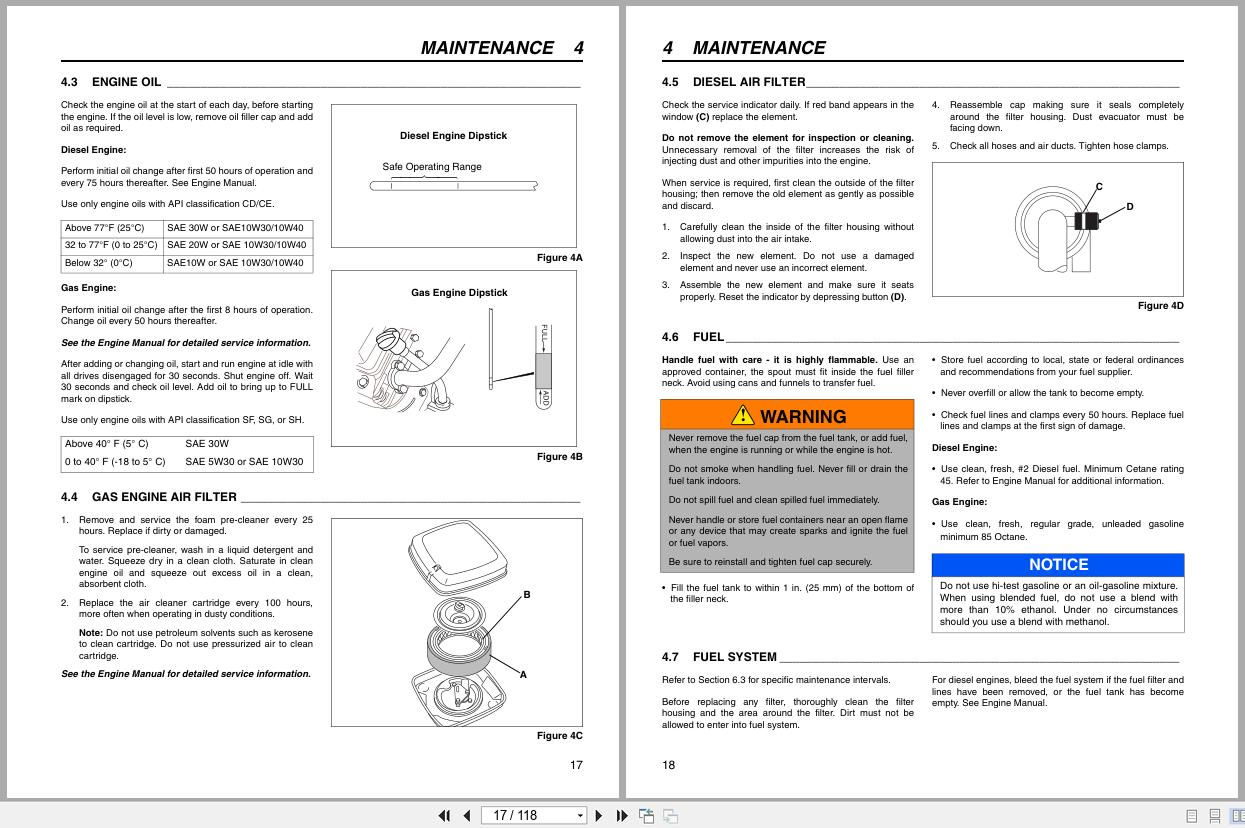

Type of Manual: Parts List, Maintenance Manual, Hydraulic Diagram, Electrical Diagram

Model: Jacobsen Mower

Greens King IV:

62287 – 16 HP Briggs Vanguard Engine

Greens King IV Plus:

62288 – 18 HP Briggs Vanguard Engine

62289 – 19 HP Kubota D662-EB Engine

Part Number: 2811457-F

Publication Date: 2009

Number of Pages: 118 Pages

10 USD

Tags: Greens King IV Plus, Jacobsen Mower Manual, Jacobsen Parts Maintenance Manual

Description

Description

Contents:
1 Safety
1.1 Operating Safety
1.2 Important Safety Notes
2 Specifications
2.1 Product Identification
2.2 Engine
2.3 Cutting Units:
2.4 Mower
2.5 Weights and Dimensions
2.6 Accessories & Support Literature
3 Adjustments
3.1 General
3.2 Bedknife-To-Reel
3.3 Bedknife Adjustment
3.4 Cutting Height
3.5 Antisway Spring
3.6 Accelerator Pedal
3.7 Brake Pedal
3.8 Parking Brake
3.9 Interlock Switches
3.10 Traction Lever
3.11 Choke Control
3.12 Reel Control
3.13 Reel Switches
3.14 Steering Wheel (GK IV Units Only)
3.15 Leveling Procedure
3.16 Reel Bearing
3.17 Fan Belt (Diesel Engines)
3.18 Lift Cylinders
3.19 Specific torque Requirements
3.20 Torque Specification
4 Maintenance
4.1 General
4.2 Engine
4.3 Engine Oil
4.4 Gas Engine Air Filter
4.5 Diesel Air Filter
4.6 Fuel
4.7 Fuel System
4.8 Battery
4.9 Jump Starting
4.10 Charging Battery
4.11 Hydraulic Hoses
4.12 Hydraulic Oil
4.13 Hydraulic Oil Filters
4.14 Electrical System
4.15 Muffler and Exhaust
4.16 Tires
4.17 Wheel Mounting Procedure
4.18 Care and Cleaning
4.19 Radiator (Diesel Engines)
4.20 Backlapping
4.21 Storage
5 Troubleshooting
5.1 General
6 Maintenance & Lubrication Charts
6.1 General
6.2 Lubrication Chart
6.3 Maintenance Charts
7 Notes
8 Parts Catalog
8.1 How To Use The Parts Catalog
8.2 To Order Parts
8.3 Table Of Contents
