Name: Jacobsen Mower SLF530 Reel Mounting Kits Instruction Sheet 4396234-B 2018
SKU: 646597
Availability: InStock

Jacobsen Mower SLF530 Reel Mounting Kits Instruction Sheet 4396234 B 2018 (1)

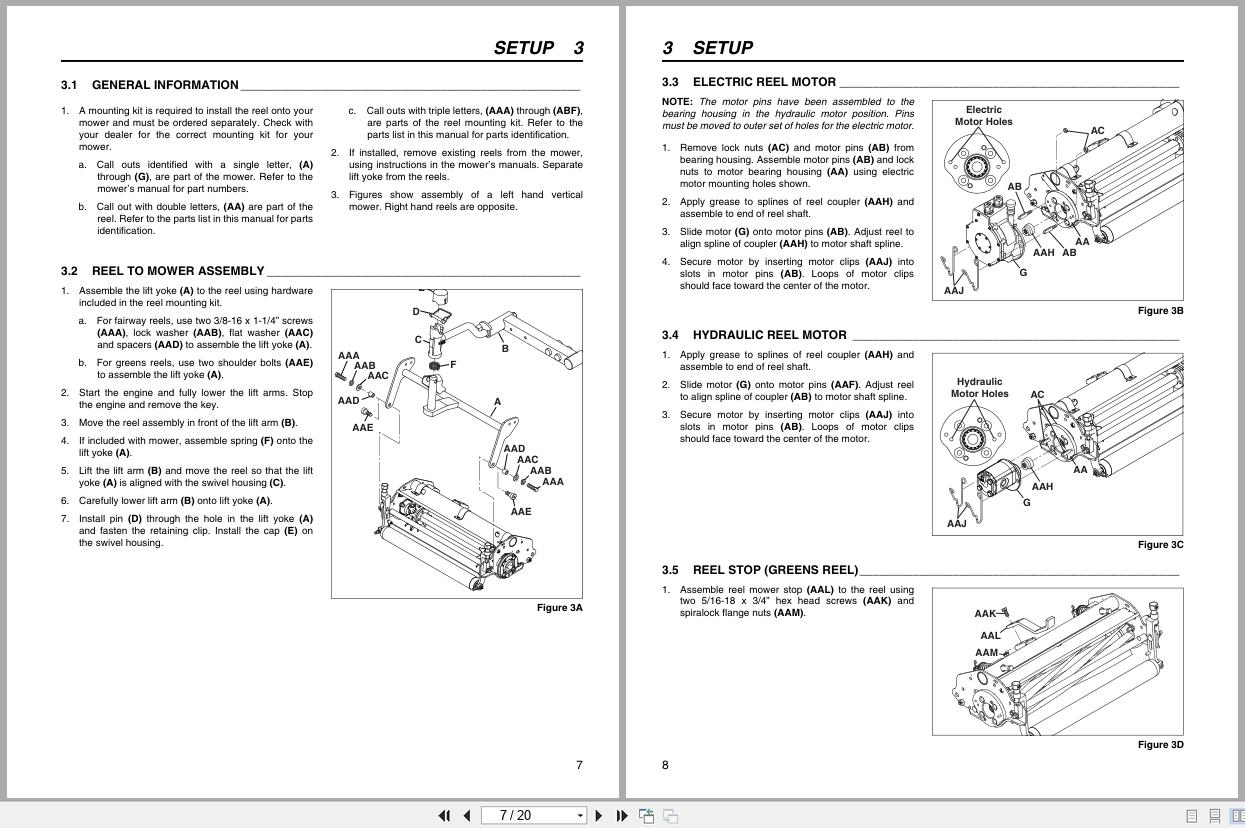

Jacobsen Mower SLF530 Reel Mounting Kits Instruction Sheet 4396234 B 2018 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Mower SLF530 Reel Mounting Kits Instruction Sheet 4396234-B 2018

Size: 1.53 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Vertical Mower

Type of Manual: Instruction Sheet

Model: Jacobsen SLF530 Reel Mounting Kits Vertical Mower

18 Inch Vertical Mower

67155 – 18 in. Left Hand Vertical Mower

67169 – 18 in. Right Hand Vertical Mower

22 Inch Vertical Mower

67157 – 22 in. Vertical Mower

67158 – 22 in. Vertical Mower

Reel Mounting Kits (Single Reel)

4395138 – 18 in. Hydraulic Drive Reel

4395139 – 18 in. Electric Drive Reel

4395140 – 22 in. Hydraulic Drive Fairway Reel

4395141 – 22 in. Electric Drive Fairway Reel

4395142 – 22 in. Hydraulic Drive Greens Reel

4395143 – 22 in. Electric Drive Greens Reel

Part Number: 4396234-B

Publication Date: 2018

Number of Pages: 20 Pages

10 USD

Tags: Jacobsen Instruction Sheet, Jacobsen Mower Manual, SLF530

Description

Description

Contents:
Safety
1.1 Operating Safety
1.2 Important Safety Notes
Specifications
2.1 Product Identification
3.1 General information
3.2 Reel to Mower Assembly
3.3 Electric Reel Motor
3.4 Hydraulic Reel Motor
3.5 Reel Stop (Greens Reel)
3.6 Down Pressure (Fairway Reel)
3.7 Counterweight
Maintenance and Adjustments
4.1 Maintenance and Adjustments
4.2 Cutting Depth Adjustment
4.3 Adding, removing and Replacing blades
4.4 Bearing Adjustment
4.5 Down Pressure Spring
4.6 Torque Specification
TrueSet™ Reel
TrueSet™ Reel
5.1 Outer Reel
Vertical Mower
6.1 Inner Reel
Vertical Mower
