Name: Jacobsen Mower Trueset Reels SLF530 Instruction Sheet 4387946-A 2017
SKU: 646619
Availability: InStock

Jacobsen Mower Trueset Reels SLF530 Instruction Sheet 4387946 A 2017 (1)

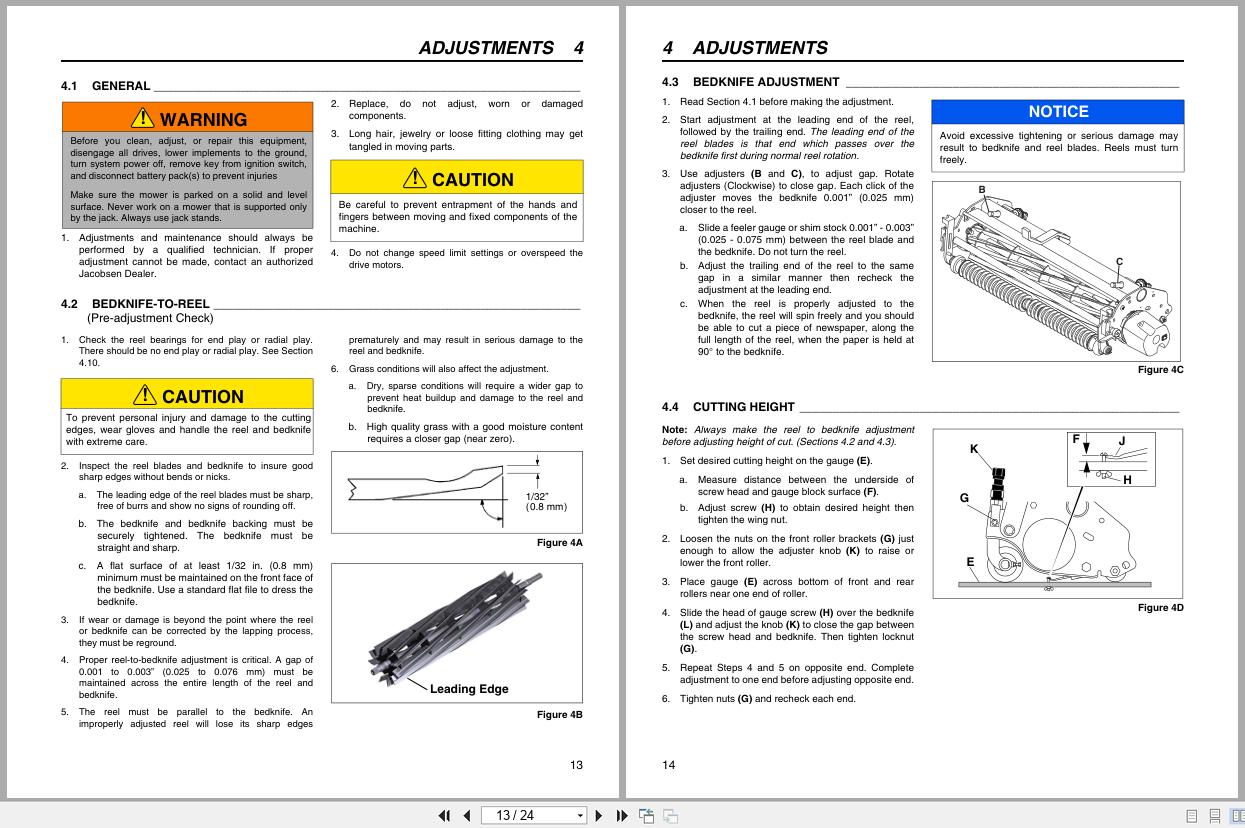

Jacobsen Mower Trueset Reels SLF530 Instruction Sheet 4387946 A 2017 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Mower Trueset Reels SLF530 Instruction Sheet 4387946-A 2017

Size: 2.03 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Mower

Type of Manual: Instruction Sheet

Model: Jacobsen Trueset Reels For SLF530 Mower

18 Inch TrueSet Reels

62857 – 18 in. Left Hand 11 Blade Greens Reel

62858 – 18 in. Left Hand 15 Blade Greens Reel

62298 – 18 in. Left Hand 8 Blade Fairway Reel

62859 – 18 in. Right Hand 8 Blade Fairway Reel

62299 – 18 in. Left Hand 11 Blade Fairway Reel

62860 – 18 in. Right Hand 11 Blade Fairway Reel

22 Inch TrueSet Reels

62861 – 22 in. Left Hand 7 Blade Reel

62862 – 22 in. Right Hand 7 Blade Reel

62863 – 22 in. Left Hand 9 Blade Reel

62864 – 22 in. Right Hand 9 Blade Reel

62865 – 22 in. Left Hand 11 Blade Reel

62866 – 22 in. Right Hand 11 Blade Reel

62867 – 22 in. Left Hand 15 Blade Reel

62868 – 22 in. Right Hand 15 Blade Reel

Reel Mounting Kits (Single Reel)

4395138 – 18 in. Hydraulic Drive Reel

4395139 – 18 in. Electric Drive Reel

4395140 – 22 in. Hydraulic Drive Fairway Reel

4395141 – 22 in. Electric Drive Fairway Reel

4395142 – 22 in. Hydraulic Drive Greens Reel

Part Number: 4387946-A

Publication Date: 2017

Number of Pages: 24 Pages

10 USD

Tags: Jacobsen Instruction Sheet, Jacobsen Mower Manual, SLF530

Description

Description

Contents:
Safety
1.1 Operating Safety
1.2 Important Safety Notes
Specifications
2.1 Product Identification
3.1 General information
3.2 Reel Accessories
3.3 Reel to Mower Assembly
3.4 Electric Reel Motor
3.5 Hydraulic Reel Motor
3.6 Reel Stop (Greens Reel)
3.7 Down Pressure (Fairway Reel)
3.8 Counterweight
Adjustments
4.1 General
4.2 Bedknife-To-Reel
4.3 Bedknife Adjustment
4.4 Cutting Height
4.5 Reel Bearing
4.6 Bedknife Adjuster Spring
4.7 Bedknife Adjuster Tension
4.8 Grinding Bedknife
4.9 Down Pressure Spring
4.10 Torque Specification
TrueSet Reel
TrueSet Reel
6.1 Outer Reel
Greens King IV Reel
Greens King IV Reel
7.1 Inner Reel
TrueSet Reel
TrueSet Reel
