Name: Jacobsen Reel Mower Tri-King 1800G 1900D Parts Maintenance Manual 2810632-F
SKU: 646663
Availability: InStock

Jacobsen Reel Mower Tri King 1800G 1900D Parts Maintenance Manual 2810632 F (1)

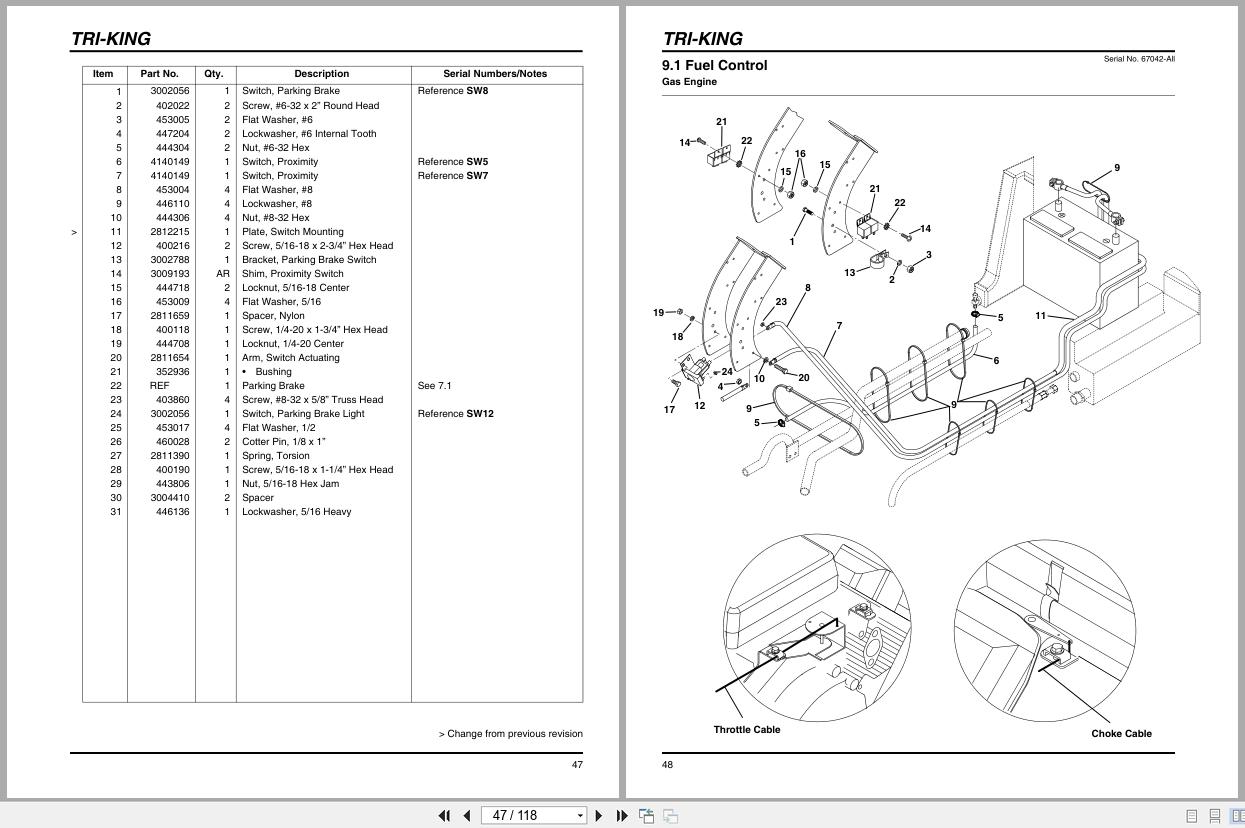

Jacobsen Reel Mower Tri King 1800G 1900D Parts Maintenance Manual 2810632 F (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Reel Mower Tri-King 1800G 1900D Parts Maintenance Manual 2810632-F

Size: 6.04 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Reel Mower

Type of Manual: Parts Manual, Maintenance Manual

Model: Jacobsen Tri-King Triplex Mower Reel Mower

67042 – 1800G Briggs Vanguard Engine

67043 – 1900D Kubota D662-EB Engine

Part Number: 2810632-F

Publication Date: 2006

Number of Pages: 118 Pages

10 USD

Tags: 1900D, Jacobsen Parts Maintenance Manual, Jacobsen Reel Mower Manual, Tri-King 1800G

Description

Description

Contents:
1.1 Operating Safety
1.2 Important Safety Notes
2.1 Product Identification
2.2 Engine
2.3 Cutting Units:
2.4 Tractor
2.5 Weights and Dimensions
2.6 Accessories & Support Literature
3.1 General
3.2 Fan Belt (Diesel Engines)
3.3 Pump Drive Belt
3.4 Neutral and 3WD Switches
3.5 Parking Brake Switches
3.6 Lift Limit Switch
3.7 Traction Pedal Neutral
3.8 Traction Pedal Forward Stop
3.9 Lift / Lower Pedal Stop
3.10 Parking Brake
3.11 Rear Lift Arm
3.12 Down Pressure
3.13 Reel To Bedknife
3.14 Reel to Bedknife Adjustment
3.15 Cutting Modes
3.16 Cutting Height Adjustment
3.17 Removing the Cutting Unit
3.18 Cutting Height – Fixed Mode
3.19 Cutting Height – Floating Mode
3.20 Torque Specification
3.21 Specific Torque
4.1 General
4.2 Engine
4.3 Engine Oil
4.4 Gas Engine Air Filter
4.5 Diesel Air Filter
4.6 Fuel
4.7 Fuel System
4.8 Battery
4.9 Jump Starting
4.10 Charging Battery
4.11 Hydraulic Hoses
4.12 Hydraulic Oil
4.13 Hydraulic Oil Filters
4.14 Electrical System
4.15 Muffler and Exhaust
4.16 Tires
4.17 Wheel Mounting Procedure
4.18 Care and Cleaning
4.19 Radiator
4.20 Backlapping
4.21 Storage
5.1 General
6.1 General
6.2 Lubrication Chart
6.3 Maintenance Charts
7.1 Table Of Contents
1.1 Decals
2.1 Hood and Cowlings
3.1 Seat and Base
3.2 Seat and Base
4.1 Dash Installation
5.1 Instrument Panel
6.1 Hydro Control Linkage
7.1 Front Motors and Brakes
8.1 Parking Brake, Neutral Start and 3WD Switches
9.1 Fuel Control
10.1 Fuel Control
11.1 Frame
12.1 Frame
13.1 Rear Steering
14.1 Engine and Pump
15.1 Engine and Exhaust
16.1 Air Intake
17.1 Engine and Pump
18.1 Diesel Engine Mounting
19.1 Diesel Engine Exhaust
20.1 Radiator Installation
20.2 Radiator Installation
21.1 Air Filter and Circuit Breaker
22.1 Tanks
23.1 Hydro Pump and Charge Filter
24.1 Pump Suction and Return Hydraulics
25.1 Pump Suction and Return Hydraulics
26.1 Traction Hydraulics
26.2 Steering and Lift Hydraulics
27.1 Reel Hydraulics
28.1 Reel Lift
29.1 Rear Lift Arm
30.1 Reels
31.1 Roller Brackets and Skids
32.1 Reel Bearing Housing
33.1 Shields and Center Pivot Arm
34.1 Side Pivot and Lift Arms
35.1 Down Pressure Kit
36.1 Reel Pump
37.1 Reel Motor
38.1 Traction Pump
39.1 3WD Valve
40.1 Brake Calipers
41.1 Electrical Schematics
42.1 Hydraulic Schematic
43.1 O-Ring Chart
