Name: Jacobsen Reel Mower Tri-King Dealer Manual 4189625-GB-RA 2014
SKU: 646667
Availability: InStock

Jacobsen Reel Mower Tri King Dealer Manual 4189625 GB RA 2014 (1)

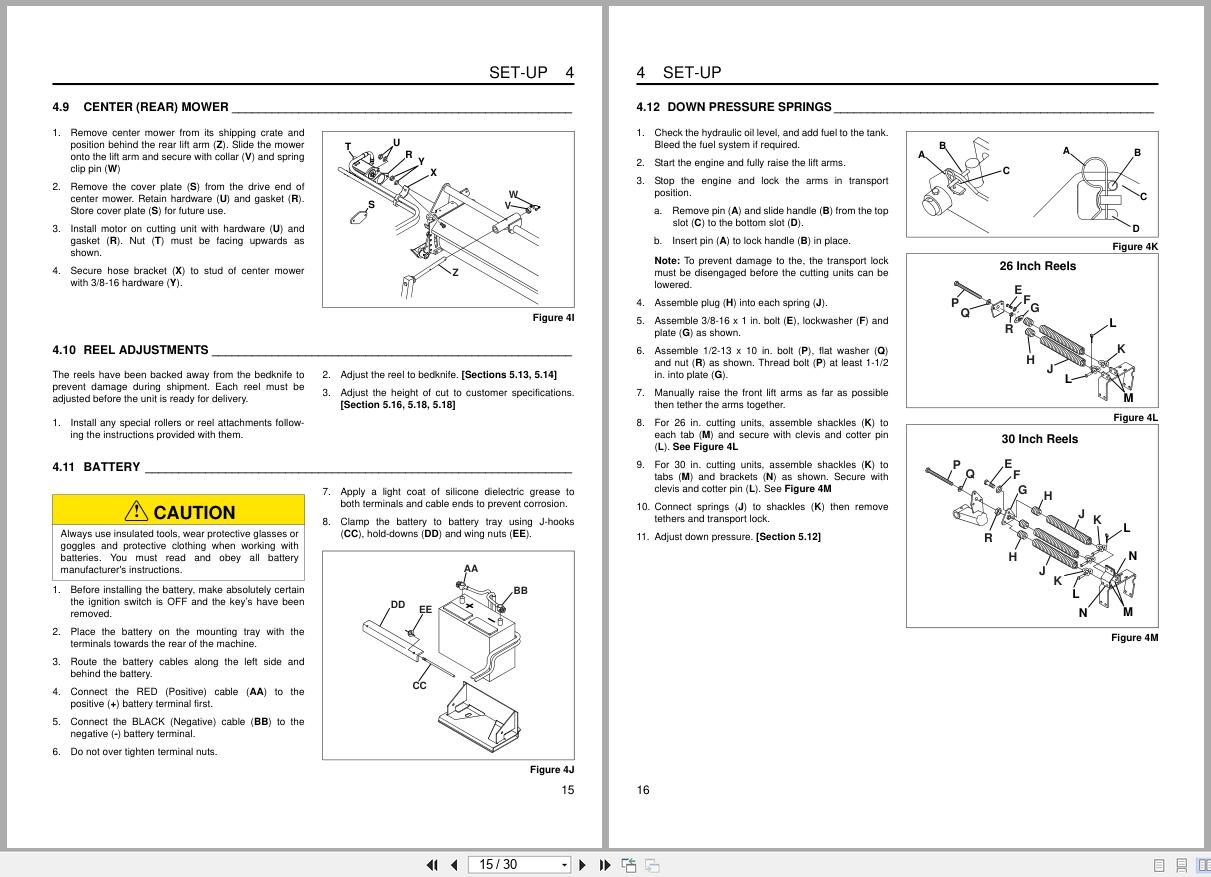

Jacobsen Reel Mower Tri King Dealer Manual 4189625 GB RA 2014 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Reel Mower Tri-King Dealer Manual 4189625-GB-RA 2014

Size: 0.83 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Reel Mower

Type of Manual: Dealer Manual

Model: Jacobsen Tri-King Reel Mower

67069 – Kubota D722-E3B Engine

67146 – Kubota D722-E4B Engine

Part Number: 4189625-GB-RA

Publication Date: 2014

Number of Pages: 30 Pages

10 USD

Tags: Jacobsen Dealer Manual, Jacobsen Reel Mower Manual, Tri-King

Description

Description

Contents:
2 Safety
2.1How to Operate Safely
2.2 Important Safety Notes
3 Controls
3.1 Icons
3.2 Controls
3.3 Opening The Hood
3.4 Steering Console Cover
4 Set-Up
4.1 General
4.2 Initial Inspection
4.3 Wheels
4.4 Steering Wheel
4.5 ROPS
4.6 Seat
4.7 Front Mower Hose Bracket
4.8 Front Mowers
4.9 Center (Rear) Mower
4.10 Reel adjustments
4.11 Battery
4.12 Down Pressure Springs
4.13 Operating Checks
4.14 Operator Back-up System
5 Adjustments
5.1 General
5.2 Fan Belt
5.3 Pump Drive Belt
5.4 Neutral and 3WD Switches
5.5 Parking Brake Switches
5.6 Lift Limit Switch
5.7 Traction Pedal Neutral
5.8 Traction Pedal Forward Stop
5.9 Lift / Lower Pedal Stop
5.10 Parking Brake
5.11 Rear Lift Arm
5.12 Down Pressure
5.13 Reel To Bedknife
5.14 Reel to Bedknife Adjustment
5.15 Cutting Modes
5.16 Cutting Height Adjustment
5.17 Removing the Cutting Unit
5.18 Cutting Height – Fixed Mode
5.19 Cutting Height – Floating Mode
5.20 Torque Specification
5.21 Specific Torque
6 Troubleshooting
6.1 General
7 Maintenance & Lubrication Charts
7.1 General
7.2 Lubrication Chart
