Name: Jacobsen Rotary Mower AR 2500 Setup Parts Maintenance Manual 4115102 2001
SKU: 646687
Availability: InStock

Jacobsen Rotary Mower AR 2500 Setup Parts Maintenance Manual 4115102 2001 (1)

Jacobsen Rotary Mower AR 2500 Setup Parts Maintenance Manual 4115102 2001 (2)

Jacobsen Rotary Mower AR 2500 Setup Parts Maintenance Manual 4115102 2001 (3)

Jacobsen Rotary Mower AR 2500 Setup Parts Maintenance Manual 4115102 2001 (4)

Jacobsen Rotary Mower AR 2500 Setup Parts Maintenance Manual 4115102 2001 (5)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Rotary Mower AR 2500 Setup Parts Maintenance Manual 4115102 2001

Size: 16.36 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Rotary Mower

Type of Manual: Setup Manual, Parts Manual, Maintenance Manual, Wiring Diagram, Hydraulic Diagram

Model: Jacobsen AR 2500, AR 2500 Turbo Rotary Mower

945025 – KUBOTA TURBO 4WD ROTARY US

945026 – KUBOTA 4WD ROTARY US

960034 – SIDE DISCHARGE DECK – LEFT FRONT

960035 – SIDE DISCHARGE DECK – CENTER FRONT

960036 – SIDE DISCHARGE DECK – RIGHT FRONT

960037 – SIDE DISCHARGE DECK – LEFT REAR

960038 – SIDE DISCHARGE DECK – RIGHT REAR

960039 – ENVIRODECK – LEFT FRONT

960040 – ENVIRODECK – CENTER FRONT

960041 – ENVIRODECK – RIGHT FRONT

960042 – ENVIRODECK – LEFT REAR

960043 – ENVIRODECK – RIGHT REAR

Part Number: 4115102

Publication Date: 2001

Number of Pages: 64 Pages

10 USD

Tags: AR 2500, Jacobsen Rotary Mower Manual, Jacobsen Setup Parts Maintenance Manual

Description

Description

Contents:
SAFETY

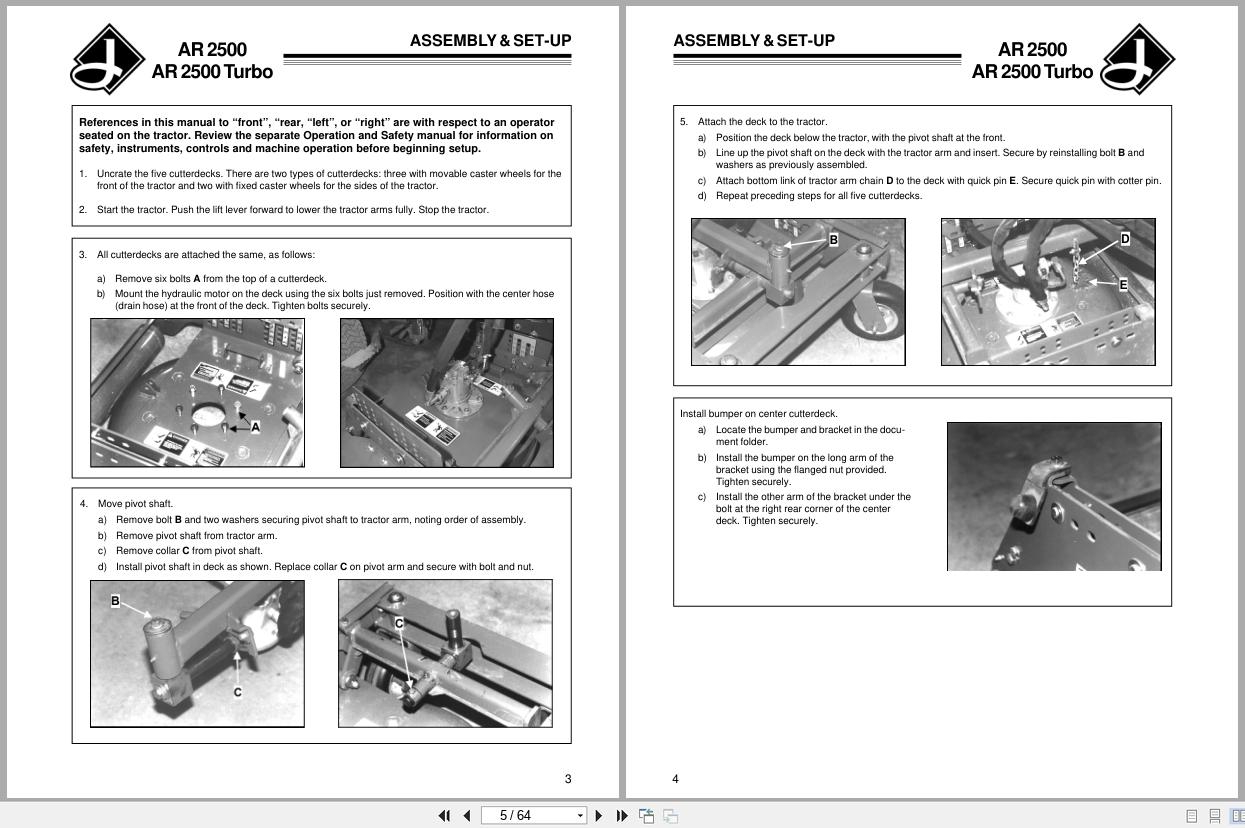

ASSEMBLY & SET-UP
ADJUSTMENTS
SERVICE CHART
SERVICE
BLADES
SPECIFICATIONS
PARTS SECTION
FIGURE 1
FRAME & REAR AXLE
FIGURE 2
ENGINE MOUNTING
FIGURE 3
HYDROSTAT / THROTTLE CONTROLS
FIGURE 4
AR 2500 TURBO FILTER / MUFFLER
FIGURE 5
AR 2500 FILTER / MUFFLER
FIGURE 6
STEERING WHEEL & PEDAL MOUNTING
FIGURE 7
FRONT LIFT ARM MOUNTING
FIGURE 8
REAR LIFT ARM MOUNTING
FIGURE 9
DRIVE WHEELS & BRAKES
FIGURE 10
HYDRAULIC RESERVOIR & FUEL TANK
FIGURE 11

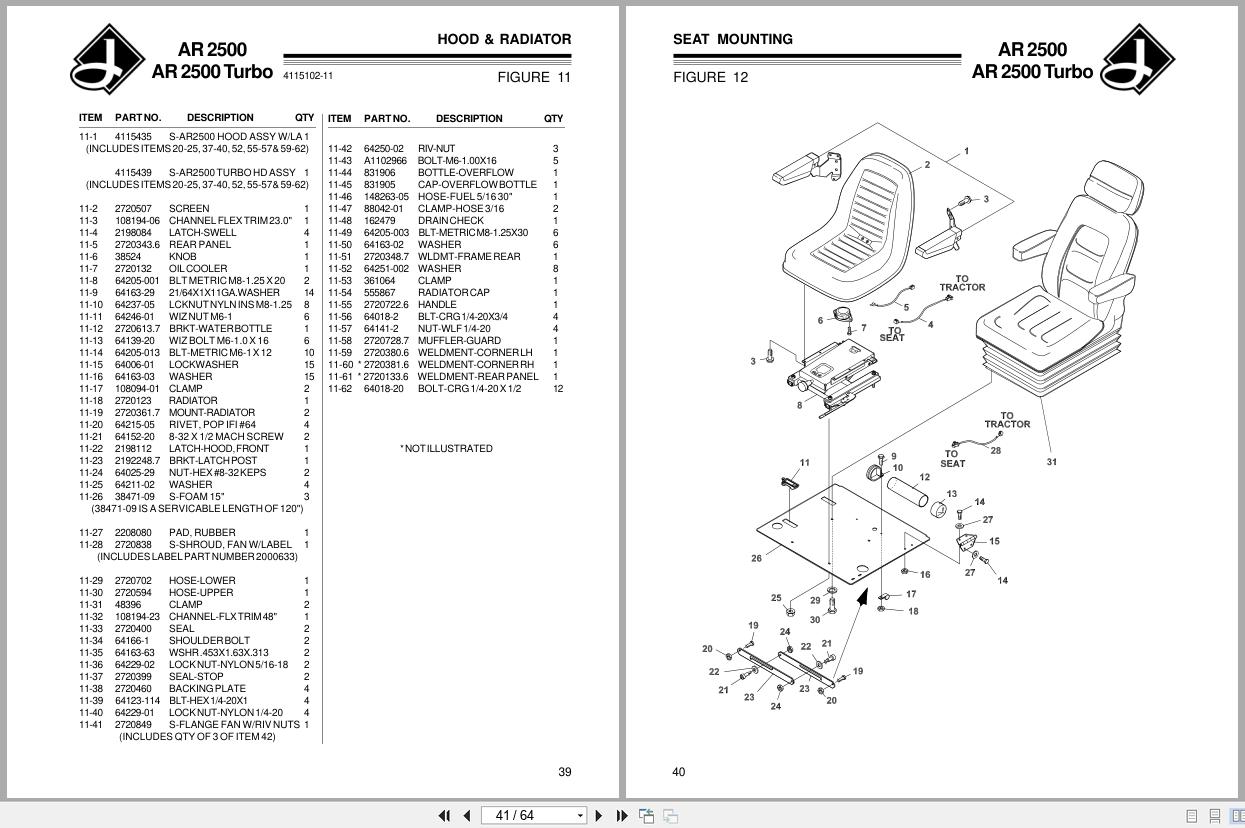

HOOD & RADIATOR
FIGURE 12
SEAT MOUNTING
FIGURE 13
INSTRUMENT PANEL
FIGURE 14
HYDRAULIC VALVE MOUNTING
FIGURE 15
ENVIRODECKS
FIGURE 16
SIDE DISCHARGE DECKS

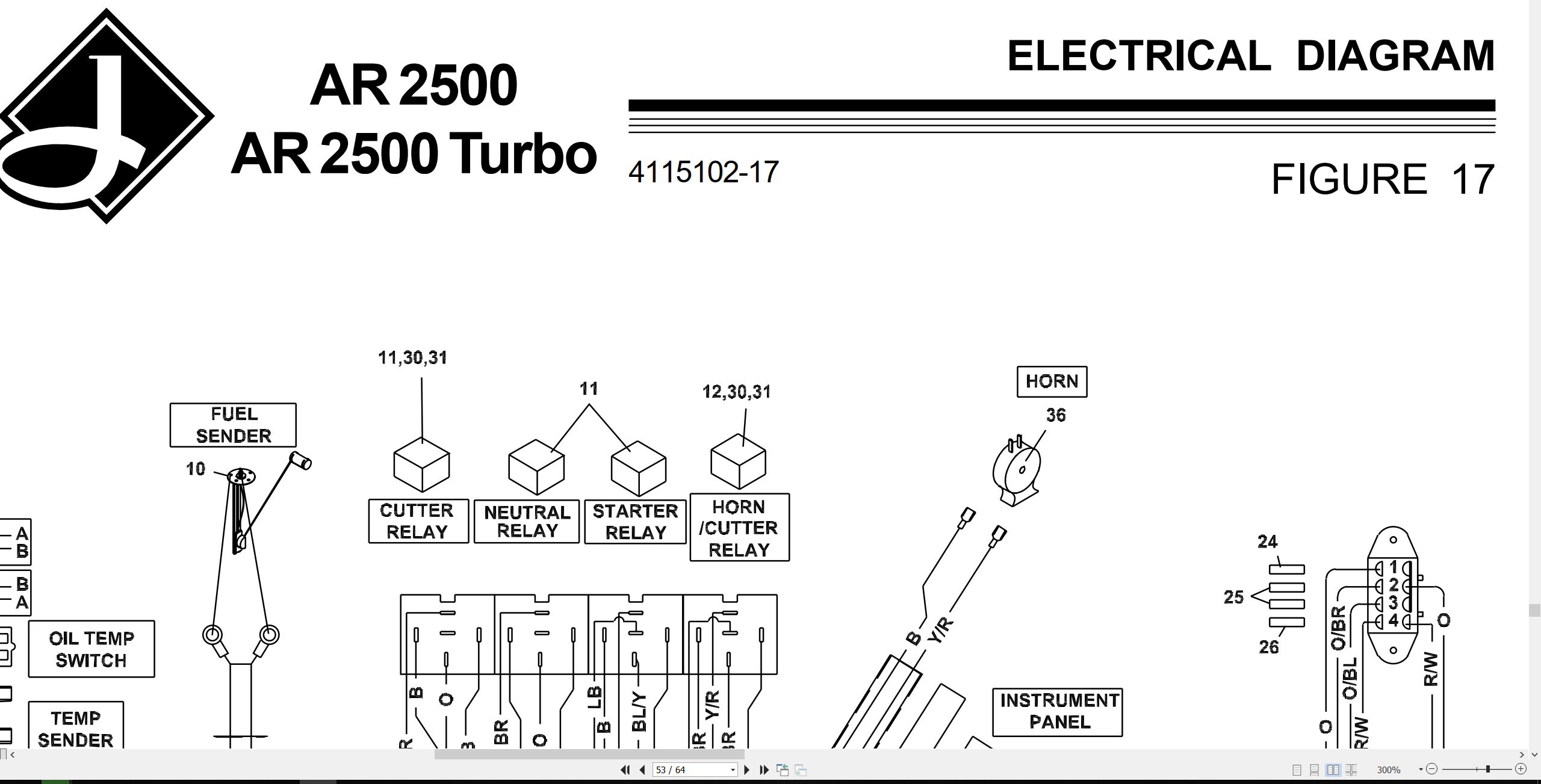

FIGURE 17
ELECTRICAL DIAGRAM

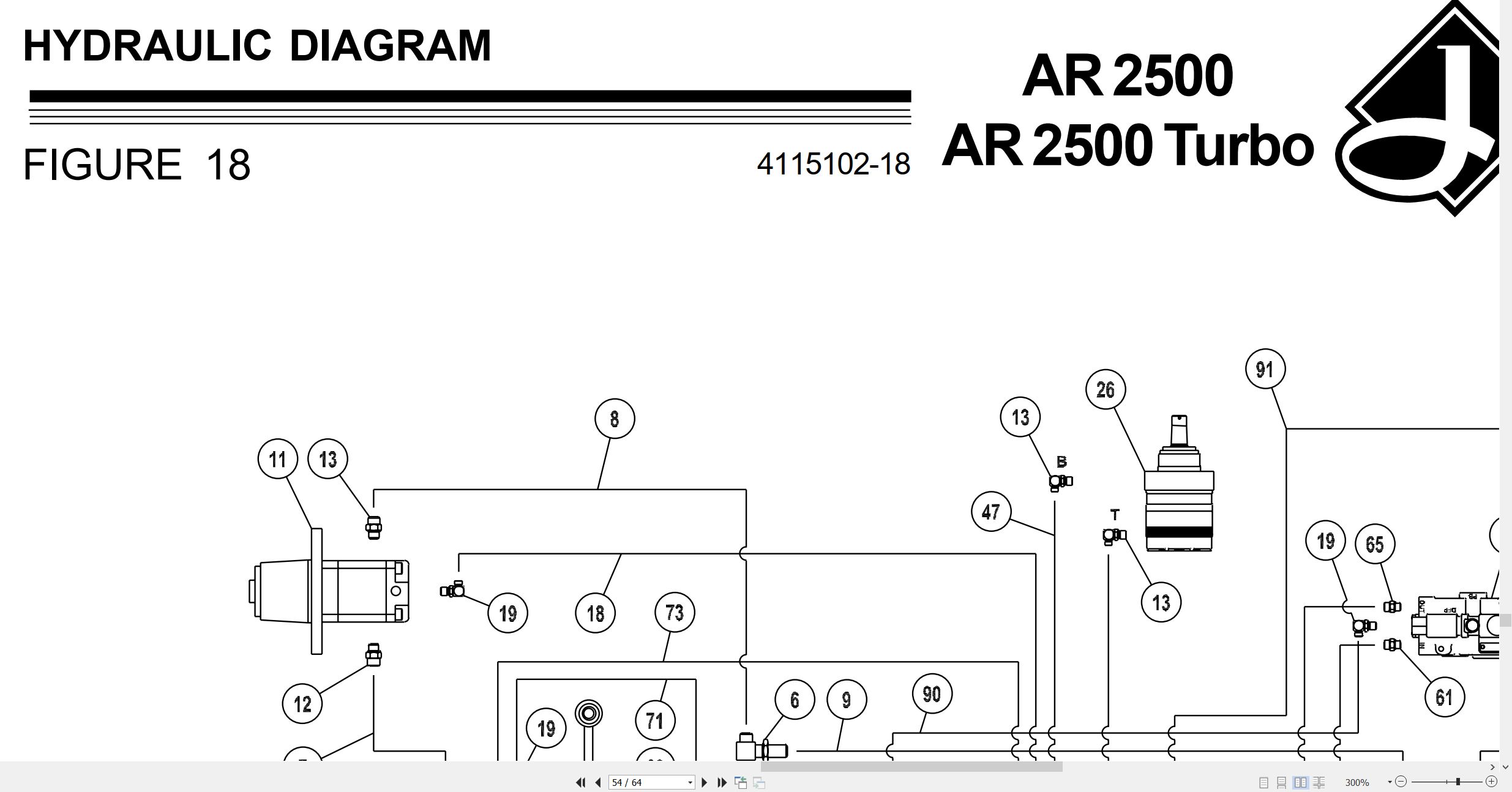

FIGURE 18
HYDRAULIC DIAGRAM
FIGURE 19
4WD VALVE
FIGURE 20
HYDRAULIC SCHEMATIC
FIGURE 21
ELECTRICAL SCHEMATIC
FIGURE 22
DECK VALVE
FIGURE 23
SAUER-SUNSTRAND PUMP
FIGURE 24
DECALS
