Jacobsen Rotary Mower AR-3 Parts Manual 24727G-R9 2017

Size: 9.88 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Rotary Mower

Type of Manual: Parts Manual, Wiring Diagram, Hydraulic Diagram

Model: Jacobsen AR-3 Rotary Mower

Series EK, AR30001 (D1105-T-E3B) – 68″ Width of Cut

Series FZ, AR30002 (D1105-T-E3B) – 72″ Width of Cut

Series GX, AR30003 (D1105-T-E3B) – 68″ Width of Cut

Series KG, AR30004 (D1105-E4B) – 68″ Width of Cut

Part Number: 24727G-R9

Publication Date: 2017

Number of Pages: 190 Pages

10 USD

Tags: AR-3, Jacobsen Parts Manual, Jacobsen Rotary Mower Manual

Description

Description

Contents:
CHASSIS
OPERATORS PLATFORM (From Serial No EK000804)
OPERATORS PLATFORM (To Serial No EK000803)
FRONT AXLE & UNIT MOUNTING
PLATFORM SUPPORT
FOOTSTEP LH
FOOTSTEP RH
FOOTGUARD LH
FOOTGUARD RH
RH FRONT STOP
LH FRONT STOP
FUEL TANK PART 1
FUEL TANK PART 2
HYDRAULIC TANK PART 1
HYDRAULIC TANK PART 2
REAR WHEEL SUPPORT
STEERING CYLINDER
STEERING TOWER
STEERING TOWER FROM SERIAL NUMBER GX100889 & KG000440
BATTERY & TRAY
FUSE BRACKET

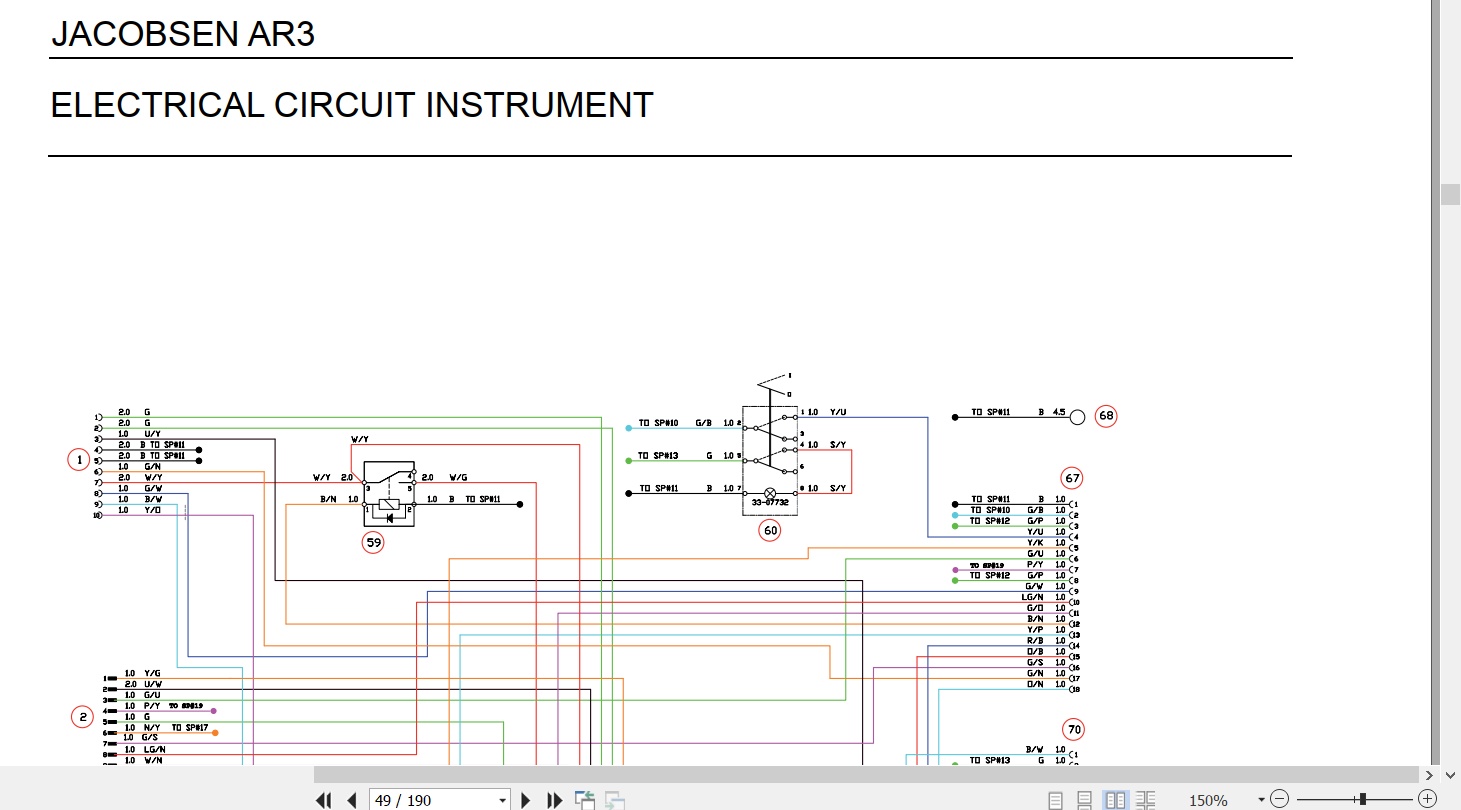

ELECTRICAL CIRCUIT INSTRUMENT
ELECTRICAL CIRCUIT INSTRUMENT
ELECTRICAL CIRCUIT MAIN
FRONT WHEEL & MOTOR POCLAIN
FRONT WHEEL & MOTOR POCLAIN
FRONT WHEEL & MOTOR (SAUER DANFOSS)
REAR WHEEL & MOTOR
MOTOR-WHEEL EATON Series 2000 (4184181)
MOTOR-WHEEL DANFOSS OMSW400
PUMPS
PUMPS
PUMP (SAUER-DANFOSS M25X00805950)
PUMP (CASAPPA)
LIFT VALVE
LIFT VALVE (STERLING)
LIFT VALVE (INTEGRATED)
LIFT VALVE PROTECTION (AR30001 ONLY)
FLUSHING VALVE
FLUSHING VALVE (INTEGRATED HYDRAULICS)
CUTTER & BRAKE VALVE
CUTTER & BRAKE VALVE (STERLING)
CUTTER & BRAKE VALVE (INTEGRATED)
BRAKE RELEASE VALVE
BRAKE RELEASE VALVE FROM SERIAL NUMBER GX100889 & KG000440
HYDRAULIC FILTER
MANIFOLD & BRACKET

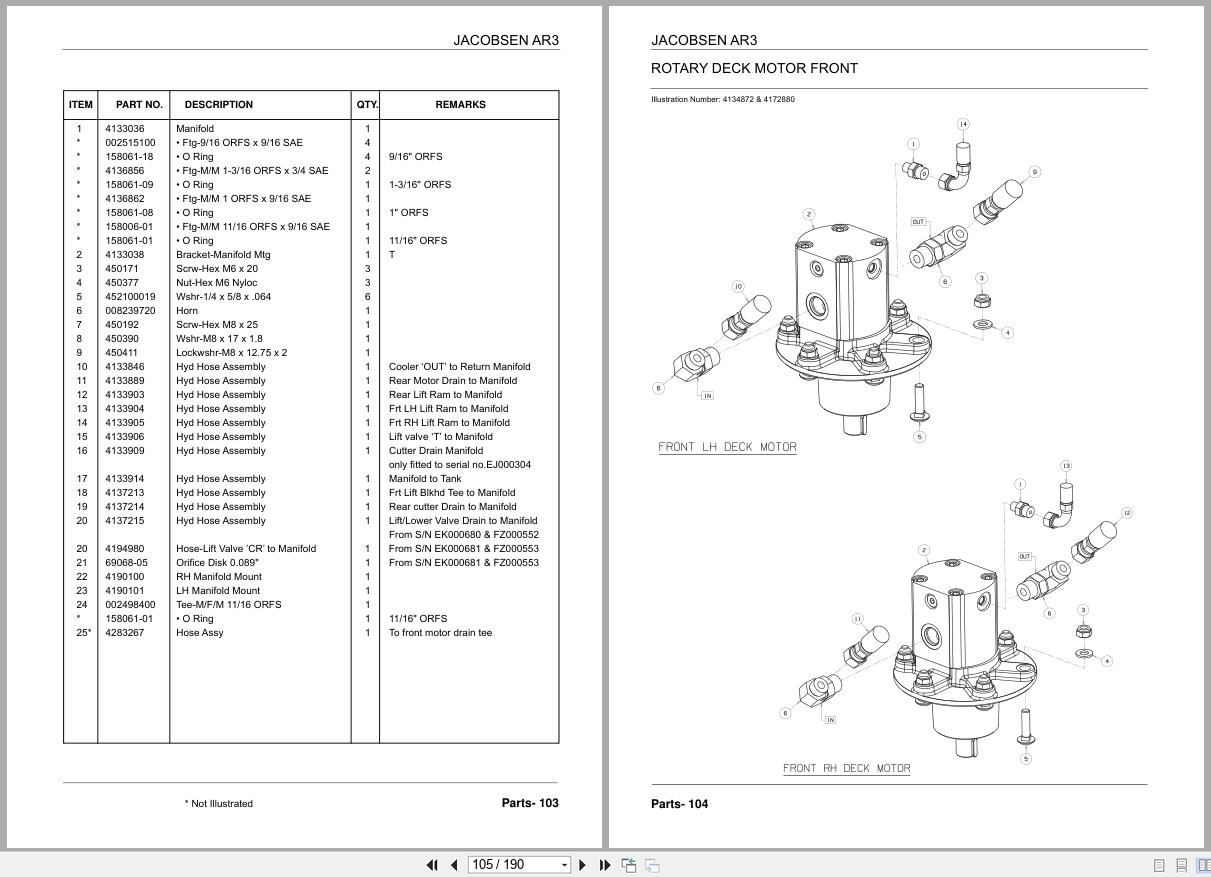

ROTARY DECK MOTOR FRONT
ROTARY DECK MOTOR CENTRE
ROTARY DECK MOTOR BREAKDOWN

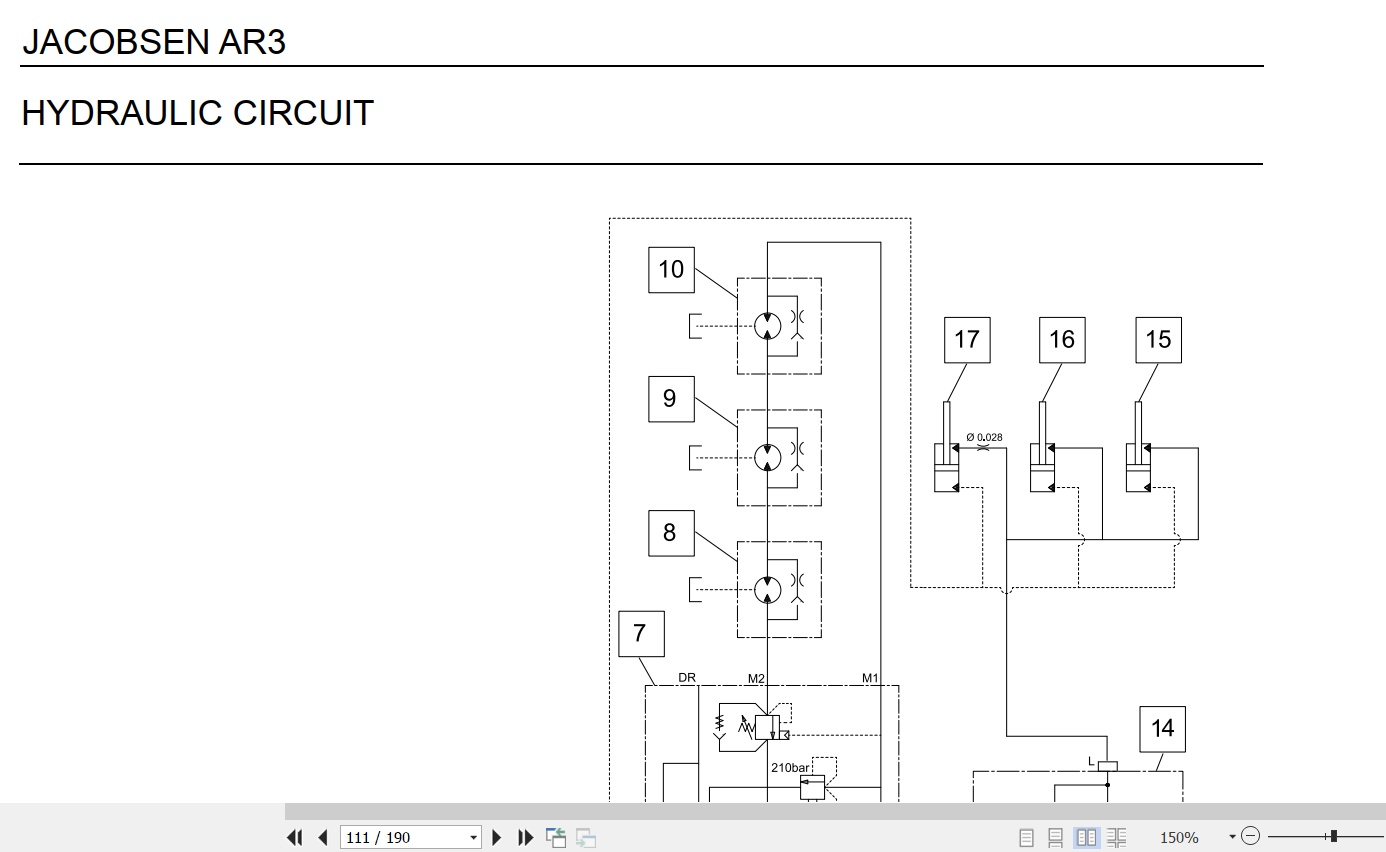

HYDRAULIC CIRCUIT
NADI ENGINE AND MOUNTING
ENGINE & MOUNTING
EXHAUST MOUNTING
EXHAUST
RADIATOR & COWLING
AIR CLEANER MOUNTING
EXPANSION TANK
ENGINE HOOD
DECALS
SEAT & MOUNTING PLATE
SEAT & MOUNTING PLATE FROM SERIAL NUMBER GX100889 & KG000440
MICHIGAN V-5300 SERIES SEAT
GRAMMER MSG 85 SEAT (4137986) SUSPENSION
GRAMMER MSG 85 SEAT TOP
TRACTION PEDAL
TRACTION PEDAL DAMPER
DAMPER CONTROL
TRACTION PEDAL NEUTRAL SWITCH
INSTRUMENT PANEL
INSTRUMENT PANEL FROM SERIAL NUMBER GX100889 & KG000440
CONTROL PANEL
CONTROL PANEL FROM SERIAL NUMBER GX100889 & KG000440
DECK YOKE & MOUNTING
DECK HOUSING & CASTER WHEELS (Non TrimTek™)
DECK FRAME UPTO S/N GX000579
DECK FRAME (TrimTek™) UPTO S/N GX000579
DECK FRAME TrimTek™ UPTO S/N GX000579
DECK FRAME TrimTek™ FROM S/N GX000579 / KG000300
DECK ROLLER
OPS FRAME (LMAC164)
WORKING LAMP KIT (LMAC163)
NARROW WIDTH OF CUT KIT (LMAC199)
72″ WIDTH OF CUT KIT (AR30002)
INCLINOMETER KIT (LMAC380)
TRANSPORT STOPS (AR LMAC174)
