Jacobsen Rotary Mower AR-522 Parts Maintenance Manual 4179561-REV C-GB 2008

Size: 6.46 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Rotary Mower

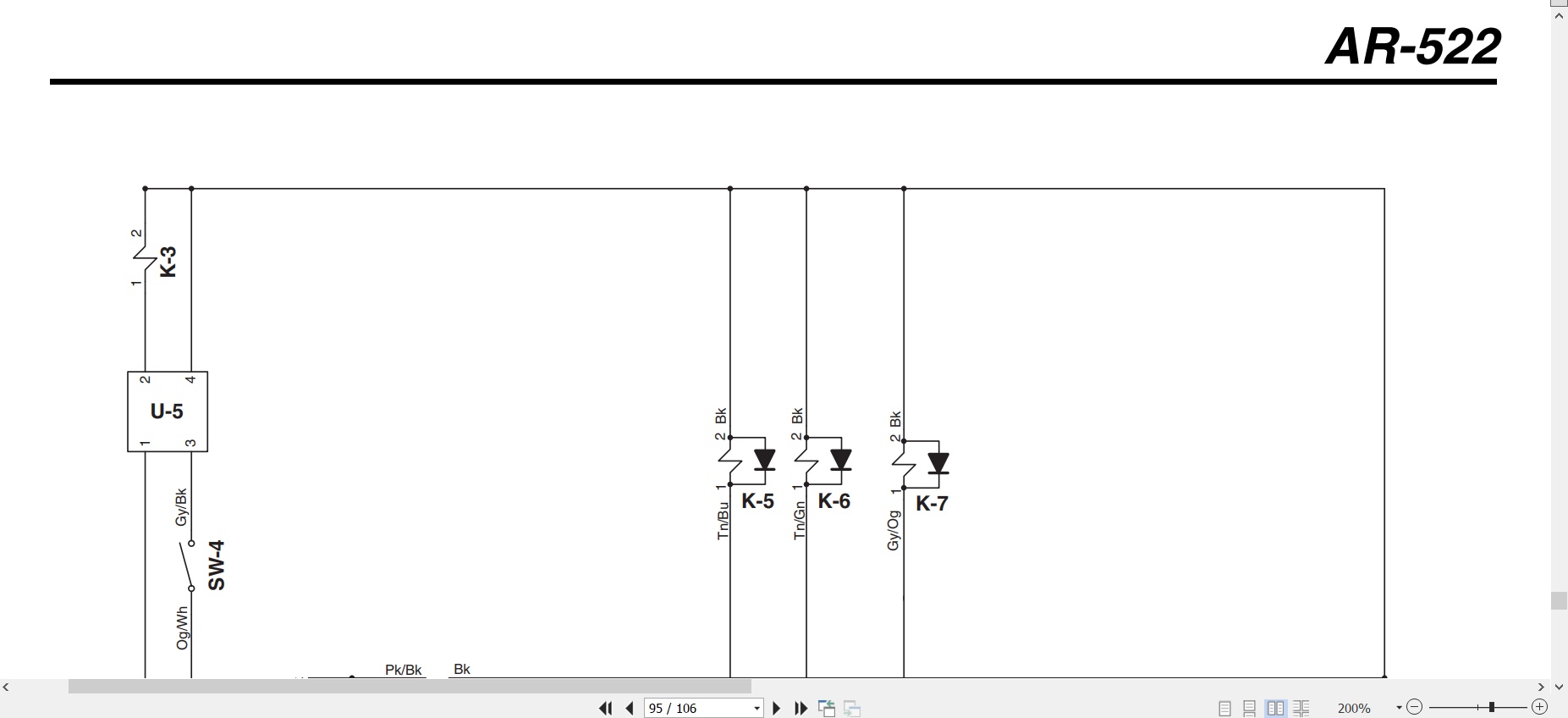

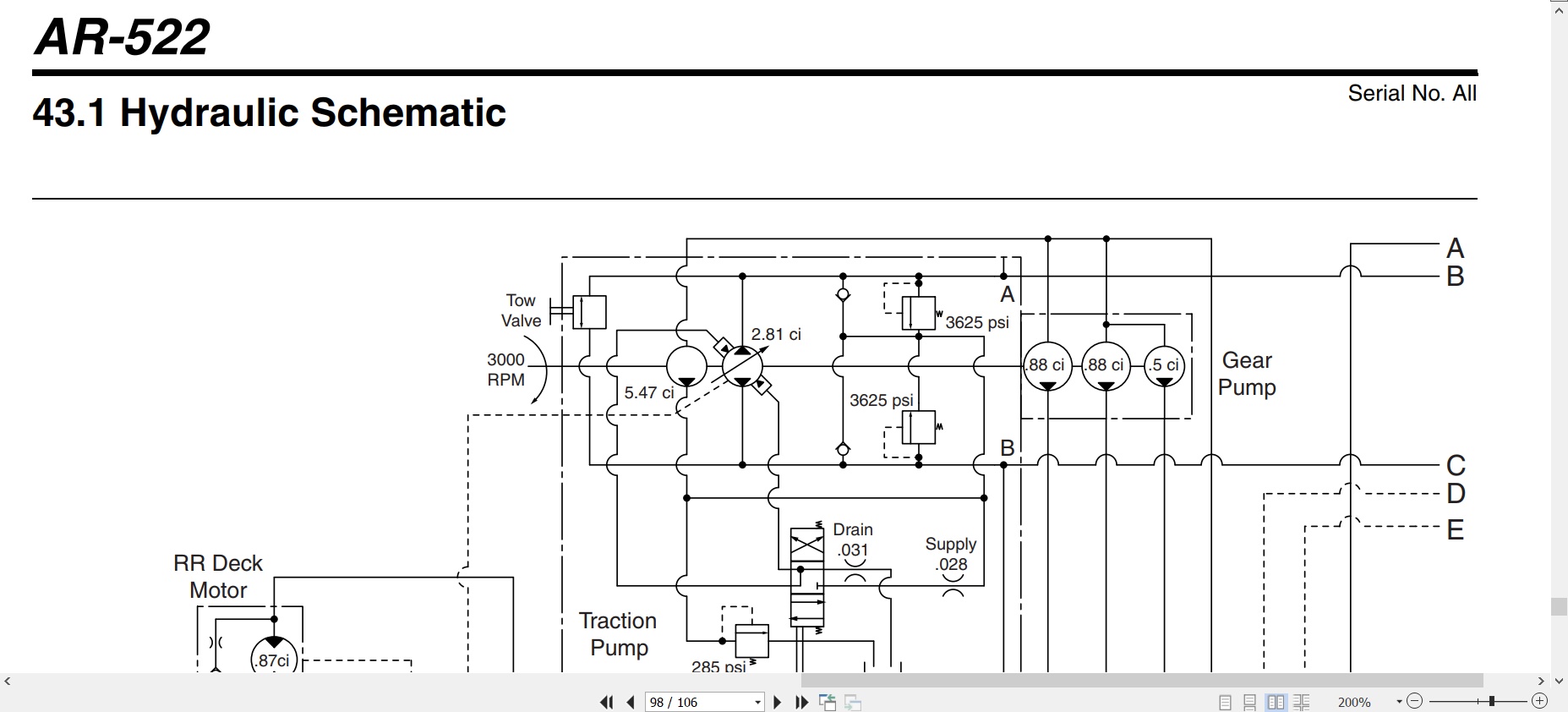

Type of Manual: Parts Manual, Maintenance Manual, Wiring Diagram, Hydraulic Diagram

Model: Jacobsen 68082 – AR-522, Kubota V2003, 4WD, with ROPS Rotary Mower

Part Number: 4179561-REV C-GB

Publication Date: 2008

Number of Pages: 106 Pages

10 USD

Tags: AR-522, Jacobsen Parts Maintenance Manual, Jacobsen Rotary Mower Manual

Description

Description

Contents:
1.1 Operating Safety
1.2 Important Safety Notes
Specifications
2.1 Product Identification
2.2 V2003-M-T Engine
2.3 Mower
2.4 Weights and Dimensions
2.5 Cutting Units
2.6 Accessories
2.7 Support Literature
Adjustments
3.1 General
3.2 Mow Speed
3.3 Belt
3.4 Brakes
3.5 Neutral Adjustment
3.6 Forward / Reverse Speed
3.7 Steering Toe-In
3.8 Cutting Height
3.9 Traction Control System Calibration
3.10 Torque Specification
Maintenance
4.1 General
4.2 Engine
4.3 Engine Oil
4.4 Air Filter
4.5 Fuel
4.6 Fuel System
4.7 Battery
4.8 Jump Starting
4.9 Charging Battery
4.10 Muffler and Exhaust
4.11 Hydraulic Hoses
4.12 Hydraulic Oil
4.13 Hydraulic Filter
4.14 Electrical System
4.15 Radiator
4.16 Roll Over Protective Structure (ROPS)
4.17 Tires
4.18 Wheel Mounting Procedure
4.19 Inspecting Blades
4.20 Sharpening Blades
4.21 Care and Cleaning
4.22 Storage
Troubleshooting
5.1 General
5.2 Controller Lamps
5.3 Electrical Circuits
Maintenance & Lubrication charts
6.1 General
6.2 Maintenance Chart
6.3 Lubrication Chart
Parts Catalog
7.1 How To Use The Parts Catalog
7.2 To Order Parts
