Name: Jacobsen Rotary Mower HR600 Parts Manual 25153G-R1 2016
SKU: 646749
Availability: InStock

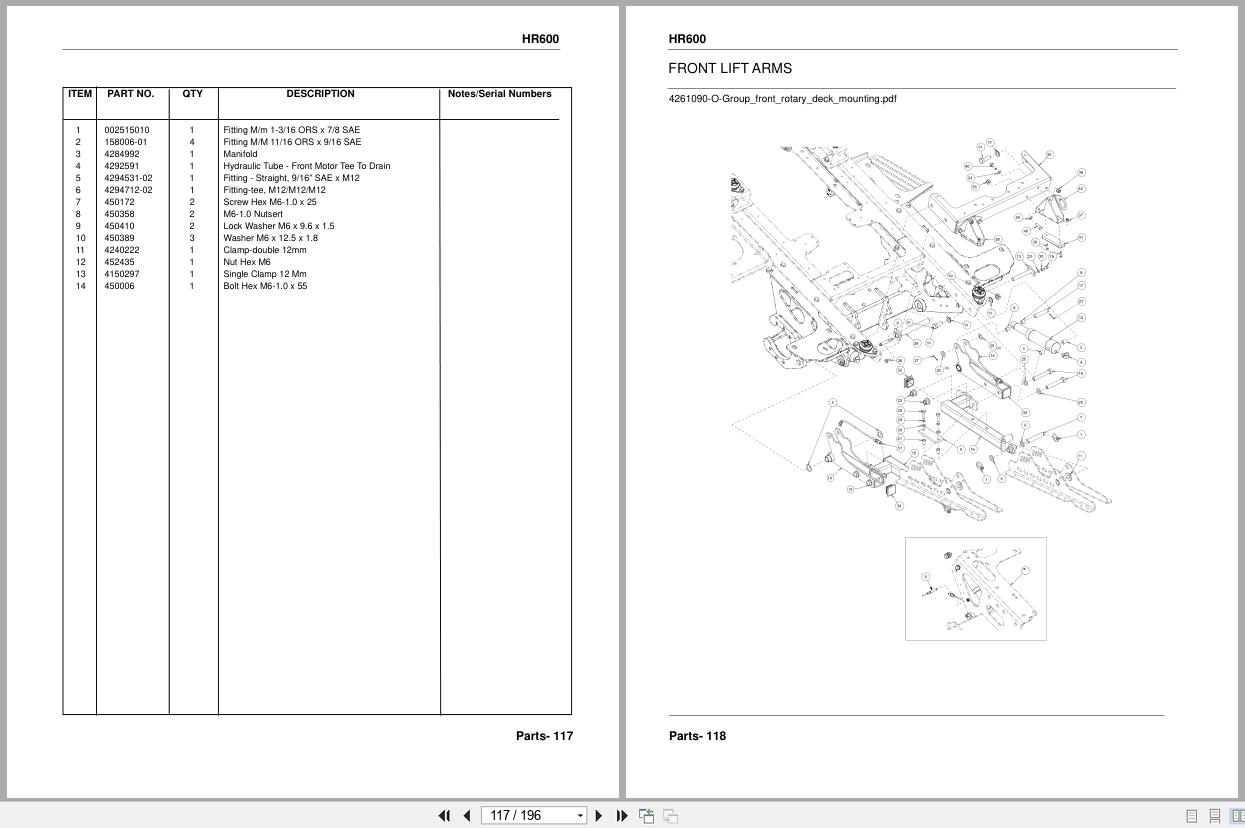

Jacobsen Rotary Mower HR600 Parts Manual 25153G R1 2016 (1)

Jacobsen Rotary Mower HR600 Parts Manual 25153G R1 2016 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Rotary Mower HR600 Parts Manual 25153G-R1 2016

Size: 17.59 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Rotary Mower

Type of Manual: Parts Manual

Model: Jacobsen 70546 – HR600, Kubota V2403-CR-TE4 Rotary Mower

Part Number: 25153G-R1

Publication Date: 2016

Number of Pages: 196 Pages

10 USD

Tags: HR600, Jacobsen Parts Manual, Jacobsen Rotary Mower Manual

Description

Description

Contents:
Decals (Power Unit)
Engine Hood
Control Panel Assembly (Rops)
Control Panel Breakdown (Rops)
Control Panel Assembly (Cab)
Control Panel Breakdown (Cab)
Control Pod
Traction Pedal Assembly
Chassis
Rear Bumper
Rops
Wing Stops
Cab Glass, Beacons Mirrors And Wipers
Cab Door Assembly
Cab Roof Assembly
Cab Headlining Assembly-1
Cab Headlining Assembly-2
Cab Headlining Assembly-3
Cab Heater And Air Conditioning-1
Cab Heater And Air Conditioning-2
Cab Heater And Air Conditioning-3
Compressor Mounting And Hoses
Cab Interior Mounting Parts-1
Cab Interior Mounting Parts-2
Cab Platform Insulation
Rear Wiper Kit Lmac599 (Option)
Front Wheel And Motor Assembly
Rear Axle Assembly
Rear Wheels And Motors
Operators Platform
Steering Column Assembly
Engine And Mounting
Cooler And Air Cleaner
Group Bulkhead
Transmission Pump
Pump Breakdown Edc
Auxiliary Pumps
Fuel Tank Assembly
Fuel Filter And Pump
Hydraulic Tank Assembly
Transmission Valve Assembly
Transmission Valve Breakdown
Group Cutter Valve Right
Cutter Valve Centre
Cutter Valve Left
Lift Valve Group
Lift Valve Breakdown
Priority Valve
Brake Valve Assembly
Break Valve Breakdown
Hydraulic Filter Assembly (Left Side)
Hydraulic Filter Assembly (Right Side)
Drain Manifold
Front Lift Arms
Front Deck Assembly
Front Deck Assembly
Front Deck Motors And Blades
Caster Wheel Assembly11 Inch
Decals Front Deck
Wing Deck Lift Right Hand
Wing Deck Lift Arms Right Hand
Wing Deck Lift Left Hand
Wing Deck Lift Arm Left Hand
Contour Wing Deck Right Hand 44 Inch
Contour Wing Deck Left Hand 44 Inch
Contour Wing Deck Right Hand Decal Kit
Contour Wing Deck Left Hand Decal Kit
Seat Suspension, Grammer Msg 85
Seat, Grammer Msg 85
Seat Suspension, Grammer Msg 95-721
Seat, Grammer Msg 95-721
Seat, Grammer Msg 95-721
Armrest
Battery Assembly
Beacon
Lighting Kit (Rops)
Lighting Kit (Cab)
Electric Components
Electrical Harness Clips
Electrical Bulkhead
Front Wheel Sensor
Basket Kit (Optional)
Transmission Hoses
Cutting Circuit Hoses
Lift And Steering Hoses
Filter And Drain Hoses
