Name: Jacobsen Rotary Mower LMAC690F Contour Deck Field Kit For HR600 Fitting Instructions 25158G-GB-R0 2016
SKU: 646760
Availability: InStock

Jacobsen Rotary Mower LMAC690F Contour Deck Field Kit For HR600 Fitting Instructions 25158G GB R0 2016 (1)

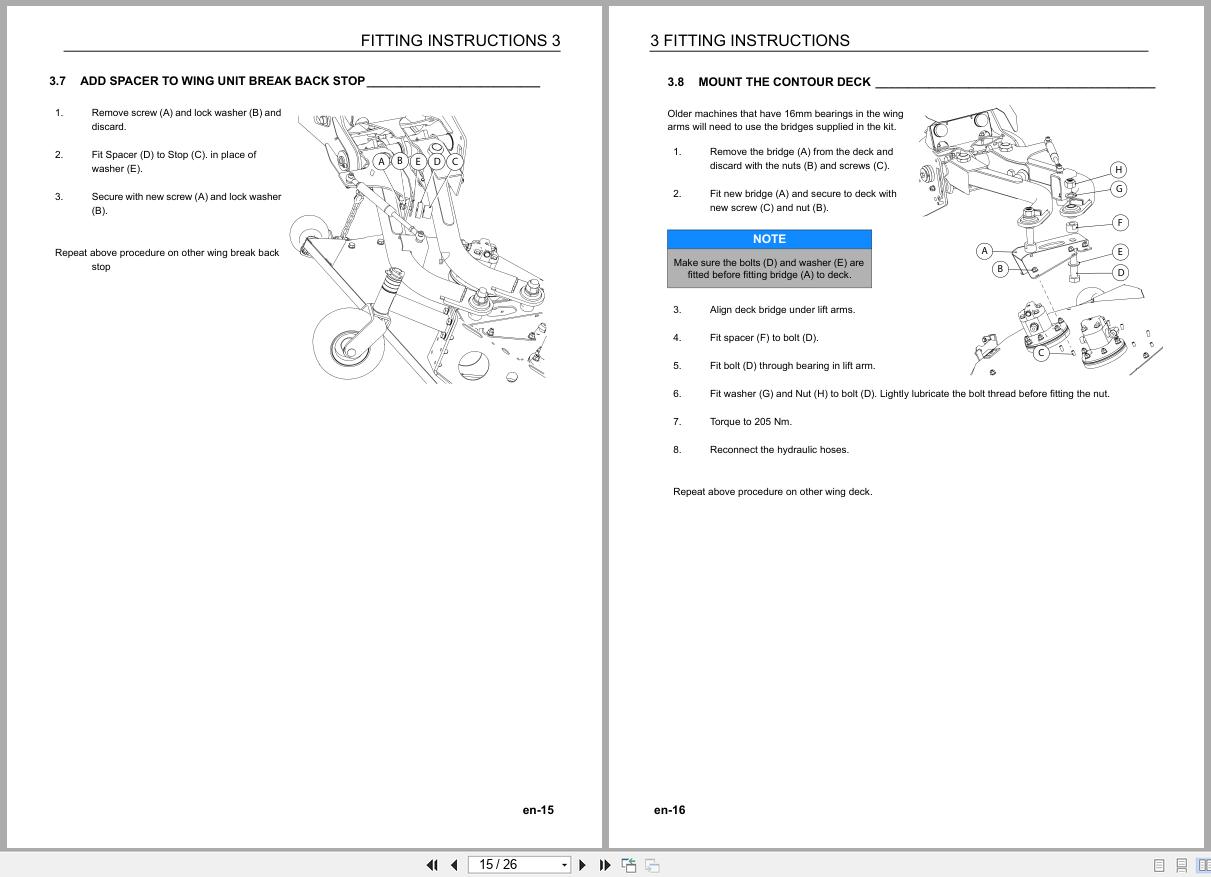

Jacobsen Rotary Mower LMAC690F Contour Deck Field Kit For HR600 Fitting Instructions 25158G GB R0 2016 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Rotary Mower LMAC690F Contour Deck Field Kit For HR600 Fitting Instructions 25158G-GB-R0 2016

Size: 2.38 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Rotary Mower

Type of Manual: Fitting Instructions

Model: Jacobsen LMAC690F Contour Deck Field Kit For HR600 Rotary Mower

Part Number: 25158G-GB-R0

Publication Date: 2016

Number of Pages: 26 Pages

10 USD

Tags: HR600, Jacobsen Fitting Instruction, Jacobsen Rotary Mower Manual, LMAC690F

Description

Description

Contents:
Safety
How To Operate Safely
Safe Operation
Preparation
Operation
Rops
Safe Handling Of Fuels
Maintenance And Storage
When You Put The Mower On A Trailer 6
Important Safety Notes
Fitting Instructions
Preparation
Remove Height Of Cut Assembly
Remove Anti Mohawk Assembly
Remove Decks
Replace Pivot Shaft If Required
Add Spacer To Wing Unit Stops (Cabbed Machine)
Add Spacer To Wing Unit Break Back Stop
Mount The Contour Deck
Height Of Cut Chain Set Up
Wing Deck Anti Mohawk Chain Assembly
Front Deck Caster Wheels
Height Of Cut Adjustment (Contour Wing Cutter Deck)
Parts
Contour Deck field Fitting Kit
