Name: Jacobsen Turf Mower HR 5111 Parts Maintenance Manual 4103524-ML1 2000
SKU: 646853
Availability: InStock

Jacobsen Turf Mower HR 5111 Parts Maintenance Manual 4103524 ML1 2000 (1)

Jacobsen Turf Mower HR 5111 Parts Maintenance Manual 4103524 ML1 2000 (2)

Jacobsen Turf Mower HR 5111 Parts Maintenance Manual 4103524 ML1 2000 (3)

Jacobsen Turf Mower HR 5111 Parts Maintenance Manual 4103524 ML1 2000 (4)

Jacobsen Turf Mower HR 5111 Parts Maintenance Manual 4103524 ML1 2000 (5)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Turf Mower HR 5111 Parts Maintenance Manual 4103524-ML1 2000

Size: 5.47 MB

Format: PDF

Language: English French Dutch German

Brand: Jacobsen

Type of Machine: Turf Mower

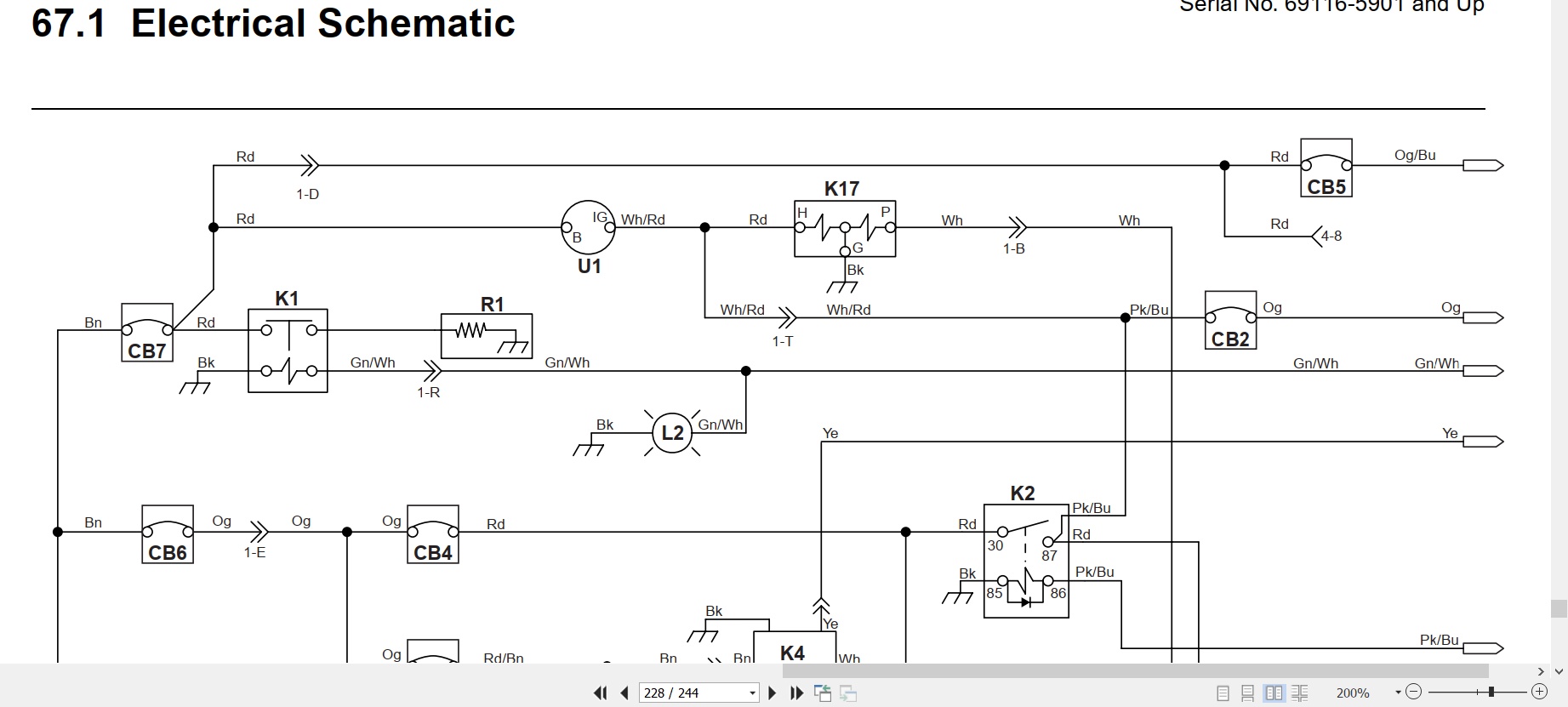

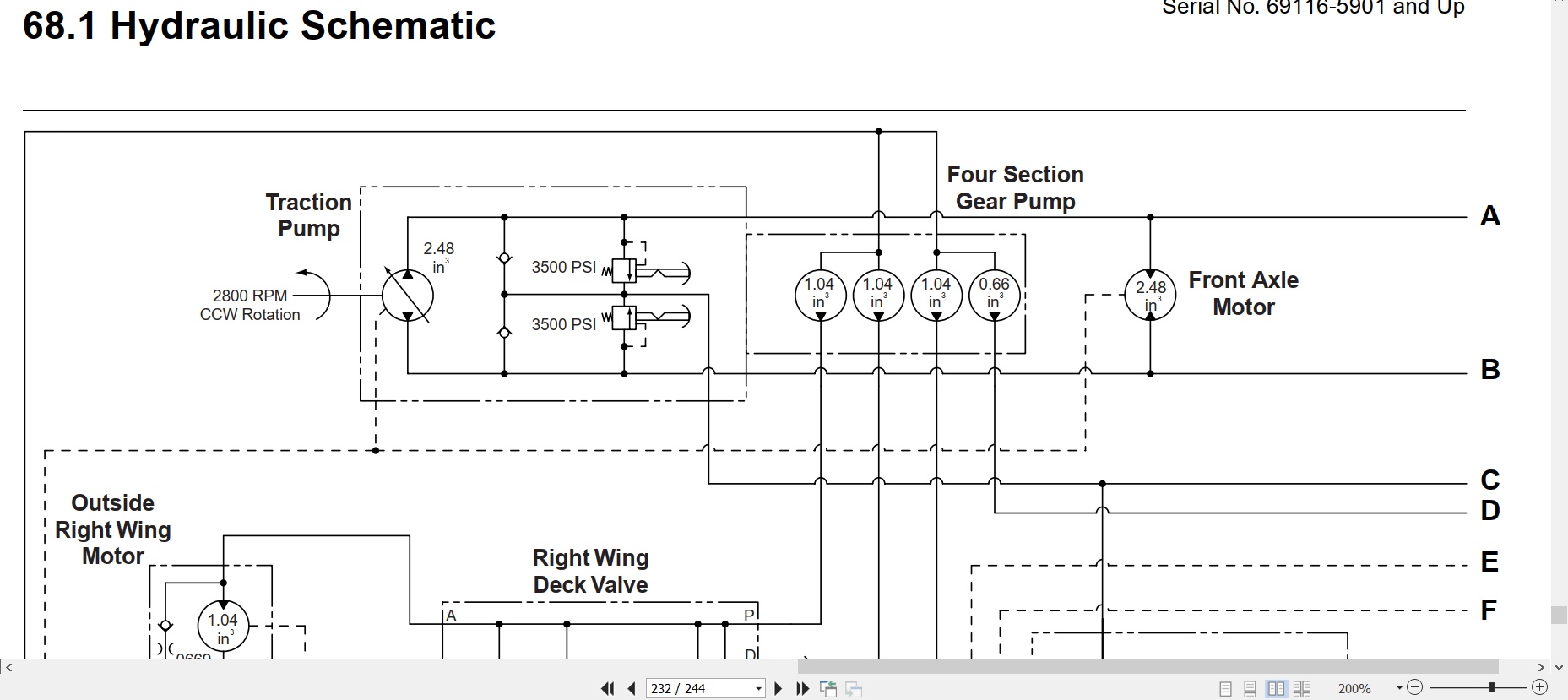

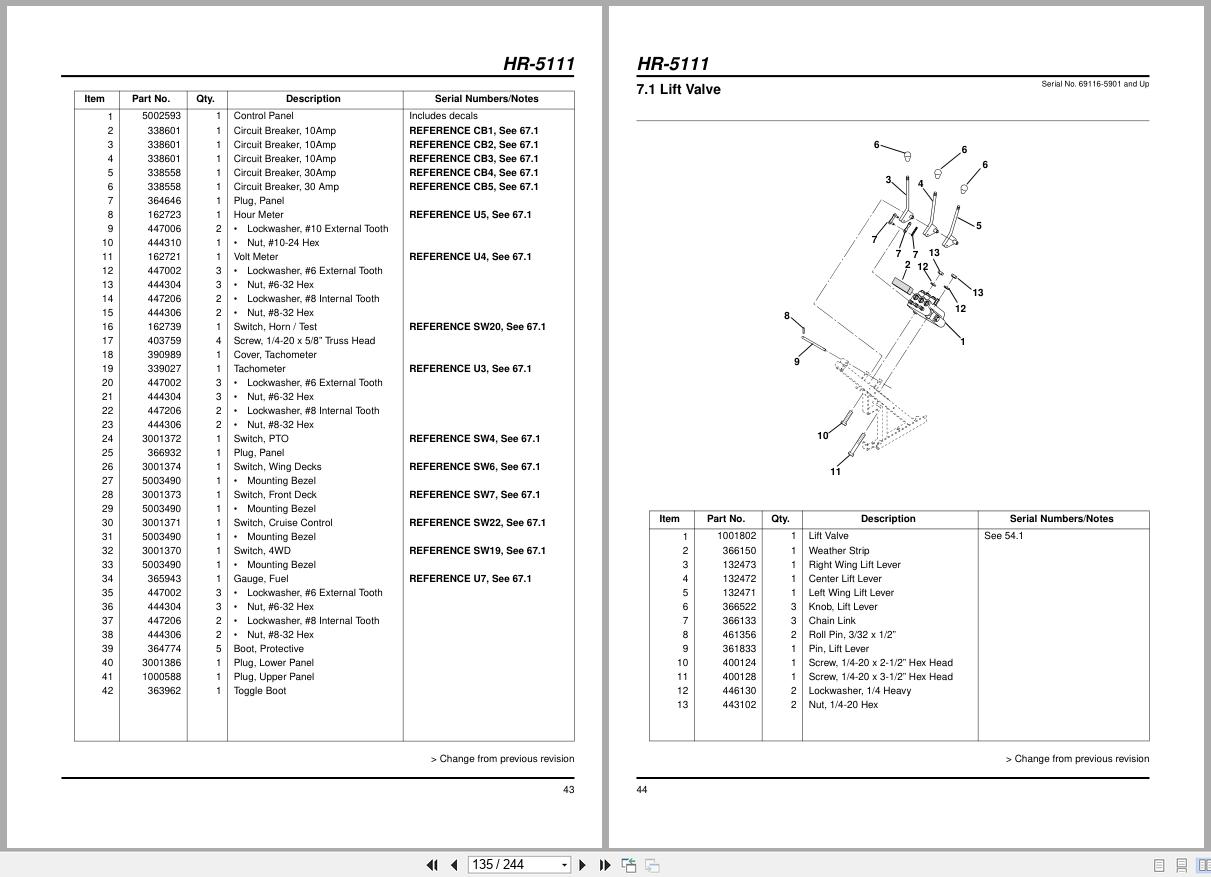

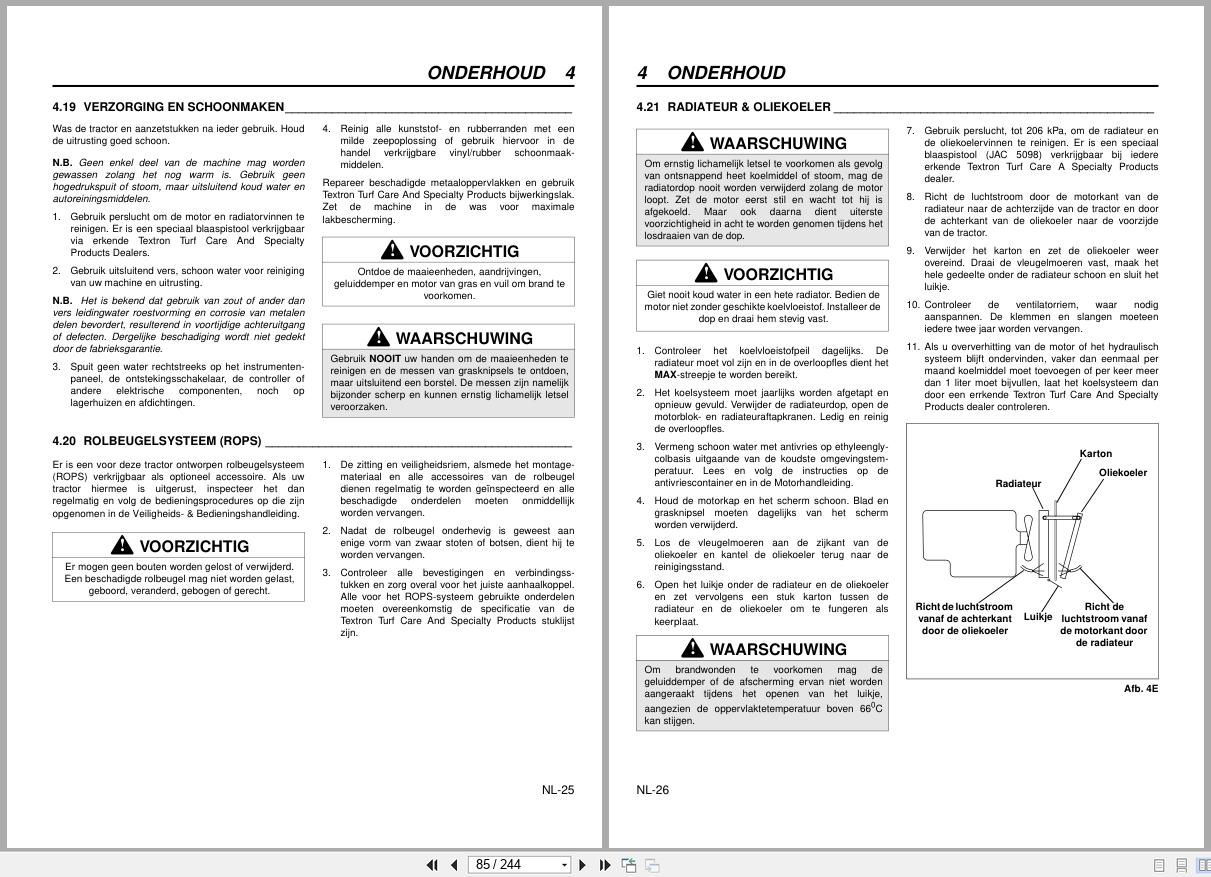

Type of Manual: Parts Manual, Maintenance Manual, Wiring Diagram, Hydraulic Diagram

Model: Jacobsen HR 5111 With ROPS Turf Mower

Product Number: 69116 – Engine Kubota V2203

Serial Numbers: 5901 and up

Part Number: 4103524-ML1

Publication Date: 2000

Number of Pages: 244 Pages

10 USD

Tags: HR 5111, Jacobsen Parts Maintenance Manual, Jacobsen Turf Mower Manual

Description

Description

Contents:
1 Safety
1.1 Operating Safety
1.2 Important Safety Notes
2 Specifications
2.1 Product Identification
2.2 Engine
2.3 Tractor
2.4 Cutting Units
2.5 Weights and Dimensions
2.6 Accessories & Support Literature
3 Adjustments
3.1 General
3.2 Ball Joints
3.3 Engine Alternator Belt
3.4 Parking Brake
3.5 Service Brake
3.6 Cruise Control Switch
3.7 Fuel Solenoid
3.8 Ground Pressure
3.9 Hydro Neutral
3.10 Traction Pedal Stop
3.11 Steering Toe In
3.12 Turning Radius
3.13 Steering Stop Bolts
3.14 Reverse Sensing Switch
3.15 Leveling Front Mower
3.16 Cutting Height
3.17 Servicing Front Deck
3.18 Specific Torque
3.19 Torque Specification
4 Maintenance
4.1 General
4.2 Inspecting Blades
4.3 Sharpening Blades
4.4 Engine
4.5 Engine Oil
4.6 Air Filter
4.7 Fuel
4.8 Fuel System
4.9 Battery
4.10 Jump Starting
4.11 Charging Battery
4.12 Hydraulic Hoses
4.13 Hydraulic Oil
4.14 Hydraulic Oil Filters
4.15 Electrical System
4.16 Muffler And Exhaust
4.17 Tires
4.18 Wheel Mounting Procedure
4.19 Care And Cleaning
4.20 Radiator and Oil Cooler
4.21 Storage
5 Troubleshooting
5.1 General
6 Maintenance & Lubrication Charts
6.1 General
6.2 Lubrication Chart
6.3 Maintenance Charts
7 Notes
8 Parts Catalog
