NIFTYLIFT Articulating Boom Lifts SP64 36509 Operating Service Parts Manual And Diagram 2018

Description

List of Files:

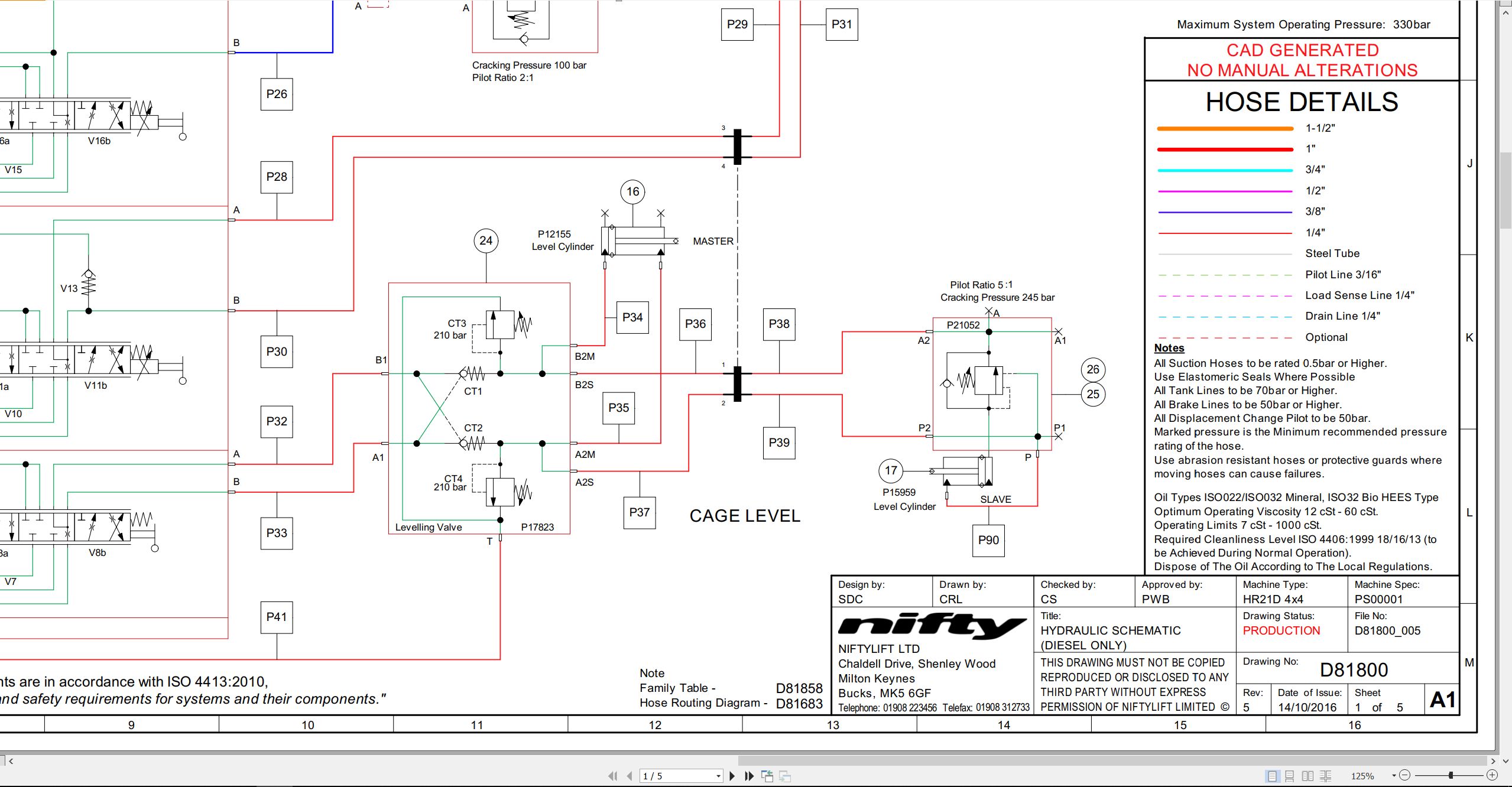

01_SCHEMATIC – HYDRAULIC HR21 4X4 MK2 D81800 (issue 005) 36509.pdf (5 Pages)
Contents:
D81800_005
Schematics
D81800_Sht1
D81800_Sht2
D81800_Sht3
BOMS
D81800_Sht4
D81800_Sht5

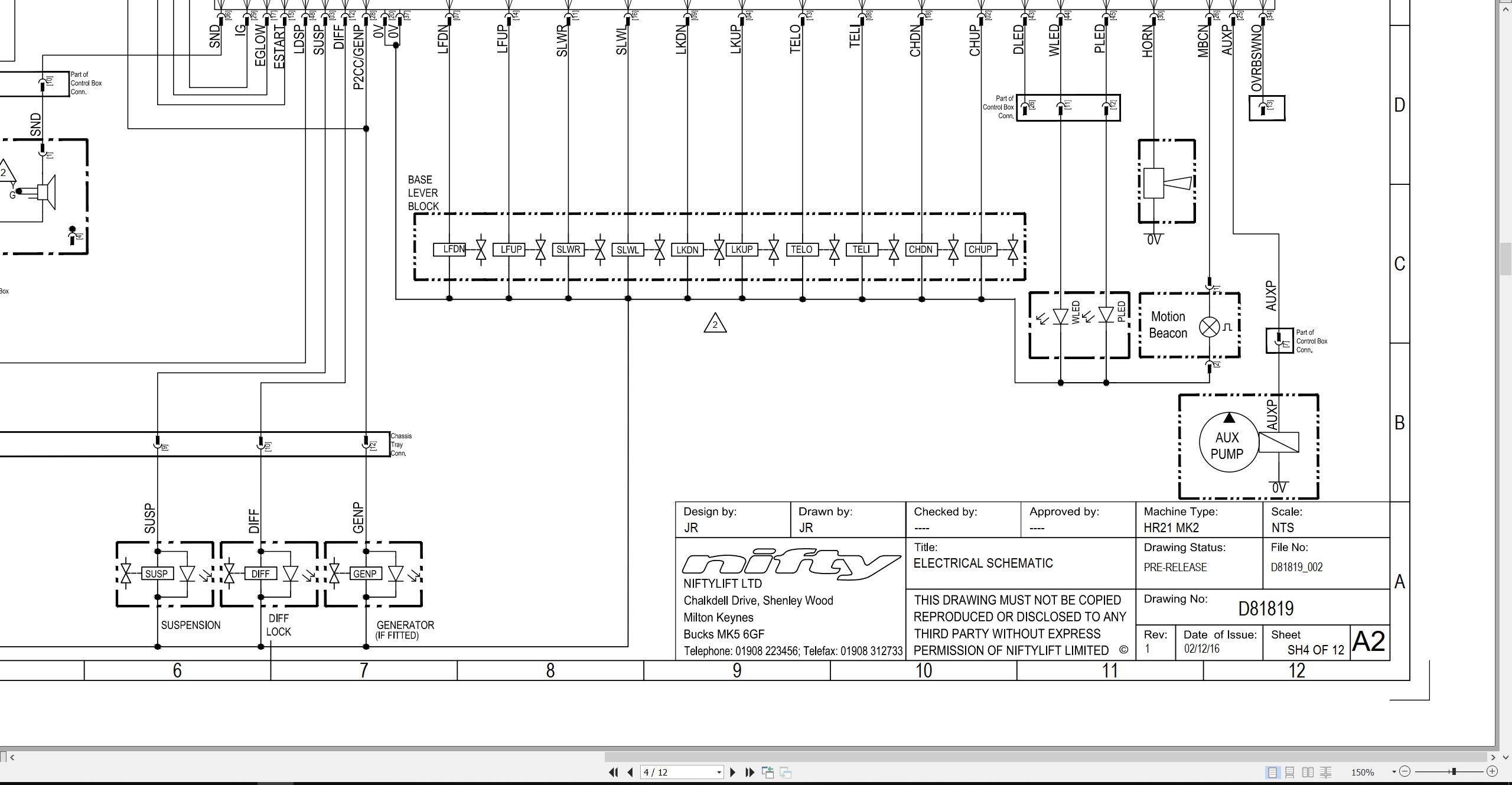

02_ELECTRICAL SCHEMATIC HR21 D81819 (issue 002) 36509.pdf (12 Pages)
03_LIFTING POINTS, HR21 MK2 D81980 (issue 002) 36509.pdf (2 Pages)
Contents:
Sheets and Views
D81980_002-English
D81980_002-French
04_WORKING ENVELOPE, HR21 MK2 D81981 (issue 002) 36509.pdf (2 Pages)
Contents:
Sheets and Views
D81981_002-MEETERS
D81981_002-FEET
05_STOWED DIMENSIONS, HR21 MK2 D81982 (issue 002) 36509.pdf (2 Pages)
Contents:
Sheets and Views
D81982_002-Steel Cage
D81982_002-Tough Cage
06_TRANSPORT & TIE DOWN, HR21 MK D81983 (issue 001) 36509.pdf (1 Pages)
07_TURNING CIRCLE, HR21 MK2 D81984 (issue 002) 36509.pdf (1 Pages)
Contents:
Sheets and Views
D81984-Layout
08_CHAIN INSPECTION MANUAL UK USA M50280 (issue 002) 36509.pdf (13 Pages)
Contents:
Blank Page
09_HR21 (SP64) MK2 PARTS MANUAL M50540 (issue 001) 36509.pdf (99 Pages)
Contents:
Front Cover
chassis assembly
1.1 base assembly
1.2 axle assembly (front)
1.3 axle assembly (rear)
1.4 hydraulic tray assembly
1.5 suspension valve block
1.6 generator assembly (option)
superstructure
2.1 Superstructure (1)
2.2 Superstructure (2)
2.3 Power tray assembly (Hybrid)
2.4 Power tray assembly (Diesel)
2.5 Diesel engine (Hybrid) – part 1
2.6 Diesel engine (Hybrid) – part 2
2.7 Diesel engine (Diesel)
2.8 Base control assembly
boom assemblies
3.1 links assembly
3.2 telescope assembly (part 1)
3.3 telescope assembly (part 2)
3.4 lift & luffing cylinders
3.5 levelling cylinders
3.6 levelling valve assembly
3.7 energy chain
cage and flyboom
4.1 toughcage assembly
4.2 cage console assembly
4.3 SiOPS assembly
4.4 cage rotate assembly
4.5 flyboom assembly
4.6 flyboom cylinder
4.7 control panel assembly
labelling
5.1 Label locations
Figure 5.1
Labels 1 to 33
Labels 34 to 46
10_SP64 MK2 OPERATING MANUAL (USA) M50550 (issue 003) 36509.pdf (82 Pages)
Contents:
1 Introduction and General Information
1.1 FOREWORD
1.2 SCOPE
1.3 INTRODUCING THE HEIGHT RIDER SELF-PROPELLED (SP) SERIES
1.4 GENERAL SPECIFICATION
1.5 IDENTIFICATION (USA PLATE)
1.6 EC DECLARATION OF CONFORMITY (Typical)
2 Safety
2.1 MANDATORY PRECAUTIONS
2.2 ENVIRONMENTAL LIMITATIONS
2.3 NOISE AND VIBRATION
2.4 TEST REPORT
3 Preparation and Inspection
3.1 UNPACKING
3.2 PREPARATION FOR USE
3.3 PRE-OPERATIONAL SAFETY CHECK SCHEDULES
3.3.1 DAILY SAFETY CHECKS
3.3.2 WEEKLY SAFETY CHECKS
3.3.3 MONTHLY SAFETY CHECKS
3.3.4 ANNUAL SAFETY CHECKS
Toughcage
3.4 PLACARD, DECALS & INSTALLATION
3.5 TORQUE REQUIREMENTS
4 Operation
4.1 CONTROL CIRCUIT COMPONENTS
4.1.1 GROUND CONTROLS
4.1.2 BASKET
4.1.3 CHASSIS
4.1.4 FUSES
4.2 GROUND CONTROL OPERATION
4.2.1 GROUND CONTROL FUNCTIONS
4.2.2 OPERATION
4.3 BASKET CONTROL OPERATION
4.3.1 BASKET CONTROL FUNCTIONS
4.3.2 DISPLAY SCREEN
4.3.3 INFORMATION ICONS
4.3.4 MENU SCREENS
4.3.5 OPERATION
4.3.6 SiOPSTM – LOAD SENSING CONSOLE
4.4 DRIVING CONTROLS
4.5 BASKET WEIGH SYSTEM
4.5.1 LOAD CELL VERSION
4.5.2 CALIBRATION, INSPECTION AND MAINTENANCE
4.6 BATTERIES AND CHARGING (Hybrid)
4.7 TRANSPORTING, TOWING, CRANEAGE, STORAGE AND SETTING TO WORK
4.7.1 TRANSPORTING
4.7.2 TOWING
4.7.3 CRANEAGE
4.7.4 STORAGE
4.7.5 SETTING TO WORK
5 Emergency Controls
5.1 GENERAL
5.2 IN THE EVENT OF AN INCAPACITATED OPERATOR
5.3 IN THE EVENT OF MACHINE FAILURE
5.4 INCIDENT NOTIFICATION
6 Responsibilities
6.1 CHANGES IN OWNERSHIP
6.2 MANUAL OF RESPONSIBILITIES (USA only)
6.3 INSPECTION/SERVICE/PRE-HIRE CHECK LIST
Appendix A
Appendix B

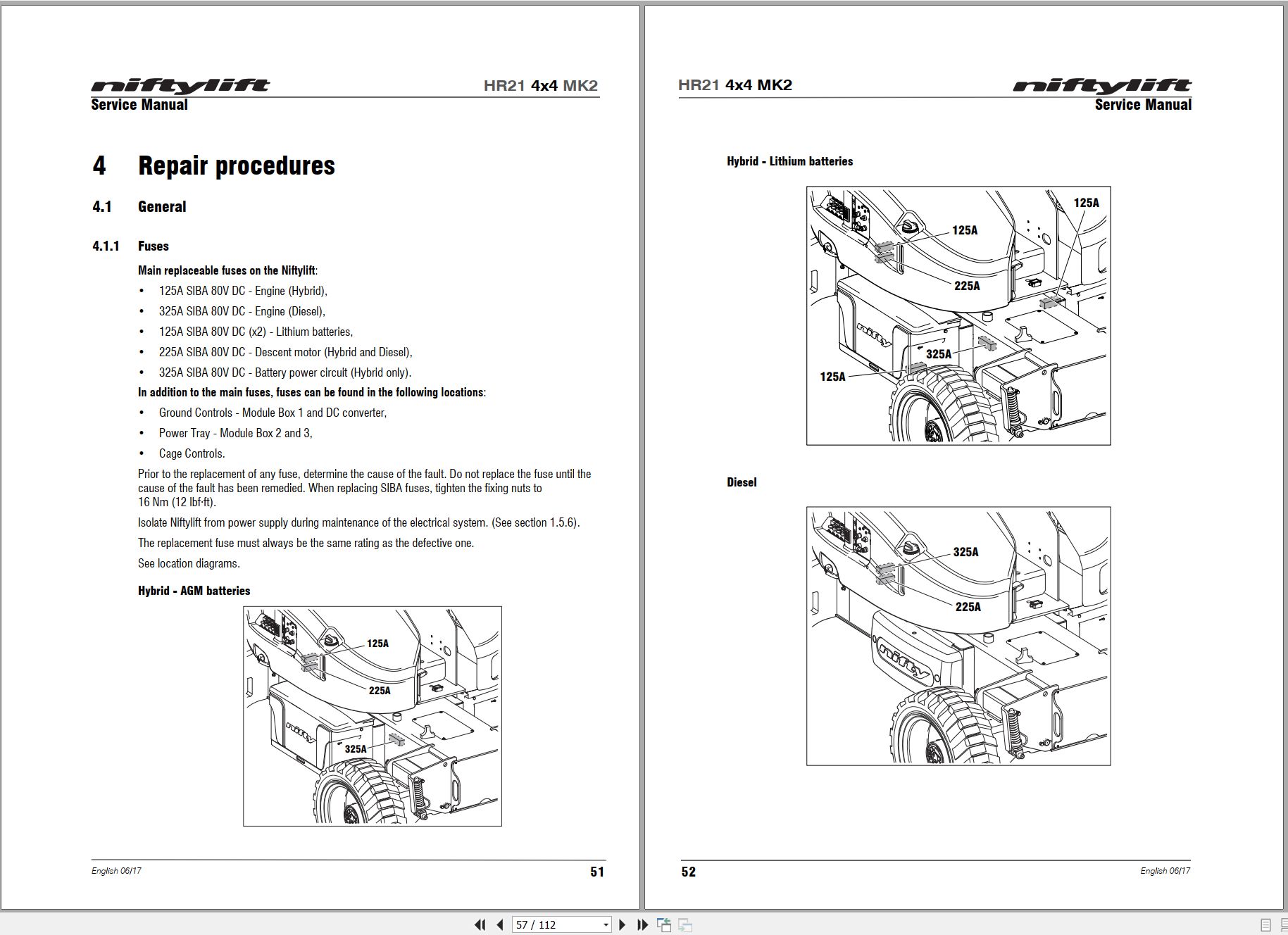

11_HR21 MK2B SERVICE MANUAL UK M50648 (issue 001) 36509.pdf (112 Pages)
Contents:
1 Introduction and general information
1.1 Foreword
1.1.1 Defined maintenance terms
1.2 Warranty
1.3 Scope
1.4 General maintenance information
1.4.1 Pre-maintenance checks
1.4.2 Maintenance information
1.4.3 Frequent inspection
1.4.4 Annual inspection
1.5 Maintenance safety information
1.5.1 Personal injury prevention
1.5.2 Machine damage prevention
1.5.3 Diesel system safety
1.5.4 Hydraulic safety
1.5.5 Environmental awareness
1.5.6 Electrical safety
2 Specifications
2.1 Engine specifications
2.2 Gearbox specifications
2.3 Function times
2.4 Fluid properties
2.4.1 Fluid volumes
2.4.2 Engine oil specifications
2.4.3 Gearbox oil specifications
2.4.4 Hydraulic oil specifications
2.4.5 Engine coolant specifications
2.4.6 Hydraulic pressure settings
2.5 Tyre specifications
2.6 Torque settings
2.7 Hydraulic hose and fitting torque specifications
3 Preventative maintenance
3.1 Maintenance schedules
3.1.1 Engine maintenance
3.1.2 Machine maintenance
3.2 Consumables
3.2.1 Data, safety and specification
3.3 Engine operations
3.3.1 Power tray
3.3.2 Engine oil level check (daily)
3.3.3 Engine oil replace
3.3.4 Engine oil filter replace
3.3.5 Engine coolant level check (daily)
3.3.6 Coolant replace
3.3.7 Antifreeze check
3.3.8 Coolant hoses and clamp bands check
3.3.9 Air filter element maintenance
3.3.10 Air filter condition indicator check (daily)
3.3.11 In-line fuel filter replace
3.3.12 Fuel filter and water separator clean/replace
3.3.13 Fuel filter (cartridge type) replace
3.3.14 Bleeding air from the fuel system
3.3.15 Fuel pipes check
3.3.16 Exhaust system check
3.3.17 Fan belt check
3.4 Drive hub gearbox
3.4.1 Gearbox disengagement
3.4.2 Gearbox oil replace
3.4.3 Bleeding air from the braking circuit
3.5 Batteries
3.5.1 Condition check (daily)
3.5.2 Storage
3.6 Hydraulic oil
3.6.1 Level check (weekly)
3.6.2 Return filter check (monthly)
3.6.3 Pressure filter check (weekly)
3.6.4 Hydraulic oil and filters replace
3.7 Telescopic boom
3.7.1 Wear pad check (monthly)
3.7.2 Hose trunking and energy chain check (weekly)
3.7.3 Lubricate boom pivot bushes (annually)
3.7.4 Boom pivot pin check (daily)
3.7.5 Boom chain inspection
3.8 Boom rotation gear
3.8.1 Slew gear engagement check (monthly)
3.8.2 Lubricate slew ring (monthly)
3.8.3 Slew ring bolts check (annually)
3.9 Front axle
3.9.1 Lubricate steer pin (daily)
4 Repair procedures
4.1 General
4.1.1 Fuses
4.2 Platform/cage
4.2.1 Footswitch – contact switch replace
4.3 Booms
4.3.1 Energy chain link
4.4 Power tray
4.4.1 Exhaust
4.4.2 Fan belt
4.5 Base assembly
4.5.1 Steer cylinder
4.6 Superstructure
4.6.1 Tilt sensor
4.6.2 Sensor calibration
5 System overview
5.1 Introduction
5.1.1 Hybrid system
5.1.2 Hybrid terminology
5.1.3 Battery states
5.1.4 Power modes
5.1.5 Operation
5.2 Diesel system
5.3 Boom system
5.3.1 Boom switch
5.3.2 Telescopic boom switch
5.3.3 Boom enable valve
5.4 Drive system
5.4.1 Hybrid & diesel
5.5 Charging system and batteries
5.5.1 Charging system – diesel
5.5.2 Charging system – hybrid
5.5.3 Absorbent Glass Mat (AGM) batteries
5.5.4 Lithium (Li-ion) batteries
5.6 Hydraulic system overview
5.7 Load sensing pump
5.8 Drive control valve
5.9 Four wheel drive (4×4)
5.10 Brake release
5.11 Steering
5.12 Suspension
5.13 Electrical control system overview
5.14 Control logic
5.16 Motor controller
5.17 Niftylift diagnostics
6 Troubleshooting guide
6.1 Troubleshooting information
6.2 Platform function fault finding
6.3 Engine fault finding
6.4 Engine fault codes
6.5 Gearbox fault finding
6.6 Error codes
6.6.1 Error cause (1st byte)
6.6.2 Error source (2nd byte)
6.6.3 Safety controller
6.6.4 Application specific error code (3rd byte)
6.6.5 Application specific (motor controller) error code (3rd byte)
6.6.6 Error class (4th byte)
