ROPA Harvester euroMaus 3 2006-2019 Spare Parts Catalog

Description

Contents:
euroMaus 3 2006-2019
euroMaus 3 2006-2019
0 Cover euroMaus 3 2006-2019
euroMaus 3 2006-2019
01 – Pickup
01.01 – E960108 Central pickup part with supporting rollers and accessories
01.02 – E960109 Central pickup part with hydraulic cylinders and accessories
01.03 – E960110 Pickup side section with swivel plate – left and right

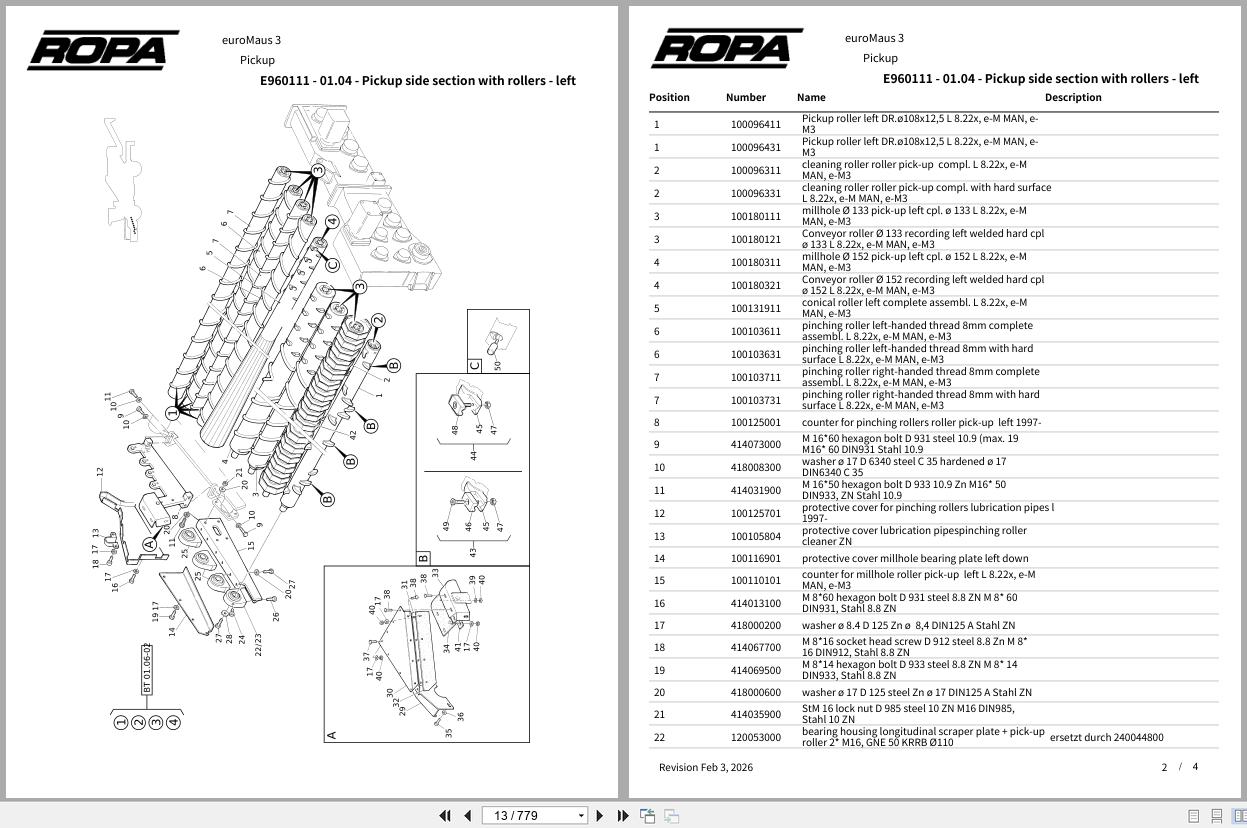

01.04 – E960111 Pickup side section with rollers – left

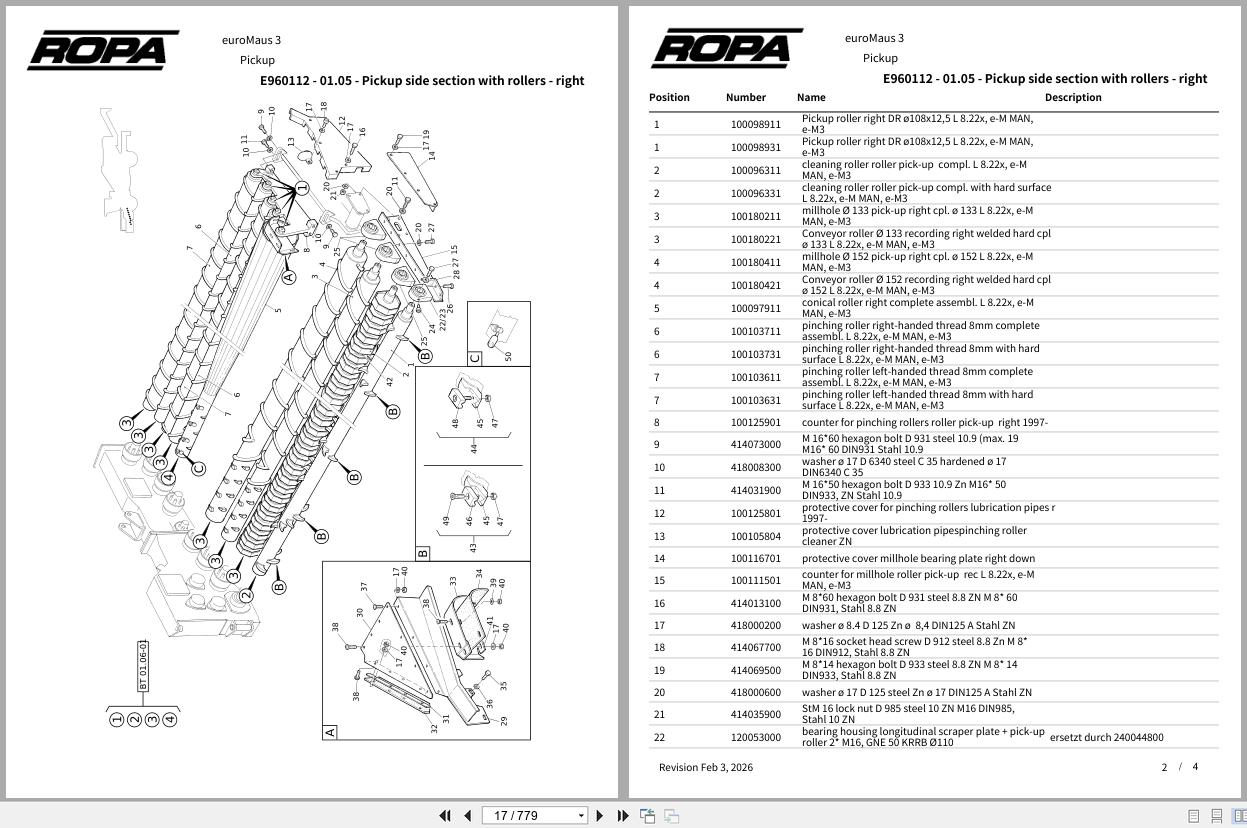

01.05 – E960112 Pickup side section with rollers – right
01.06 – E960113 Roller bearing
01.07 – E960114 Pickup and pinch roller drive – left
01.08 – E960115 Pickup and pinch roller drive – right
01.09 – E960116 Supporting foot, clearing plate and cover plates – left and right
01.10 – E960117 Central mark
01.11 – E960118 Drive – central mark
Special equipment
01.20 – E960120 Model – transfer shaft
02 – Pile pickup
02.01 – E960124 Mounting – pile pickup year of construction 2006
02.01 – E960125 Mounting – pile pickup from year of construction 2007
02.02 – E960126 Hydraulic cylinder – pile pickup
02.03 – E960127 Residual beet pickup year of construction 2007
02.03 – E960129 Residual beet pickup year of construction 2006
02.03 – E960130 Residual beet pickup from year of construction 2008
02.04 – E960128 Warning sign bracket with illumination
03 – Infeed conveyor and re-cleaner
03.01.1 – E960135 Drive – infeed conveyor duct with supporting rollers – part 1 to chassis no. 8_670
03.01.1 – E960145 Drive – infeed conveyor duct with supporting rollers – part 1 from chassis no. 8_671
03.01.2 – E960146 Drive – infeed conveyor duct with supporting rollers – part 2
03.02 – E960139 Sieve conveyor for infeed conveyor
Pinch roller recleaner model
03.06 – E960140 Pinch roller recleaner frame with accessories to chassis no. 8_734
03.06 – E960147 Pinch roller recleaner frame with accessories from chassis no. 8_735
03.07 – E960141 Suspension – pinch roller recleaner
03.08 – E960142 Drive – pinch roller recleaner with rotating trestle
03.09 – E960143 Mounting – pinch roller recleaner
03.10 – E960144 Beet brake for pinch roller recleaners
Sieve conveyor recleaner model
03.03 – E960137 Sieve conveyor recleaner frame with accessories
03.04 – E960136 Drive – sieve conveyor recleaner with supporting rollers
03.05 – E960138 Sieve conveyor for sieve conveyor recleaners
04 – Truck conveyor
04.01 – E960150 Swivel arm
04.02 – E960151 Rotating trestle
04.03 – E960152 Truck conveyor with supporting rollers and hydraulic cylinders to year of constr. 2007
04.03.1 – E960149 Truck conveyor with supporting rollers and CAN scale from year of construction 2008
04.03.2 – E960148 Truck conveyor – wear plates with hydraulic cylinders from year of construction 2008
04.04 – E960153 Truck conveyor articulation – short standard design to year of construction 2007
04.04.1 – E960220 Truck conveyor articulation drive with supporting rollers – short standard design from year of construction 2008
04.04.2 – E960221 Truck conveyor articulation – wear plates with rubber apron – short standard design from year of construction 2008
04.05 – E960154 Truck conveyor articulation – long design till year of construction 2007
04.05.1 – E960219 Truck conveyor articulation drive with supporting rollers – long design from year of construction 2008
04.05.2 – E960218 Truck conveyor – wear plates with rubber apron – long design from year of construction 2008
04.06 – E960155 Sieve conveyor for truck conveyor short standard model
04.07 – E960156 Sieve conveyor for truck conveyor long model
05 – Chassis
– E9800487 Overview of lacquers and paints
05.01 – E960079 Chassis with attached parts from chassis no. 8_698
05.01 – E960080 Chassis with attached parts to chassis no. 8_697
05.02 – E960081 Chassis – rear with mounting
05.03 – E960090 Diesel tank swivelling and locking
05.04 – E960082 Tool box with doors
05.05.1 – E960083 Distributor gears with drive and accessories to year of construction 2010
05.05.1 – E960093 Distributor gears with drive and accessories from year of construction 2011
05.05.2 – E960077 Front and rear axles with accessories
05.06 – E960091 Pneumatic ladder adjustment
05.07 – E960078 Pump cover with flap from year of construction 2009
05.07 – E960084 Pump cover with flap to year of construction 2008
05.08.1 – E960085 Engine compartment cover – part 1
05.08.2 – E960092 Engine compartment cover – part 2
05.09 – E960086 Engine compartment doors with accessories
05.10 – E960087 Exhaust cover
05.11 – E960088 Protective cover for control unit 1 and 2
05.12 – E960089 Folding grill platform
05.13 – E960076 Stickers – front and left
05.14 – E960075 Stickers – rear and right
05.15 – E960074 Vehicle tools and accessories
Special equipment
05.20 – E960095 Model – additional axle
05.21 – E960096 Model – tool box
05.22.1 – E960097 Model – water spray system – part 1
05.22.2 – E960098 Model – water spray system – part 2
05.22.3 – E960099 Model – water spray system – part 3
05.23 – E960100 Model – lighting – export
06 – Cabin
06.01 – E960158 Front, rear, cabin door and side windows
06.02 – E960159 Cabin mounting, cabin roof and accessories
06.03 – E960160 Fresh air filter and air jets
06.04.1 – E960161 Radio console
06.04.2 – E960168 Radio console Funk
06.05 – E960162 Terminal console
06.06 – E960163 Rotating seat with mounting and locking
06.07 – E960164 Window wipers
06.08 – E960165 Working floodlight and mirror adjustment
06.09 – E960166 Accelerator and brake pedals
06.10 – E960167 Cabin cover
06.11 – E960157 Stickers – cabin and central electrical system
Components and Details
– E9800482 352041000 – driver’s seat
07 – Engine
07.01.1 – E960169 Fuel system – part 1 from year of construction 2008
07.01.1 – E960170 Fuel system – part 1 up to year of construction 2007
07.01.2 – E960171 Fuel system – part 2
07.02 – E960172 Diesel engine with mounting
07.03 – E960173 Pump distributor gears
07.04 – E960174 Exhaust system year of construction 2006
07.04 – E960175 Exhaust system from year of construction 2007
07.05 – E960176 Air filter system
07.06 – E960177 Water and charge air cooler
07.07.1 – E960178 Radiator bonnet with accessories – part 1
07.07.2 – E960179 Radiator bonnet with accessories – part 2
07.08 – E960180 Fan drive with accessories
07.09 – E960181 Heating system
07.10 – E960182 Air conditioning system
07.11 – E960183 Battery compartment, generator and accessories
07.12 – E960184 Battery and main switch connection
Components and Details
– E9800490 301023000 – Separ fuel filter
08 – Pneumatic system
08.01 – E960194 Air coil and air compressor connection from chassis no. 8_698 onwards
08.01 – E960198 Air coil and air compressor connection to chassis no. 8_697
08.02 – E960195 Air chamber large 1 and 2 connection
08.03 – E960196 Air chamber small with air dryer connection to year of construction 2007
08.03 – E960197 Air chamber small with air dryer connection from year of construction 2008
08.04 – E960199 Brake connection
08.05 – E960200 Switch and differential lock connection
08.06 – E960201 Seat brake and air gun connection
08.07 – E960202 Mirror adjustment connection
08.08 – E960203 Pinch roller cleaner connection
08.09 – E960204 Sieve conveyor cleaner connection
08.10 – E960205 Connection fold ladder and warning sign
09 – Hydraulic system
09.01.1 – E960277 Connection – central mark without transfer shaft
09.01.2 – E960278 Connection – central mark with transfer shaft
09.02 – E960284 Lines – central mark – supply and return lines till chassis no. 8_737
09.02 – E960287 Lines – central mark – supply and return lines from chassis no. 8_738
09.03 – E960281 Connection – pickup pinch rollers and leak oil
09.04 – E960245 Lines – pickup pinch rollers
09.05 – E960282 Connection – pickup rollers and tapered roller
09.06 – E960242 Lines – pickup rollers and tapered roller
09.07.1 – E960279 Lines – pickup without transfer shaft
09.07.2 – E960280 Lines – pickup with transfer shaft
09.08 – E960283 Connection – supporting foot and fold plate
09.09 – E960244 Lines – supporting foot
09.10 – E960240 Lines – lift pickup
09.11 – E960239 Lines – fold pickup
09.12 – E960237 Lines – pile pickup – up_down and in_out
09.13 – E960238 Lines – pile pickup – left_right
09.14 – E960243 Lines – residual beet pickup – turn
09.15 – E960241 Connection – front axle steering and servostat
09.16 – E960236 Steering and leak-oil servostat
09.17 – E960247 LS and operating hydraulics supply line
09.18 – E960235 LS – operating hydraulics 1
09.19 – E960246 Lines – control blocks operating hydraulics 1 to operating hydraulics 2
09.20.1 – E960251 Lines – turn and articulate truck conveyor – part 1
09.20.2 – E960271 Lines – turn and articulate truck conveyor – part 2
09.21 – E960249 Lines – swivel arm supply line and turn truck conveyor
09.22 – E960250 Lines – turn swivel arm
09.23 – E960273 Drive – truck conveyor – short
09.24 – E960274 Drive – truck conveyor – long
09.25 – E960270 Hydraulic cylinder – truck conveyor on_off
09.26 – E960272 Connection – truck conveyor apron – short
09.27 – E960248 Drive – infeed conveyor and recleaner to chassis no. 8_697
09.27 – E960260 Drive – infeed conveyor and recleaner from chassis no. 8_698
09.28.1 – E960285 Drive – sieve conveyor cleaner
09.28.2 – E960253 Drive – pinch roller cleaner
09.29 – E960252 Connection – beet brake
09.30 – E960256 Hydraulic cylinder – axle support
09.31 – E960259 Hydraulic cylinder – swivel and lock tank
09.32 – E960261 Supply line – rear axle steering and rotating trestle to chassis no. 8_697
09.32 – E960262 Supply line – rear axle steering and rotating trestle from chassis no. 8_698
09.33.1 – E960263 Supply line – rear control block without additional axle to chassis no. 8_697
09.33.1 – E960264 Supply line – rear control block without additional axle from chassis no. 8_698
09.33.2 – E960265 Supply line – rear control block with additional axle to chassis no. 8_697
09.33.2 – E960266 Supply line – rear control block with additional axle from chassis no. 8_698
09.34 – E960268 Connection – additional axle to chassis no. 8_697
09.34 – E960269 Connection – additional axle from chassis no. 8_698
09.35 – E960257 Connection – rear axle steering to chassis no. 8_697
09.35 – E960258 Connection – rear axle steering from chassis no. 8_698
09.36 – E960255 Connection – oil cooler
09.37 – E960254 Drive and leak oil – oil cooler
09.38 – E960232 Connection – traction drive at PDG
09.39.1 – E960233 Intake hoses on the PDG – part 1
09.39.2 – E960234 Suction hoses at PDG – part 2
09.39.3 – E960275 Suction hoses at PDG – part 3
09.39.4 – E960276 Suction hoses at PDG – part 4
09.40 – E960267 Lubrication lines on the PDG until 2008 YOM
09.40 – E960286 Lubrication lines on the PDG from year of construction 2009 to chassis no. 8_737
09.40 – E960288 Lubrication lines on the PDG from year of constr. 2009, from chassis no. 8_738
09.41 – E960230 Hydraulic oil tank
09.42 – E960231 Hydraulic return filter
10 – Central electrical system
– E9800477 Übersicht Stecker – Teil 2
– E9800478 018079700 – Electrical assortment box
– E9800499 Overview of plugs
10.01 – E960104 Switching cabinet for the central electrical system from chassis no. 8_701
10.01 – E960105 Switching cabinet for the central electrical system to chassis no. 8_700
10.02 – E960102 Electric parts for the central electrical system from chassis no. 8_738
10.02 – E960103 Electric parts for the central electrical system from chassis no. 8_701 to chassis no. 8_737
10.02 – E960106 Electric parts for the central electrical system to chassis no. 8_700
11 – Gears & axles
Front axle
11.14 – E960309 O-11220052 Front axle
11.15 – E960307 O-11220052 Front axle – differential housing from year of construction 2008
11.15 – E960308 O-11220052 Front axle – differential housing to year of construction 2007
11.16 – E960311 O-11220052 Front axle – wheel hub
11.17 – E960313 O-11220052 Front axle – steering cylinder
11.18 – E960312 O-11220052 Front axle – drum brake
Manual transmission
11.23 – E960294 O-10560116 Manual transmission housing 4-gear
11.24 – E960295 O-10560116 Manual transmission drive shaft
11.25 – E960296 O-10560116 Manual transmission output drive shaft
11.26 – E960297 O-10560116 Gearshift – gear 1-2
11.27 – E960298 O-10560116 All-wheel switching
11.28 – E960299 O-10560089 Reduction gear to year of construction 2007
11.28 – E960300 O-10560116 Reduction gear from year of construction 2008
Pickup gears
11.10 – E920079 O-10630014 Pickup gears – right
11.11.1 – E920080 O-10630014 Pickup roller gears – right – part 1
11.11.2 – E920081 O-10630014 Pickup roller gears – right – part 2
11.12 – E920082 O-10630015 Pickup gears – left
11.13.1 – E920083 O-10630015 Pickup roller gears – left – part 1
11.13.2 – E920084 O-10630015 Pickup roller gears – left – part 2
Pinch roller gears
11.07 – E920076 O-10630011 8-roller pinch roller gears
11.08 – E920077 O-10630012 Gears for 4-pinch rollers – right
11.09 – E920078 O-10630013 Gears for 4-pinch rollers – left
Pump distributor gears
11.01 – E960301 O-10620037 Pump distributor gears – housing to year of construction 2009
11.01 – E960314 O-10620038 Pump distributor gears – housing from year of construction 2010
11.02 – E960302 O-10620038 Pump distributor gears – drive shaft
11.03 – E960303 O-10620038 Pump distributor gears – intermediate shaft
11.04 – E960304 O-10620038 Pump distributor gears – coupling shaft
11.05 – E960305 O-10620038 Pump distributor gears – coupling shaft
11.06 – E960306 O-10620037 Pump distributor gears – output drive shaft till year of construction 2009
11.06 – E960315 O-10620038 Pump distributor gears – output drive shaft from year of construction 2010
rear axle
11.19 – E960291 O-11220049 rear axle
11.20 – E960290 O-11220049 Rear axle – differential housing to year of construction 2007
11.20 – E960310 O-11220049 Rear axle – differential housing from year of construction 2008
11.21 – E960292 O-11220049 Rear axle – wheel hub
11.22 – E960293 O-11220049 Rear axle – steering cylinder
12 – Angular planetary gear
12.01 – E920100 1.350.3.103.0 Output drive shaft – toothed shaft 58×53
12.02 – E920102 1.356.3.305.0 Reduction
12.03 – E920103 1.362.1.025.0 Bevel stage
12.04 – E920104 1.368.4.114.0 Brake
12.05 – E920105 1.387.5.501.0 Mounting flange and coupling
13 – Central lubrication
– E9800492 Central lubricating pump
– E9800493 Distributor – components
– E9800494 Hose connections
– E9800495 Screw connections – central lubrication
13.01 – E960211 Central lubricating system
13.02 – E960210 Central lubricating pump with grease bucket
14 – Park heating
– E9800612 320072000 – park heating Thermo 90ST – part 1
– E9800613 320072000 – park heating Thermo 90ST – part 2
– E9800614 320072000 – park heating Thermo 90ST – part 3
– E9800615 320072000 – park heating Thermo 90ST – part 4
– E9800616 320072000 – park heating Thermo 90ST – part 5
– E9800617 320072000 – park heating Thermo 90ST – part 6
– E9800618 320084400 – park heating Thermo Pro 90
15 – Hydraulic screw connections
15.01 – E9800500 Hydraulic screw connection – type_ G
15.02 – E9800501 Hydraulic screw connection – type_ W
15.03 – E9800502 Hydraulic screw connection – type_ T
15.04 – E9800503 Hydraulic screw connection – type_ K
15.05 – E9800504 Hydraulic screw connection – type_ EVW
15.06 – E9800505 Hydraulic screw connection – type_ EVT
15.07 – E9800506 Hydraulic screw connection – type_ EVL
15.08.1 – E9800507 Hydraulic screw connection – type_ EVGE – part 1 metric
15.08.2 – E9800508 Hydraulic screw connection – type_ EVGE – part 2 inch
15.09.1 – E9800509 Hydraulic screw connection – type_ GE – part 1 metric
15.09.2 – E9800510 Hydraulic screw connection – type_ GE – part 2 metric
15.09.3 – E9800511 Hydraulic screw connection – type_ GE – part 3 metric
15.09.4 – E9800512 Hydraulic screw connection – type_ GE – part 4 inch
15.09.5 – E9800513 Hydraulic screw connection – type_ GE – part 5 inch
15.09.6 – E9800514 Hydraulic screw connection – type_ GE – part 6 inch
15.10 – E9800515 Hydraulic screw connection – type_ GR
15.11 – E9800516 Hydraulic screw connection – type_ GVO
15.12.1 – E9800517 Hydraulic screw connection – type_ KOR – part 1
15.12.2 – E9800518 Hydraulic screw connection – type_ KOR – part 2
15.13 – E9800519 Hydraulic screw connection – type_ SWVE
15.14.1 – E9800520 Hydraulic screw connection – type_ VSTI – part 1 metric
15.14.2 – E9800521 Hydraulic screw connection – type_ VSTI – part 2 inch
15.15 – E9800522 Hydraulic screw connection – type_ ROV
15.16.1 – E9800523 Hydraulic screw connection – type_ RED – part 1 metric
15.16.2 – E9800524 Hydraulic screw connection – type_ RED – part 2 inch
15.17 – E9800525 Hydraulic screw connection – type_ GAI
15.18 – E9800526 Hydraulic screw connection – type_ MAV
15.19 – E9800527 Hydraulic screw connection – type_ MAV-EV
15.20 – E9800528 Hydraulic screw connection – type_ Measuring screw connection
15.21 – E9800529 Hydraulic screw connection – type_ measuring port
15.22 – E9800530 Hydraulic screw connection – type_ gauge connection
15.23 – E9800531 Hydraulic screw connection – type_ pressure gauge
15.24 – E9800532 Hydraulic screw connection – type_ pressure gauge connection
15.25 – E9800533 Hydraulic screw connection – type_ hose for pressure gauge
15.26 – E9800534 Hydraulic screw connection – type_ Bulkhead screw connection
15.27 – E9800535 Hydraulic screw connection – type_ Bulkhead union elbow
15.28 – E9800536 Hydraulic screw connection – type_ Flat nut for bulkhead screw connections
15.29 – E9800537 Hydraulic screw connection – type_ screw cap
15.30 – E9800538 Hydraulic screw connection – type_ BUZ
15.31 – E9800539 Hydraulic screw connection – type_ cutting ring
15.32 – E9800540 Hydraulic screw connection – type_ reinforcing sleeve
21 – Lubricants and filter lists
21.01 – E9016500 Lubricants
21.02 – E960212 Filter for diesel engine
21.03 – E960213 Filter for hydraulic system and gears
21.04 – E9110452 Filter for cabin
21.05 – E960215 Further filters
22 – Control blocks and seat valves
– E9800001 270043100 – seat valves 4-part
– E9800004 270047000 – seat valves 1-part
– E9800022 270043200 – seat valves 2-part
– E9800023 270056400 – control unit – fan drive
– E9800024 270060000 – control unit – coupling
– E9800075 270055900 – Control block – infeed conveyor-truck conveyor and fast motion
– E9800076 270060300 – Control block – infeed conveyor-truck conveyor and fast motion
– E9800077 270056000 – control unit – operating hydraulics 1
– E9800079 270056100 – control unit – operating hydraulics 2
– E9800080 270056500 – Control unit – rear
– E9800081 270056600 – control unit – additional axle
– E9800082 270044100 – control unit – coupling
23 – Hydraulic motors and cylinders
– E9800089 272012100 – gear motor
– E9800097 272013801 – axial piston motor A6 VM 160 EP2
– E9800106 272011501 – hydraulic motor OMV 800 tapered shaft
– E9800110 Hydraulic motor OMV
– E9800111 Hydraulic motor OMT
– E9800112 Hydraulic motor OMS
– E9800113 Hydraulic motor OMR
