ROPA Harvester euroMaus with MAN-engine 2002-2006 Spare Parts Catalog

Description

Contents:
euroMaus with MAN-engine 2002-2006
euroMaus with MAN-engine 2002-2006
0 Cover euroMaus with MAN-engine 2002-2006
01 – Pickup
01.01 – E920015 Central pickup part with supporting rollers and plates
01.02 – E920062 Central pickup part with cylinder till year of construction 2004
01.02 – E920068 Central pickup part with cylinder from year of construction 2005
01.03 – E920009 Frame pickup with swivel plate – left
01.04 – E920010 Frame pickup right with swivel plate
01.05 – E920064 Pickup side section with rollers – left
01.06 – E920063 Pickup side section with rollers – right
01.07 – E920116 Pickup and pinch roller drive – left
01.08 – E920117 Pickup and pinch roller drive – right
01.09 – E920013 Supporting foot, clearing plate and cover plates – right
01.10 – E920014 Supporting foot, clearing plate and cover plates – left
01.11 – E920038 Central mark – pickup
01.12 – E920019 Drive – central mark from year of construction 2003
01.12 – E920039 Drive – central mark to year of construction 2002
01.13 – E920018 Roller bearing
Special equipment

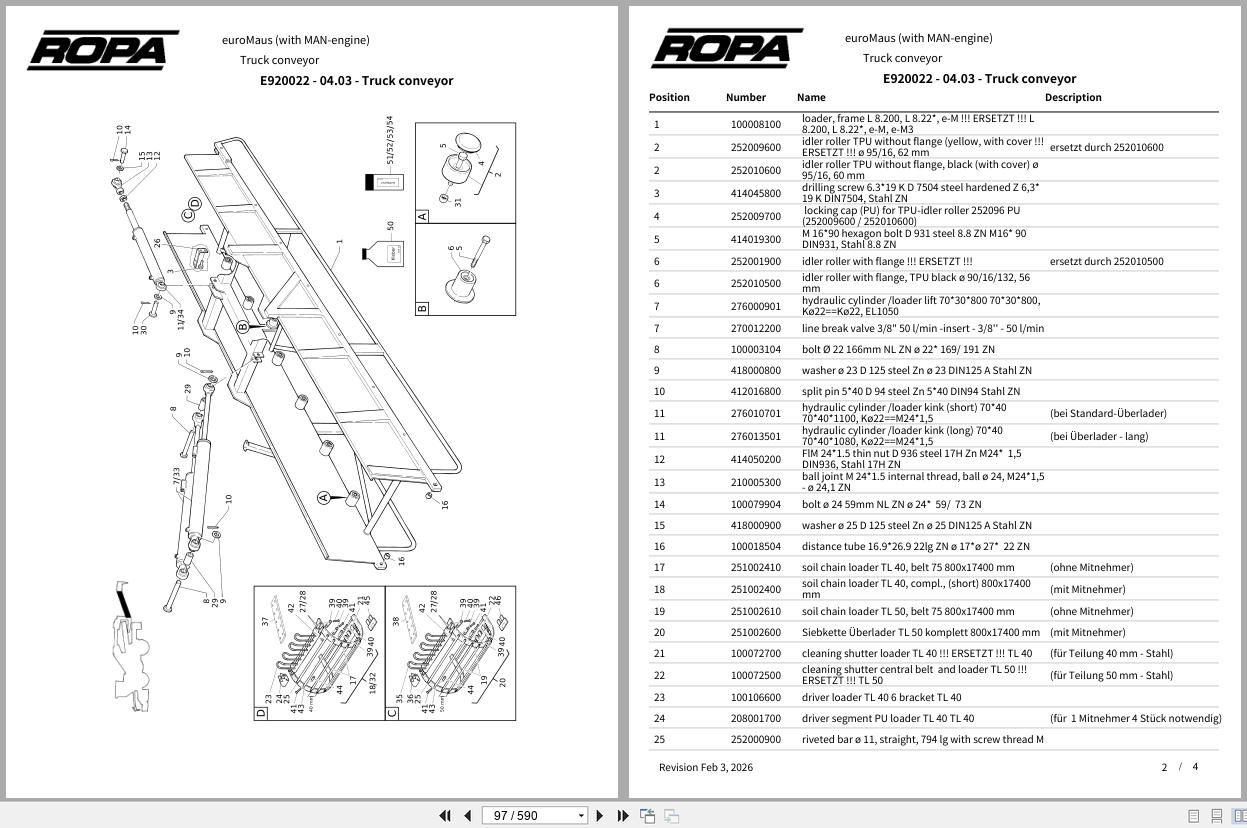

01.14 – E920012 Model – transfer shaft
02 – Pile pickup
02.01 – E920016 Mounting – pile pickup and warning signs
02.02 – E920047 Hydraulic cylinder – pile pickup
02.03 – E920046 Residual beet pickup
03 – Infeed conveyor and re-cleaner
03.01 – E920050 Infeed conv.
03.02.1 – E920049 Cleaning – part 1
03.02.2 – E920124 Cleaning – part 2 to year of construction 2004
03.02.2 – E920125 Cleaning – part 2 from year of construction 2005
03.03 – E920020 Frame pinch rollers cleaner
03.04 – E920112 8 pinch rollers cleaner, rotating trestle – bottom and gears
03.05 – E920111 Beet brake f. roller cleaner
03.06 – E970036 Suspension pinch roller cleaner – top

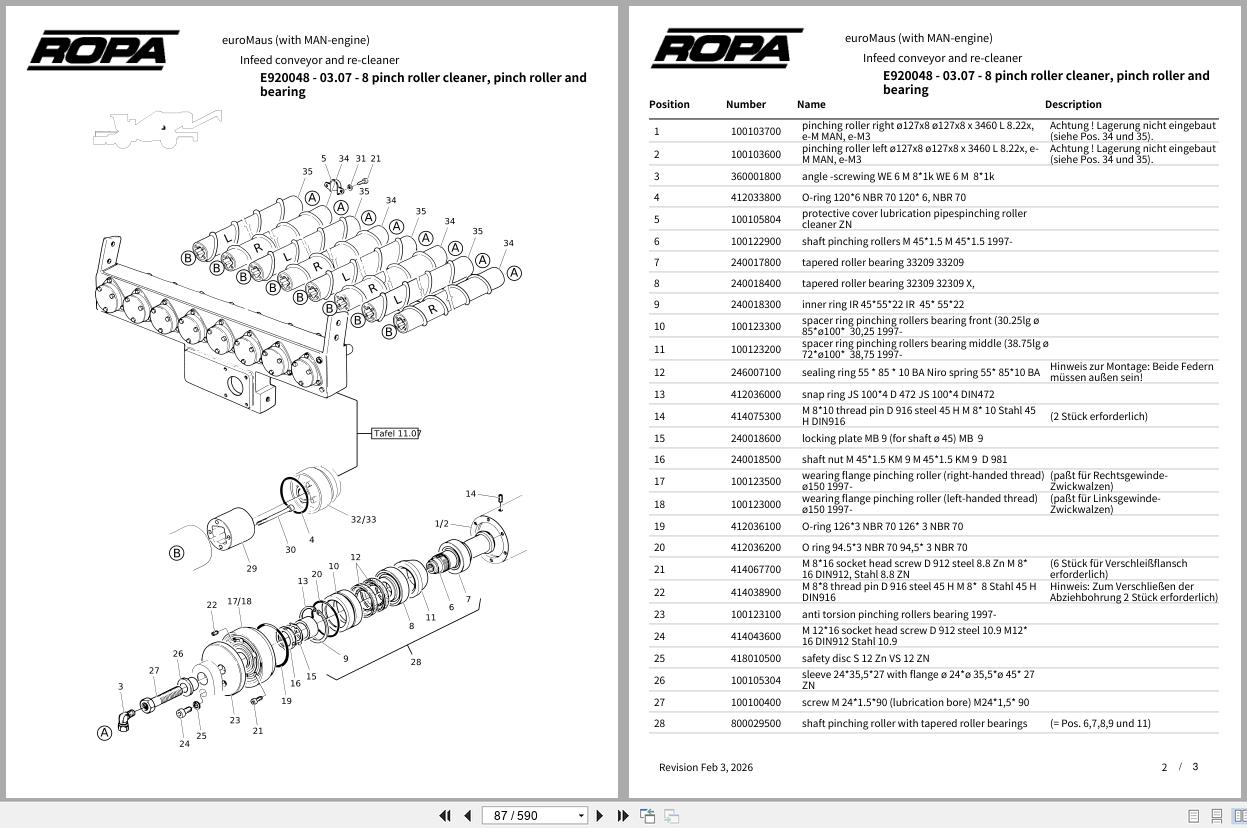

03.07 – E920048 8 pinch roller cleaner, pinch roller and bearing
04 – Truck conveyor
04.01 – E920061 Swivel arm
04.02 – E920021 Rotating trestle
04.03 – E920022 Truck conveyor
04.04 – E920051 Truck conv. articulation standard
04.05 – E920023 Truck conveyor articulation extended model
05 – Chassis
05.01.1 – E920024 Chassis – part 1
05.01.2 – E920025 Chassis – part 2
05.02 – E920053 Diesel tank
05.03 – E920027 Fuel tank lock
05.04 – E980036 Tool box with doors
05.05 – E920028 Axles and steering display
05.06 – E980105 Additional axle
05.07 – E920029 Pneumatic ladder adjustment
05.08.1 – E920132 Model – water spray system – part 1 from year of construction 2005
05.08.2 – E920134 Model – water spray system – part 2 from year of construction 2005
05.08.3 – E920133 Model – water spray system – part 3 from year of construction 2005
06 – Cabin
06.01 – E920130 Front window, side window and cabin door
06.02 – E920030 Cabin roof, mounting and cover
06.03 – E920031 Fresh air filter and air jets
06.04 – E920131 Radio, radio Funk consoles and cabin upright
06.05 – E920032 Terminal housing
06.06 – E920017 Rotating seat with rotating seat mounting and locking
06.07 – E920034 Front windshield wiper and side window wiper
06.08 – E900306 Mirror bracket and working floodlight
06.09 – E920004 Accelerator and brake pedals
06.10 – E920055 Cover for insulation
06.11 – E920056 Insulation for cabin
07 – Engine
07.01 – E920066 Engine compartment from year of construction 2003
07.01 – E920067 Engine compartment till year of construction 2002
07.02 – E920002 Diesel engine
07.03 – E920045 Pump distributor gears
07.04 – E920035 Air filter system
07.05 – E920036 Exhaust system
07.06 – E920065 Oil and water cooler
07.07 – E920110 Water cooler hot and cold water
07.08 – E920135 Housing for oil- and water cooler
07.09 – E920037 Battery case and windscreen washer system
07.10 – E920001 Diesel engine charge air cooler
07.11 – E920057 Bracket for 2nd generator and air conditioning compressor to year of constr. 2002 – 2-groove
07.11 – E920058 Bracket for 2nd generator and air conditioning compressor from year of constr. 2002 – 3-groove
07.11 – E920114 Bracket for 2nd generator and air conditioning compressor from year of constr. 2005
07.12 – E920003 Diesel lines on the diesel engine up to year of construction 2002
07.12 – E920109 Diesel lines on the diesel engine from year of construction 2003
07.13.1 – E920108 Independent heating and air conditioning system – part 1
07.13.2 – E920040 Independent heating and air conditioning system – part 2
Components and Details
– E9800489 301018300 – Separ fuel filter
– E9800490 301023000 – Separ fuel filter
08 – Pneumatic system
08.01 – E920052 Air chamber 30 litre with piping
08.02 – E920041 Air dryer connection with piping till year of construction 2004
08.02 – E920069 Air dryer connection with piping from year of construction 2005
08.03 – E980107 Brake
08.04 – E980108 Circuit and lock
08.05 – E920137 Mirror and warning sign connection folding up to chassis no. 8_477
08.05 – E920138 Mirror and warning sign connection folding from chassis no. 8_478
09 – Hydraulic system
09.01 – E910101 Hydraulic oil tank
09.02 – E920118 Lines – traction drive, suction lines, conveyor- and truck conveyor up to chassis no. 8_478
09.02 – E920123 Lines – traction drive, suction lines, infeed conveyor and truck conveyor from chassis no. 8_479
09.03 – E920008 Lines – holding tube for control blocks for operating hydraulics
09.04 – E900325 Control block 7-part block 1
09.05 – E900326 Control block 6-part block 2
09.06 – E920119 Lines – pump working drive and suction lines
09.07 – E980086 Lines – speed valve and hydraulic oil tank
09.08 – E920054 Lines – pump operating hydraulics
09.09 – E920042 Lines front axle steering
09.10 – E980092 Lines – rear axle steering
09.11 – E920043 Lines – lift pickup
09.12 – E920044 Lines – fold pickup
09.13 – E920007 Lines to control unit rear
09.14 – E980082 Lines – residual beet pickup – rotate
09.15 – E900322 Lines – pile pickup from chassis no. 8_316
09.15 – E980071 Lines – pile pickup up to chassis no. 8_315
09.16 – E980074 Lines – cylinder lock tank
09.17 – E990030 Lines axle support
09.18 – E980077 Lines turning the swivel arm
09.19 – E980088 Lines – truck conveyor rotate
09.20.1 – E980083 Lines – infeed conveyor- and truck conveyor drive short-standard
09.20.2 – E980084 Lines – infeed conveyor and truck conveyor drive long
09.21 – E980085 Lines – truck conveyor up_down
09.22.1 – E980090 Lines – articulate truck conveyor and apron short-standard
09.22.2 – E980091 Lines – articulate truck conveyor long
09.23 – E920005 Lines – oil cooler- and ventilator drive
09.24.1 – E920122 Lines pump – return flow sieving conveyor cleaner
09.24.2 – E900311 Lines – pump return flow pinch rollers cleaner
09.25.1 – E900317 Lines – drive sieve conveyor cleaner
09.25.2 – E980081 Lines – drive 8-part pinch roller cleaner
09.26 – E980075 Lines – beet brake and infeed conveyor
09.27 – E920155 Lines – drive – central mark to year of construction 2002
09.27 – E920156 Lines – drive – central mark from year of construction 2003
09.28 – E920006 Lines – swivel plates and supporting feet
09.29 – E920033 Lines – drive pickup rollers and tapered roller
09.30 – E910105 Lines 4 pinch rollers drive in pickup
09.31 – E980102 Lines – additional axle
09.32 – E920120 Lubricating pipe system on the PDG up to chassis no. 8_477
09.32 – E920121 Lubricating pipe system on PDG from chassis no. 8_478
09.33 – E920011 Lines – change-over roller from year of construction 2004
10 – Central electrical system
– E9800477 Übersicht Stecker – Teil 2
– E9800478 018079700 – Electrical assortment box
– E9800499 Overview of plugs
10.01 – E920060 Central electrical system
11 – Gears & axles
Front axle Planet – 3 gears – Differential – 7_37
11.14.1 – E920085 O-11220010 Differential housing for front axle up to chassis no. 8_478
11.15.1 – E920086 O-11220010 Front axle up to chassis no. 8_478
11.16.1 – E920087 O-11220010 Wheel hub – front axle up to chassis no. 8_478
11.17.1 – E920088 O-11220010 Drum brake up to chassis no. 8_478
11.18.1 – E920089 O-11220010 Front axle steering cylinder up to chassis no. 8_478
Front axle Planet – 4 gears – Differential – 9_39
11.14.2 – E920145 O-11220052 Differential housing – front axle from chassis no. 8_479
11.15.2 – E920146 O-11220052 Front axle from chassis no. 8_479
11.16.2 – E920147 O-11220052 Front axle – wheel hub from chassis no. 8_479
11.17.2 – E920148 O-11220052 Drum brake from chassis no. 8_479
11.18.2 – E920149 O-11220052 Front axle steering cylinder from chassis no. 8_479
Manual transmission
11.23 – E920094 O-10560058 Housing for manual transmission 4-gear
11.24 – E920095 O-10560058 Manual transmission drive shaft
11.25 – E920096 O-10560058 Driven shaft – manual transmission
11.26 – E920097 O-10560058 Gearshift – gear 1-2
11.27 – E920098 O-10560058 All-wheel switching
11.28 – E920099 O-10560058 Reduction gearing
Pickup gears
11.10 – E920079 O-10630014 Pickup gears – right
11.11.1 – E920080 O-10630014 Pickup roller gears – right – part 1
11.11.2 – E920081 O-10630014 Pickup roller gears – right – part 2
11.12 – E920082 O-10630015 Pickup gears – left
11.13.1 – E920083 O-10630015 Pickup roller gears – left – part 1
11.13.2 – E920084 O-10630015 Pickup roller gears – left – part 2
Pinch roller gears
11.07 – E920076 O-10630011 8-roller pinch roller gears
11.08 – E920077 O-10630012 Gears for 4-pinch rollers – right
11.09 – E920078 O-10630013 Gears for 4-pinch rollers – left
Pump distributor gears
11.01 – E920070 O-10620025 Pump distributor gears – housing
11.02 – E920071 O-10620025 Pump distributor gears – drive shaft
11.03 – E920072 O-10620025 Pump distributor gears – intermediate- and side shaft to year of construction 2004
11.03 – E920140 O-10620025 Pump distributor gears – intermediate and side shaft from year of construction 2005
11.04 – E920073 O-10620025 Pump distributor gears – coupling shaft
11.05 – E920074 O-10620025 Pump distributor gears – coupling shaft
11.06 – E920075 O-10620025 Pump distributor gears – output drive shaft
rear axle
11.19 – E920090 O-11220035 Differential housing for rear axle
11.20 – E920091 O-11220035 rear axle
11.21 – E920092 O-11220035 Wheel hub – rear axle
11.22 – E920093 O-11220035 Rear axle steering cylinder
12 – Angular planetary gear
12.01 – E920100 1.350.3.103.0 Output drive shaft – toothed shaft 58×53
12.01 – E920101 1.350.3.101.0 Output drive shaft – cylindrical ø 60
12.02 – E920102 1.356.3.305.0 Reduction
12.03 – E920103 1.362.1.025.0 Bevel stage
12.04 – E920104 1.368.4.114.0 Brake
12.05 – E920105 1.387.5.501.0 Mounting flange and coupling
13 – Central lubrication
– E9800492 Central lubricating pump
– E9800493 Distributor – components
– E9800494 Hose connections
– E9800495 Screw connections – central lubrication
13.01 – E900310 Central lubricating system euro-Maus
13.02 – E980089 Holder grease bucket and electric pump central lubrication
14 – Park heating
– E9800600 320007700 – park heating Thermo 90 – part 1
– E9800601 320007700 – park heating Thermo 90 – part 2
– E9800602 320007700 – park heating Thermo 90 – part 3
– E9800603 320007700 – park heating Thermo 90 – part 4
– E9800604 320007700 – park heating Thermo 90 – part 5
– E9800605 320007700 – park heating Thermo 90 – part 6
– E9800606 320049300 – park heating Thermo 90S – part 1
– E9800607 320049300 – park heating Thermo 90S – part 2
– E9800608 320049300 – park heating Thermo 90S – part 3
– E9800609 320049300 – park heating Thermo 90S – part 4
– E9800610 320049300 – park heating Thermo 90S – part 5
– E9800611 320049300 – park heating Thermo 90S – part 6
15 – Hydraulic screw connections
15.01 – E9800500 Hydraulic screw connection – type_ G
15.02 – E9800501 Hydraulic screw connection – type_ W
15.03 – E9800502 Hydraulic screw connection – type_ T
15.04 – E9800503 Hydraulic screw connection – type_ K
15.05 – E9800504 Hydraulic screw connection – type_ EVW
15.06 – E9800505 Hydraulic screw connection – type_ EVT
15.07 – E9800506 Hydraulic screw connection – type_ EVL
15.08.1 – E9800507 – Hydraulic screw connection – type EVGE part 1 metric
15.08.2 – E9800508 Hydraulic screw connection – type_ EVGE – part 2 inch
15.09.1 – E9800509 Hydraulic screw connection – type_ GE – part 1 metric
15.09.2 – E9800510 Hydraulic screw connection – type_ GE – part 2 metric
15.09.3 – E9800511 Hydraulic screw connection – type_ GE – part 3 metric
15.09.4 – E9800512 Hydraulic screw connection – type_ GE – part 4 inch
15.09.5 – E9800513 Hydraulic screw connection – type_ GE – part 5 inch
15.09.6 – E9800514 Hydraulic screw connection – type_ GE – part 6 inch
15.10 – E9800515 Hydraulic screw connection – type_ GR
15.11 – E9800516 Hydraulic screw connection – type_ GVO
15.12.1 – E9800517 Hydraulic screw connection – type_ KOR – part 1
15.12.2 – E9800518 Hydraulic screw connection – type_ KOR – part 2
15.13 – E9800519 Hydraulic screw connection – type_ SWVE
15.14.1 – E9800520 Hydraulic screw connection – type_ VSTI – part 1 metric
15.14.2 – E9800521 Hydraulic screw connection – type_ VSTI – part 2 inch
15.15 – E9800522 Hydraulic screw connection – type_ ROV
15.16.1 – E9800523 Hydraulic screw connection – type_ RED – part 1 metric
15.16.2 – E9800524 Hydraulic screw connection – type_ RED – part 2 inch
15.17 – E9800525 Hydraulic screw connection – type_ GAI
15.18 – E9800526 Hydraulic screw connection – type_ MAV
15.19 – E9800527 Hydraulic screw connection – type_ MAV-EV
15.20 – E9800528 Hydraulic screw connection – type_ Measuring screw connection
15.21 – E9800529 Hydraulic screw connection – type_ measuring port
15.22 – E9800530 Hydraulic screw connection – type_ gauge connection
15.23 – E9800531 Hydraulic screw connection – type_ pressure gauge
15.24 – E9800532 Hydraulic screw connection – type_ pressure gauge connection
15.25 – E9800533 Hydraulic screw connection – type_ hose for pressure gauge
15.26 – E9800534 Hydraulic screw connection – type_ Bulkhead screw connection
15.27 – E9800535 Hydraulic screw connection – type_ Bulkhead union elbow
15.28 – E9800536 Hydraulic screw connection – type_ Flat nut for bulkhead screw connections
15.29 – E9800537 Hydraulic screw connection – type_ screw cap
15.30 – E9800538 Hydraulic screw connection – type_ BUZ
15.31 – E9800539 Hydraulic screw connection – type_ cutting ring
15.32 – E9800540 Hydraulic screw connection – type_ reinforcing sleeve
21 – Lubricants
21.01 – E9016500 Lubricants
