ROPA Harvester Panther 2S 2021- Spare Parts Catalog

Description

Contents:
ROPA Panther 2S 2021-
ROPA Panther 2S 2021-
0 Cover
Additional chassis RR-45S
02.40 – E9316060 Additional chassis – frame RR-45
02.41 – E9316062 Additional chassis – lock RR-45
02.42 – E9316064 Additional chassis – wheels RR-45_50_V
02.43 – E9316065 Additional chassis – attachment to tractor RR-45_50_V
Additional chassis RR-50S_VS
02.40 – E9316061 Additional chassis – frame RR-50_V
02.41 – E9316063 Additional chassis – lock RR-50_V
02.42 – E9316064 Additional chassis – wheels RR-45_50_V
02.43 – E9316065 Additional chassis – attachment to tractor RR-45_50_V
Chassis – ROPA Panther 2S
03 – Intermediate belt
03.01 – E9221001 Intermediate belt frame and accessories
03.02 – E9221002 Intermediate belt transfer pipe and supporting rollers
03.03 – E9221003 Intermediate belt suspension
03.04 – E9221004 Sieve conveyor for intermediate belt
04 – Strainer wheel
04.01 – E9221011 Strainer wheel 1
04.02 – E9221012 Strainer wheel 2
04.03 – E9221013 Strainer wheel 3
04.04 – E9221014 Bearing arm guide grids 1
04.05 – E9221015 Bearing arm guide grids 2
04.06 – E9221016 Bearing arm guide grids 3
04.07 – E9221017 Guide grids without spring tines
04.08.1 – E9221018 Guide grids 1 with spring tines
04.08.2 – E9221019 Guide grids 2 with spring tines
04.08.3 – E9221020 Guide grids 3 with spring tines
Special equipment
04.10 – E9221021 Model – 1st strainer wheel agitator
04.30 – E9221022 Strainer wheel tines, forged – chicory
04.31 – E9221023 Guide grids – chicory
04.32 – E9221024 Sliding plates, long – chicory
04.33 – E9221025 Sliding plates, short – chicory
05 – Elevator
05.01 – E9221031 Elevator drive – left
05.02 – E9221032 Elevator drive – right
05.03 – E9221033 Elevator arm – right
05.04 – E9221034 Elevator duct – right top
05.05 – E9221035 Elevator duct – right bottom
05.06 – E9221036 Elevator duct – left
05.07 – E9221037 Elevator – left bottom
05.08 – E9221038 Elevator bottom
05.09 – E9221039 Angular gear
05.10 – E9221040 Sieve conveyor for elevator
06 – Bunker
06.01 – E9221051 Bunker auger
06.02 – E9221052 Bunker bar
06.03 – E9221053 Longitudinal conveyor – sheet metal and rubber
06.04 – E9221054 Longitudinal conveyor – guide bars and sprockets
06.05 – E9221055 Longitudinal conveyor – drive
06.06 – E9221056 Cross conveyor – sheet metal and rubber
06.07 – E9221057 Cross conveyor – guide bars and sprockets
06.08 – E9221058 Cross conveyor – drive
06.09 – E9221059 Cleaning roller
06.10 – E9221060 Movable walls – left and right
06.11 – E9221061 Movable walls – front and rear, ultrasound
06.12 – E9221062 Components on bunker front
06.13 – E9221063 Bunker rear wall and door
06.14 – E9221064 Bunker panels bolted
Components and Details
06.20 – E9217066 Longitudinal conveyor – replace guide bars
06.21 – E9217067 Cross conveyor – replace guide bars
07 – Unload conveyor
07.01 – E9221081 Unload conveyor frame
07.02 – E9221082 Articulated unloading conveyor frame 1
07.03 – E9221083 Articulated unload conveyor frame 2 with drive
07.04 – E9221084 Unload conveyor support rollers
07.05 – E9221085 Potentiometer unload conveyor
07.06 – E9221086 Sieve conveyor for unloading conveyor
07.07 – E9221087 Covering rubber
08 – Chassis
– E9800487 Overview of lacquers and paints
08.01 – E9221101 Three-point suspension
08.02 – E9221102 Hydraulic cylinders – axles and articulation
08.03.1 – E9221103 Articulated joint – suspension_potentiometer
08.03.2 – E9221104 Chassis
08.04 – E9221105 Axle mounting
08.05.1 – E9221106 Inclinometers and potentiometer
08.05.2 – E9221107 Potentiometer steering
08.06 – E9221108 Axles, drive shafts and transfer gear
08.07 – E9221109 Tyres
08.08 – E9221110 Axle 3 additional axle
08.09 – E9221111 Cover under cross conveyor
08.10 – E9221112 Cover under cross conveyor
08.11 – E9221113 Cover for splash guard
08.12 – E9221114 Forward frame component – attachments
08.13 – E9221115 Mudguard – left
08.14 – E9221116 Mudguard – right
08.15 – E9221117 Cabin ladder
08.16 – E9221118 Ladder for bunker entry gate
08.17 – E9221119 Operator protection safety bar
08.18 – E9221120 Protective cover and components on the bunker – left
08.19 – E9221121 Protective cover and components on the bunker – right
08.20 – E9221122 Trims
08.21 – E9221123 Engine compartment underride guard
08.22 – E9221124 Engine compartment – frame
08.23 – E9221125 Engine compartment – rear cover
08.24 – E9221126 Side cover – left
08.25 – E9221127 Side cover – right
08.26.1 – E9221128 Engine cover – top left RP2Sa
08.26.2 – E9221129 Engine cover – top left RP2Sd
08.27 – E9221130 Engine compartment – radiator grill
08.28 – E9221131 Stickers – front and left
08.29 – E9221132 Stickers – rear and right
08.30 – E9221133 Vehicle tools and accessories
Components and Details
– E9800479 Additional axle wheel bearing
08.60 – E9016070 Replace left side cover
08.61 – E9016071 Replace right side cover
08.62 – E9019147 Replace rear cover
08.63 – E9016073 Replace left under-run protective device
08.64 – E9016074 Replace right under-run protective device
08.65 – E9019148 Replace the under-run protective device rear
08.66 – E9019149 Replace the engine housing frame left
08.67 – E9221134 Replace the engine housing frame
Special equipment
08.51.1 – E9016130 Model – trailer coupling for transporter – part 1
08.51.2 – E9217135 Model – trailer coupling for transporter – part 2
09 – Cabin
09.01 – E9221151 Cabin mounting – up to chassis no. 7N_
09.01 – E9221172 Cabin mounting – from chassis no. 7P_
09.02.1 – E9221152 Accelerator and brake pedals and cleaning flap – part 1
09.02.2 – E9221153 Accelerator and brake pedals and cleaning flap – part 2
09.03 – E9221154 Cabin roof and working floodlights
09.04 – E9221155 Fresh air filter and air jets
09.05 – E9221156 Air conditioner with accessories
09.06 – E9221157 Driver’s seat and passenger’s seat and accessories
09.07 – E9221158 Steering column
09.08 – E9221159 Roof console – front
09.09 – E9221160 Roof console – right
09.10.1 – E9221161 Terminal console – part 1
09.10.2 – E9221162 Terminal console – part 2
09.10.3 – E9221163 Terminal console – part 3
09.11 – E9221164 Mirror brackets
09.12 – E9221165 Front and side windows
09.13 – E9221166 Cabin doors
09.14 – E9221167 Window wipers
09.15 – E9221168 Windscreen washer system
09.16.1 – E9221169 Cabin cover – part 1
09.16.2 – E9221170 Cabin cover – part 2
09.17 – E9221171 Stickers – cabin and central electrical system
Components and Details
– E9800480 320103200 – joystick CAN right
– E9800484 352048400 – driver’s seat
10 – Engine
10 – Engine RP2Sa
10.01.1 – E9221181 Diesel tank – tool box left
10.01.2 – E9221182 Tool box right RP2Sa
10.02.1 – E9221184 Pump distributor gears with pumps RP2Sa – part 1
10.02.2 – E9221186 Pump distributor gears with pumps – part 2
10.03.1 – E9221187 Diesel engine radiator RP2Sa – part 1
10.03.2 – E9221188 Diesel engine radiator RP2Sa – part 2
10.03.3 – E9221189 Diesel engine radiator RP2Sa – part 3
10.04 – E9221195 Air filter and charge air cooler RP2Sa
10.05 – E9221197 Exhaust system RP2Sa
10.06 – E9221200 Diesel engine with holder RP2Sa
10.07 – E9221202 Diesel engine with engine bracket RP2Sa
10.08 – E9221205 Oil cooler
10.09 – E9221206 Fuel system RP2Sa
10.10 – E9221209 Connection battery, starter, emergency steering pump, generator RP2Sa
10.11 – E9221211 Diesel engine TAD1643
10.12 – E9221213 Heating system RP2Sa
10.13 – E9221215 Air conditioning system RP2Sa
Components and Details
10 – Engine RP2Sd
10.01.2 – E9221183 AdBlue tank RP2Sd
10.02.1 – E9221185 Pump distributor gears with pumps RP2Sd – part 1
10.02.2 – E9221186 Pump distributor gears with pumps – part 2
10.03.1 – E9221190 Diesel engine radiator RP2Sd – part 1
10.03.2 – E9221191 Diesel engine radiator RP2Sd – part 2
10.03.3 – E9221192 Diesel engine radiator RP2Sd – part 3
10.03.4 – E9221193 Diesel engine radiator RP2Sd – AdBlue
10.03.5 – E9221194 Diesel engine radiator RP2Sd – charge air cooler
10.04 – E9221196 Air filter RP2Sd
10.05.1 – E9221198 Exhaust system RP2Sd – part 1
10.05.2 – E9221199 Exhaust system RP2Sd – part 2
10.06 – E9221201 Diesel engine with holder RP2Sd
10.07.1 – E9221203 Diesel engine with engine bracket RP2Sd – part 1
10.07.2 – E9221204 Diesel engine with engine bracket RP2Sd – part 2
10.08 – E9221205 Oil cooler
10.09 – E9221207 Fuel system RP2Sd
10.10 – E9221208 AdBlue system RP2Sd
10.11 – E9221210 Connection battery, starter, emergency steering pump, generator RP2Sd
10.12 – E9221212 Diesel engine TWD1683
10.13 – E9221214 Heating system RP2Sd
10.14 – E9221216 Air conditioning system RP2Sd
Components and Details
11 – Hydraulic system
Accumulative return line
11.55 – E9221295 Collective return pipe on the frame – left
11.56 – E9221296 Collective return pipe on the frame – right
11.57 – E9221297 Accumulative return unit
Articulation front part and frame rear
11.01.1 – E9221240 Three-point suspension with lifting unit lift cylinder
11.01.2 – E9221241 Three-point suspension – relief with additional chassis
11.02 – E9221242 Operating hydraulics – articulation front part supply line
11.03 – E9221243 Operating hydraulics – supply to articulation front part
11.04 – E9221244 Operating hydraulics – pressure line and return
11.05 – E9221245 Pressure lines – steering working hydraulics
11.06 – E9221246 Pressure line – pump steering
11.07 – E9221247 Operating hydraulics – Load Sensing
11.08 – E9221248 Pressure line – steering, shaking share and support roller
11.09 – E9221249 Pressure line – shaking share and front axle steering
Brake
11.48 – E9221288 Brake – pressure line, return and Load Sensing
11.49 – E9221289 Brake – 1st axle front axle
11.50 – E9221290 Brake – rear axle
Bunker
11.31 – E9221271 Bunker auger – drive
11.32 – E9221272 Bunker auger – leak oil
11.33 – E9221273 Bunker auger up_down
11.34 – E9221274 Bunker bar folding
11.35 – E9221275 Fold partition – front
11.36 – E9221276 Pressure line to unload conveyor
11.37 – E9221277 Cross conveyor – drive
11.38 – E9221278 Longitudinal conveyor – drive
Chassis
11.17 – E9221257 Chassis – axle support front
11.18 – E9221258 Chassis – axle support rear
11.19 – E9221259 Chassis – inclination
11.20 – E9221260 Chassis – additional axle
Elevator
11.27 – E9221267 Elevator – drive left
11.28 – E9221268 Elevator – drive right
11.29 – E9221269 Elevator – support cylinders
11.30 – E9221270 Elevator up_down
Engine cooling
11.51.1 – E9221291 Fan drive for water cooler charge air RP2Sa
11.51.2 – E9221303 Fan drive for water cooler charge air RP2Sd
11.52 – E9221292 Oil cooler
Hydraulic oil tank
11.61 – E9221301 Hydraulic oil tank
11.62 – E9221302 Hydraulic return filter
Intake lines
11.58 – E9221298 Intake lines – part 1
11.59 – E9221299 Intake lines – part 2
11.60 – E9221300 Intake lines – part 3
Intermediate belt
11.21 – E9221261 Intermediate belt – drive and tensioning
Lifting unit drive
11.43 – E9221283 Lifter drive – pressure line and return
11.44 – E9221284 Lifter drive – pressure line for support rollers drive RR
PDG greasing
11.53 – E9221293 PDG lubrication – part 1
11.54 – E9221294 PDG lubrication – part 2
Sonderausstattungen
11.70 – E9221304 Variante – Zusatzpumpe
Steering
11.10 – E9221250 Steering – front axle Load Sensing
11.11 – E9221251 Steering – steering wheel connection
11.12 – E9221252 Steering – front axle
11.13 – E9221253 Steering – articulation cylinder
11.14 – E9221254 Steering – synchronized steering
11.15 – E9221255 Steering – rear axle
11.16 – E9221256 Steering – emergency steering pump
Strainer wheel
11.22 – E9221262 Strainer wheel – pressure line
11.23 – E9221263 Strainer wheel 1 – drive; feed for strainer wheel 2 + 3
11.24 – E9221264 Strainer wheel 2 + 3 – drive
11.25 – E9221265 Strainer wheel 1 – guide grid height adjustment
11.26 – E9221266 Strainer wheel 2 + 3 – guide grid height adjustment
Traction drive
11.45 – E9221285 Traction drive – pressure line
11.46 – E9221286 Traction drive – axle cooling front axle
11.47 – E9221287 Traction drive – axle cooling rear axle
Unload conveyor
11.39 – E9221279 Unload conveyor – drive
11.40 – E9221280 Unload conveyor up-down
11.41 – E9221281 Unload conveyor – articulation 1
11.42 – E9221282 Unload conveyor – articulation 2
12 – Central electrical system
– E9800477 Übersicht Stecker – Teil 2
– E9800478 018079700 – Electrical assortment box
– E9800499 Overview of plugs
12.01 – E9221351 Switching cabinet for central electrical system and diesel engine
12.02.1 – E9221352 Video cameras – part 1 – up to ch.no. 7P_
12.02.1 – E9221357 Video cameras – part 1 – from ch.no. 7R_
12.02.2 – E9221353 Video cameras – part 2 – up to ch.no. 7P_
12.02.2 – E9221358 Video cameras – part 2 – from ch.no. 7R_
12.03 – E9221354 Video system – R-View
12.04.1 – E9221355 Wiring harness overview – part 1
12.04.2 – E9221356 Wiring harness overview – part 2
12.05 – E9221359 Zusatzkamera für RW-Roder
13 – Gears & axles
299026701 – pump distributor gears
13.01 – E9014311 O-10620043 Pump distributor gears compartment
13.02 – E9014312 O-10620043 Pump drive shaft
13.03 – E9014313 O-10620043 Pump distributor gears drive shaft
13.04 – E9014314 O-10620043 Pump distributor gears side shaft
13.05 – E9014315 O-10620043 Pump distributor gears intermediate shaft above
13.06 – E9014316 O-10620043 Pump distributor gears side shaft
13.07 – E9014317 O-10620043 Pump distributor gears intermediate shaft central
13.08 – E9014318 O-10620043 Pump distributor gears intermediate shaft below
13.09 – E9014319 O-10620043 Pump distributor gears drive shaft below
13.10 – E9014320 O-10620043 Pump distributor gears filter
299031201 – manual transmission
13.17 – E9217380 O-10560146 Manual transmission housing
13.18 – E9217381 O-10560146 Manual transmission drive shaft
13.19 – E9217382 O-10560146 Manual transmission output drive shaft
13.20 – E9217383 O-10560146 Gearshift – gear 1-2
13.21 – E9217384 O-10560146 Drive turn off
299031301 – front axle
13.11 – E9217371 O-11340034 Differential housing
13.12 – E9217372 O-11340034 Brake
13.13 – E9217373 O-11340034 Planetary axle carrier
13.14 – E9217374 O-11340034 Front axle wheel hub
13.15 – E9217375 O-11340034 Steering group
13.16 – E9217376 O-11340034 Front axle steering cylinder
299038101 – rear axle
13.22 – E9221391 O-11340037 Differential housing
13.23 – E9221392 O-11340037 Brake
13.24 – E9221393 O-11340037 Planetary axle carrier
13.25 – E9221394 O-11340037 Rear axle wheel hub
13.26 – E9221395 O-11340037 Steering group
13.27 – E9221396 O-11340037 Rear axle steering cylinder
691035901 – intermediate belt gears
– E9800488 Overview of sealants and aid materials
13.29 – E9217401 O-10630081 Intermediate belt gears for RR lifter
14 – Pneumatics
14.01 – E9221420 Pneumatic lines – right – air chamber RP2Sa
14.01 – E9221421 Pneumatic lines – right – air chamber RP2Sd
14.02 – E9221422 Connection for operator protection deflector bracket
14.03 – E9221423 Differential lock connection
14.04 – E9221424 Switch connection
14.05 – E9221425 Mirror adjustment connection with blow-out gun
14.06 – E9221426 Air line for R-Contour
15 – Hydraulic screw connections
15.01 – E9800500 Hydraulic screw connection – type_ G
15.02 – E9800501 Hydraulic screw connection – type_ W
15.03 – E9800502 Hydraulic screw connection – type_ T
15.04 – E9800503 Hydraulic screw connection – type_ K
15.05 – E9800504 Hydraulic screw connection – type_ EVW
15.06 – E9800505 Hydraulic screw connection – type_ EVT
15.07 – E9800506 Hydraulic screw connection – type_ EVL
15.08.1 – E9800507 Hydraulic screw connection – type_ EVGE – part 1 metric
15.08.2 – E9800508 Hydraulic screw connection – type_ EVGE – part 2 inch
15.09.1 – E9800509 Hydraulic screw connection – type_ GE – part 1 metric
15.09.2 – E9800510 Hydraulic screw connection – type_ GE – part 2 metric
15.09.3 – E9800511 Hydraulic screw connection – type_ GE – part 3 metric
15.09.4 – E9800512 Hydraulic screw connection – type_ GE – part 4 inch
15.09.5 – E9800513 Hydraulic screw connection – type_ GE – part 5 inch
15.09.6 – E9800514 Hydraulic screw connection – type_ GE – part 6 inch
15.10 – E9800515 Hydraulic screw connection – type_ GR
15.11 – E9800516 Hydraulic screw connection – type_ GVO
15.12.1 – E9800517 Hydraulic screw connection – type_ KOR – part 1
15.12.2 – E9800518 Hydraulic screw connection – type_ KOR – part 2
15.13 – E9800519 Hydraulic screw connection – type_ SWVE
15.14.1 – E9800520 Hydraulic screw connection – type_ VSTI – part 1 metric
15.14.2 – E9800521 Hydraulic screw connection – type_ VSTI – part 2 inch
15.15 – E9800522 Hydraulic screw connection – type_ ROV
15.16.1 – E9800523 Hydraulic screw connection – type_ RED – part 1 metric
15.16.2 – E9800524 Hydraulic screw connection – type_ RED – part 2 inch
15.17 – E9800525 Hydraulic screw connection – type_ GAI
15.18 – E9800526 Hydraulic screw connection – type_ MAV
15.19 – E9800527 Hydraulic screw connection – type_ MAV-EV
15.20 – E9800528 Hydraulic screw connection – type_ Measuring screw connection
15.21 – E9800529 Hydraulic screw connection – type_ measuring port
15.22 – E9800530 Hydraulic screw connection – type_ gauge connection
15.23 – E9800531 Hydraulic screw connection – type_ pressure gauge
15.24 – E9800532 Hydraulic screw connection – type_ pressure gauge connection
15.25 – E9800533 Hydraulic screw connection – type_ hose for pressure gauge
15.26 – E9800534 Hydraulic screw connection – type_ Bulkhead screw connection
15.27 – E9800535 Hydraulic screw connection – type_ Bulkhead union elbow
15.28 – E9800536 Hydraulic screw connection – type_ Flat nut for bulkhead screw connections
15.29 – E9800537 Hydraulic screw connection – type_ screw cap
15.30 – E9800538 Hydraulic screw connection – type_ BUZ
15.31 – E9800539 Hydraulic screw connection – type_ cutting ring
15.32 – E9800540 Hydraulic screw connection – type_ reinforcing sleeve
16 – Central lubrication
– E9800491 Central lubricating pump
– E9800493 Distributor – components
– E9800494 Hose connections
– E9800495 Screw connections – central lubrication
16.01 – E9221430 Central lubricating system
16.02 – E9217431 Central lubricating pump with grease bucket
21 – Lubricants and filter lists
21.01 – E9016500 Lubricants
21.02 – E9221450 Filter for diesel engine
21.03 – E9217451 Filter for hydraulic system and gears
21.04 – E9016503 Filter for cabin
22 – Control blocks and seat valves
– E9800001 270043100 – seat valves 4-part
– E9800003 270044500 – control unit – elevator
– E9800004 270047000 – seat valves 1-part
– E9800005 270050300 – control unit – steering RA & articulation
– E9800007 270050700 – control unit – steering FA
– E9800012 270051700 – control unit – elevator tightening
– E9800014 270053700 – control unit – shaking share and leaf-spreader
– E9800015 270064200 – control unit – additional axle
– E9800016 270066600 – check valve unit
– E9800017 270066700 – control unit conveyor II
– E9800020 270069200 – control unit conveyor 1
– E9800021 270069510 – control unit – emergency steering
– E9800022 270043200 – seat valves 2-part
– E9800035 270072300 – control unit – operating hydraulics 2
– E9800039 270076000 – Control unit – bunker auger
– E9800044 270054400 – control unit – leaf auger
– E9800045 270080800 – control unit – stone protection right
– E9800046 270080900 – control unit – stone protection left
– E9800047 270082100 – control unit – lifting rollers
– E9800048 270077700 – control unit – reverse lifting rollers RR
– E9800050 270077800 – control unit – infeed conveyor RR
– E9800051 2700546_ – Suction unit
– E9800052 270083100 – control unit rubber topper
– E9800054 270050900 – flush valve flange-mounted
– E9800055 270084000 – control unit – operating hydraulics 1
– E9800056 270083900 – control unit – strainer wheel
– E9800057 270083600 – Control unit – articulation coupling
– E9800058 270066900 – compact brake unit – 2-circuit _Safim_
– E9800059 2700810_ – suction unit right
– E9800060 2700811_ – suction unit left
– E9800073 270064000 – Leaf auger control unit
– E9800085 270080700 – control unit – depth-control shaft
– E9800086 270091400 – Leaf auger control unit
– E9800087 270089500 – control unit – shaking share and leaf-spreader
– E9800114 270095010 – suction unit right
– E9800115 270095110 – suction unit left
– E9800122 270092200 – Steuerblock – Radschare reversieren _ Rodetiefe
– E9800123 270093600 – Verteilerklotz Auspaddler
– E9800124 270093200 – Steuerblock Auspaddlerdrehzahl links
– E9800125 270093000 – Steuerblock Auspaddlerdrehzahl rechts
– E9800126 270089800 – Steuerblock Schleglerentlastung links
– E9800127 270089700 – Steuerblock Schleglerentlastung rechts
23 – Hydraulic motors and cylinders
– E9800032 272015400 – gear motor
– E9800033 2720132_ – hydraulic motor OMV 400 tapered shaft
– E9800061 272015410 – gear motor
– E9800084 272016100 – gear motor fan drive
– E9800092 2720206_ – hydraulic motor wheel motor MSE05
– E9800093 272012701 – axial piston motor A2 FE 80 _ BR 61
– E9800094 272012801 – axial piston motor A2 FE 90 _ BR 61
– E9800100 272015701 – axial piston motor A6 VM 170 EP
– E9800104 272019801 – axial piston motor A6 VM 80 EP
– E9800105 272017103 – axial piston motor A10 VER 37 EZ7
– E9800107 2720135_ – hydraulic motor TMT 250 tapered shaft
– E9800108 272018601 – hydraulic motor TMT 315 geared shaft
– E9800110 Hydraulic motor OMV
– E9800111 Hydraulic motor OMT
– E9800112 Hydraulic motor OMS
– E9800113 Hydraulic motor OMR
– E9800116 276014901 – hydraulic cylinders ø25mm x 120mm
– E9800118 276029201 – hydraulic cylinders ø80 x ø40 x 417mm
– E9800119 276036601 – hydraulic cylinders ø45mm x 175mm
– E9800120 276037801 – hydraulic cylinders ø50 x ø30 x 110mm
Lifter
02 – Lifter – RR-S
02 – Lifter RR-45S

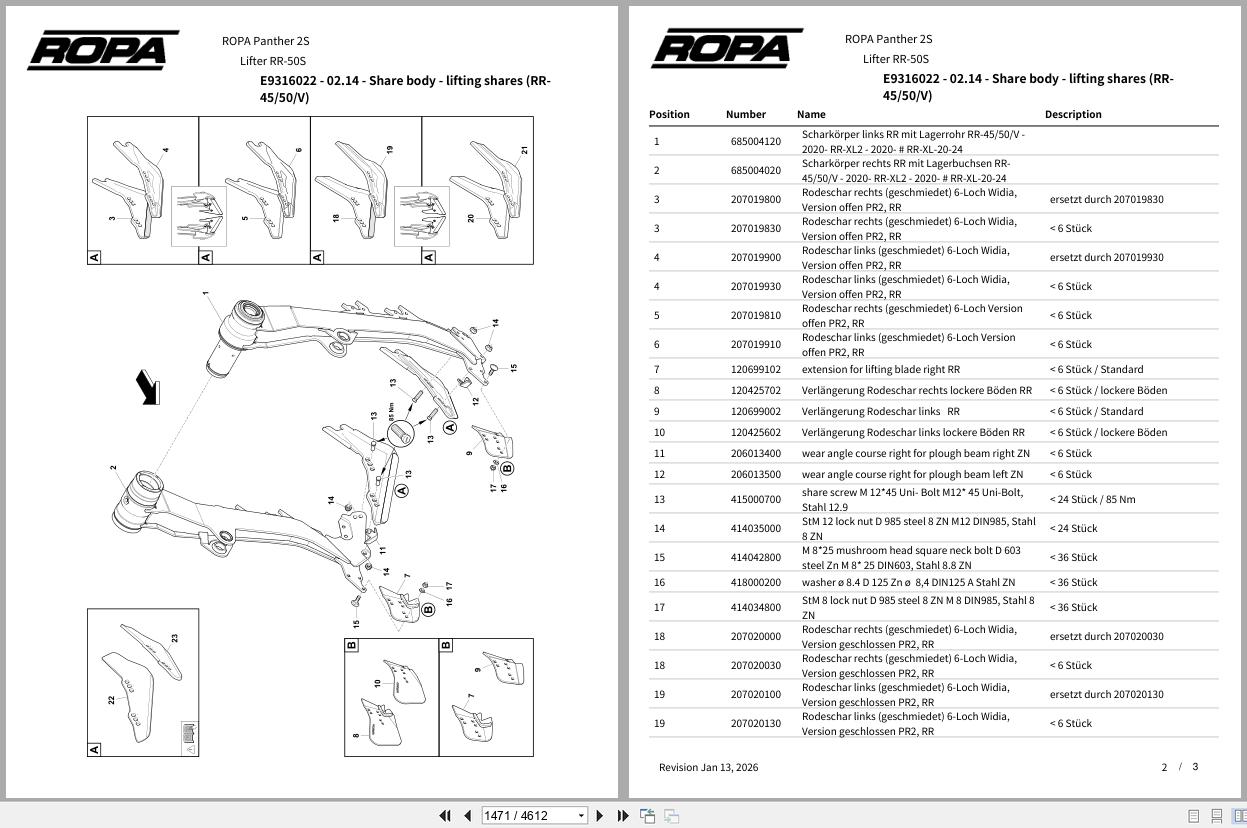

02.01 – E9316001 Support frame – bearing RR-45
02.02 – E9319004 Support frame – attachments RR-45S
02.03 – E9319007 Supporting frame – topper coupling RR-45S
02.04 – E9316007 Supporting frame – additional chassis coupling RR-45_50_V
02.05 – E9319011 Support frame – cover direct. of drive left RR-45S_50S_VS
02.06 – E9319012 Support frame – cover direct. of drive right RR-45S_50S_VS
02.07 – E9316010 Supporting frame – paddle and telescopic pipe RR-45
02.08 – E9319015 Support frame – electrical control cabinet RR-45S_50S_VS
02.09 – E9319016 Share beam – clamps RR-45S_50S
02.10 – E9316015 Share beam – shaking share RR-45
02.11 – E9319021 Share beam – lifting steering and lifting depth RR-45S_50S_VS
02.11 – E9319059 Scharbalken – Roderlenkung und Rodetiefe Hohlwelle RR-45S_50S_VS
02.12 – E9319022 Share beam – attachments RR-45S_50S
02.13 – E9316021 Share body – bearing RR-45_50_V
02.14 – E9316022 Share body – lifting shares RR-45_50_V
02.15 – E9319026 Share body – share guide rods RR-45S
02.16 – E9319028 Support roller – depth guide RR-45S_50S_VS
02.17.1 – E9319029 Support roller – drive_angular gear RR-45S_50S
02.17.2 – E9319053 Support roller – drive_Poclain RR-45S_50S
02.18.1 – E9319031 Support roller – depth-contr. wheel_angular gear RR-45S
02.18.2 – E9319055 Support roller – depth-contr. wheel_Poclain RR-45S
02.19 – E9319035 Lifting rollers – gears and counter-bearing RR-45S
02.20 – E9319038 Lifting rollers – grids laterally RR-45S_50S
02.21 – E9316034 Lifting rollers – overview RR-45
02.22 – E9319043 Lifting rollers – bearing RR-45S_50S
02.23 – E9319045 Lifting rollers – short lifting rollers RR-45S
02.24 – E9319050 Air line for R-Contour RR-45S
02.25 – E9319048 Central lubrication and stickers RR-45S_50S
Gears – lifter RR-45S
Hydraulics – lifter RR-45S
Special equipment
02 – Lifter RR-45S chicory
02.01 – E9316150 Support frame – bearing RR-45 chicory
02.02 – E9319180 Support frame – attachments RR-45S chicory
02.03 – E9319181 Support frame – topper coupling RR-45S chicory
02.05 – E9319011 Support frame – cover direct. of drive left RR-45S_50S_VS
02.06 – E9319012 Support frame – cover direct. of drive right RR-45S_50S_VS
02.07 – E9316160 Supporting frame – paddle and telescopic pipe RR-45 chicory
02.08 – E9319015 Support frame – electrical control cabinet RR-45S_50S_VS
02.09 – E9319186 Scharbalken – Klemmschellen RR-45S Chicorée
02.10 – E9316015 Share beam – shaking share RR-45
02.11.1 – E9319182 Share beam – lifting steering and lifting height – vibration share RR-45S chicory
02.11.1 – E9319188 Scharbalken – Roderlenkung und Rodetiefe – Polderschar Hohlwelle RR-45S Chicorée
02.11.2 – E9319183 Share beam – row sensor for share tips RR-45S chicory
02.12 – E9319022 Share beam – attachments RR-45S_50S
02.13.1 – E9316155 Share body – bearing – divided share body RR-45 chicory
02.13.2 – E9316156 Share body – share tips and share holders RR-45 chicory
02.14 – E9316157 Share body – lifting shares – divided share body RR-45 chicory
02.15 – E9316158 Share body – share guide rods – divided share body RR-45 chicory
02.16 – E9319028 Support roller – depth guide RR-45S_50S_VS
02.17.1 – E9319029 Support roller – drive_angular gear RR-45S_50S
02.17.2 – E9319053 Support roller – drive_Poclain RR-45S_50S
02.18.1 – E9319031 Support roller – depth-contr. wheel_angular gear RR-45S
02.18.2 – E9319055 Support roller – depth-contr. wheel_Poclain RR-45S
02.19 – E9319185 Lifting rollers – gears and counter-bearing RR-45S chicory
02.20 – E9319038 Lifting rollers – grids laterally RR-45S_50S
02.21 – E9316159 Lifting rollers – overview RR-45 chicory
02.22 – E9319043 Lifting rollers – bearing RR-45S_50S
02.23 – E9319187 Lifting rollers – short lifting rollers RR-45S Chicorée
02.24 – E9319050 Air line for R-Contour RR-45S
02.25 – E9319048 Central lubrication and stickers RR-45S_50S
Gears – lifter RR-45S
Hydraulics – lifter RR-45S chicory
Special equipment
02 – Lifter RR-50S
02.01 – E9316002 Support frame – bearing RR-50
02.02 – E9319005 Support frame – attachments RR-50S
02.03 – E9319008 Supporting frame – topper coupling RR-50S
02.04 – E9316007 Supporting frame – additional chassis coupling RR-45_50_V
02.05 – E9319011 Support frame – cover direct. of drive left RR-45S_50S_VS
02.06 – E9319012 Support frame – cover direct. of drive right RR-45S_50S_VS
02.07 – E9316011 Supporting frame – paddle and telescopic pipe RR-50_V
02.08 – E9319015 Support frame – electrical control cabinet RR-45S_50S_VS
02.09 – E9319016 Share beam – clamps RR-45S_50S
02.10 – E9316016 Share beam – shaking share RR-50
02.11 – E9319021 Share beam – lifting steering and lifting depth RR-45S_50S_VS
02.11 – E9319059 Scharbalken – Roderlenkung und Rodetiefe Hohlwelle RR-45S_50S_VS
02.12 – E9319022 Share beam – attachments RR-45S_50S
02.13 – E9316021 Share body – bearing RR-45_50_V
02.14 – E9316022 Share body – lifting shares RR-45_50_V
02.15 – E9319027 Share body – share guide rods RR-50S_VS
02.16 – E9319028 Support roller – depth guide RR-45S_50S_VS
02.17.1 – E9319029 Support roller – drive_angular gear RR-45S_50S
02.17.2 – E9319053 Support roller – drive_Poclain RR-45S_50S
02.18.1 – E9319032 Support roller – depth-contr. wheel_angular gear RR-50S
02.18.2 – E9319056 Support roller – depth-contr. wheel_Poclain RR-50S
02.19 – E9319036 Lifting rollers – gears and counter-bearing RR-50S
02.20 – E9319038 Lifting rollers – grids laterally RR-45S_50S
02.21 – E9316035 Lifting rollers – overview RR-50
02.22 – E9319043 Lifting rollers – bearing RR-45S_50S
02.23 – E9319046 Lifting rollers – short lifting rollers RR-50S
02.24 – E9319051 Air line for R-Contour RR-50S
02.25 – E9319048 Central lubrication and stickers RR-45S_50S
Gears – lifter RR-50S
Hydraulics – lifter RR-50S
Special equipment
02 – Lifter RR-VS
02.01 – E9316076 Support frame – bearing RR-V
02.02 – E9319006 Support frame – attachments RR-VS
02.03 – E9319009 Supporting frame – topper coupling RR-VS
02.04 – E9316007 Supporting frame – additional chassis coupling RR-45_50_V
02.05 – E9319011 Support frame – cover direct. of drive left RR-45S_50S_VS
02.06 – E9319012 Support frame – cover direct. of drive right RR-45S_50S_VS
02.07 – E9316011 Supporting frame – paddle and telescopic pipe RR-50_V
02.08 – E9319015 Support frame – electrical control cabinet RR-45S_50S_VS
02.09 – E9319017 Share beam – clamps RR-VS
02.10 – E9316017 Share beam -shaking share RR-V
02.11 – E9319021 Share beam – lifting steering and lifting depth RR-45S_50S_VS
02.11 – E9319059 Scharbalken – Roderlenkung und Rodetiefe Hohlwelle RR-45S_50S_VS
02.12 – E9319023 Share beam – attachments RR-VS
02.13 – E9316021 Share body – bearing RR-45_50_V
02.14 – E9316022 Share body – lifting shares RR-45_50_V
02.15 – E9319027 Share body – share guide rods RR-50S_VS
02.16 – E9319028 Support roller – depth guide RR-45S_50S_VS
02.17.1 – E9319030 Support roller – drive_angular gear RR-VS
02.17.2 – E9319054 Support roller – drive_Poclain RR-VS
02.18.1 – E9319033 Supporting roller – pipe with shift_angular gear RR-VS
02.18.2 – E9319057 Support roller – pipe with shift_Poclain RR-VS
02.19.1 – E9319034 Support roller – depth-contr. wheel_angular gear RR-VS
02.19.2 – E9319058 Support roller – depth-contr. wheel_Poclain RR-VS
02.20 – E9319037 Lifting rollers – gears and counter-bearing RR-VS
02.21 – E9319039 Lifting rollers – grids laterally RR-VS
02.22 – E9319042 Lifting rollers – overview RR-VS
02.23 – E9319044 Lifting rollers – bearing RR-VS
02.24 – E9319047 Lifting rollers – short lifting rollers RR-VS
02.25 – E9319052 Air line for R-Contour RR-VS
02.26 – E9319049 Central lubrication and stickers RR-VS
Gears – lifter RR-VS
Hydraulics – lifter RR-VS
Special equipment
02 – Lifter – RW-S
02 – Lifter RW-45S
02.01 – E9324100 Support frame – bearing RW-45
02.02 – E9324103 Support frame – attachments RW-45S
02.03 – E9324108 Supporting frame – topper coupling RW-S
02.04 – E9324109 Supporting frame – additional chassis coupling RW
02.05 – E9324110 Supporting frame – cover direction of drive left RW-S
02.06 – E9324111 Supporting frame – cover direction of drive right RW-S
02.07 – E9324112 Supporting frame – paddle and telescopic pipe RW-45
02.08 – E9324114 Supporting frame – electrical control cabinet RW-S
02.09 – E9324115 Share beam – clamps RW-45_50
02.10 – E9324117 Share beam – row sensor RW-S
02.11 – E9324118 Share beam -attachments RW-45
02.12 – E9324120 Share beam – lifting steering and lifting height RW-S
02.13 – E9324121 Wheel share – bearing _ linear guide RW-S
02.14 – E9324122 Wheel share – drive unit RW
02.15 – E9324123 Wheel share – share & wiper RW
02.16 – E9324124 Wheel share – paddle on share RW
02.17 – E9324125 Support roller – depth guide RW-S
02.18 – E9324126 Support roller – drive RW-45_50
02.19 – E9324128 Support roller – depth-control wheel RW-45_50
02.20 – E9324130 Lifting rollers – gears and counter-bearing RW
02.21 – E9324131 Lifting rollers – grids laterally RW
02.22 – E9324132 Lifting rollers – overview RW-45
02.23 – E9324135 Lifting rollers – bearing RW
02.24 – E9324136 Lifting rollers – short lifting rollers RW-45
02.26 – E9324140 Zentralschmierung und Aufkleber RW
Gears – lifter RW-45S
02 – Lifter RW-50S
02.01 – E9324101 Support frame – bearing RW-50
02.02 – E9324104 Support frame – attachments RW-50S
02.03 – E9324108 Supporting frame – topper coupling RW-S
02.04 – E9324109 Supporting frame – additional chassis coupling RW
02.05 – E9324110 Supporting frame – cover direction of drive left RW-S
02.06 – E9324111 Supporting frame – cover direction of drive right RW-S
02.07 – E9324113 Supporting frame – paddle and telescopic pipe RW-50_V
02.08 – E9324114 Supporting frame – electrical control cabinet RW-S
02.09 – E9324115 Share beam – clamps RW-45_50
02.10 – E9324117 Share beam – row sensor RW-S
02.11 – E9324119 Share beam -attachments RW-50_V
02.12 – E9324120 Share beam – lifting steering and lifting height RW-S
02.13 – E9324121 Wheel share – bearing _ linear guide RW-S
02.14 – E9324122 Wheel share – drive unit RW
02.15 – E9324123 Wheel share – share & wiper RW
02.16 – E9324124 Wheel share – paddle on share RW
02.17 – E9324125 Support roller – depth guide RW-S
02.18 – E9324126 Support roller – drive RW-45_50
02.19 – E9324128 Support roller – depth-control wheel RW-45_50
02.20 – E9324130 Lifting rollers – gears and counter-bearing RW
02.21 – E9324131 Lifting rollers – grids laterally RW
02.22 – E9324133 Lifting rollers – overview RW-50
02.23 – E9324135 Lifting rollers – bearing RW
02.24 – E9324137 Lifting rollers – short lifting rollers RW-50_V
02.26 – E9324140 Zentralschmierung und Aufkleber RW
Gears – lifter RW-50S
02 – Lifter RW-VS
02.01 – E9324102 Support frame – bearing RW-V
02.02 – E9324105 Support frame – attachments RW-VS
02.03 – E9324108 Supporting frame – topper coupling RW-S
02.04 – E9324109 Supporting frame – additional chassis coupling RW
02.05 – E9324110 Supporting frame – cover direction of drive left RW-S
02.06 – E9324111 Supporting frame – cover direction of drive right RW-S
02.07 – E9324113 Supporting frame – paddle and telescopic pipe RW-50_V
02.08 – E9324114 Supporting frame – electrical control cabinet RW-S
02.09 – E9324116 Share beam – clamps RW-V
02.10 – E9324117 Share beam – row sensor RW-S
02.11 – E9324119 Share beam -attachments RW-50_V
02.12 – E9324120 Share beam – lifting steering and lifting height RW-S
02.13 – E9324121 Wheel share – bearing _ linear guide RW-S
02.14 – E9324122 Wheel share – drive unit RW
02.15 – E9324123 Wheel share – share & wiper RW
02.16 – E9324124 Wheel share – paddle on share RW
02.17 – E9324125 Support roller – depth guide RW-S
02.18 – E9324127 Support roller – drive RW-V
02.19 – E9324129 Support roller – depth-control wheel RW-V
02.20 – E9324130 Lifting rollers – gears and counter-bearing RW
02.21 – E9324131 Lifting rollers – grids laterally RW
02.22 – E9324134 Lifting rollers – overview RW-V
02.23 – E9324135 Lifting rollers – bearing RW
02.24 – E9324137 Lifting rollers – short lifting rollers RW-50_V
02.26 – E9324140 Zentralschmierung und Aufkleber RW
Gears – lifter RW-VS
Topper
01 – Topper – RD-S
01 – Schlegler RADO-50S
01.01 – E9422001 Leaf sensor RADO-S_RBDO-S
01.02.1 – E9422005 Topper wheel – internal RADO-S_RBDO-S
01.02.2 – E9422006 Topper wheel – external RADO-S_RBDO-S
01.02.3 – E9422007 Light and warning sign RADO-S_RBDO-S
01.03.1 – E9422012 Topper housing – left and right – part 1 RADO-S_RBDO-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04.1 – E9422077 Frontschiene RADO-50S
01.04.2 – E9422078 Schleglergehäuse – vorne RADO-50S
01.04.3 – E9422026 Topper housing – rear-top RAD-50S_VS
01.04.4 – E9422022 Topper housing – rear-bottom RAD-50S
01.04.5 – E9422023 Changeover flap RAD-S
01.05.1 – E9422068 Topper shaft – drive RD-50S_VS
01.05.2 – E9422070 Topper shaft – with integral flails RD-50S_VS
01.05.3 – E9422072 Topper shaft – with pallet flails RD-50S_VS
01.05.4.1 – E9422074 Topper shaft – combined shaft – part 1 RD-50S_VS
01.05.4.2 – E9422076 Topper shaft – combined shaft – part 2 RD-50S_VS
01.06 – E9422033 Leaf auger RAD-50S_RAD-VS
01.07 – E9422035 Cleaning roller RAD-50S_RAD-VS
01.08.1 – E9422036 Leaf spreader – standard RAD-S_RBDO-S
01.08.2 – E9422037 Leaf spreader – stone protection RAD-S_RBDO-S
01.09 – E9422038 Fold leaf spreader RAD-S_RBDO-S
01.10 – E9422040 Scalper bar RAD-50S_VS
01.11 – E9422045 Holding frame for scalper RAD-50S
01.12 – E9422049 Scalper – Micro-Topper 2 RAD-S_RBDO-S
01.13 – E9422054 R-Contour RAD-50S_VS
01.14 – E9422058 Central lubrication and stickers RADO-S_RBDO-S
Hydraulik – Schlegler RADO-50S mit Roder RR-50S
Hydraulik – Schlegler RADO-50S mit Roder RW-50S
Model leaf pile conveyor
01 – Topper RADO-45S
01.01 – E9422001 Leaf sensor RADO-S_RBDO-S
01.02.1 – E9422005 Topper wheel – internal RADO-S_RBDO-S
01.02.2 – E9422006 Topper wheel – external RADO-S_RBDO-S
01.02.3 – E9422007 Light and warning sign RADO-S_RBDO-S
01.03.1 – E9422012 Topper housing – left and right – part 1 RADO-S_RBDO-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04.1 – E9422015 Front rail RADO-45S_RBDO-45S
01.04.2 – E9422016 Topper housing – front RADO-45S_RBDO-45S
01.04.3 – E9422017 Topper housing – rear-top RAD-45S_RBDO-45S
01.04.4 – E9422018 Topper housing – rear-bottom RAD-45S_RBDO-45S
01.04.5 – E9422023 Changeover flap RAD-S
01.05.1 – E9422067 Topper shaft – drive RD-45S
01.05.2 – E9422069 Topper shaft – with integral flails RD-45S
01.05.3 – E9422071 Topper shaft – with pallet flails RD-45S
01.05.4.1 – E9422073 Topper shaft – combined shaft – part 1 RD-45S
01.05.4.2 – E9422075 Topper shaft – combined shaft – part 2 RD-45S
01.06 – E9422032 Leaf auger RAD-45S_RBDO-45S
01.07 – E9422034 Cleaning roller RAD-45S_RBDO-45S
01.08.1 – E9422036 Leaf spreader – standard RAD-S_RBDO-S
01.08.2 – E9422037 Leaf spreader – stone protection RAD-S_RBDO-S
01.09 – E9422038 Fold leaf spreader RAD-S_RBDO-S
01.10 – E9422039 Scalper bar RAD-45S_RBDO-45S
01.11 – E9422043 Holding frame for scalper RAD-45S_RBDO-45S
01.12 – E9422049 Scalper – Micro-Topper 2 RAD-S_RBDO-S
01.13 – E9422053 R-Contour RAD-45S_RBDO-45S
01.14 – E9422058 Central lubrication and stickers RADO-S_RBDO-S
Hydraulics – topper RADO-45S
Hydraulik – Schlegler RADO-45S mit Roder RW-45S
Model leaf pile conveyor
01 – Topper RADU-45S
01.01.1 – E9422002 Leaf sensor RADW-S_RADU-S_RID-S
01.01.2 – E9422003 Fold leaf sensor RADW-S_RADU-S
01.02 – E9422011 Light and warning sign RADU-S_RIDU-S
01.03.1 – E9422013 Topper housing – left and right – part 1 RADW-S_RADU-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04.1 – E9422019 Front rail RADW-45S_RADU-45S
01.04.2 – E9422020 Topper housing – front RADW-45S_RADU-45S
01.04.3 – E9422017 Topper housing – rear-top RAD-45S_RBDO-45S
01.04.4 – E9422018 Topper housing – rear-bottom RAD-45S_RBDO-45S
01.04.5 – E9422023 Changeover flap RAD-S
01.05.1 – E9422067 Topper shaft – drive RD-45S
01.05.2 – E9422069 Topper shaft – with integral flails RD-45S
01.05.3 – E9422071 Topper shaft – with pallet flails RD-45S
01.05.4.1 – E9422073 Topper shaft – combined shaft – part 1 RD-45S
01.05.4.2 – E9422075 Topper shaft – combined shaft – part 2 RD-45S
01.06 – E9422032 Leaf auger RAD-45S_RBDO-45S
01.07 – E9422034 Cleaning roller RAD-45S_RBDO-45S
01.08.1 – E9422036 Leaf spreader – standard RAD-S_RBDO-S
01.08.2 – E9422037 Leaf spreader – stone protection RAD-S_RBDO-S
01.09 – E9422038 Fold leaf spreader RAD-S_RBDO-S
01.10 – E9422039 Scalper bar RAD-45S_RBDO-45S
01.11 – E9422043 Holding frame for scalper RAD-45S_RBDO-45S
01.12 – E9422049 Scalper – Micro-Topper 2 RAD-S_RBDO-S
01.13 – E9422053 R-Contour RAD-45S_RBDO-45S
01.14 – E9422057 Central lubrication and stickers RADU-S
01.15 – E9422061 Additional stickers for contour marking RADW-45S_RADU-45S
Hydraulics – topper RADU-45S
Hydraulik – Schlegler RADU-45S mit Roder RW-45S
01 – Topper RADU-50S
01.01.1 – E9422002 Leaf sensor RADW-S_RADU-S_RID-S
01.01.2 – E9422003 Fold leaf sensor RADW-S_RADU-S
01.02 – E9422011 Light and warning sign RADU-S_RIDU-S
01.03.1 – E9422013 Topper housing – left and right – part 1 RADW-S_RADU-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04.1 – E9422024 Front rail RAD-50S_VS
01.04.2 – E9422025 Topper housing – front RAD-50S_VS
01.04.3 – E9422026 Topper housing – rear-top RAD-50S_VS
01.04.4 – E9422022 Topper housing – rear-bottom RAD-50S
01.04.5 – E9422023 Changeover flap RAD-S
01.05.1 – E9422068 Topper shaft – drive RD-50S_VS
01.05.2 – E9422070 Topper shaft – with integral flails RD-50S_VS
01.05.3 – E9422072 Topper shaft – with pallet flails RD-50S_VS
01.05.4.1 – E9422074 Topper shaft – combined shaft – part 1 RD-50S_VS
01.05.4.2 – E9422076 Topper shaft – combined shaft – part 2 RD-50S_VS
01.06 – E9422033 Leaf auger RAD-50S_RAD-VS
01.07 – E9422035 Cleaning roller RAD-50S_RAD-VS
01.08.1 – E9422036 Leaf spreader – standard RAD-S_RBDO-S
01.08.2 – E9422037 Leaf spreader – stone protection RAD-S_RBDO-S
01.09 – E9422038 Fold leaf spreader RAD-S_RBDO-S
01.10 – E9422040 Scalper bar RAD-50S_VS
01.11 – E9422045 Holding frame for scalper RAD-50S
01.12 – E9422049 Scalper – Micro-Topper 2 RAD-S_RBDO-S
01.13 – E9422054 R-Contour RAD-50S_VS
01.14 – E9422057 Central lubrication and stickers RADU-S
01.15 – E9422062 Additional stickers for contour marking RADW-50S_VS_RADU-50S_VS
Hydraulics – topper RADU-50S
Hydraulik – Schlegler RADU-50S mit Roder RW-50S
01 – Topper RADU-VS
01.01.1 – E9422002 Leaf sensor RADW-S_RADU-S_RID-S
01.01.2 – E9422003 Fold leaf sensor RADW-S_RADU-S
01.02 – E9422011 Light and warning sign RADU-S_RIDU-S
01.03.1 – E9422013 Topper housing – left and right – part 1 RADW-S_RADU-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04.1 – E9422024 Front rail RAD-50S_VS
01.04.2 – E9422025 Topper housing – front RAD-50S_VS
01.04.3 – E9422026 Topper housing – rear-top RAD-50S_VS
01.04.4 – E9422027 Topper housing – rear-bottom RAD-VS
01.04.5 – E9422023 Changeover flap RAD-S
01.05.1 – E9422068 Topper shaft – drive RD-50S_VS
01.05.2 – E9422070 Topper shaft – with integral flails RD-50S_VS
01.05.3 – E9422072 Topper shaft – with pallet flails RD-50S_VS
01.05.4.1 – E9422074 Topper shaft – combined shaft – part 1 RD-50S_VS
01.05.4.2 – E9422076 Topper shaft – combined shaft – part 2 RD-50S_VS
01.06 – E9422033 Leaf auger RAD-50S_RAD-VS
01.07 – E9422035 Cleaning roller RAD-50S_RAD-VS
01.08.1 – E9422036 Leaf spreader – standard RAD-S_RBDO-S
01.08.2 – E9422037 Leaf spreader – stone protection RAD-S_RBDO-S
01.09 – E9422038 Fold leaf spreader RAD-S_RBDO-S
01.10 – E9422040 Scalper bar RAD-50S_VS
01.11 – E9422047 Holding frame for scalper RAD-VS
01.12 – E9422049 Scalper – Micro-Topper 2 RAD-S_RBDO-S
01.13 – E9422054 R-Contour RAD-50S_VS
01.14 – E9422057 Central lubrication and stickers RADU-S
01.15 – E9422062 Additional stickers for contour marking RADW-50S_VS_RADU-50S_VS
Hydraulics – topper RADU-VS
Hydraulik – Schlegler RADU-VS mit Roder RW-VS
01 – Topper RADW-45S
01.01.1 – E9422002 Leaf sensor RADW-S_RADU-S_RID-S
01.01.2 – E9422003 Fold leaf sensor RADW-S_RADU-S
01.02.1 – E9422008 Impeller wheel stalk RADW-S_RIDW-S_RES3
01.02.2 – E9422009 Impeller pivot guide RADW-S_RIDW-S_RES3
01.02.3 – E9422010 Light and warning sign RADW-S
01.03.1 – E9422013 Topper housing – left and right – part 1 RADW-S_RADU-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04.1 – E9422019 Front rail RADW-45S_RADU-45S
01.04.2 – E9422020 Topper housing – front RADW-45S_RADU-45S
01.04.3 – E9422017 Topper housing – rear-top RAD-45S_RBDO-45S
01.04.4 – E9422018 Topper housing – rear-bottom RAD-45S_RBDO-45S
01.04.5 – E9422023 Changeover flap RAD-S
01.05.1 – E9422067 Topper shaft – drive RD-45S
01.05.2 – E9422069 Topper shaft – with integral flails RD-45S
01.05.3 – E9422071 Topper shaft – with pallet flails RD-45S
01.05.4.1 – E9422073 Topper shaft – combined shaft – part 1 RD-45S
01.05.4.2 – E9422075 Topper shaft – combined shaft – part 2 RD-45S
01.06 – E9422032 Leaf auger RAD-45S_RBDO-45S
01.07 – E9422034 Cleaning roller RAD-45S_RBDO-45S
01.08.1 – E9422036 Leaf spreader – standard RAD-S_RBDO-S
01.08.2 – E9422037 Leaf spreader – stone protection RAD-S_RBDO-S
01.09 – E9422038 Fold leaf spreader RAD-S_RBDO-S
01.10 – E9422039 Scalper bar RAD-45S_RBDO-45S
01.11 – E9422043 Holding frame for scalper RAD-45S_RBDO-45S
01.12 – E9422049 Scalper – Micro-Topper 2 RAD-S_RBDO-S
01.13 – E9422053 R-Contour RAD-45S_RBDO-45S
01.14 – E9422056 Central lubrication and stickers RADW-S
01.15 – E9422061 Additional stickers for contour marking RADW-45S_RADU-45S
Hydraulics – topper RADW-45S
Hydraulik – Schlegler RADW-45S mit Roder RW-45S
Model leaf pile conveyor
01 – Topper RADW-50S
01.01.1 – E9422002 Leaf sensor RADW-S_RADU-S_RID-S
01.01.2 – E9422003 Fold leaf sensor RADW-S_RADU-S
01.02.1 – E9422008 Impeller wheel stalk RADW-S_RIDW-S_RES3
01.02.2 – E9422009 Impeller pivot guide RADW-S_RIDW-S_RES3
01.02.3 – E9422010 Light and warning sign RADW-S
01.03.1 – E9422013 Topper housing – left and right – part 1 RADW-S_RADU-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04.1 – E9422024 Front rail RAD-50S_VS
01.04.2 – E9422025 Topper housing – front RAD-50S_VS
01.04.3 – E9422026 Topper housing – rear-top RAD-50S_VS
01.04.4 – E9422022 Topper housing – rear-bottom RAD-50S
01.04.5 – E9422023 Changeover flap RAD-S
01.05.1 – E9422068 Topper shaft – drive RD-50S_VS
01.05.2 – E9422070 Topper shaft – with integral flails RD-50S_VS
01.05.3 – E9422072 Topper shaft – with pallet flails RD-50S_VS
01.05.4.1 – E9422074 Topper shaft – combined shaft – part 1 RD-50S_VS
01.05.4.2 – E9422076 Topper shaft – combined shaft – part 2 RD-50S_VS
01.06 – E9422033 Leaf auger RAD-50S_RAD-VS
01.07 – E9422035 Cleaning roller RAD-50S_RAD-VS
01.08.1 – E9422036 Leaf spreader – standard RAD-S_RBDO-S
01.08.2 – E9422037 Leaf spreader – stone protection RAD-S_RBDO-S
01.09 – E9422038 Fold leaf spreader RAD-S_RBDO-S
01.10 – E9422040 Scalper bar RAD-50S_VS
01.11 – E9422045 Holding frame for scalper RAD-50S
01.12 – E9422049 Scalper – Micro-Topper 2 RAD-S_RBDO-S
01.13 – E9422054 R-Contour RAD-50S_VS
01.14 – E9422056 Central lubrication and stickers RADW-S
01.15 – E9422062 Additional stickers for contour marking RADW-50S_VS_RADU-50S_VS
Hydraulics – topper RADW-50S
Hydraulik – Schlegler RADW-50S mit Roder RW-50S
Model leaf pile conveyor
01 – Topper RADW-VS
01.01.1 – E9422002 Leaf sensor RADW-S_RADU-S_RID-S
01.01.2 – E9422003 Fold leaf sensor RADW-S_RADU-S
01.02.1 – E9422008 Impeller wheel stalk RADW-S_RIDW-S_RES3
01.02.2 – E9422009 Impeller pivot guide RADW-S_RIDW-S_RES3
01.02.3 – E9422010 Light and warning sign RADW-S
01.03.1 – E9422013 Topper housing – left and right – part 1 RADW-S_RADU-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04.1 – E9422024 Front rail RAD-50S_VS
01.04.2 – E9422025 Topper housing – front RAD-50S_VS
01.04.3 – E9422026 Topper housing – rear-top RAD-50S_VS
01.04.4 – E9422027 Topper housing – rear-bottom RAD-VS
01.04.5 – E9422023 Changeover flap RAD-S
01.05.1 – E9422068 Topper shaft – drive RD-50S_VS
01.05.2 – E9422070 Topper shaft – with integral flails RD-50S_VS
01.05.3 – E9422072 Topper shaft – with pallet flails RD-50S_VS
01.05.4.1 – E9422074 Topper shaft – combined shaft – part 1 RD-50S_VS
01.05.4.2 – E9422076 Topper shaft – combined shaft – part 2 RD-50S_VS
01.06 – E9422033 Leaf auger RAD-50S_RAD-VS
01.07 – E9422035 Cleaning roller RAD-50S_RAD-VS
01.08.1 – E9422036 Leaf spreader – standard RAD-S_RBDO-S
01.08.2 – E9422037 Leaf spreader – stone protection RAD-S_RBDO-S
01.09 – E9422038 Fold leaf spreader RAD-S_RBDO-S
01.10 – E9422040 Scalper bar RAD-50S_VS
01.11 – E9422047 Holding frame for scalper RAD-VS
01.13 – E9422054 R-Contour RAD-50S_VS
01.14 – E9422056 Central lubrication and stickers RADW-S
01.15 – E9422062 Additional stickers for contour marking RADW-50S_VS_RADU-50S_VS
Hydraulics – topper RADW-VS
Hydraulik – Schlegler RADW-VS mit Roder RW-VS
Model leaf pile conveyor
01 – Topper RIDU-45S
01.01.1 – E9422002 Leaf sensor RADW-S_RADU-S_RID-S
01.01.2 – E9422004 Fold leaf sensor RID-S
01.02 – E9422011 Light and warning sign RADU-S_RIDU-S
01.03.1 – E9422014 Topper housing – left and right – part 1 RID-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04 – E9422063 Topper housing – front and rear RIDU-45S
01.05.1 – E9422067 Topper shaft – drive RD-45S
01.05.2 – E9422069 Topper shaft – with integral flails RD-45S
01.05.3 – E9422071 Topper shaft – with pallet flails RD-45S
01.05.4.1 – E9422073 Topper shaft – combined shaft – part 1 RD-45S
01.05.4.2 – E9422075 Topper shaft – combined shaft – part 2 RD-45S
01.06 – E9422041 Scalper bar RID-45S
01.07 – E9422044 Holding frame for scalper RID-45S
01.08 – E9422050 Scalper – Micro-Topper 2 RID-S
01.09 – E9422051 R-Contour RID-45S
01.10 – E9422055 Central lubrication and stickers RIDU-S
01.11 – E9422059 Additional stickers for contour marking RID-45S
Hydraulics – topper RIDU-45S
Hydraulik – Schlegler RIDU-45S mit Roder RW-45S
01 – Topper RIDU-50S
01.01.1 – E9422002 Leaf sensor RADW-S_RADU-S_RID-S
01.01.2 – E9422004 Fold leaf sensor RID-S
01.02 – E9422011 Light and warning sign RADU-S_RIDU-S
01.03.1 – E9422014 Topper housing – left and right – part 1 RID-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04 – E9422064 Topper housing – front and rear RIDU-50S
01.05.1 – E9422068 Topper shaft – drive RD-50S_VS
01.05.2 – E9422070 Topper shaft – with integral flails RD-50S_VS
01.05.3 – E9422072 Topper shaft – with pallet flails RD-50S_VS
01.05.4.1 – E9422074 Topper shaft – combined shaft – part 1 RD-50S_VS
01.05.4.2 – E9422076 Topper shaft – combined shaft – part 2 RD-50S_VS
01.06 – E9422042 Scalper bar RID-50S_VS
01.07 – E9422046 Holding frame for scalper RID-50S
01.08 – E9422050 Scalper – Micro-Topper 2 RID-S
01.09 – E9422052 R-Contour RID-50S_VS
01.10 – E9422055 Central lubrication and stickers RIDU-S
01.11 – E9422060 Additional stickers for contour marking RID-50S_VS
Hydraulics – topper RIDU-50S
Hydraulik – Schlegler RIDU-50S mit Roder RW-50S
01 – Topper RIDU-VS
01.01.1 – E9422002 Leaf sensor RADW-S_RADU-S_RID-S
01.01.2 – E9422004 Fold leaf sensor RID-S
01.02 – E9422011 Light and warning sign RADU-S_RIDU-S
01.03.1 – E9422014 Topper housing – left and right – part 1 RID-S
01.03.2 – E9422066 Topper housing – left and right – part 2 RD-S
01.04 – E9422065 Topper housing – front and rear RIDU-VS
01.05.1 – E9422068 Topper shaft – drive RD-50S_VS
01.05.2 – E9422070 Topper shaft – with integral flails RD-50S_VS
01.05.3 – E9422072 Topper shaft – with pallet flails RD-50S_VS
01.05.4.1 – E9422074 Topper shaft – combined shaft – part 1 RD-50S_VS
01.05.4.2 – E9422076 Topper shaft – combined shaft – part 2 RD-50S_VS
01.06 – E9422042 Scalper bar RID-50S_VS
01.07 – E9422048 Holding frame for scalper RID-VS
01.08 – E9422050 Scalper – Micro-Topper 2 RID-S
01.09 – E9422052 R-Contour RID-50S_VS
01.10 – E9422055 Central lubrication and stickers RIDU-S
01.11 – E9422060 Additional stickers for contour marking RID-50S_VS
Hydraulics – topper RIDU-VS
Hydraulik – Schlegler RIDU-VS mit Roder RW-VS
01 – Topper- RS-S
01 – Schlegler RASU-50S
01.01 – E9420002 Leaf sensor RASU-S
01.02 – E9420003 Leaf sensor folding – till topper no. S01936 RASU
01.02 – E9420004 Leaf sensor folding – from topper no. S01937 RASU
01.03.1 – E9420006 Topper housing – left RASU-S
01.03.2 – E9420008 Topper housing – right RASU-S
01.04.1 – E9420012 Adjustment tube for changeover flap RASU-VS
01.04.2 – E9420014 Topper housing – front RASU-V
01.04.3 – E9419109 Topper housing – rear-top RASW-VS_RASU-VS
01.04.4 – E9416099 Schleglergehäuse – hinten-unten RAS-50
01.05 – E9416026 Topper shaft – with pallet flails RS-50_V
01.06 – E9416117 Leaf auger RASW-V_RASU-V
01.07.1 – E9416118 Leaf spreader – standard RAS_RBSO
01.07.2 – E9416119 Leaf spreader – stone ejector RAS_RBSO
01.08 – E9416120 Holding device for leaf spreader RAS_RBSO
01.09 – E9419118 Nachköpferbalken RAS-50S
01.10 – E9419117 Halterahmen für Nachköpfer RAS-50S
01.11 – E9419123 Scalper – Micro-Topper 2 RAS-S_RBSO-S
01.12 – E9419023 R-Contour RASW-VS_RASU-VS
01.14 – E9419128 Additional stickers for contour marking RASW-VS_RASU-VS
Hydraulik – Schlegler RASU-50S
Komponenten und Details
01 – Schlegler RASW-50S
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E905355 Topper wheel – wheel arm bracket PASWh_PBSWh_PISh_RASW_RIS
01.02.2 – E9419003 Topper wheel – swivel guide RASW-S_RIS-S
01.03.1 – E9419100 Topper housing – left RASW-S
01.03.2 – E9419101 Topper housing – right RASW-S
01.04.1 – E9419103 Adjustment tube for changeover flap RASW-VS
01.04.2 – E9416108 Topper housing – front RASW-V
01.04.3 – E9419109 Topper housing – rear-top RASW-VS_RASU-VS
01.04.4 – E9416099 Schleglergehäuse – hinten-unten RAS-50
01.05 – E9416026 Topper shaft – with pallet flails RS-50_V
01.06 – E9416117 Leaf auger RASW-V_RASU-V
01.07.1 – E9416118 Leaf spreader – standard RAS_RBSO
01.07.2 – E9416119 Leaf spreader – stone ejector RAS_RBSO
01.08 – E9416120 Holding device for leaf spreader RAS_RBSO
01.09 – E9419118 Nachköpferbalken RAS-50S
01.10 – E9419117 Halterahmen für Nachköpfer RAS-50S
01.11 – E9419123 Scalper – Micro-Topper 2 RAS-S_RBSO-S
01.12 – E9419023 R-Contour RASW-VS_RASU-VS
01.13 – E9419124 Central lubrication and stickers RASW-S
01.14 – E9419128 Additional stickers for contour marking RASW-VS_RASU-VS
Hydraulik – Schlegler RASW-50S
Komponenten und Details
Model leaf pile conveyor
01 – Topper RASO-45S
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E9419140 Topper wheel – internal RSO-S
01.02.2 – E9419141 Topper wheel – external RSO-S
01.03.1 – E9416101 Topper housing – left RASO_RBSO
01.03.2 – E9416103 Topper housing – right RASO_RBSO
01.04.1 – E9419144 Adjustment tube for changeover flap RASO-45S
01.04.2 – E9416109 Topper housing – front RASO-45
01.04.3 – E9419108 Topper housing – rear-top RAS-45S_RBSO-45S
01.04.4 – E9416112 Topper housing – rear-bottom RAS-45
01.05 – E9416025 Topper shaft – with pallet flails RS-45
01.06 – E9416116 Leaf auger RAS-45_RBSO-45
01.07.1 – E9416118 Leaf spreader – standard RAS_RBSO
01.07.2 – E9416119 Leaf spreader – stone ejector RAS_RBSO
01.08 – E9416120 Holding device for leaf spreader RAS_RBSO
01.09 – E9419119 Scalper bar RAS-45S_RBSO-45S
01.10 – E9419121 Scalper holding frame RAS-45S_RBSO-45S
01.11 – E9419123 Scalper – Micro-Topper 2 RAS-S_RBSO-S
01.12 – E9419022 R-Contour RAS-45S_RBSO-45S
01.13 – E9419126 Central lubrication and stickers RASO-S
Components and Details
Hydraulics – topper RASO-45S
Model leaf pile conveyor
01 – Topper RASU-45S
01.01 – E9420002 Leaf sensor RASU-S
01.02 – E9420003 Leaf sensor folding – till topper no. S01936 RASU
01.02 – E9420004 Leaf sensor folding – from topper no. S01937 RASU
01.03.1 – E9420006 Topper housing – left RASU-S
01.03.2 – E9420008 Topper housing – right RASU-S
01.04.1 – E9420011 Adjustment tube for changeover flap RASU-45S
01.04.2 – E9420013 Topper housing – front RASU-45
01.04.3 – E9419108 Topper housing – rear-top RAS-45S_RBSO-45S
01.04.4 – E9416112 Topper housing – rear-bottom RAS-45
01.05 – E9416025 Topper shaft – with pallet flails RS-45
01.06 – E9416116 Leaf auger RAS-45_RBSO-45
01.07.1 – E9416118 Leaf spreader – standard RAS_RBSO
01.07.2 – E9416119 Leaf spreader – stone ejector RAS_RBSO
01.08 – E9416120 Holding device for leaf spreader RAS_RBSO
01.09 – E9419119 Scalper bar RAS-45S_RBSO-45S
01.10 – E9419121 Scalper holding frame RAS-45S_RBSO-45S
01.11 – E9419123 Scalper – Micro-Topper 2 RAS-S_RBSO-S
01.12 – E9419022 R-Contour RAS-45S_RBSO-45S
01.13 – E9420016 Central lubrication and stickers RASU-S
01.14 – E9419125 Additional stickers for contour marking RASW-45S_RASU-45S
Components and Details
Hydraulics – topper RASU-45S
01 – Topper RASU-VS
01.01 – E9420002 Leaf sensor RASU-S
01.02 – E9420003 Leaf sensor folding – till topper no. S01936 RASU
01.02 – E9420004 Leaf sensor folding – from topper no. S01937 RASU
01.03.1 – E9420006 Topper housing – left RASU-S
01.03.2 – E9420008 Topper housing – right RASU-S
01.04.1 – E9420012 Adjustment tube for changeover flap RASU-VS
01.04.2 – E9420014 Topper housing – front RASU-V
01.04.3 – E9419109 Topper housing – rear-top RASW-VS_RASU-VS
01.04.4 – E9416113 Topper housing – rear-bottom RASW-V_RASU-V
01.05 – E9416026 Topper shaft – with pallet flails RS-50_V
01.06 – E9416117 Leaf auger RASW-V_RASU-V
01.07.1 – E9416118 Leaf spreader – standard RAS_RBSO
01.07.2 – E9416119 Leaf spreader – stone ejector RAS_RBSO
01.08 – E9416120 Holding device for leaf spreader RAS_RBSO
01.09 – E9419120 Scalper bar RASW-VS_RASU-VS
01.10 – E9419122 Scalper holding frame RASW-VS_RASU-VS
01.11 – E9419123 Scalper – Micro-Topper 2 RAS-S_RBSO-S
01.12 – E9419023 R-Contour RASW-VS_RASU-VS
01.13 – E9420016 Central lubrication and stickers RASU-S
01.14 – E9419128 Additional stickers for contour marking RASW-VS_RASU-VS
Components and Details
Hydraulics – topper RASU-VS
01 – Topper RASW-45S
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E905355 Topper wheel – wheel arm bracket PASWh_PBSWh_PISh_RASW_RIS
01.02.2 – E9419003 Topper wheel – swivel guide RASW-S_RIS-S
01.03.1 – E9419100 Topper housing – left RASW-S
01.03.2 – E9419101 Topper housing – right RASW-S
01.04.1 – E9419102 Adjustment tube for changeover flap RASW-45S
01.04.2 – E9416107 Topper housing – front RASW-45
01.04.3 – E9419108 Topper housing – rear-top RAS-45S_RBSO-45S
01.04.4 – E9416112 Topper housing – rear-bottom RAS-45
01.05 – E9416025 Topper shaft – with pallet flails RS-45
01.06 – E9416116 Leaf auger RAS-45_RBSO-45
01.07.1 – E9416118 Leaf spreader – standard RAS_RBSO
01.07.2 – E9416119 Leaf spreader – stone ejector RAS_RBSO
01.08 – E9416120 Holding device for leaf spreader RAS_RBSO
01.09 – E9419119 Scalper bar RAS-45S_RBSO-45S
01.10 – E9419121 Scalper holding frame RAS-45S_RBSO-45S
01.11 – E9419123 Scalper – Micro-Topper 2 RAS-S_RBSO-S
01.12 – E9419022 R-Contour RAS-45S_RBSO-45S
01.13 – E9419124 Central lubrication and stickers RASW-S
01.14 – E9419125 Additional stickers for contour marking RASW-45S_RASU-45S
Components and Details
Hydraulics – topper RASW-45S
Model leaf pile conveyor
01 – Topper RASW-VS
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E905355 Topper wheel – wheel arm bracket PASWh_PBSWh_PISh_RASW_RIS
01.02.2 – E9419003 Topper wheel – swivel guide RASW-S_RIS-S
01.03.1 – E9419100 Topper housing – left RASW-S
01.03.2 – E9419101 Topper housing – right RASW-S
01.04.1 – E9419103 Adjustment tube for changeover flap RASW-VS
01.04.2 – E9416108 Topper housing – front RASW-V
01.04.3 – E9419109 Topper housing – rear-top RASW-VS_RASU-VS
01.04.4 – E9416113 Topper housing – rear-bottom RASW-V_RASU-V
01.05 – E9416026 Topper shaft – with pallet flails RS-50_V
01.06 – E9416117 Leaf auger RASW-V_RASU-V
01.07.1 – E9416118 Leaf spreader – standard RAS_RBSO
01.07.2 – E9416119 Leaf spreader – stone ejector RAS_RBSO
01.08 – E9416120 Holding device for leaf spreader RAS_RBSO
01.09 – E9419120 Scalper bar RASW-VS_RASU-VS
01.10 – E9419122 Scalper holding frame RASW-VS_RASU-VS
01.11 – E9419123 Scalper – Micro-Topper 2 RAS-S_RBSO-S
01.12 – E9419023 R-Contour RASW-VS_RASU-VS
01.13 – E9419124 Central lubrication and stickers RASW-S
01.14 – E9419128 Additional stickers for contour marking RASW-VS_RASU-VS
Components and Details
Hydraulics – topper RASW-VS
Model leaf pile conveyor
01 – Topper RBSO-45S
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E9419140 Topper wheel – internal RSO-S
01.02.2 – E9419141 Topper wheel – external RSO-S
01.03.1 – E9416101 Topper housing – left RASO_RBSO
01.03.2 – E9416103 Topper housing – right RASO_RBSO
01.04.1 – E906739 Topper housing – front – part 1 PB2SOh-45_RBSO-45
01.04.2 – E906741 Topper housing – front – part 2 PB2SOh-45_RBSO-45
01.04.3 – E9419108 Topper housing – rear-top RAS-45S_RBSO-45S
01.04.4 – E9418300 Topper housing – rear-bottom RBSO-45
01.05 – E9416025 Topper shaft – with pallet flails RS-45
01.06 – E9416116 Leaf auger RAS-45_RBSO-45
01.07.1 – E9416118 Leaf spreader – standard RAS_RBSO
01.07.2 – E9416119 Leaf spreader – stone ejector RAS_RBSO
01.08 – E9416120 Holding device for leaf spreader RAS_RBSO
01.09 – E9419119 Scalper bar RAS-45S_RBSO-45S
01.10 – E9419121 Scalper holding frame RAS-45S_RBSO-45S
01.11 – E9419123 Scalper – Micro-Topper 2 RAS-S_RBSO-S
01.12 – E9419022 R-Contour RAS-45S_RBSO-45S
01.13 – E9419127 Central lubrication and stickers RBSO-S
Components and Details
Hydraulics – topper RBSO-45S
Model leaf pile conveyor
01 – Topper RES2-45
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E9416250 Topper wheel-wheel arm bracket RES_RES2
01.02.2 – E9419200 Topper wheel-swivel guide RES2
01.03.1 – E9419201 Topper housing – left RES2
01.03.2 – E9419202 Topper housing – right RES2
01.04.1 – E9419203 Topper housing – front RES2-45
01.04.2 – E9419205 Topper housing – rear RES2-45
01.04.3 – E9419207 Support arm RES2
01.04.4 – E9419208 Lifting cylinder RES2
01.05 – E9416005 Topper shaft – with integral flails RIS-45_RISU-45_RES2-45
01.05.1 – E9416259 Topper shaft – combined shaft – part 1 RES-45_RES2-45
01.05.2 – E9416261 Topper shaft – combined shaft – part 2 RES-45
01.06 – E9416264 Cleaner shaft RES-45_RES2-45
01.07 – E9419211 Central lubrication and stickers RES2
Hydraulics – topper RES2-45
01 – Topper RES2-V
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E9416250 Topper wheel-wheel arm bracket RES_RES2
01.02.2 – E9419200 Topper wheel-swivel guide RES2
01.03.1 – E9419201 Topper housing – left RES2
01.03.2 – E9419202 Topper housing – right RES2
01.04.1 – E9419204 Topper housing – front RES2-V
01.04.2 – E9419206 Topper housing – rear RES2-V
01.04.3 – E9419207 Support arm RES2
01.04.4 – E9419208 Lifting cylinder RES2
01.05 – E9416006 Topper shaft – with integral flails RIS-50_V_RISU-50_V_RES2-V
01.05.1 – E9416260 Topper shaft – combined shaft – part 1 RES-V_RES2-V
01.05.2 – E9416262 Topper shaft – combined shaft – part 2 RES-V
01.06.1 – E9416265 Cleaner shaft – adjustable 45 or 50 RES-V_RES2-V
01.06.2 – E9416266 Cleaner shaft – for 45 and 50 RES-V_RES2-V
01.07 – E9419211 Central lubrication and stickers RES2
Hydraulics – topper RES2-V
01 – Topper RIS-45S
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E905355 Topper wheel – wheel arm bracket PASWh_PBSWh_PISh_RASW_RIS
01.02.2 – E9419003 Topper wheel – swivel guide RASW-S_RIS-S
01.03 – E9419004 Topper housing – left and right RIS-S
01.04 – E9419005 Topper housing – front and rear RIS-45S
01.05 – E9416005 Topper shaft – with integral flails RIS-45_RISU-45_RES2-45
01.05 – E9416025 Topper shaft – with pallet flails RS-45
01.06 – E9416007 Scalper bar RIS-45
01.07 – E9419013 Scalper adjusting tube RIS-S
01.08 – E9419014 Scalper holding frame RIS-45S_RISU-45S
01.09 – E9419017 Scalper – Micro-Topper 2 RIS-S_RISU-S
01.10 – E9419020 R-Contour RIS-45S_RISU-45S
01.11 – E9419018 Central lubrication and stickers RIS-S
01.12 – E9419019 Additional stickers for contour marking RIS-S
Components and Details
Hydraulics – topper RIS-45S
01 – Topper RIS-50S
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E905355 Topper wheel – wheel arm bracket PASWh_PBSWh_PISh_RASW_RIS
01.02.2 – E9419003 Topper wheel – swivel guide RASW-S_RIS-S
01.03 – E9419004 Topper housing – left and right RIS-S
01.04 – E9419006 Topper housing – front and rear RIS-50S
01.05 – E9416006 Topper shaft – with integral flails RIS-50_V_RISU-50_V_RES2-V
01.05 – E9416026 Topper shaft – with pallet flails RS-50_V
01.06 – E9416008 Scalper bar RIS-50
01.07 – E9419013 Scalper adjusting tube RIS-S
01.08 – E9419015 Scalper holding frame RIS-50S_RISU-50S
01.09 – E9419017 Scalper – Micro-Topper 2 RIS-S_RISU-S
01.10 – E9419021 R-Contour RIS-50S_VS_RISU-50S_VS
01.11 – E9419018 Central lubrication and stickers RIS-S
01.12 – E9419019 Additional stickers for contour marking RIS-S
Components and Details
Hydraulics – topper RIS-50S
01 – Topper RIS-VS
01.01 – E9419001 Leaf sensor RS-S
01.02.1 – E905355 Topper wheel – wheel arm bracket PASWh_PBSWh_PISh_RASW_RIS
01.02.2 – E9419003 Topper wheel – swivel guide RASW-S_RIS-S
01.03 – E9419004 Topper housing – left and right RIS-S
01.04 – E9419007 Topper housing – front and rear RIS-VS
01.05 – E9416006 Topper shaft – with integral flails RIS-50_V_RISU-50_V_RES2-V
01.05 – E9416026 Topper shaft – with pallet flails RS-50_V
01.06 – E9416009 Scalper bar RIS-V
01.07 – E9419013 Scalper adjusting tube RIS-S
01.08 – E9419016 Scalper holding frame RIS-VS_RISU-VS
01.09 – E9419017 Scalper – Micro-Topper 2 RIS-S_RISU-S
01.10 – E9419021 R-Contour RIS-50S_VS_RISU-50S_VS
01.11 – E9419018 Central lubrication and stickers RIS-S
01.12 – E9419019 Additional stickers for contour marking RIS-S
Components and Details
Hydraulics – topper RIS-VS
01 – Topper RISU-45S
01.01 – E9419050 Leaf sensor RISU-S
01.02 – E9418201 Fold leaf sensor RISU
01.03 – E9419052 Topper housing – left and right RISU-S
01.04 – E9418203 Topper housing – front and rear RISU-45
01.05 – E9416005 Topper shaft – with integral flails RIS-45_RISU-45_RES2-45
01.05 – E9416025 Topper shaft – with pallet flails RS-45
01.06 – E9418208 Scalper bar RISU-45
01.07 – E9419061 Scalper adjusting tube RISU-S
01.08 – E9419014 Scalper holding frame RIS-45S_RISU-45S
01.09 – E9419017 Scalper – Micro-Topper 2 RIS-S_RISU-S
01.10 – E9419020 R-Contour RIS-45S_RISU-45S
01.11 – E9419065 Central lubrication and stickers RISU-S
01.12 – E9419066 Additional stickers for contour marking RISU-S
Components and Details
Hydraulics – topper RISU-45S
01 – Topper RISU-50S
01.01 – E9419050 Leaf sensor RISU-S
01.02 – E9418201 Fold leaf sensor RISU
01.03 – E9419052 Topper housing – left and right RISU-S
01.04 – E9418204 Topper housing – front and rear RISU-50
01.05 – E9416006 Topper shaft – with integral flails RIS-50_V_RISU-50_V_RES2-V
01.05 – E9416026 Topper shaft – with pallet flails RS-50_V
01.06 – E9418209 Scalper bar RISU-50
01.07 – E9419061 Scalper adjusting tube RISU-S
01.08 – E9419015 Scalper holding frame RIS-50S_RISU-50S
01.09 – E9419017 Scalper – Micro-Topper 2 RIS-S_RISU-S
01.10 – E9419021 R-Contour RIS-50S_VS_RISU-50S_VS
01.11 – E9419065 Central lubrication and stickers RISU-S
01.12 – E9419066 Additional stickers for contour marking RISU-S
Components and Details
Hydraulics – topper RISU-50S
01 – Topper RISU-VS
01.01 – E9419050 Leaf sensor RISU-S
01.02 – E9418201 Fold leaf sensor RISU
01.03 – E9419052 Topper housing – left and right RISU-S
01.04 – E9418205 Topper housing – front and rear RISU-V
01.05 – E9416006 Topper shaft – with integral flails RIS-50_V_RISU-50_V_RES2-V
01.05 – E9416026 Topper shaft – with pallet flails RS-50_V
01.06 – E9418210 Scalper bar RISU-V
01.07 – E9419061 Scalper adjusting tube RISU-S
01.08 – E9419016 Scalper holding frame RIS-VS_RISU-VS
01.09 – E9419017 Scalper – Micro-Topper 2 RIS-S_RISU-S
01.10 – E9419021 R-Contour RIS-50S_VS_RISU-50S_VS
01.11 – E9419065 Central lubrication and stickers RISU-S
01.12 – E9419066 Additional stickers for contour marking RISU-S
Components and Details
Hydraulics – topper RISU-VS
