Name: Cushman Utility Vehicle Turf-Truckster 84063 to 84069 Parts Maintenance Manual 4241724-GB-RA
SKU: 646067
Availability: InStock

Cushman Utility Vehicle Turf Truckster 84063 to 84069 Parts Maintenance Manual 4241724 GB RA (1)

Cushman Utility Vehicle Turf Truckster 84063 to 84069 Parts Maintenance Manual 4241724 GB RA (2)

Cushman Utility Vehicle Turf Truckster 84063 to 84069 Parts Maintenance Manual 4241724 GB RA (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Cushman Utility Vehicle Turf-Truckster 84063 to 84069 Parts Maintenance Manual 4241724-GB-RA

Size: 11.19 MB

Format: PDF

Language: English

Brand: Cushman

Type of Machine: Utility Vehicle

Type of Manual: Parts Manual, Maintenance Manual, Wiring Diagram

Model: Cushman Turf-Truckster With Four Post ROPS Utility Vehicle

84063 – Kubota D1105-E3B Diesel Engine, MT

84064 – Kubota D1105-E3B Diesel Engine, MT, EC

84067 – Suzuki K6 Gas Engine, MT

84068 – Suzuki K6 Gas Engine, AT

84069 – Suzuki K6 Gas Engine, RV and Utility

Part Number: 4241724-GB-RA

Publication Date: 2011

Number of Pages: 170 Pages

10 USD

Tags: 84069, Cushman Parts Maintenance Manual, Cushman Utility Vehicle Manual, Turf-Truckster 84063

Description

Description

Contents:
1.1 Operating Safety
1.2 Important Safety Notes
2.1 Vehicle Identification Number
2.2 Engine Identification Numbers
3.1 Product Identification
3.2 Diesel Engine
3.3 Gas Engine
3.4 vehicle
3.5 Gear Ratios
3.6 Weights and Dimensions
3.7 Accessories & Support Literature
3.8 Declaration of Conformity
4.1 General
4.2 Engine Access
4.3 Front Cowl Access
4.4 Access Panels
4.5 Diesel Alternator Belt
4.6 Diesel Hydraulic Pump Belt
4.7 Gas Power Steering – Alternator Belt
4.8 Gas Hydraulic Pump Belt
4.9 Parking Brake Cable
4.10 Torque Specification
5.1 General
5.2 Engine
5.3 Engine Oil
5.4 Power Steering Reservoir
5.5 Muffler and Exhaust
5.6 Engine Overheat Procedure
5.7 Cooling System
5.8 Air Filter
5.9 Jump Starting
5.10 Battery
5.11 Charging Battery
5.12 Hydraulic Hoses
5.13 Hydraulic Reservoir and Filter
5.14 Fuel
5.15 Fuel System
5.16 Tire Pressure
5.17 Tire Removal and Installation
5.18 Raising the vehicle
5.19 Towing the Vehicle
5.20 Governor Oil Level
5.21 Hydraulic Brakes
5.22 Differential Fluid
5.23 Diesel Engine Manual Transmission
5.24 Gas Engine Manual Transmission
5.25 Gas Engine Automatic Transmission
5.26 Electrical System
5.27 Dash Panel
5.28 Headlight Replacement
5.29 Tail Light Replacement
5.30 EFI Diagnostic Check
5.31 Care and Cleaning
5.32 Storage
6.1 General
7.1 General
7.2 Lubrication Chart
7.3 Maintenance Charts
7.4 Common Replacement Parts
7.5 Kubota Diesel Engine Service Parts
9.1 How To Use The Parts Catalog
9.2 To Order Parts
9.3 Table Of Contents
1.1 Front Body
2.1 Engine Cover
3.1 Four Post ROPS
4.1 Upper ROPS
5.1 Throttle Control
6.1 Control Console
7.1 Parking Brake and High-Low Speed Control
8.1 Brake Pedal
9.1 Clutch Pedal Linkage
10.1 Manual Transmission Shifter Linkage
11.1 Manual Transmission Shifter Linkage
12.1 Automatic Transmission Shifter
13.1 Automatic Transmission Oil Cooler
14.1 Frame Attachments
15.1 Frame, Lower ROPS and Platform
16.1 Rear Axle
17.1 Front Control Arms
18.1 Steering Linkage
19.1 Front Brakes
20.1 Steering Column
21.1 Diesel Radiator
22.1 Gas Radiator
23.1 Diesel Engine and Transmission Mounting

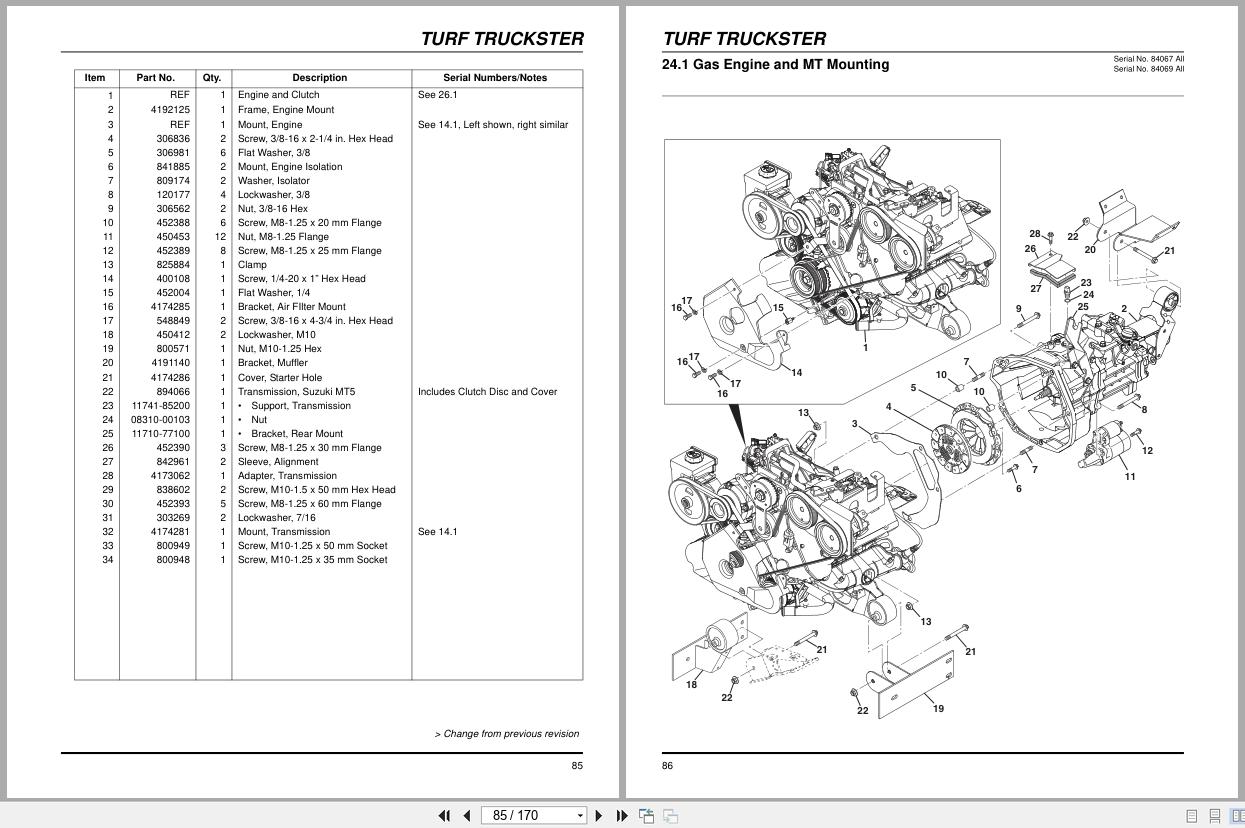

24.1 Gas Engine and MT Mounting
25.1 Gas Engine and AT Mounting
26.1 Diesel Engine and Clutch
26.2 Diesel Engine and Clutch
27.1 Suzuki Gas Engine
28.1 Diesel Engine Speed Control
29.1 Diesel Engine Air Filter
30.1 Diesel Engine Exhaust and Remote Oil Filter
31.1 Gas Engine Governor Linkage
32.1 Gas Engine Governor
33.1 Gas Engine Air Filter
34.1 Gas Engine Remote Oil Fill
35.1 Gas Engine Exhaust
36.1 Diesel Fuel System
37.1 Gas Fuel System
38.1 Gas Fuel System
39.1 Hydraulic Tank and Filter
40.1 Hydraulic Pump and Filter
41.1 Lift Cylinder Circuit
42.1 Diesel Electrical Components
43.1 Gas Electrical Components
44.1 Differential Assembly
45.1 Differential Housing
46.1 Axle Tubes and Shafts
47.1 Front and Shifter Cover
48.1 Input, Main and Jack Shafts
49.1 Transmission Clutch Release-Shift Selector
50.1 Transmission Case
51.1 Input and Main Shaft
52.1 Gear Shift Fork Linkage
53.1 Mechanical PTO
54.1 Diesel Engine Main Harness
55.1 Diesel Engine and Fan Harness
56.1 Gas Main Harness
56.1 Gas Main Harness (Continued)

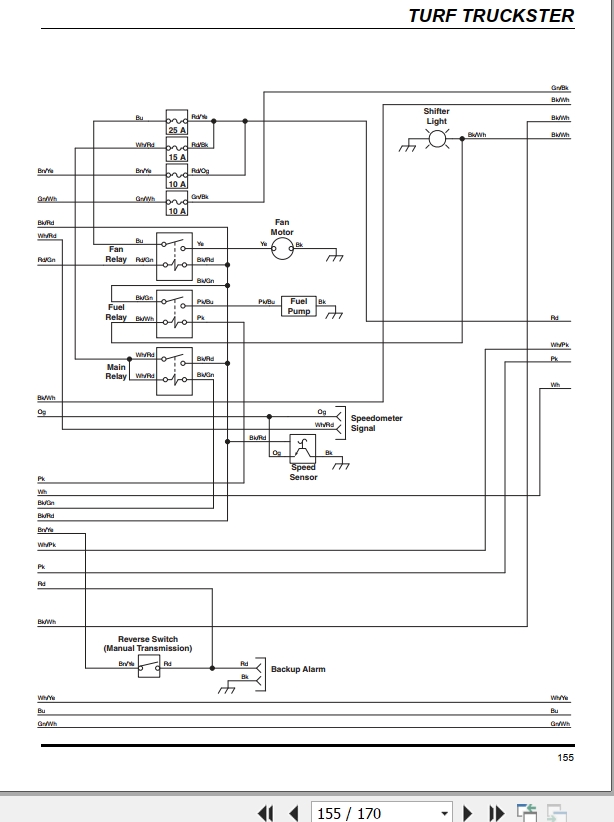

57.1 Gas Engine Electrical Schematic
58.1 Gas Engine Schematic
59.1 Diesel Engine Electrical Schematic
