Name: Gradall Excavator XL3100EPA Technical Service Manual
SKU: 659772
Availability: InStock

Gradall Excavator XL3100EPA Technical Service Manual (1)

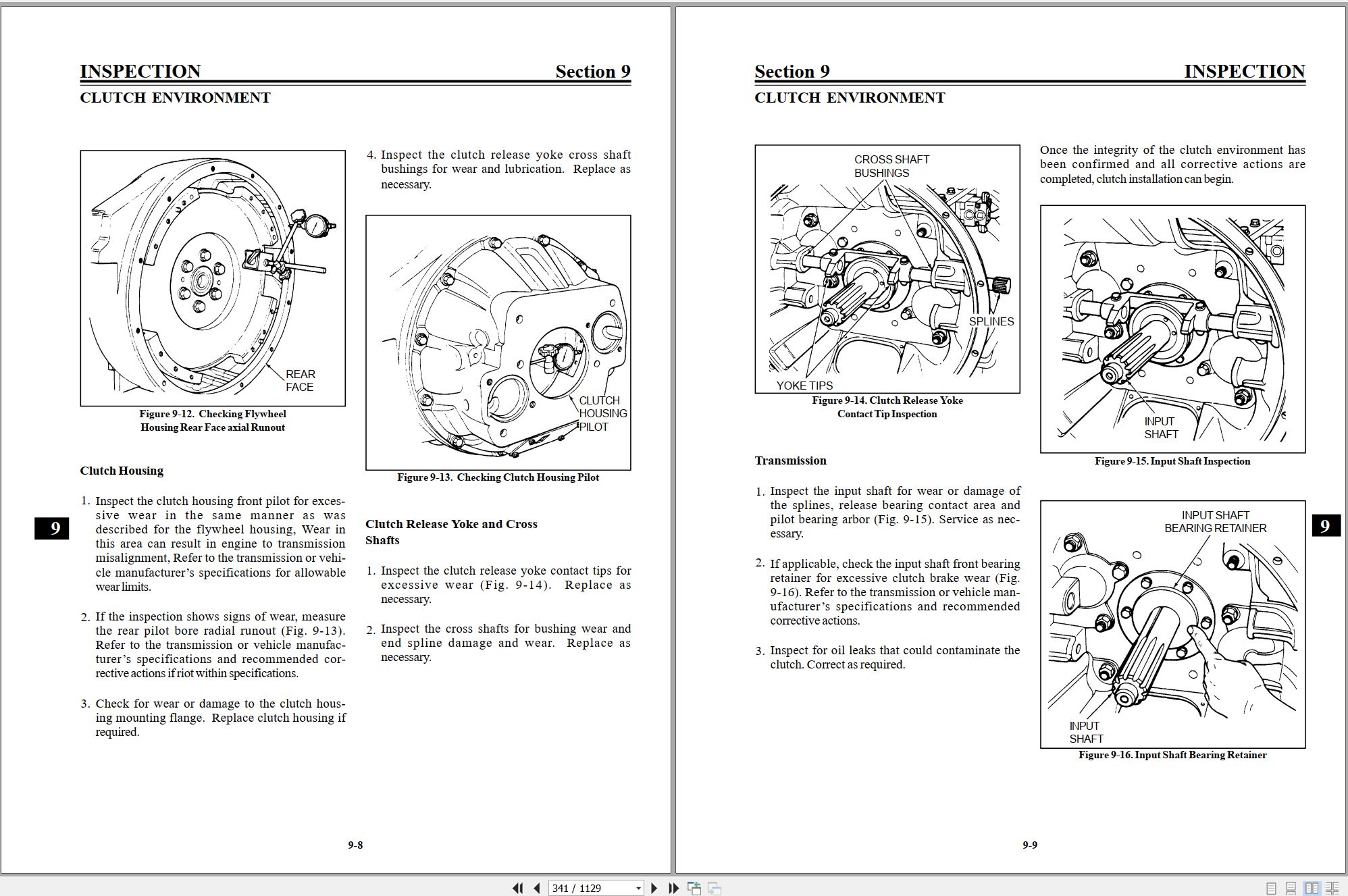

Gradall Excavator XL3100EPA Technical Service Manual (2)

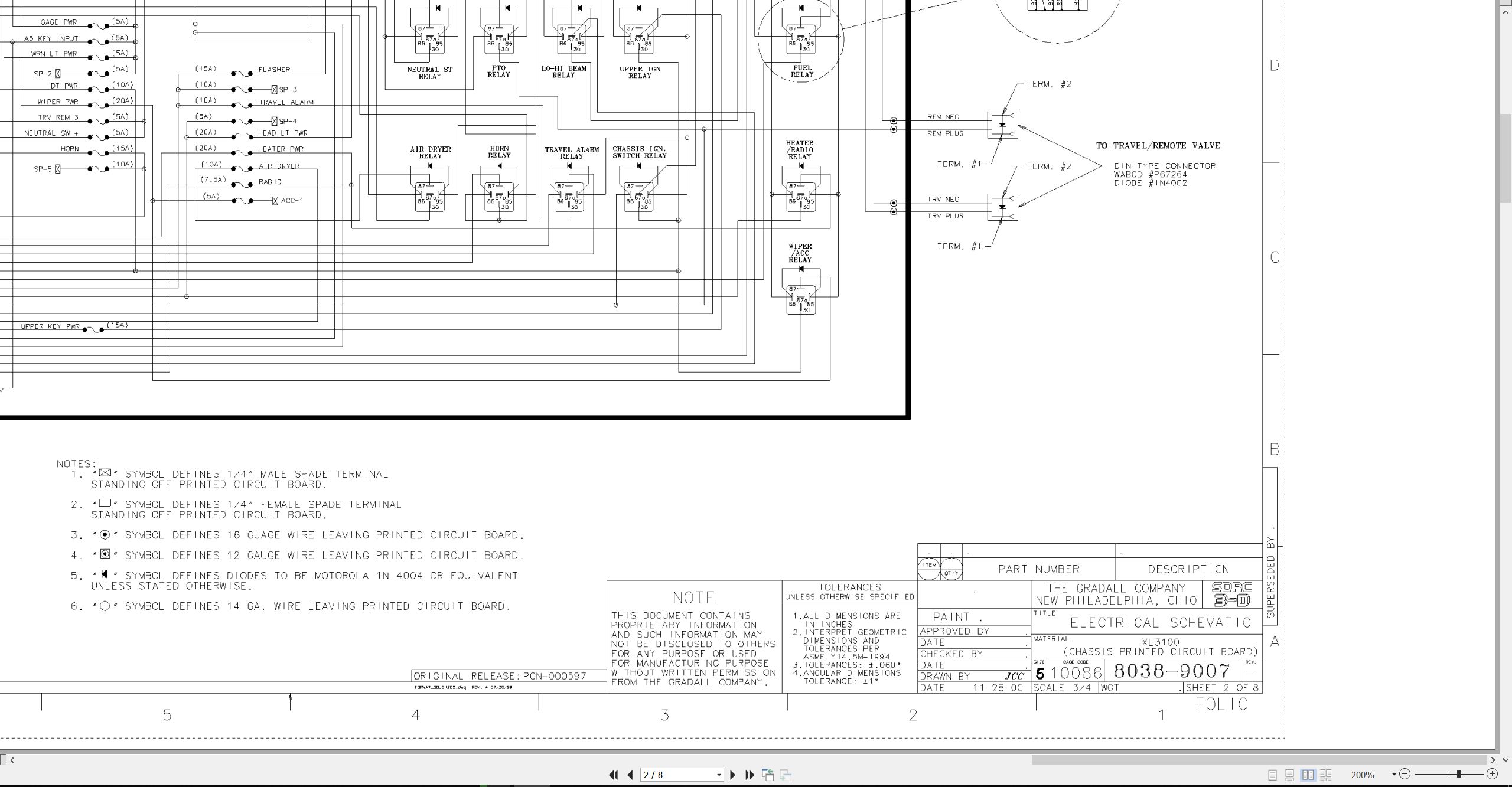

Gradall Excavator XL3100EPA Technical Service Manual (3)

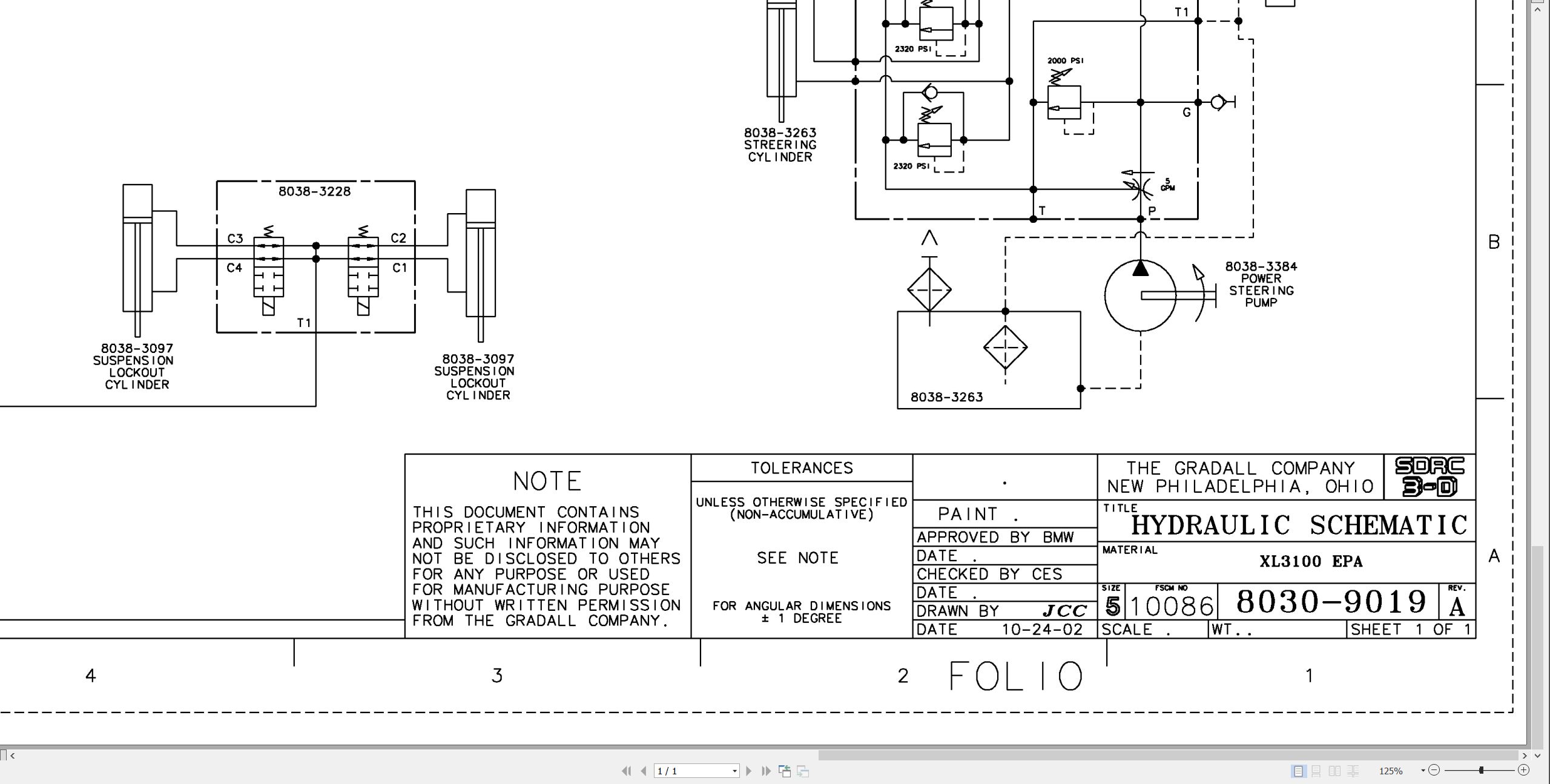

Gradall Excavator XL3100EPA Technical Service Manual (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Gradall Excavator XL3100EPA Technical Service Manual

Size: 108.81 MB

Format: PDF

Language: English

Brand: Gradall

Type of Machine: Highway-speed Wheeled Hydraulic Excavator

Type of Manual: Air Schematic, Combined Service Manual, Electrical Schematic, Hydraulic Schematic, Service Manual, Technical Manual

Model: Gradall XL3100EPA Excavator

30 USD

Tags: Gradall Excavator Manual, Gradall Technical Service Manual, XL3100EPA

Description

Description

List of Files:
XL3100EPA Combined Service Manual 3101-4002 2004.pdf (1129 Pages)
Contents:
3101-4002 XL3100 EPA COMBINED SERVICE MANUAL
OPERATOR INSTRUCTION
20218 Owner/Operator Manual
HYDRAULIC TEST & ADJUSTMENT
8030-9019 Hydraulic Schematic
RDE92703-01-R Rexroth Main Pump Repair Manual
RDE 92711-02-R Rexroth Main Pump Repair A10VSO*
RDE91001-01-R Rexroth Swing Motor/Remote Drive Motor
RA64555 Rexroth Joystick
8030-9021 Start Up Procedure
MECHANICAL ADJUSTMENT
F36758 Ausco “C” Series Failsafe Brake
S6A Fairfield Torque-Hub Final Drives Service Manual
MISCELLANEOUS
8048-9007 Electrical Schematic
F114004 Donaldson Cyclopac Service Procedure
8038-9001 Chassis Electrical Schematic
STEERING
WA-TRW 1108 TRW Steering Gear Service Manual
I-3143-S Vickers Vane Pump Overhaul
CLUTCH
P.N. 340186R Valeo Clutch Service Manual
CLWP-1707-4 Eaton Spicer Angle Spring Clutches Service Manual
MAIN TRANSMISSION
TRSM-0430 Eaton Fuller Heavy Duty Transmissions Service Manual
FRONT AXLE
MM12 Rockwell Front Drive Steering Axles Service Manual
TP-97117 Tie Rod & Cross Tube Assembly, Inspection & Maintenance
REAR AXLE
TSA-2-113 Rockwell Drive Axle Service Manual
TSA-2-112 Rockwell Axle Shafts Service Manual
FMM#5A Meritor Single Reduction Rear Differential Carriers
MM1 Lubrication Service Manual
TP-9303 Meritor Rockwell Advanced Lube Rear Drive Axles
TP-9238 Meritor Rockwell Driver-Controlled Differential Lock
DRIVE LINE
3264-2 Spicer U-Joints & Drive Shaft Service Manual
TOL-006-95 Spicer U-Joints & Driveshaft Service Manual
BRAKE SYSTEM
8038-9008 Air Diagram
8038-9009 Air Schematic
MM#4 Meritor Cam Brakes Service Manual
SD-08-2403 Bendix AD-1 & AD-2 Air Dryers
MM#4B Rockwell Automatic Slack Adjuster
ABA-10003 Haldex Automatic Brake Adjusters
4071 MGM Brakes
BRSM-0022 Dana Automatic Slack Adjuster
WHEEL & RIM
0009 Rim & Wheel Safety
IM-298 Webb Service Manual
MISCELLANEOUS
F114005 Donaldson Air Cleaner
20013 Gradall Safety Manual
XL3100 XL3100EPA Technical Manualual 31014009 2011.pdf (479 Pages)
Contents:
31014009_XL3100 & XL3100EPA Technical Manual_5-11
ELECTRICAL
XL3100 Electrical Circuits (Cummins Engine)
XL3100EPA Electrical Circuits (Detroit Engine)
XL3100EPA Engine Troubleshooting Guide
XL3100EPA Engine Codes
HYDRAULIC
XL3100 Hydraulic System Operation
XL3100 Pressure Setting Guide
XL3100EPA Pressure Setting Guide
XL3100 Final Test Report (80309013)
XL3100EPA Final Test Report (80309022)
Start-Up Procedure (80309021)
MECHANICAL
Remote Drive PTO Removal & Placement
Maintenance Manual
Climate Control Systems
XL3100 Air System
Product Support Bulletin – Engine Oil Pan Drain Plugs
Product Support Bulletin – A/C System Reciever Dryers
Product Support Bulletin – A/C Systems & Compressed Air
Product Support Bulletin – A/C System Moisture Contamination
Product Support Bulletin – Swing Transmission Lube Check and Refill Requirements
Transmission Service Manual (Eaton)
Hydraulic Heater Circuit & A/C Circuit Operation
Product Support Bulletin – Clutch Adjustment Procedure
SCHEMATICS
(80309004) XL3100 Hydraulic Schematic (Cummins Engine)
(80309019) XL3100EPA Hydraulic Schematic (Detroit Engine)
(80389007) XL3100 Electrical Schematic (Cummins Engine)
(80489007) XL3100EPA Electrical Schematic (Detroit Engine)
(80389008 & 80389009) XL3100EPA Air Diagram & Schematic (Detroit Engine)
XL3100EPA Hydraulic Schematic 80309019.pdf (1 Pages)
XL3100 Chassis XL3100EPA Electrical Schematic 80389007 2001.pdf (8 Pages)
XL3100EPA Air Schematic 80389009.pdf (1 Pages)
XL3100EPA XL4100II Chassis Dash Panels Electrical Schematic 80489007.pdf (9 Pages)
XL3100EPA XL4100 XL4100II Electrical Schematic 80489008.pdf (9 Pages)
