Gradall Excavator XL4000 Operators Parts Technical Manual

Description

List of Files:
XL3000 XL4000 XL5000 50 60 Rotary Cutter 48 Flail Cutter Operator Parts Manual 03-10 02985519C.pdf (110 Pages)
Contents:
General Safety Instructions and Practices
Operator Safety Instructions and Practices
Equipment Operation Safety Instructions and Practices
Maintenance and Service Safety Instructions and Practices
Transporting Safety Instructions and Practices
Decal Description
Federal Laws and Regulations
Attention Owner/Operator
ALAMO INDUSTRIAL ROTARY CUTTER HEAD AND FLAIL HEAD OPERATING INSTRUCTIONS
1. OPERATOR REQUIREMENTS
2. POWER UNIT
3. GETTING ON AND OFF THE POWER UNIT
4. STARTING THE POWER UNIT
5. CONNECTING ATTACHING HEAD TO THE BOOM
6. PRE-OPERATION INSPECTION AND SERVICE
7. DRIVING THE POWER UNIT AND IMPLEMENT
8. OPERATING THE BOOM UNIT AND ATTACHED HEAD
9. POWER UNIT, BOOM, AND ATTACHED HEAD STORAGE
10. TRANSPORTING THE POWER UNIT AND IMPLEMENT
Service of Spindle Housing (FIGURE Mnt-0006)
Flail Axe Head
TAPER BUSHING & SHEAVE INSTALLATION
General Information on Flail Mower Vibration
FLAIL MOWERS
INFORMATION BULLETIN NO. 5
The cutter shaft will run out of balance if:
Start up Procedure
1. Read all safety instructions. Decals on the Rotary Head warn you of particular and multiple hazards. Many decals are attached close to the part of the Rotary Head where there is a possible hazard. Read and make sure you understand the safety messa…
2. Before operating, read all the safety and operating instructions in the Operators Manual for both the Power Unit and mower.
3. When the hydraulic tank has been filled and the mower unit properly assembled, the unit should be started up. NOTE: Make sure that no materials, tools, or jacks, have been left under the mower head. Make sure the front and rear of the mower are pr…
4. Start the Power Unit and idle at a slow engine speed until oil is being pumped.
5. Engage the Cutter Control Valve at low engine rpm and run the mower slowly for a short period until all air is removed from the hoses. Keep all persons WELL CLEAR of mower since Blades can THROW OBJECTS with great velocity for a considerable dista…
6. With the area clear of any ground and overhead obstructions, work each cylinder on the boom one at a time, several times, to expel any air in the Hoses and Cylinders.
7. Run the Mower Head for 5 minutes. While the Power Unit is idling, blocked, wearing protective clothing and eye protection, CAREFULLY check for leaking hydraulic fittings, hoses and ports at this point with a piece of cardboard ,DO NOT USE YOUR HAN…
8. Check the fluid level in the Hydraulic Tank on the Power Unit, and add oil if required. As the air has been forced out of the Cylinders and Hoses, it goes into the Hydraulic Tank and reduces the oil level. Check your Power Units Operators Manual f…
Lubrication Information
Blades
Hardware
Proper Torque for Fasteners
Keep children away from danger all day, every day…
Equip tractors with rollover protection (ROPS) and keep all machinery guards in place…
Please work, drive, play and live each day with care and concern for your safety and that of your family and fellow citizens.
TO THE OWNER/OPERATOR/DEALER
ALAMO-INDUSTRIAL
LIMITED WARRANTY
02985519P_Gradall 50 Cutter, 60 Rotary & 48 Flail Mowers_Parts Manual_8-10
XL4000 XL5000 Starting Excavator Technical Manual Vol 1 2460-4122 2002.pdf (207 Pages)
Contents:
2460-4122 EXC Technical MANUAL VOLUME 1
HYDRAULIC SYSTEM OPERATIONS
29410 XL41/51 Hydraulic System Operation
29411 XL42/52 Hydraulic System Operation
HYDRAULIC PRESSURE SETTING
29412 XL41 Hydraulic Pressure Setting
29413 XL42 Hydraulic Pressure Setting
29414 XL51 Hydraulic Pressure Setting
29415 XL52 Hydraulic Pressure Setting
29416 XL Series Hydraulic Pressure Setting (Supplemental Pressures)
CENTER PIN REBUILD
20026 XL4000/5000 Center Pin Rebuild Manual
XL4000 XL5000 Staring Excavator Technical Manual Vol 2 2460-4144 2002.pdf (327 Pages)
Contents:
2460-4144 EXC Technical MANUAL VOLUME 2
HYDRAULIC SYSTEM OPERATIONS
29703 XL41/51 Hydraulic System Operations
29704 XL42/52 Hydraulic System Operations

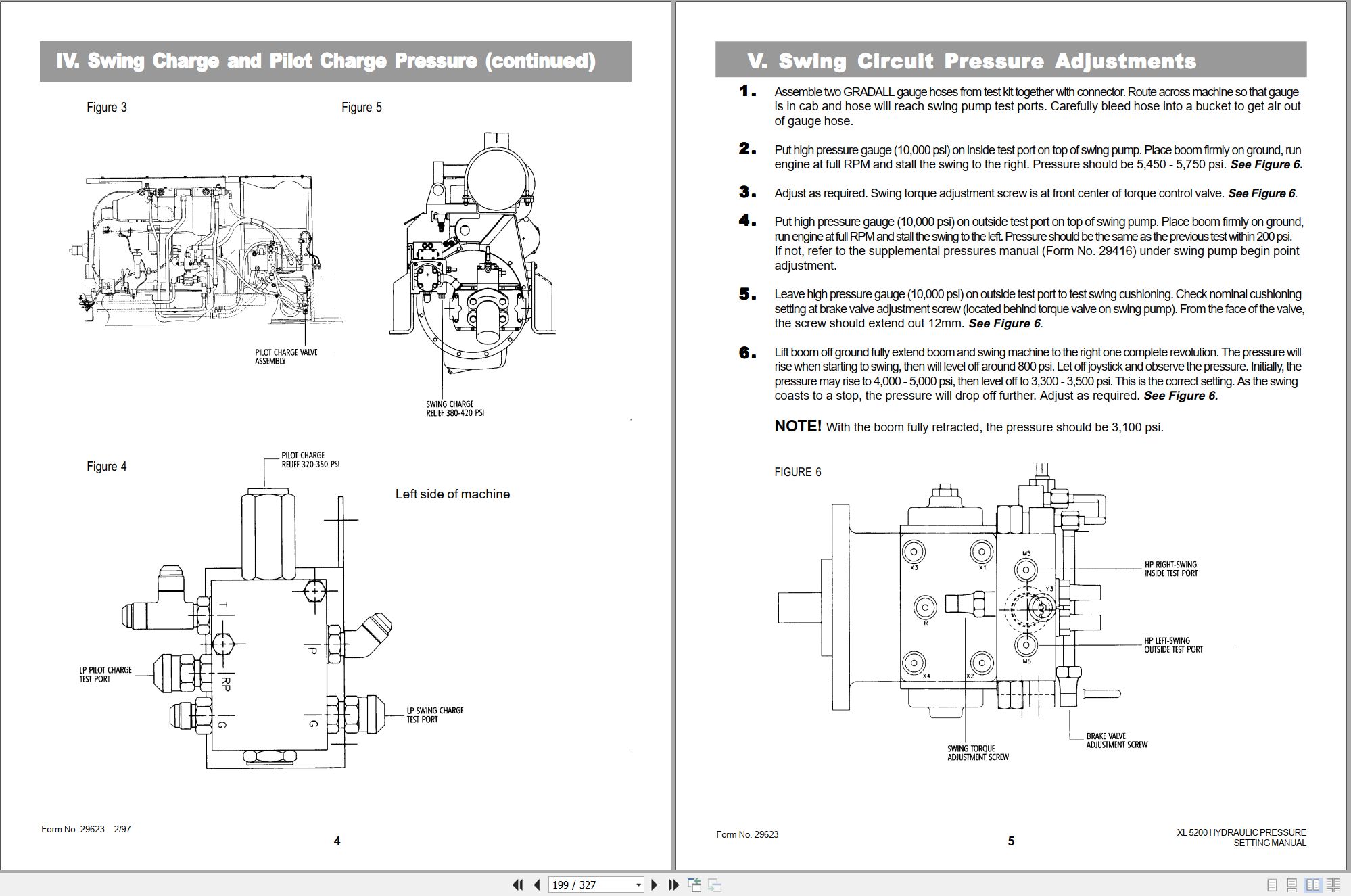

HYDRAULIC PRESSURE SETTING
29620 XL41 Hydraulic Pressure Setting
29621 XL42 Hydraulic Pressure Setting
29622 XL51 Hydraulic Pressure Setting
29623 XL52 Hydraulic Pressure Setting
29705 XL4000/5000 Series Hydraulic Pressure Setting (Supplemental Pressures)
29627 XL5110 Hydraulic Pressure Setting
29626 XL5110 Hydraulic Pressure Setting (Supplemental Pressures)
29624 XL5210 Hydraulic Pressure Setting
29625 XL5210 Hydraulic Pressure Setting (Supplemental Pressures)
SCHEMATICS
8099-9014 XL5110 Hydraulic Schematic
80919015 XL5210SI Hydraulic Schematic
80919014 XL5200 Hydraulic Schematic

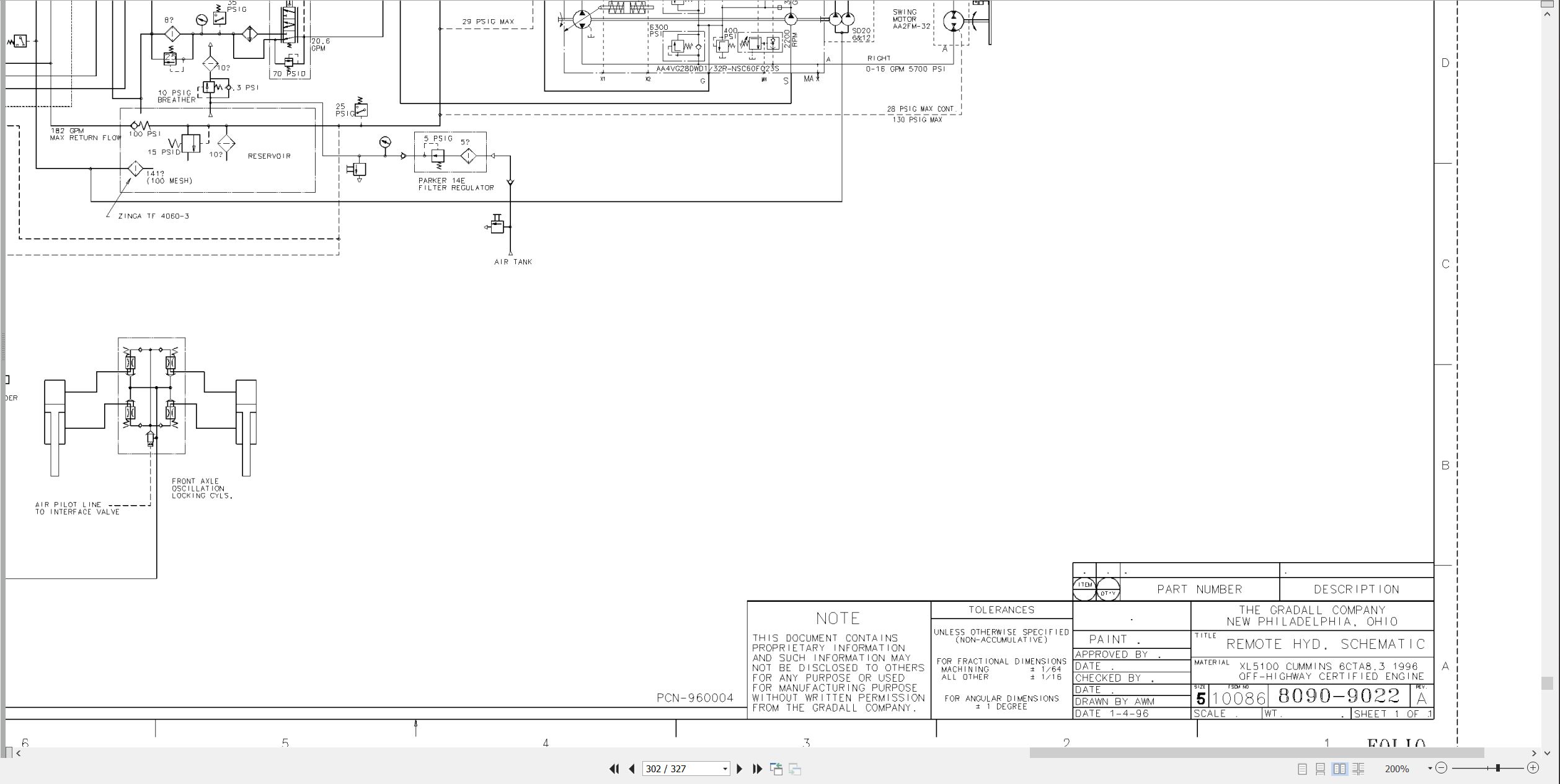

80909022 XL3100 Remote Hydraulic Schematic
80619009 XL4200 Hydraulic Schematic
80609015 XL4100 Remote Hydraulic Schematic
CENTER PIN REBUILD
20026 XL4000/5000 Center Pin Rebuild

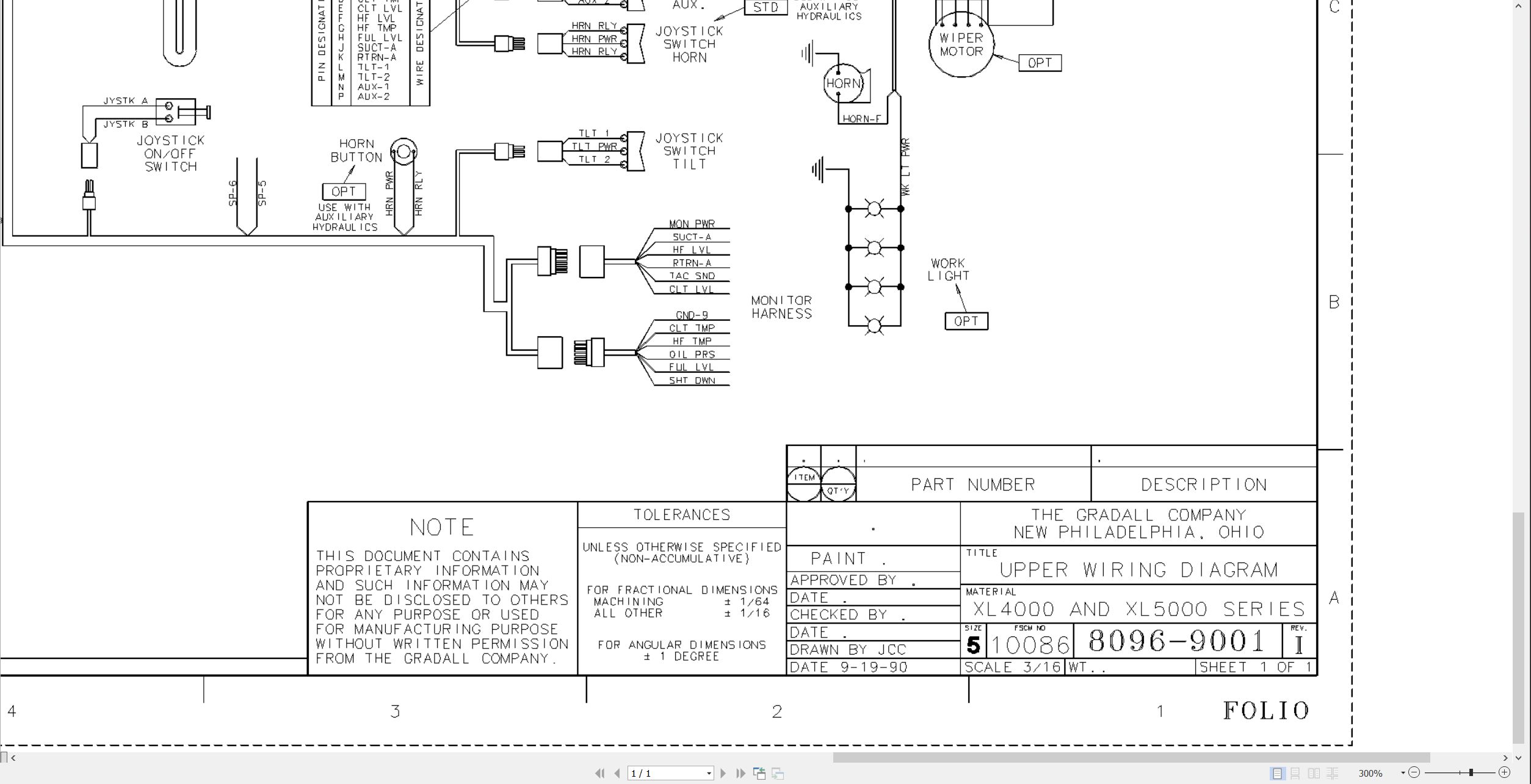

XL4000 XL5000 Upper Electrical Schematic 80969001 2001.pdf (1 Pages)
