Name: Jacobsen Mower HR-6010 Maintenance Manual 24683G-GB-R3 2009
SKU: 646539
Availability: InStock

Jacobsen Mower HR 6010 Maintenance Manual 24683G GB R3 2009 (1)

Jacobsen Mower HR 6010 Maintenance Manual 24683G GB R3 2009 (2)

Jacobsen Mower HR 6010 Maintenance Manual 24683G GB R3 2009 (3)

Jacobsen Mower HR 6010 Maintenance Manual 24683G GB R3 2009 (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Jacobsen Mower HR-6010 Maintenance Manual 24683G-GB-R3 2009

Size: 1.21 MB

Format: PDF

Language: English

Brand: Jacobsen

Type of Machine: Mower

Type of Manual: Maintenance Manual, Hydraulic Diagram, Wiring Diagram

Model: Jacobsen HR-6010 Mower

Series: EB – Engine Perkins 404-22T

Product codes: LHAK003

Part Number: 24683G-GB-R3

Publication Date: 2009

Number of Pages: 30 Pages

10 USD

Tags: HR-6010, Jacobsen Maintenance Manual, Jacobsen Mower Manual

Description

Description

Contents:
1 Safety Instructions
1.1 Operating Instructions
1.2 Safety Signs
1.3 Starting The Engine
1.4 Driving The Machine
1.5 Transporting
1.6 Leaving The Driving Position
1.7 Slopes
1.8 Blocked Cutting Cylinders
1.9 Adjustments, Lubrication And Maintenance
2 Lubrication And Maintenance
Lubrication And Maintenance Charts
2.1 Engine: First 50 / Every 250 Hours
2.2 Machine: Every 50 Hours
2.3 Machine: Every 400 Working Hours

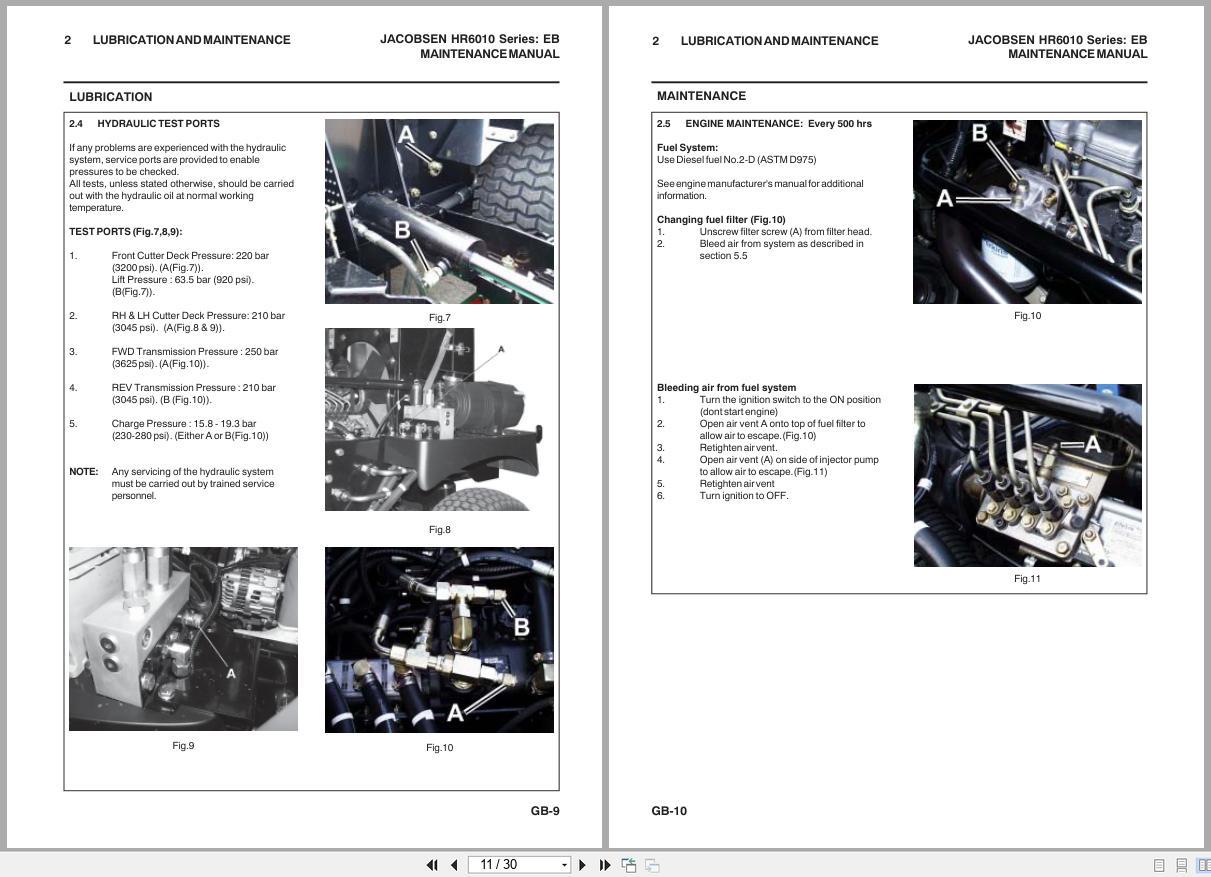

2.4 Hydraulic Test Ports
2.5 Engine Maintenance: Every 250 Hrs
2.6 Engine Maintenance: Every 400 Hrs
2.7 Machine Maintenance
2.8 End Of Season Servicing
3 Adjustments
3.1 Speed Limiter
3.2 Rear Wheel Toe-In
3.3 Alternator
4 Cutter Deck Adjustments
4.1 Cutter Deck Tension
4.2 Blade Sharpening & Removal
5 Troubleshooting
5.1 General
6 Schematics

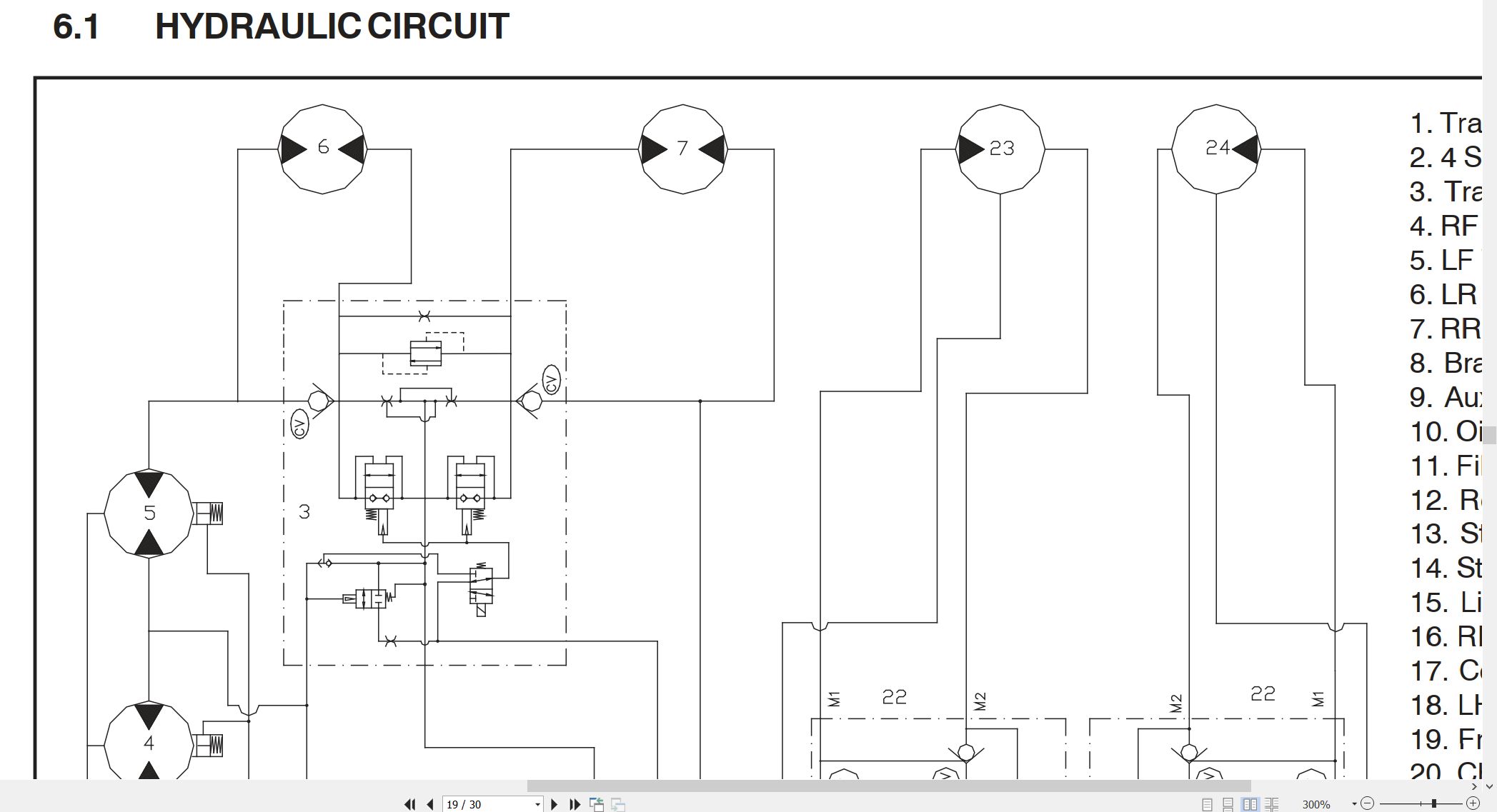

6.1 Hydraulic Circuit
6.2 Electrical Circuit Instrument

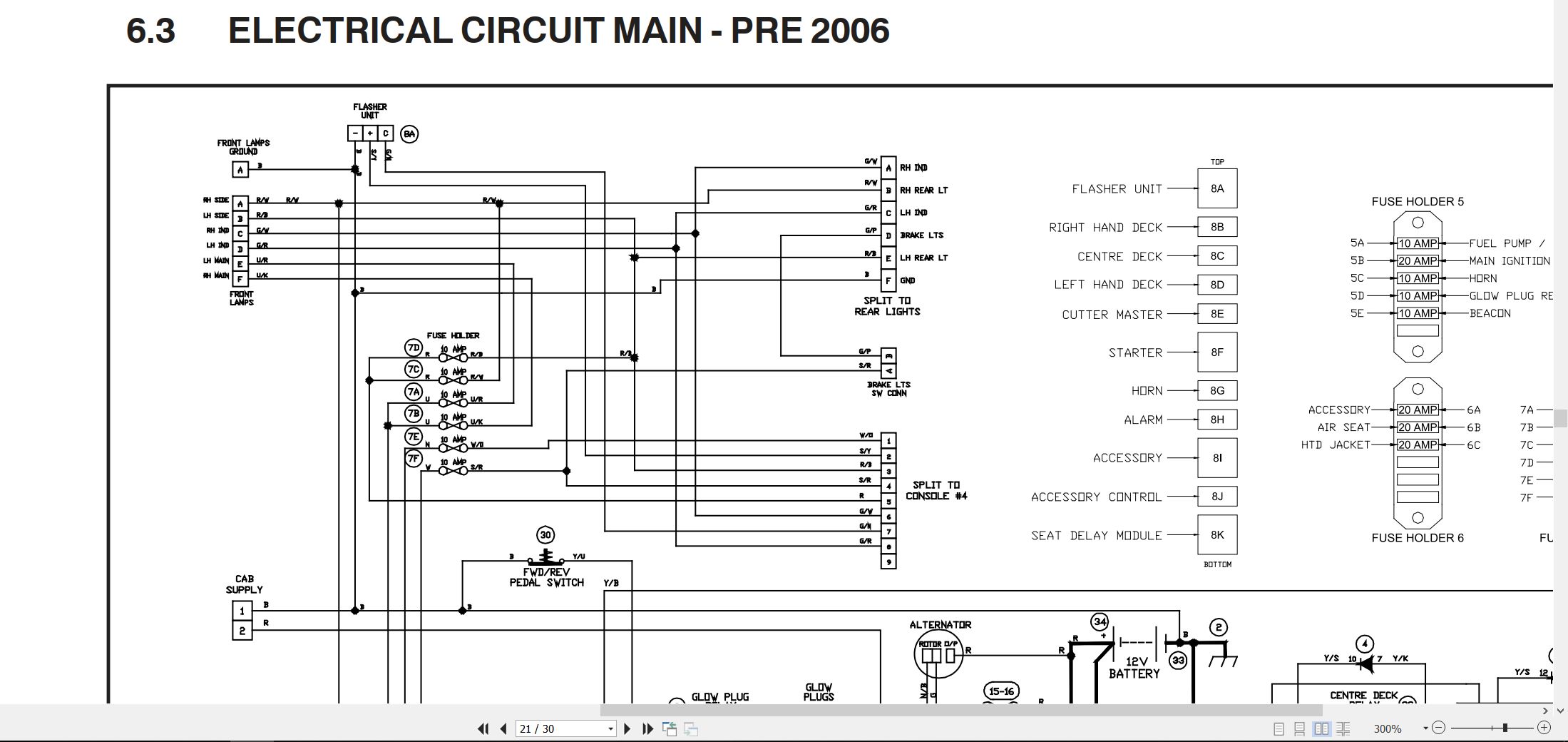

6.3 Electricalcircuit Main – Pre 2006
6.4 Fuse Positions – Main Fuses
6.5 Electrical Circuit Main – Post 2006
6.6 Relay Positions
