Gradall Excavator XL5000 Operators Parts Technical Manual
Size: 29.64 MB
Format: PDF
Language: English
Brand: Gradall
Type of Machine: Telescopic Hydraulic Excavator
Type of Manual: Electrical Schematic, Operator Manual, Parts Manual, Hydraulic Schematic, Technical Manual
Model: Gradall XL5000 Telescopic Hydraulic Excavator
30 USD
- Description
Description
List of Files:
XL3000 XL4000 XL5000 50 60 Rotary Cutter 48 Flail Cutter Operator Parts Manual 03-10 02985519C.pdf (110 Pages)
Contents:
Safety Section
Introduction Section
Operation Section
Maintenance Section
XL4000 XL5000 Starting Excavator Technical Manual Vol 1 2460-4122 2002.pdf (207 Pages)
Contents:
2460-4122 EXC TECHNICAL MANUAL VOLUME 1
HYDRAULIC SYSTEM OPERATIONS
29410 XL41/51 Hydraulic System Operation
29411 XL42/52 Hydraulic System Operation
HYDRAULIC PRESSURE SETTING
29412 XL41 Hydraulic Pressure Setting
29413 XL42 Hydraulic Pressure Setting
29414 XL51 Hydraulic Pressure Setting
29415 XL52 Hydraulic Pressure Setting
29416 XL Series Hydraulic Pressure Setting (Supplemental Pressures)
CENTER PIN REBUILD
20026 XL4000/5000 Center Pin Rebuild Manual

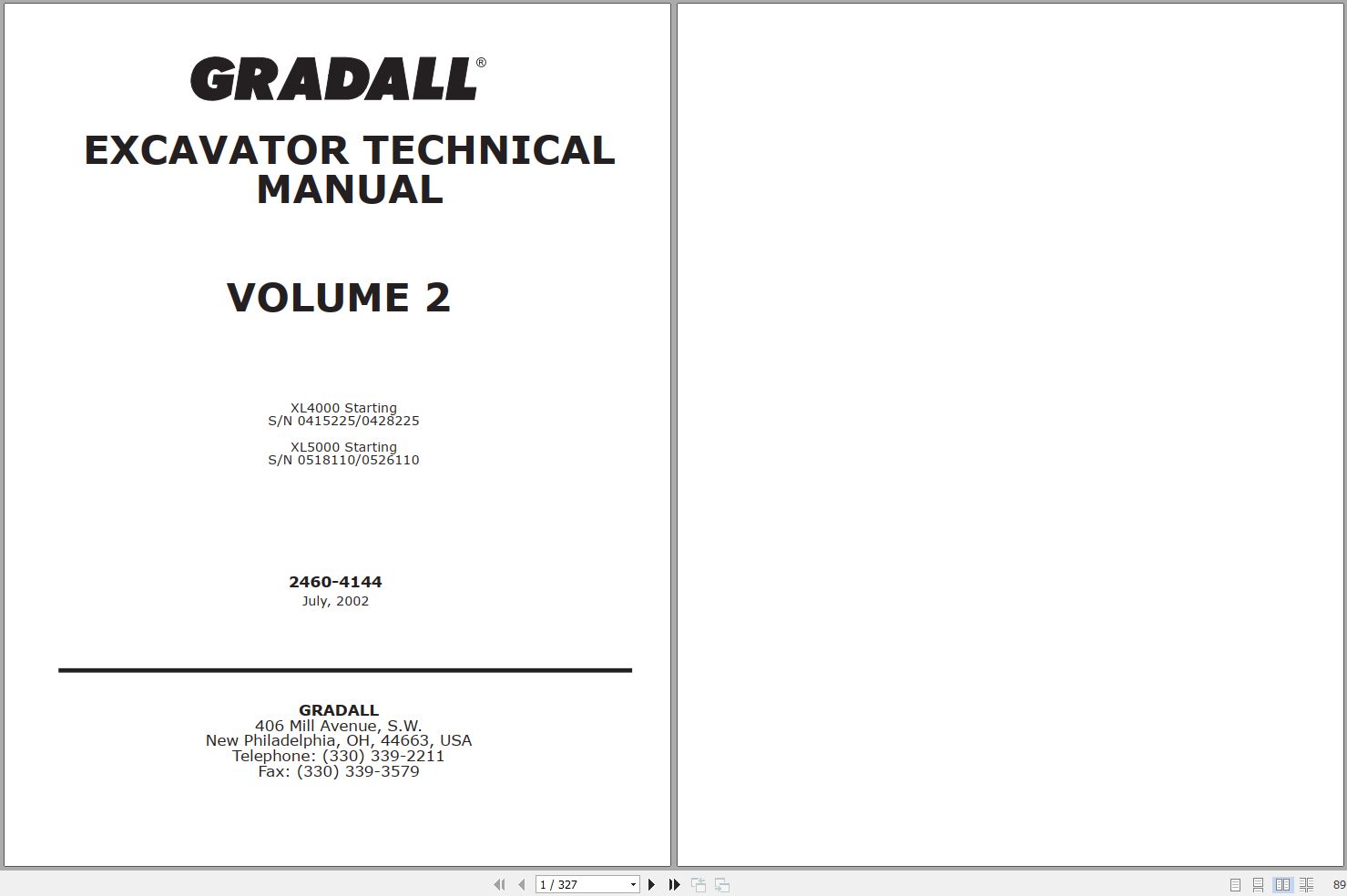

XL4000 XL5000 Staring Excavator Technical Manual Vol 2 2460-4144 2002.pdf (327 Pages)
Contents:
2460-4144 EXC TECHNICAL MANUAL VOLUME 2
HYDRAULIC SYSTEM OPERATIONS
29703 XL41/51 Hydraulic System Operations
29704 XL42/52 Hydraulic System Operations
HYDRAULIC PRESSURE SETTING
29620 XL41 Hydraulic Pressure Setting
29621 XL42 Hydraulic Pressure Setting
29622 XL51 Hydraulic Pressure Setting
29623 XL52 Hydraulic Pressure Setting
29705 XL4000/5000 Series Hydraulic Pressure Setting (Supplemental Pressures)
29627 XL5110 Hydraulic Pressure Setting
29626 XL5110 Hydraulic Pressure Setting (Supplemental Pressures)
29624 XL5210 Hydraulic Pressure Setting
29625 XL5210 Hydraulic Pressure Setting (Supplemental Pressures)
SCHEMATICS

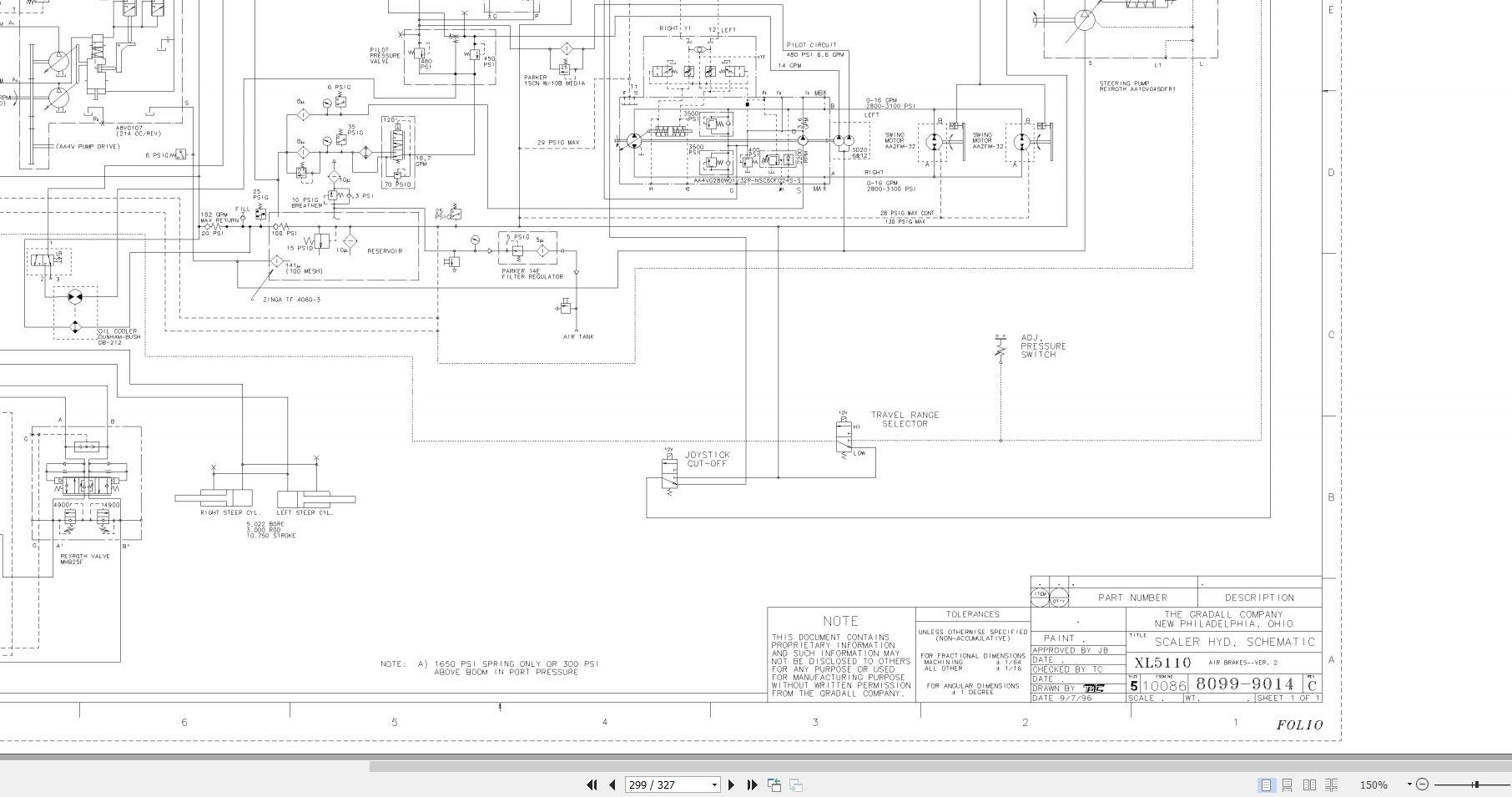

8099-9014 XL5110 Hydraulic Schematic
80919015 XL5210SI Hydraulic Schematic
80919014 XL5200 Hydraulic Schematic
80909022 XL3100 Remote Hydraulic Schematic
80619009 XL4200 Hydraulic Schematic
80609015 XL4100 Remote Hydraulic Schematic
CENTER PIN REBUILD
20026 XL4000/5000 Center Pin Rebuild

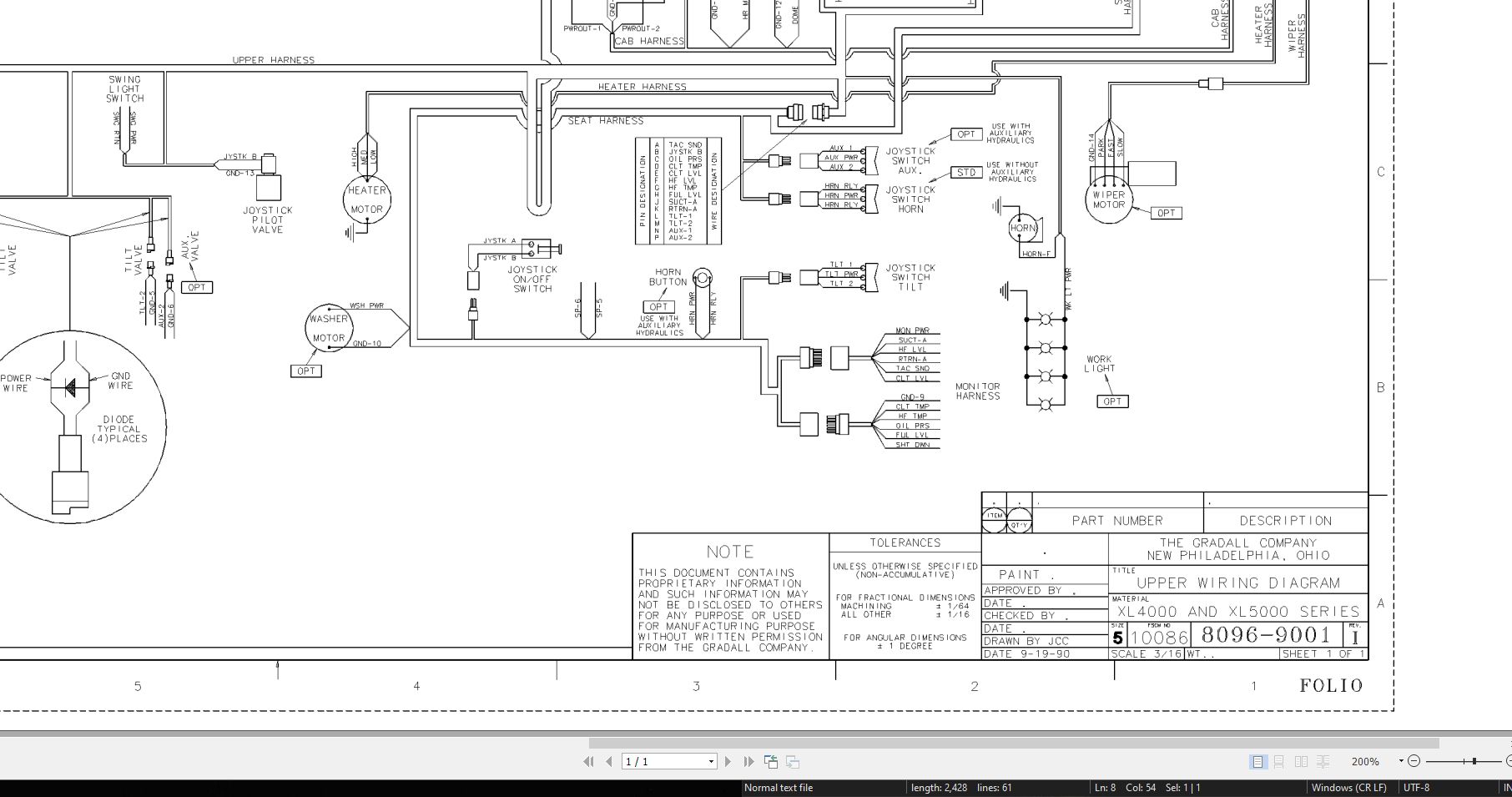

XL4000 XL5000 Upper Electrical Schematic 80969001 2001.pdf (1 Pages)
